WARRANTY
- 30 days return policy
- 24 month product warranty
- Free consultation
- 30 days return policy
- 24 month product warranty
- Free consultation
- Weight approx.
- 675 kg
- Spindle speed
- 1800 / 3000 / 6000 / 9000 rpm
- Machine dimension (W x D x H)
- 2600 x 2700 x 1280 mm
- Motor power output S1 100%
- 2,8 kW (3,8 HP)
- Motor power input S6 40%
- 3,9 kW (5,3 HP)
- Voltage
- 400 V
- Dust extraction outlet
- 95 mm
- Table size
- 1300 x 380 mm
- Table height
- 950 mm
- Table extension
- 310 x 350 mm
- Table length
- 750 / 930* mm
- Shaft rotation speed
- 4100 rpm
- Planer shaft diameter
- 95 mm
- Planer fence
- 1100 x 150 mm
- Fence tiltable
- 90° bis 45°
- Max. cutting depth
- 5 mm
- Working width
- 305 mm
- Working thickness, min./max.
- 5 - 230 mm
- Feed speed
- 6 m/min
- Cutting length
- 2600 mm
- Height adjustment
- 125 mm
- Sliding table
- 2600 x 270 mm
- Max. sawblade diameter
- 315 x 30 mm
- Max. cutting height 90° / 45°
- 100 / 80 mm
- Cutting width on rip fence
- 630 mm
- Speed main sawblade
- 4500 rpm
- Speed scoring sawblade
- 8500 rpm
- Spindle diameter
- 30 mm
- Table opening
- 80 / 110 / 150 / 200 mm
- Working length of spindle
- 110 mm
- Max. tool diameter
- 180 mm
- Cutter knives
- 4 pcs.
- Square table with roll
- 880 x 580 mm
- Westcott drill chuck
- 0 - 16 mm
- Max. drill depth
- 125 mm
- Drill width
- 175 mm
- Planer width
- 310 mm
- Scoring sawbalde
- 90 x 20 mm
- Spindle tiltable
- 0° to -45°

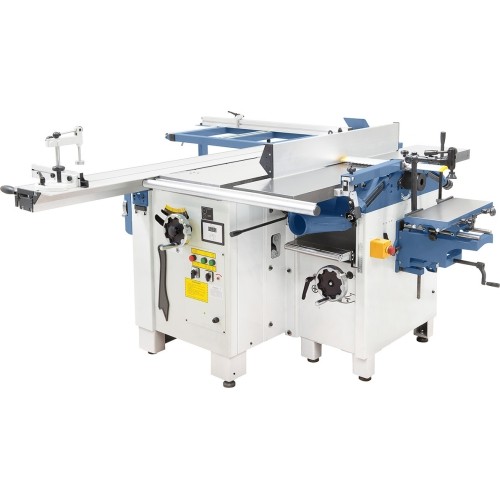

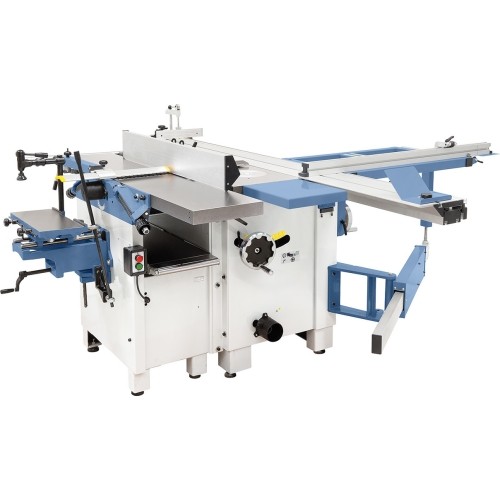

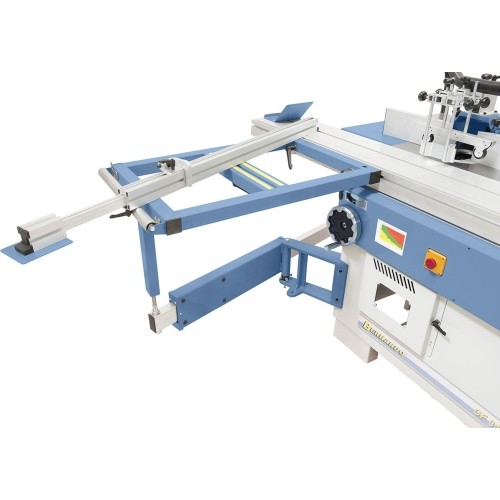

Universalios daugiafunkcinės staklės Bernardo CF 310 F - 2600
1055967
€9,121.00
Tax included
Monthly payment from 224.11€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 675 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak
(€40.99) Weight: 675 kg.
Description
Properties
- Powerful drive motors guarantee optimal results even at continuous operation
- Square table with roller for convenient handling of oversize workpieces
- All aluminium parts (sliding table, fences,...) are anodized

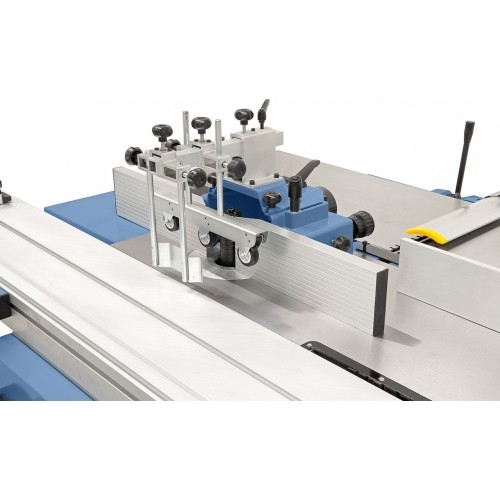

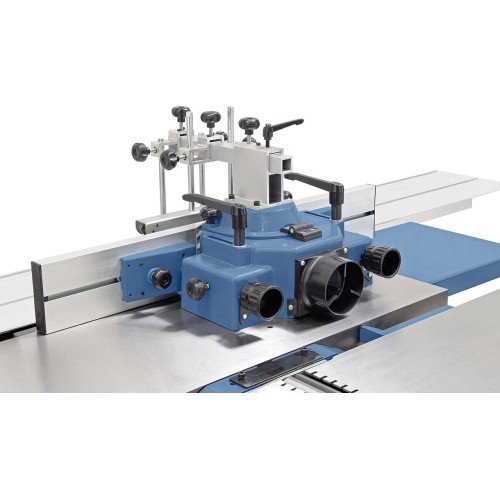

- Moulding fence features aluminium fence rails on both sides incl. fine adjustment
- Large, grey cast-iron moulder unit, tilts from 0° to -45°

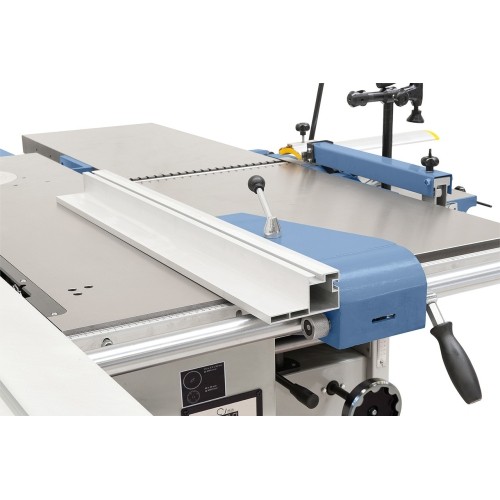

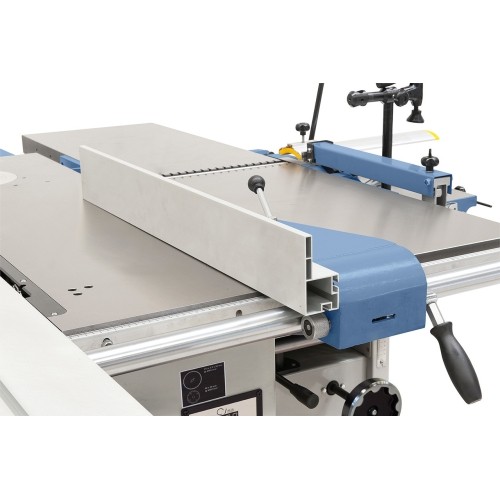

- Extractable telescopic fence with end stop and fine adjustment

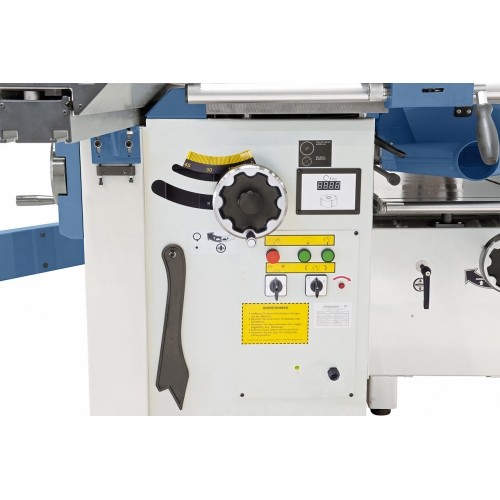

- Milling spindle speed on digital display allows for quick and easy readout
- Solid planer fence with prism guide, tiltable from 90º to 45º
- Maintenance-free 4-knife cutterblock with planer knives in HSS – 18 % quality
- Solid moulding fence with dust extraction outlet 100 mm
- Dynamically balanced milling spindle ensures precise running
Standard accessories
- Cutter knives 310 x 30 x 3 mm
- Thicknesser table extension with roll
- Mortising unit
- Westcott drill chuck 0 – 16 mm
- Eccentric holder
- Carbide sawblade 315 x 3,0 x 30 mm / 40T
- Scoring sawblade 90 x 3,0 x 20 mm / 12T

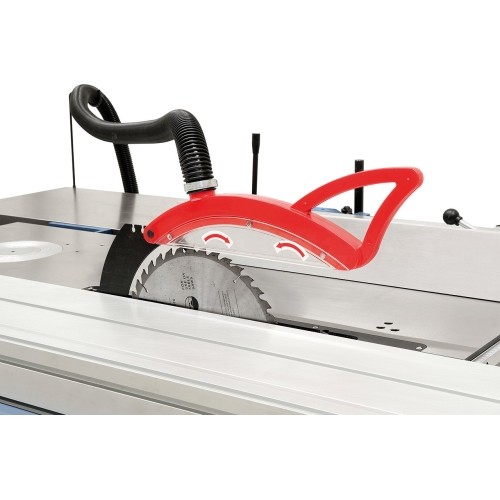

- Protective cover with dust extraction outlet and tube
- Mitre fence with eccentric holder
- End stop
- Table extension
- Telescopic fence with stop
- Square table with roll
- Moulding fence
- Spindle with left and right turning
- Digital speed indication of moulding spindle
- Push handle
- 2 pcs. push stick
- Tools
Technical specifications
|

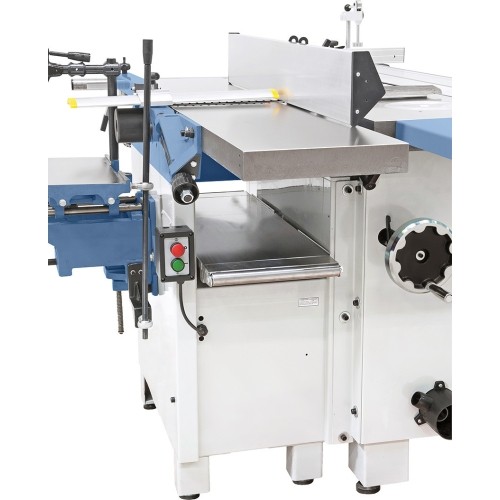

Planer |
|
|
Planer width |
310 mm |
|
Table length |
1600 mm |
|
Table height |
950 mm |
|
Shaft rotation speed |
4100 rpm |
|
Cutter knives |
4 pcs. |
|
Planer shaft diameter |
95 mm |
|
Planer fence |
1100 x 150 mm |
|
Fence tiltable |
90° bis 45° |
|
Max. cutting depth |
5 mm |
|
Motor power output S1 100% |
2,2 kW (3,0 HP) |
|
Motor power input S6 40% |
3,0 kW (4,0 HP) |
|

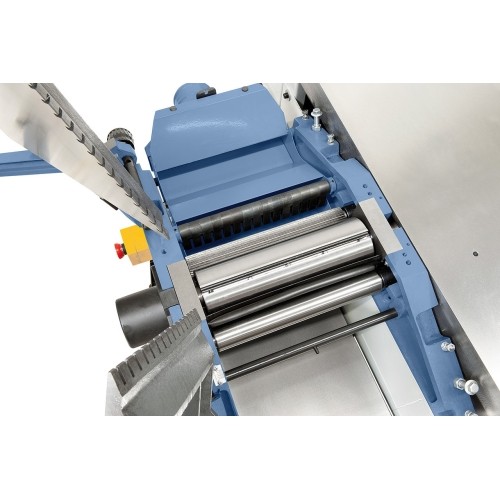

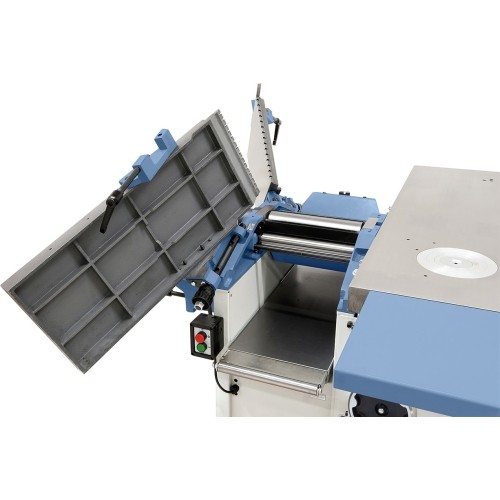

Thicknesser |
|
|
Table length |
750 / 930* mm |
|
Working width |
305 mm |
|
Working thickness, min/max. |
5 - 230 mm |
|
Max. cutting depth |
5 mm |
|
Feed speed |
6 m/min |
|
Dust extraction outlet |
100 mm |
|

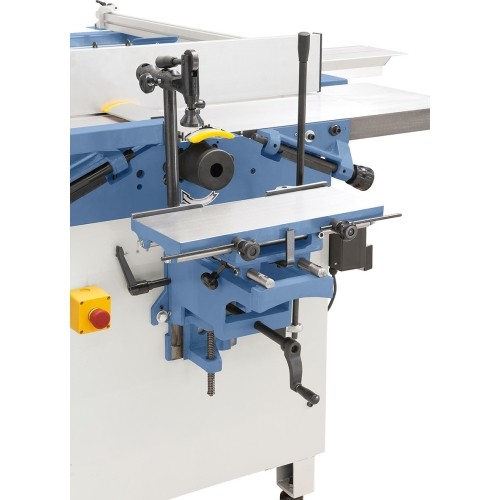

Mortising unit |
|
|
Table size |
450 x 190 mm |
|
Westcott drill chuck |
0 - 16 mm |
|
Max. drill depth |
125 mm |
|
Drill width |
175 mm |
|
Height adjustment |
115 mm |
|

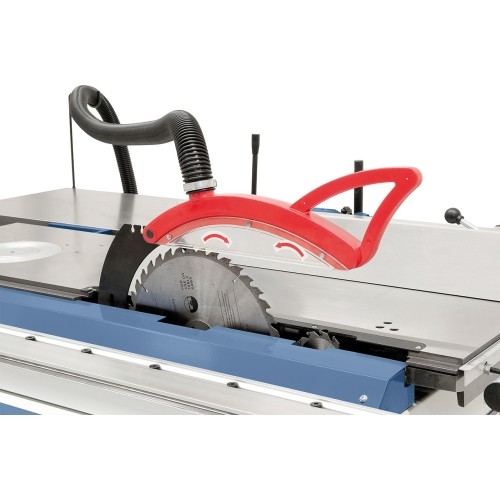

Circular saw |
|
|
Table size |
1300 x 380 mm |
|
Table height |
950 mm |
|
Table extension |
310 x 350 mm |
|
Square table with roll |
880 x 580 mm |
|
Sliding table |
2600 x 270 mm |
|
Cutting length |
2600 mm |
|
Max. sawblade diameter |
315 x 30 mm |
|
Max. cutting height 90° / 45° |
100 / 80 mm |
|
Cutting width on rip fence |
630 mm |
|
Speed main sawblade |
4500 rpm |
|
Speed scoring sawblade |
8500 rpm |
|
Scoring sawbalde |
90 x 20 mm |
|
Dust extraction outlet |
95 mm |
|
Motor power output S1 100% |
3,0 kW (4,0 HP) |
|
Motor power input S6 40% |
4,2 kW (5,7 HP) |
|

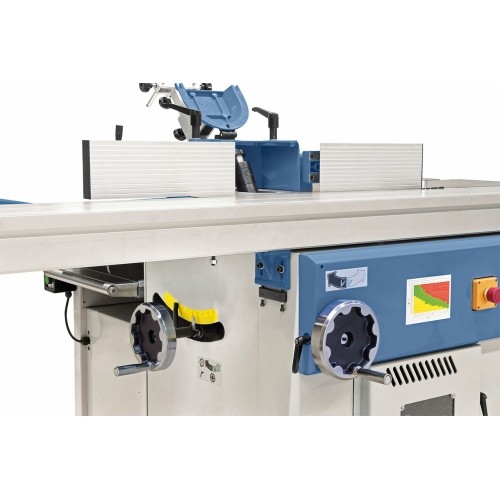

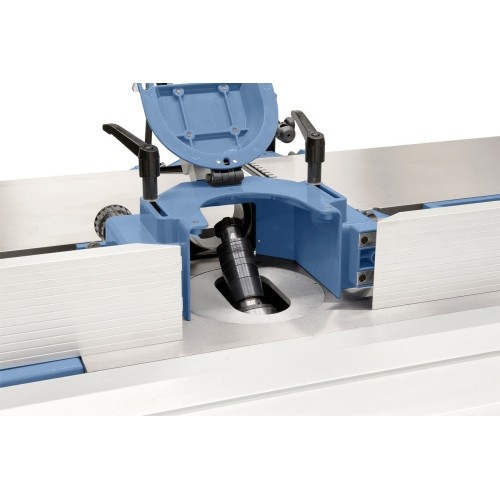

Spindle moulder |
|
|
Spindle diameter |
30 mm |
|
Height adjustment |
125 mm |
|
Spindle tiltable |
0° to -45° |
|
Table opening |
80 / 110 / 150 / 200 mm |
|
Working length of spindle |
110 mm |
|
Max. tool diameter |
180 mm |
|
Spindle speed |
1800 / 3000 / 6000 / 9000 rpm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
2,8 kW (3,8 HP) |
|
Motor power input S6 40% |
3,9 kW (5,3 HP) |
|
Voltage |
400 V |
|
Machine dimension (W x D x H) |
2600 x 2700 x 1280 mm |
|
Weight approx. |
675 kg |
* with thicknesser table extension
