WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
565 kg
Spindle speed
1800 / 3000 / 6000 / 9000 rpm
Machine dimension (W x D x H)
2000 x 2690 x 1250 mm
Motor power output S1 100%
2,8 kW (3,8 HP)
Motor power input S6 40%
3,9 kW (5,3 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table size
830 x 300 mm
Table height
850 mm
Table extension
505 x 300 mm
Planing width
310 mm
Table length
540 mm
Shaft rotation speed
4800 rpm
Planer shaft diameter
70 mm
Planer fence
1220 x 150 mm
Fence tiltable
90° to 45°
Max. cutting depth
2 mm
Working width
305 mm
Working thickness, min./max.
5 - 225 mm
Feed speed
6 m/min
Cutting length
2000 mm
Height adjustment
100 mm
Sliding table
2000 x 270 mm
Max. sawblade diameter
315 x 30 mm
Max. cutting height 90° / 45°
100 / 80 mm
Cutting width on rip fence
630 mm
Speed main sawblade
4500 rpm
Speed scoring sawblade
8500 rpm
Scoring sawblade
2-100 x 20 mm
Spindle diameter
30 mm
Table opening
80 / 100 / 140 / 190 mm
Working length of spindle
100 mm
Cutter knives
3 pcs.
Square table with roll
830 x 530 mm
Westcott drill chuck
0 - 16 mm
Max. drill depth
155 mm
Drill width
285 mm
- for profiling
180 mm
- for tenoning
200 mm

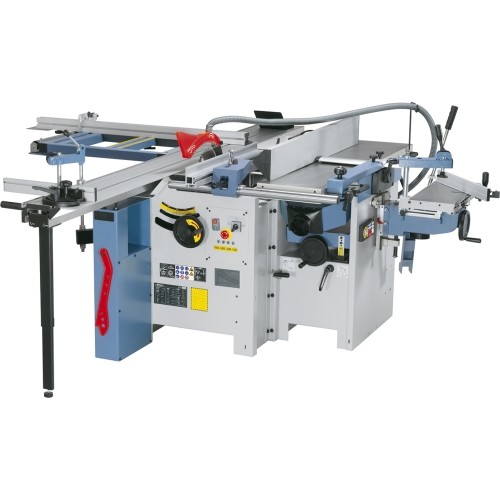

CU 310 F - 2000

1091861
€8,342.00
Tax included
Monthly payment from 204.44€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 565 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 565 kg.

Description

Properties

  • Powerful drive motors guarantee optimal results even at continuous operation
  • Solid square table features roller for processing of heavy and large panels
  • Machine body consists of a torsion-free, steel and grey cast-iron construction
  • Extractable telescopic fence can be mounted at front or rear of square table
  • Tiltable planer fence (90º to 45º) features generous surface

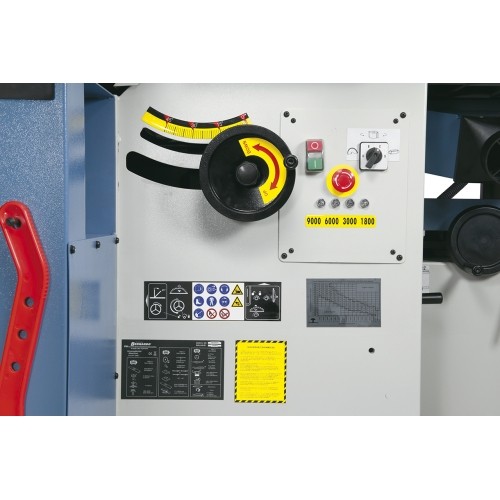

  • Electronic speed display with LED when using spindle moulder
  • Complete with mortising unit (16 mm capacity)

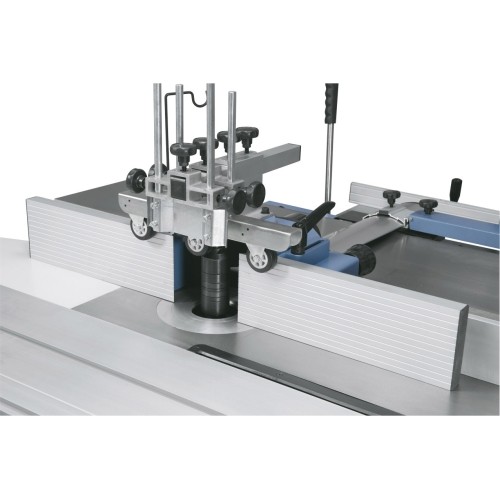

  • Robust moulding fence with anodized fence rails
  • Dynamically balanced moulder spindle for precise running

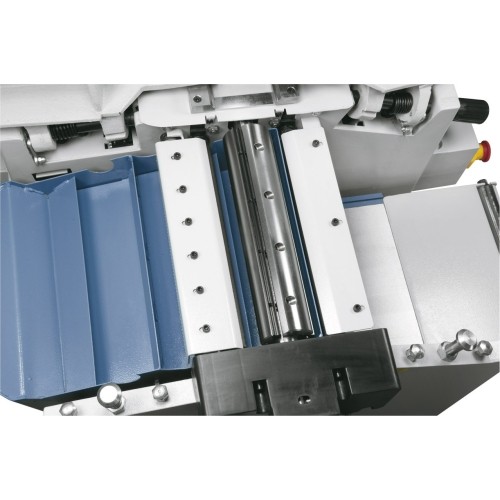

  • Planer unit with precisely bedded 3-knife cutterblock

Standard accessories

  • Cutter knives 310 x 25 x 3 mm

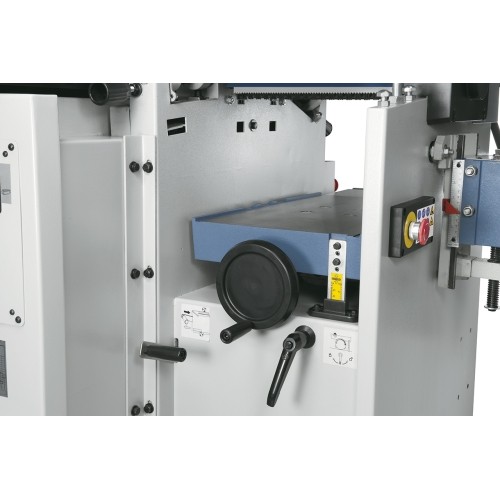

  • Thicknesser table extension with roll
  • Mortising unit
  • Westcott drill chuck 0 - 16 mm
  • Eccentric holder
  • 4-size rotor group (16 / 20 / 22 / 25 mm)
  • Carbide sawblade 254 x 3,0 x 30 mm / 40T
  • Scoring sawblade 2-100 x 20 mm / 24T
  • Height adjustment of milling spindle with magnifying glass

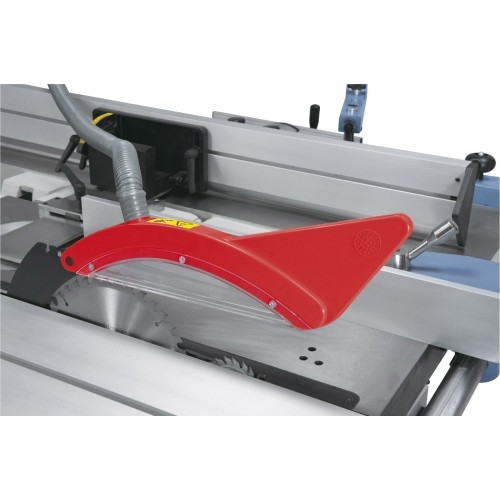

  • Protective cover with dust extraction outlet and tube
  • Mitre fence with eccentric holder
  • End stop
  • Table extension
  • Telescopic fence with stop
  • Square table with roll
  • Moulding fence
  • Sanding sleeve diam. 75 mm
  • Spindle with left and right turning
  • LED speed indication
  • Push stick
  • Tools
