WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Spindle taper
ISO 40
Weight approx.
2200kg
Machine dimension (W x D x H)
1460 x 2080 x 1720 mm
Spindle stroke
60 mm
Spindle speeds
(18) 40 - 2000 rpm
Table size
800 x 400 mm
Spindle feed
0,03 / 0,06 / 0,12 mm/rev.
Travel longitudinal (x)
500 mm
Travel cross (y)
350 mm
Travel vertical (z)
400 mm
Spindle head tilting range
-90° to +90°
T-slot (Quantity / Width / Distance)
8 / 14 mm / 45 mm
Main motor
3,0 kW
Distance spindle / table
35 - 435 mm
Vertical clamping area
950 x 250 mm
Table load
300 kg
Distance spindle to column max.
520 mm
X-axis
(18) 10 - 500 mm/min
Y-axis
(18) 10 - 500 mm/min
Z-axis
(18) 10 - 500 mm/min
Rapid feed (x / y / z)
1200 mm/min
T-slot vertical table (quantity / width / distance)
5 / 14 mm / 45 mm
Feeding motor
1,5 kW

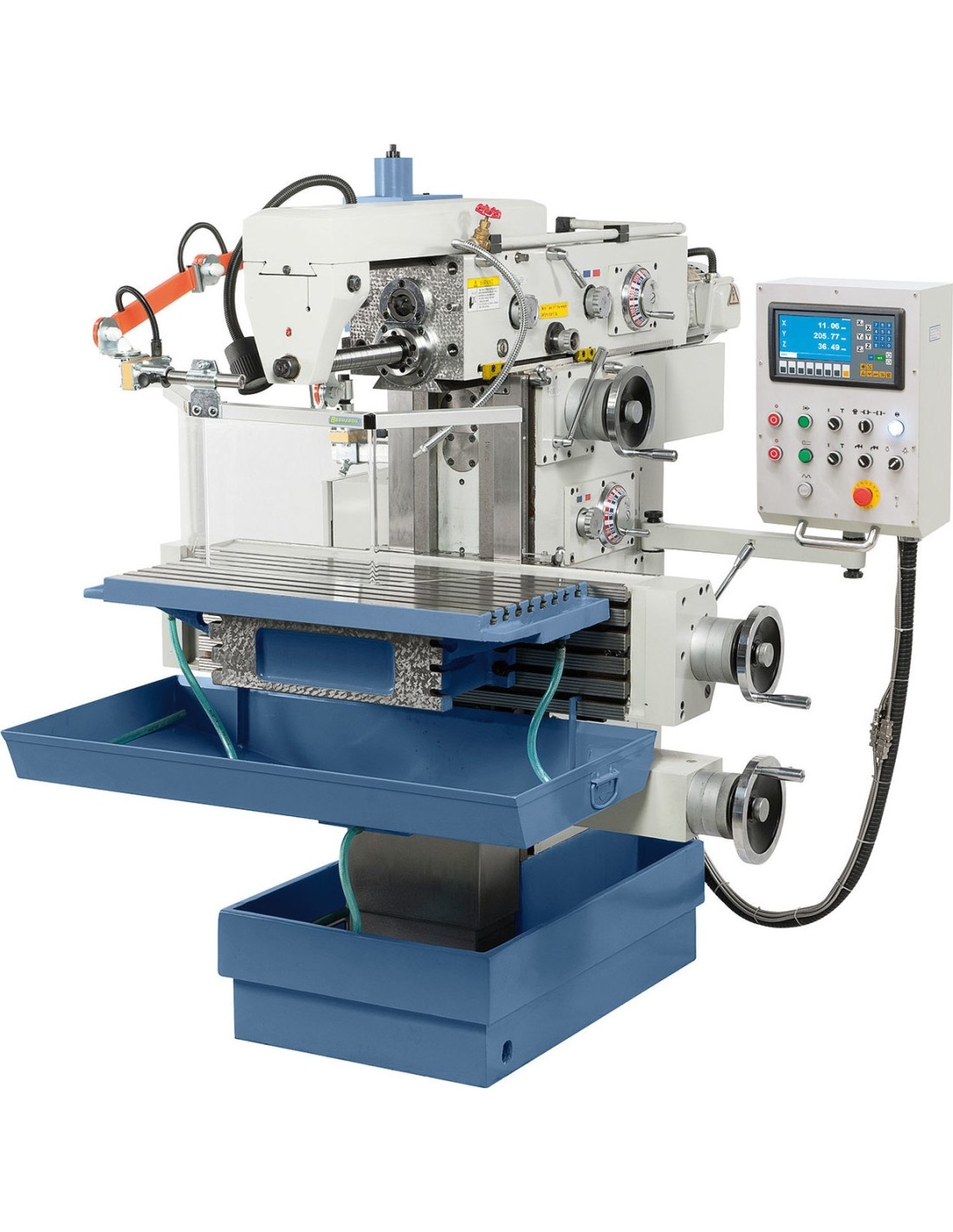

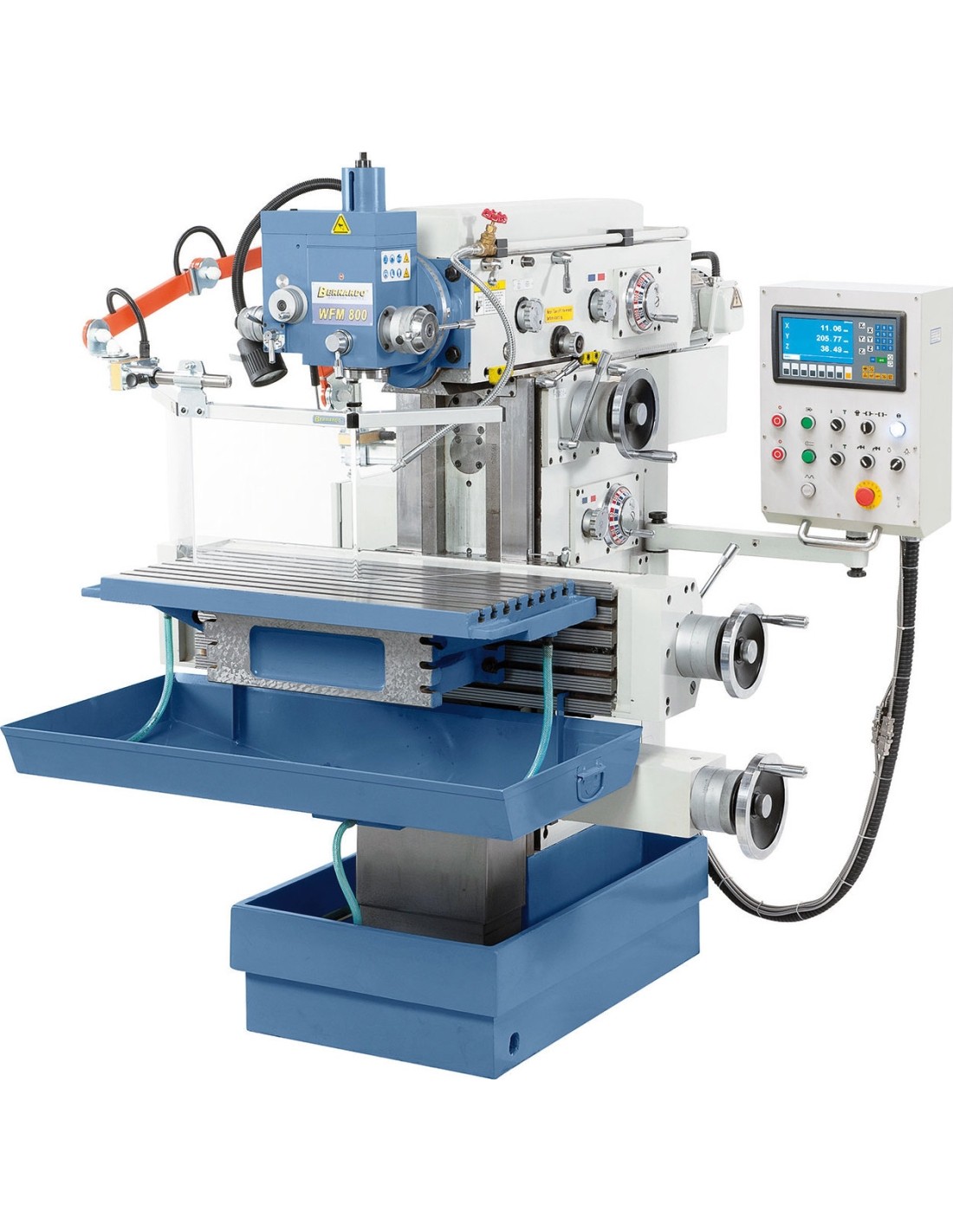

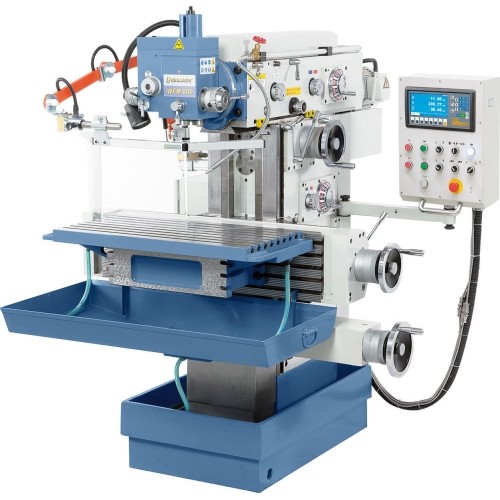

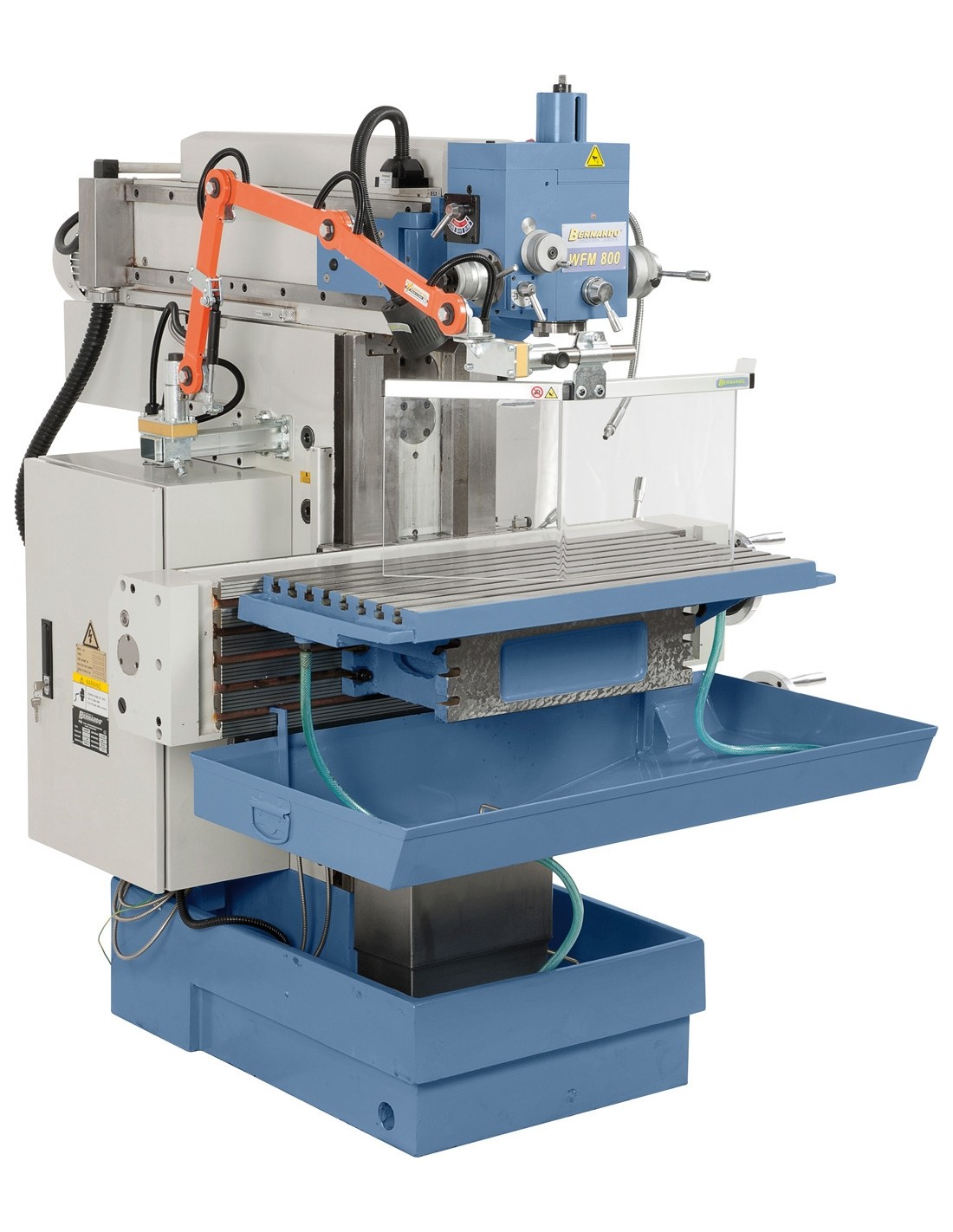

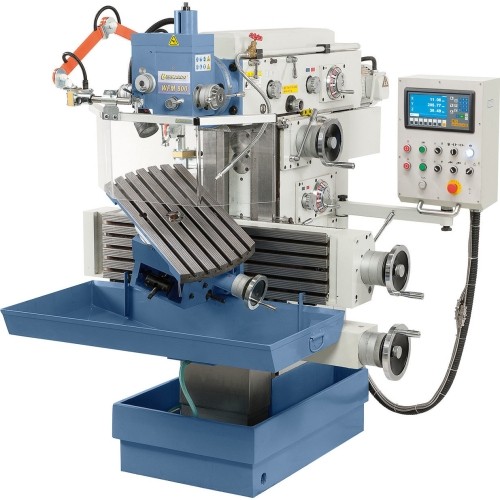

WFM 800

1092075
€42,187.00
Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 2200 kg.

Description

Properties

  • Hand wheel guarantees simple and precise feed settings
  • Complete with manual, automatic and rapid feed in all three axis
  • Central lubrication in guideways comes standard
  • Clear design of speed and feed controls

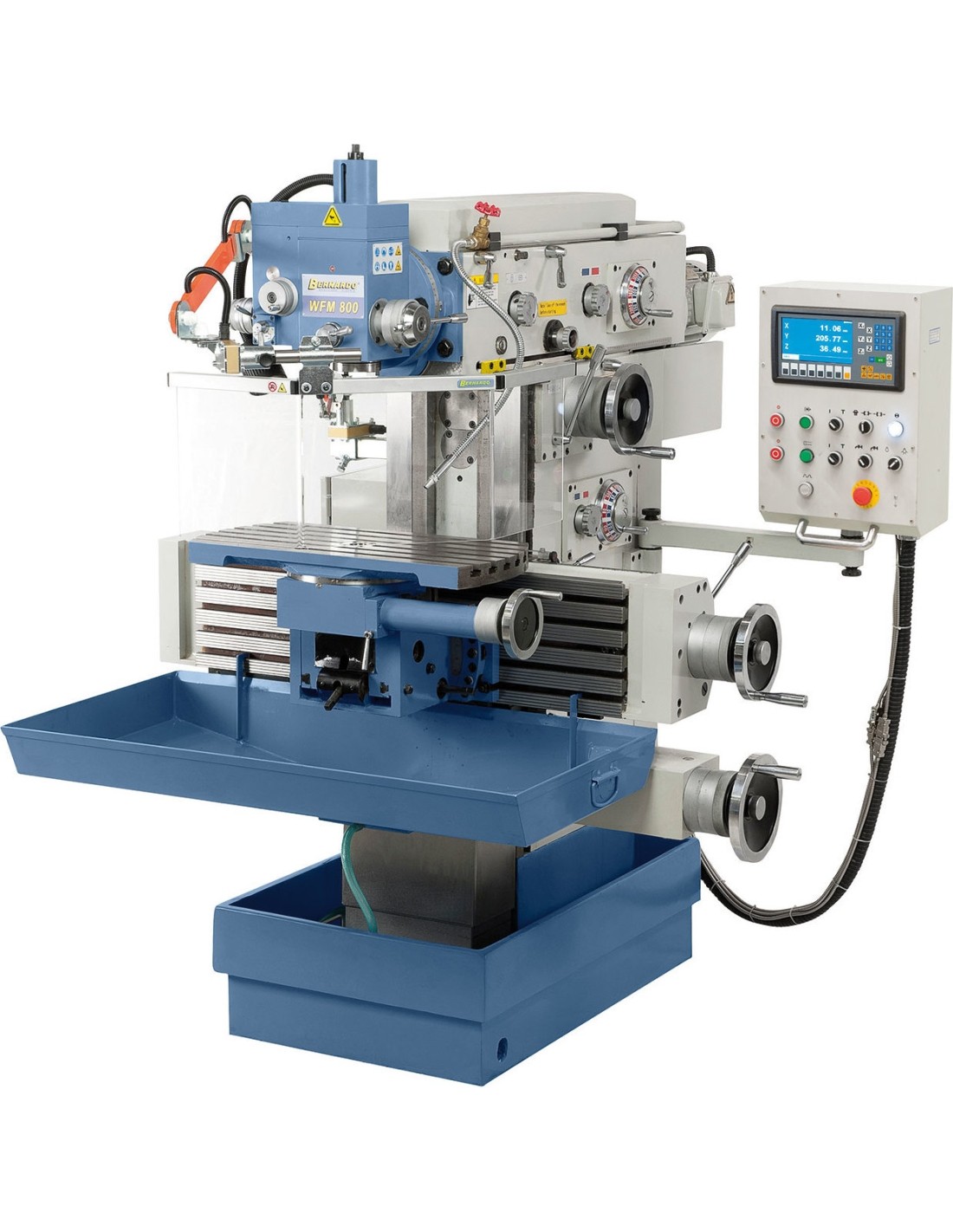

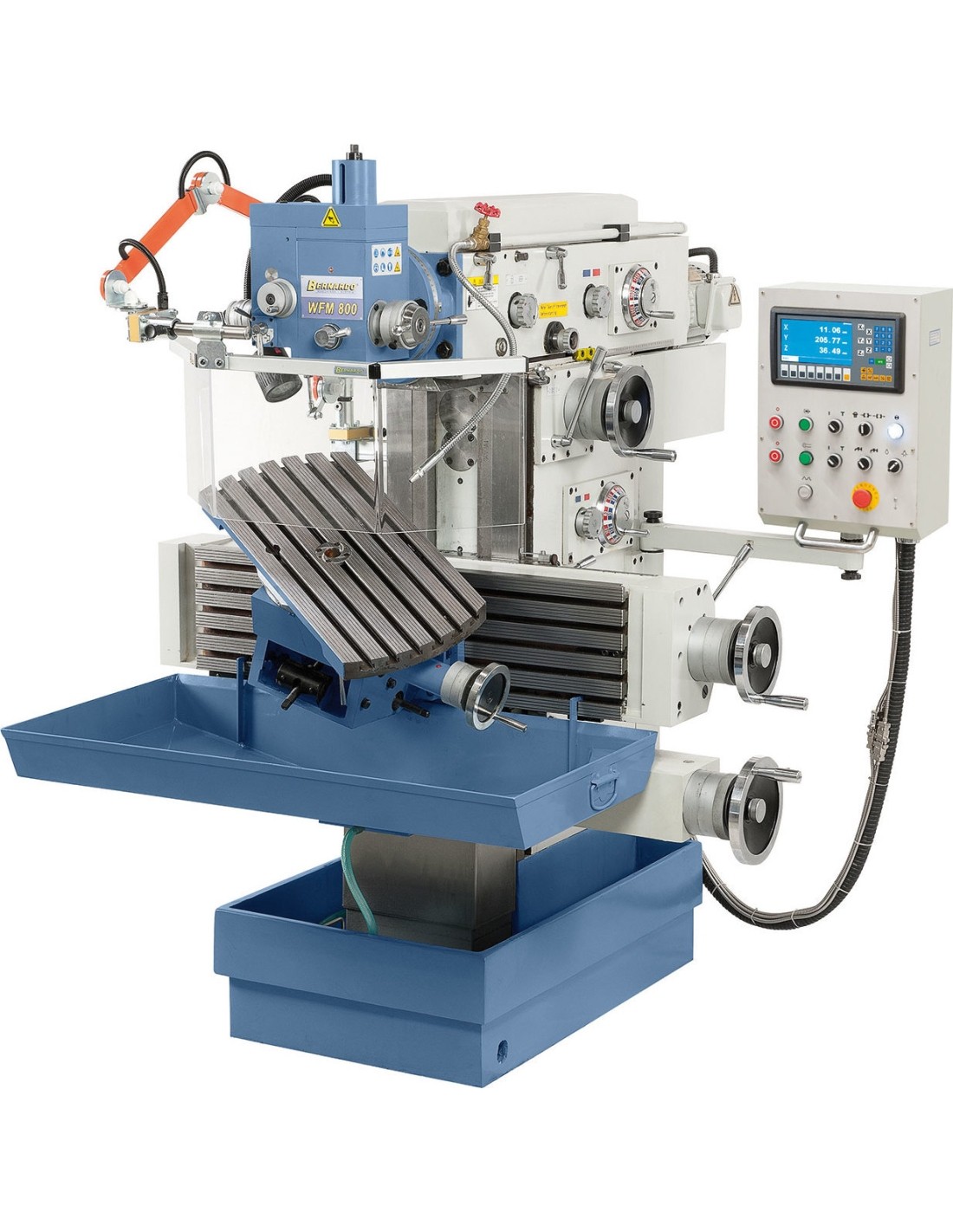

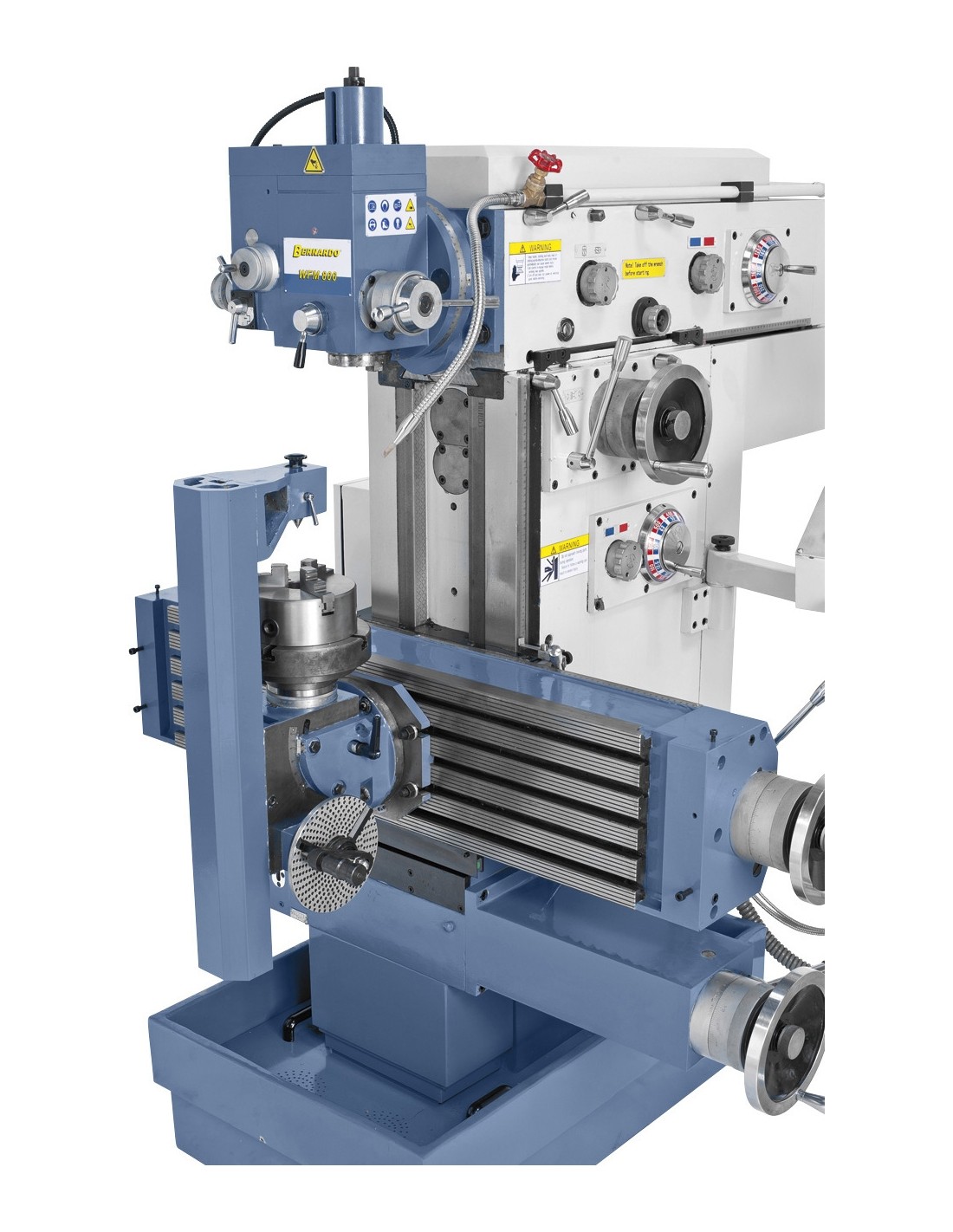

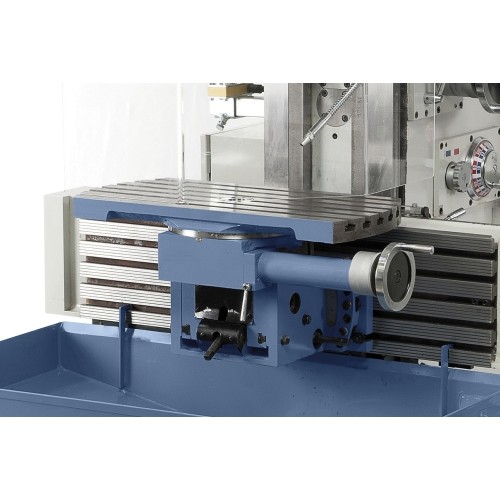

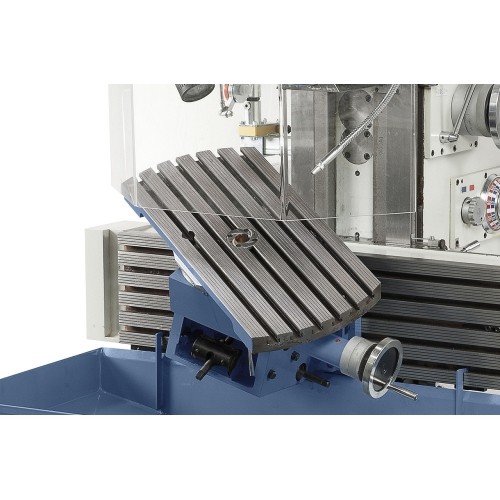

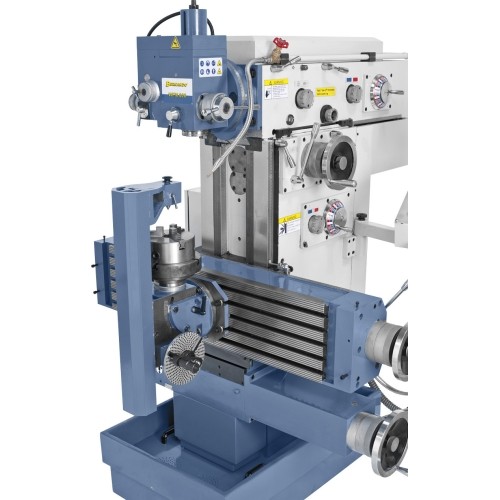

  • Vertical clamping area with 5 T-slots allows clamping of work table, universal tilting table and oversize workpieces
  • Optimal adjustments of spindle speed and feed allow for economic machining of various materials
  • Solid grey cast-iron machine base guarantees precision and minimizes vibrations
  • Ultimate machine for tool and mould construction, training, industry, model making and prototyping etc.
  • Hardened and polished guideways guarantee top accuracy

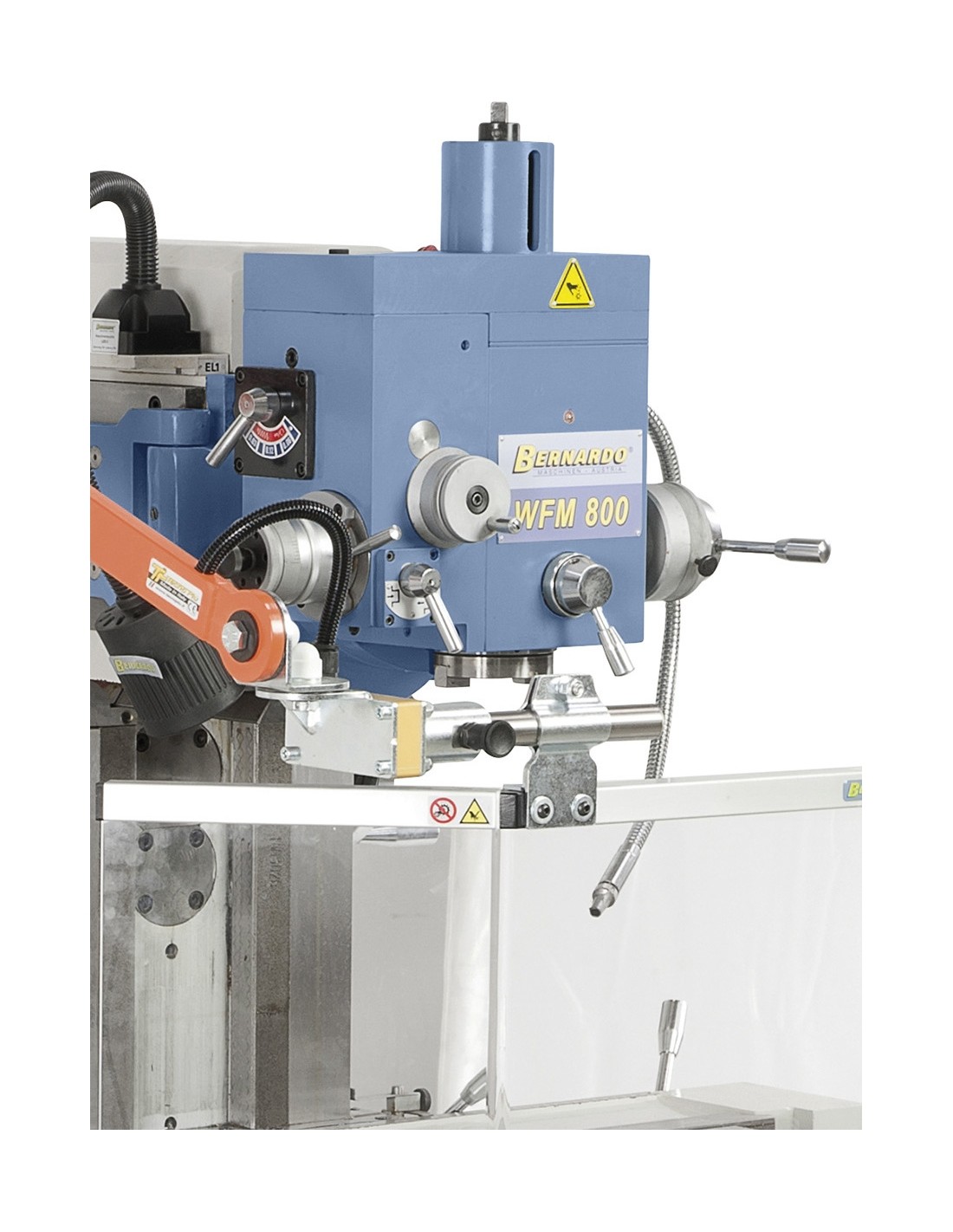

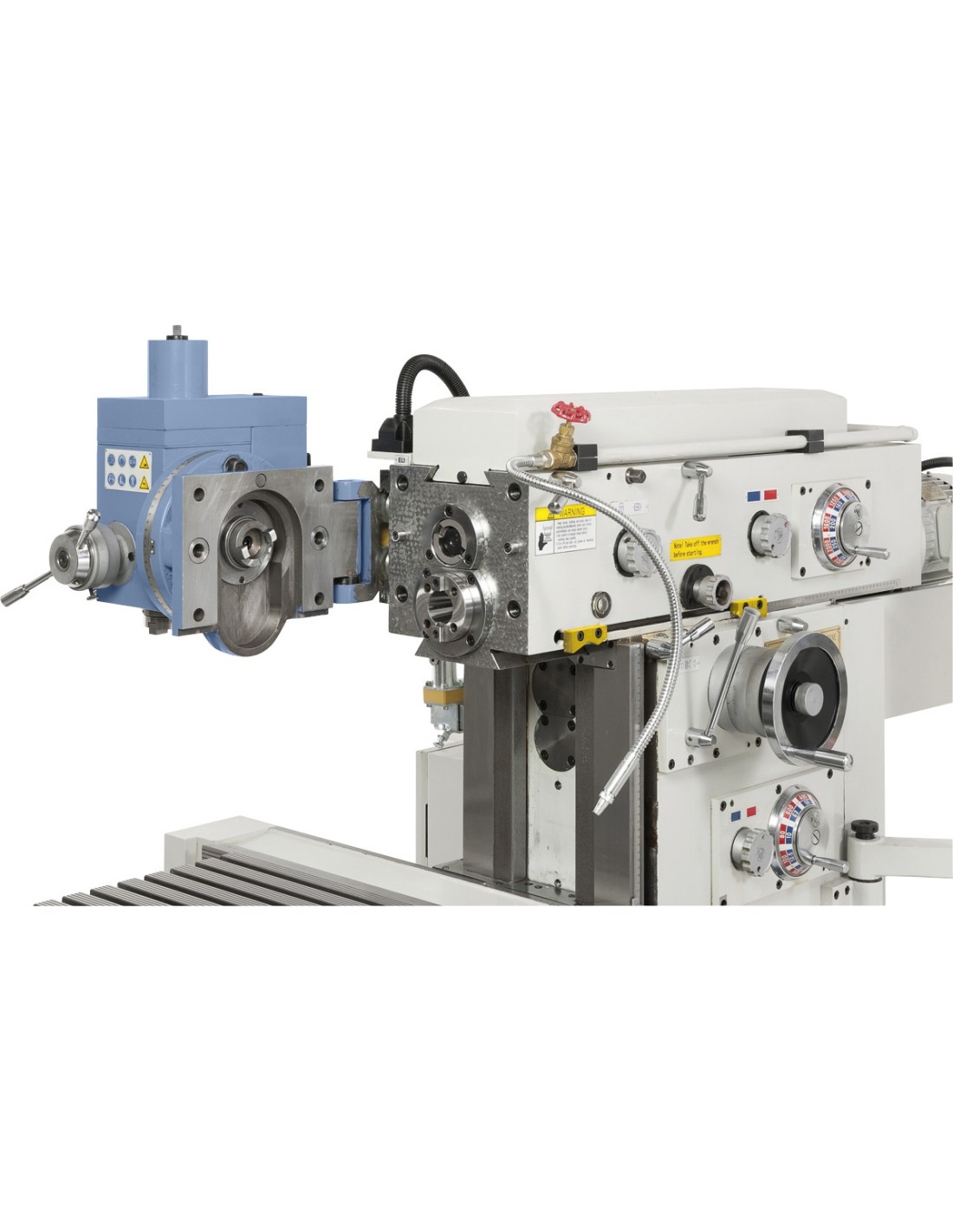

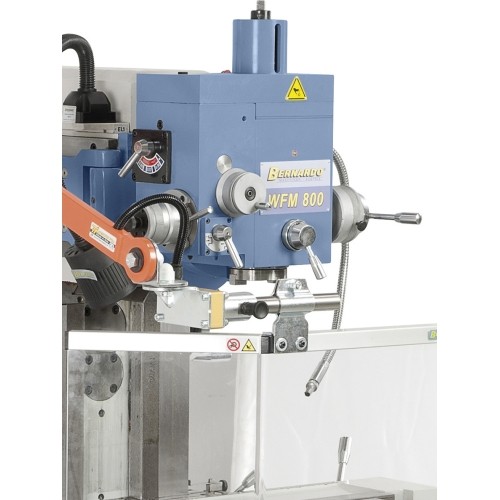

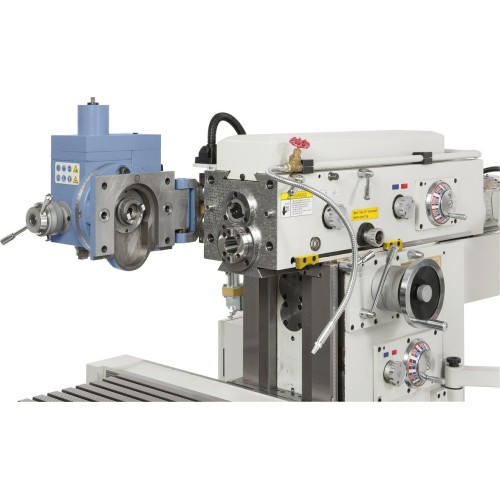

  • Tiltable vertical milling head with spindle adjustment and three automatic drill feeds

Standard accessories

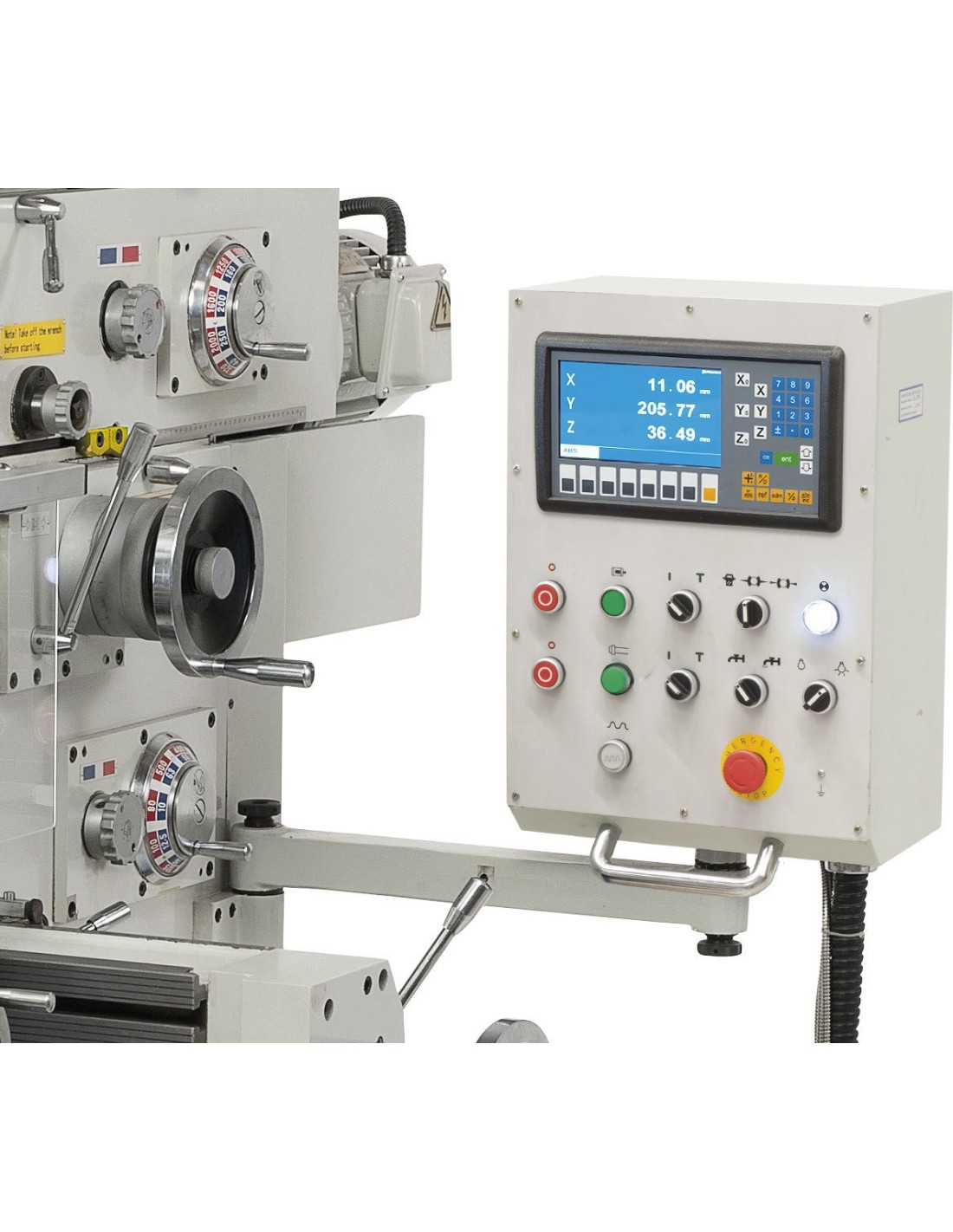

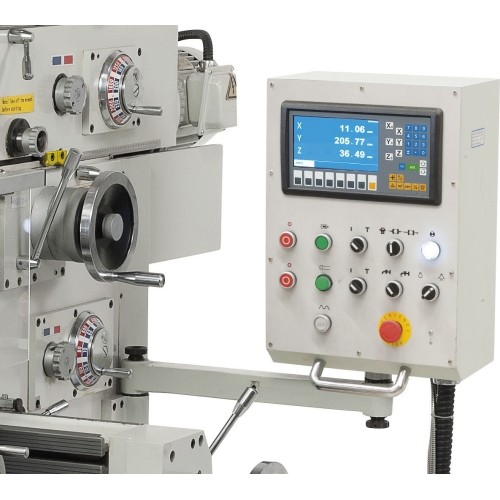

  • 3-axis digital readout ES-12 H with LCD-display
  • Drawbar M16
  • LED machine light
  • Coolant device
  • Power feed for x-, y- and z-axis

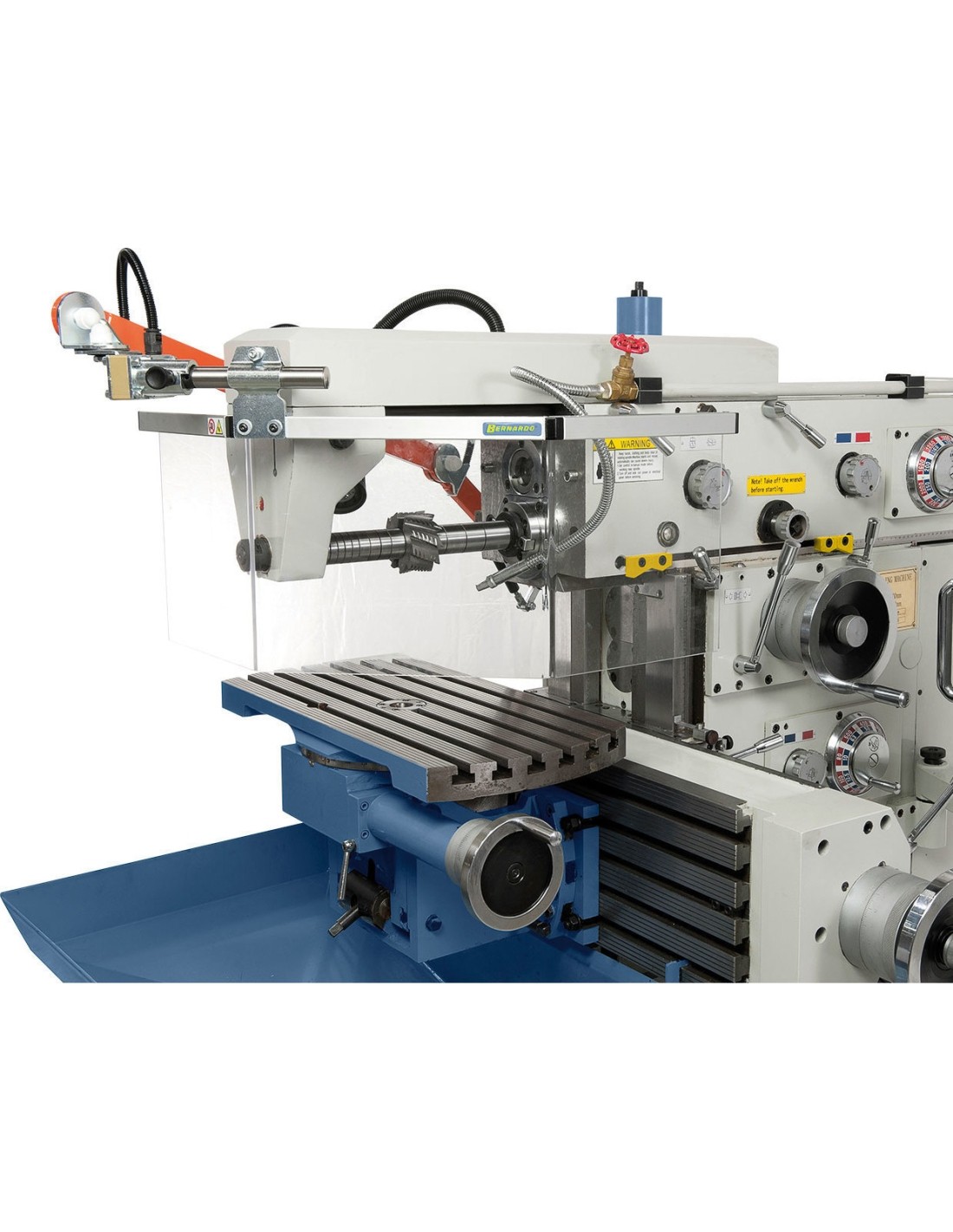

  • Horizontal counter bearing
  • Long milling arbor ISO 40/22 mm
  • Long milling arbor ISO 40/27 mm
  • Taper shell end mill holder ISO 40 / 22 mm, ISO 40 / 27 mm
  • Adapter ISO 40 / MT 1, ISO 40 / MT 2, ISO 40 / MT 3
  • Collet chuck with collets 4 - 16 mm
  • Universal protective device
  • Chip tray
  • Tools
