Welding set DIGITIG 315 AC/DC MULTIPULSE

Funkcijos: 2T/4T, Alarm, Arc Force, Fan Stop, Funkcja czyszczenia elektrody, Mikrokontroler (MCU), Narastanie prądu, Opadanie prądu, Pamięć ustawień, Powypływ gazu TIG, Przedwypływ gazu, Puls TIG, Ste
Phase: Vienfazis (230V)
Weight, kg: 97
Suvirinimas / pjaustymas / kiti metodai: MMA DC, TIG HF AC, TIG HF DC
Išmatavimai mm: 112 x 81 x 121
Gamybos technologija: IGBT
Maximum current MMA [A]: 280
Maximum current TIG [A]: 315
MMA darbo ciklas [%].: 60
TIG darbo ciklas [%].: 60
Įtampa be apkrovos [V].: 67
Maksimalus MMA suvartojamos galios kiekis [kVA}: 9,2
Maksimalus TIG sunaudojamas galingumas [kVA].: 6,3
Maksimalus MMA srovės suvartojimas [A].: 15,3
Maksimalus TIG srovės suvartojimas [A].: 13,7
Pagrindinis metodas: TIG
Tinklo apsauga [A].: 16
Įmonių garantijos laikotarpis [metai].: 1
Maksimali TIG suvirinimo kintamąja srove srovė [A].: 315
Srovės kilimo laikas [s]: 0 - 15
Pradinė srovė [A].: 5-315
Bazinė srovė [A].: 5-315
Dabartinis kritimo laikas [s]: 0-15
Kraterio srovė [A].: 5-315
Išankstinis dujų srautas [s].: 0,1 - 15
TIG dujų srautas [s].: 0,1 - 15
TIG impulsų dažnis [Hz].: 0,5 - 999
TIG impulsų plotis [%].: 10-90
Kintamosios srovės dažnis [Hz].: 1 - 250
Kintamosios srovės balansas [%]: 15-50
Siurblio galia [W].: 370
Aušinimo skysčio srautas [l/min]: 8
Aušinimo skysčio slėgis [MPa].: 0,3
Vardinis aušinimo našumas [kW (1 l/min)].: 1,5
Bako talpa [l].: 3,5
Radiatoriaus maitinimo įtampa [V].: AC 230
Current type: AC / DC
Suitable for welding: Aluminum and its alloys
Non-ferrous and other rare metals (Titanium, Copper, Brass, Nickel)
Stainless steel (Inox)
Structural steel
Inverter technology: IGBT

Brand

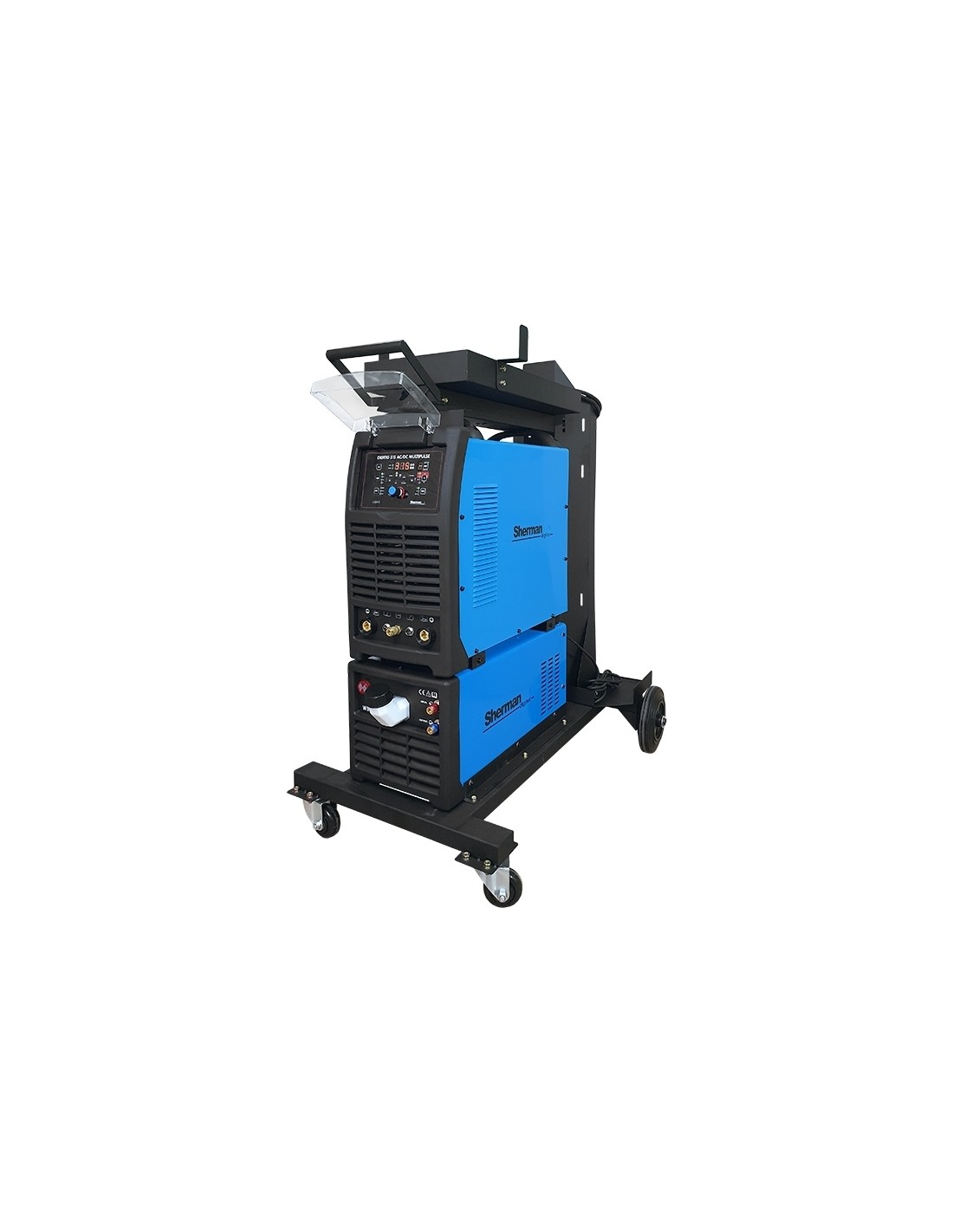

Welding set DIGITIG 315 AC/DC MULTIPULSE

Name: Welding set DIGITIG 315 AC/DC MULTIPULSE
Brand: Sherman
SKU: 1259205

Reference 1259205

Ask for the price and delivery time by phone

Description

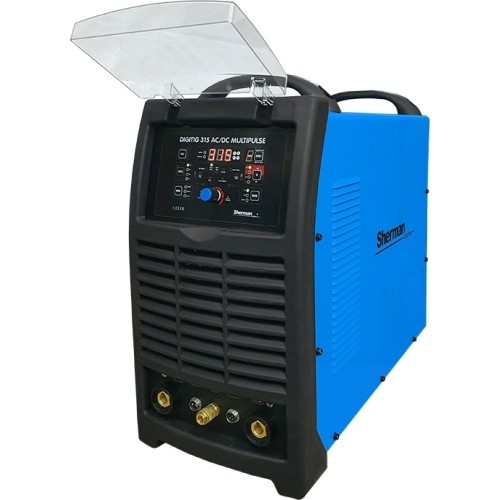

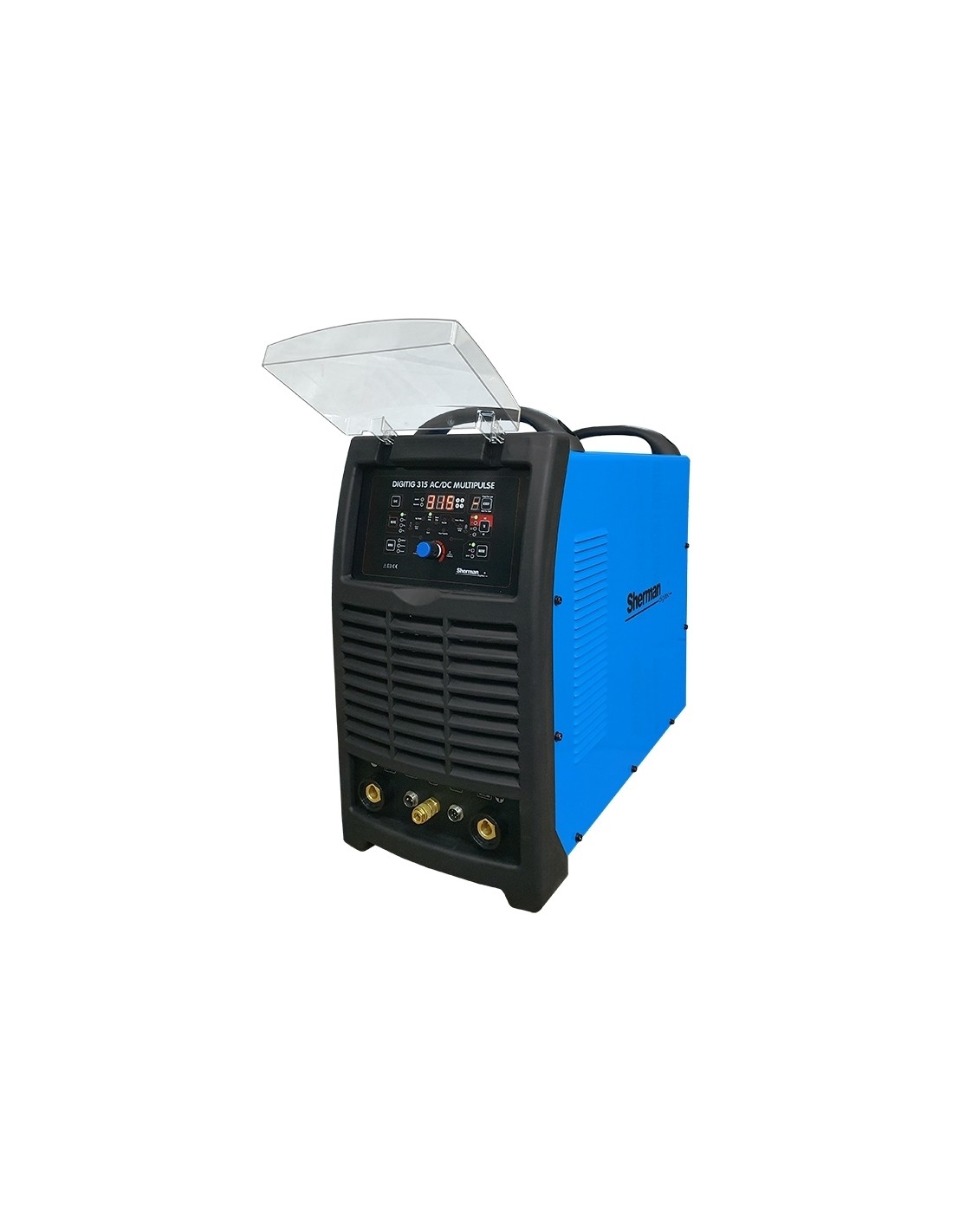

The DIGITIG 315 AC/DC MULTIPULSE digital welding machine is a next‑generation unit designed for professional use. Built on IGBT inverter technology and controlled by a microcontroller unit (MCU), it supports manual TIG welding of steel and non‑ferrous metals with both direct current (DC) and alternating current (AC). The device also enables MMA welding (shielded metal electrode).

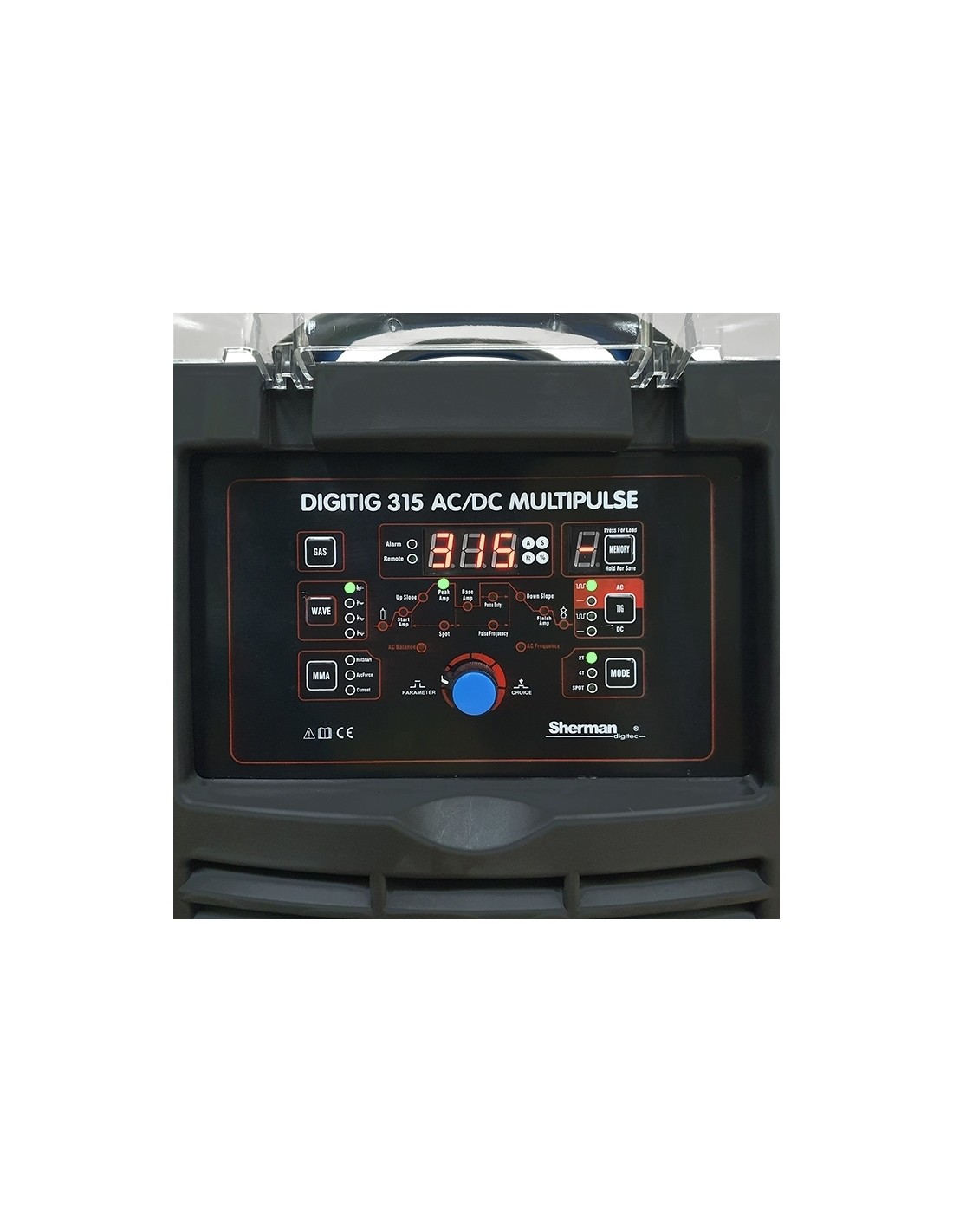

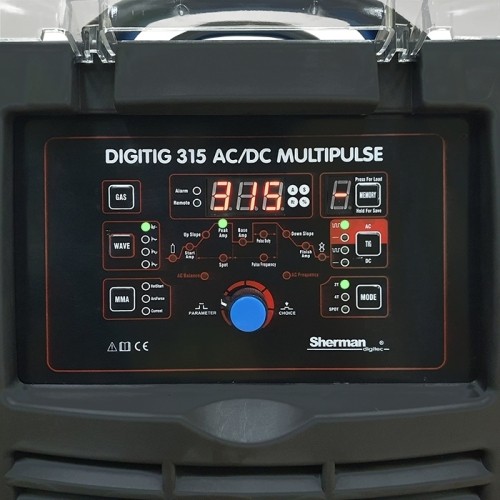

The welder offers fully digital adjustment and control of arc characteristics and pulses, including selection of the welding current waveform. It features HF ignition, HOT START, ARC FORCE, 2T/4T control, spot welding, and an LED display. Last‑setting memory restores previously used parameters after power‑off, and you can store up to 20 sets of pulse and welding current parameters. Key capabilities include TIG current up to 315 A, MMA up to 280 A, a 60% duty cycle in both TIG and MMA modes, and a no‑load voltage of 67 V. Typical power draw is up to 6.3 kVA in TIG mode. Recommended supply protection: 16 A.

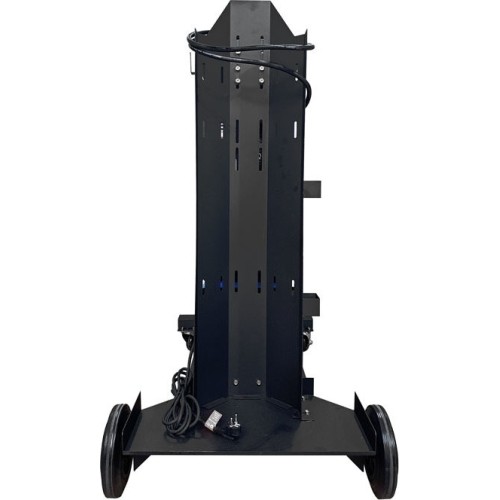

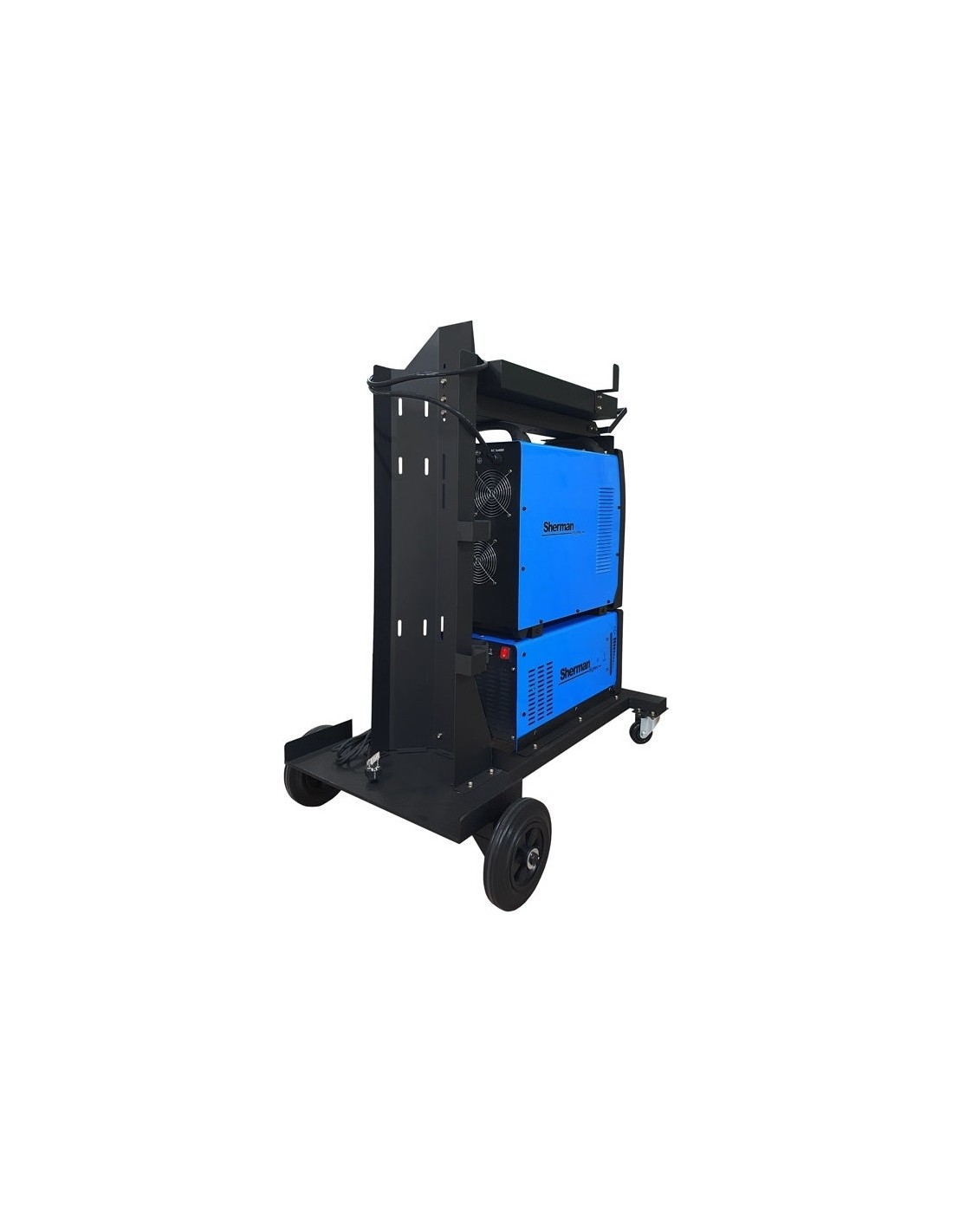

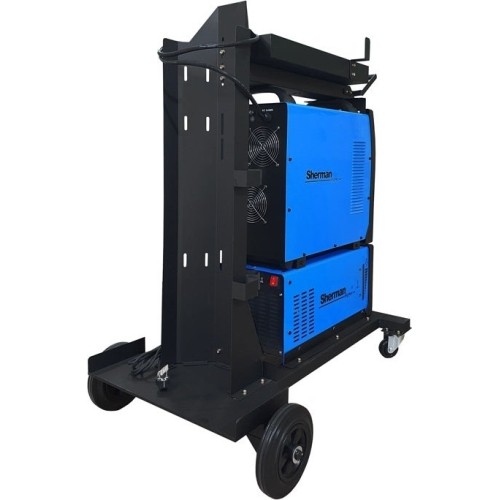

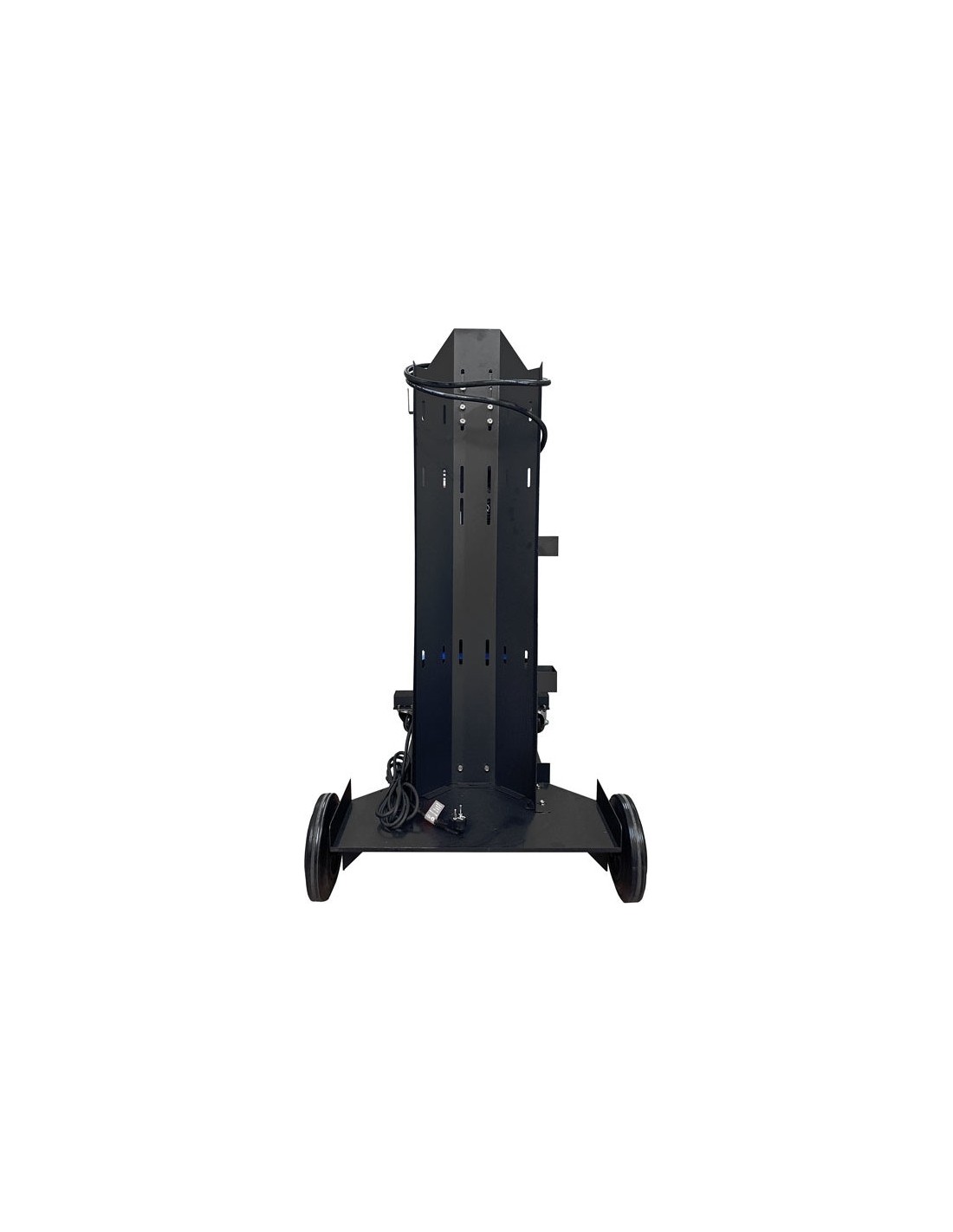

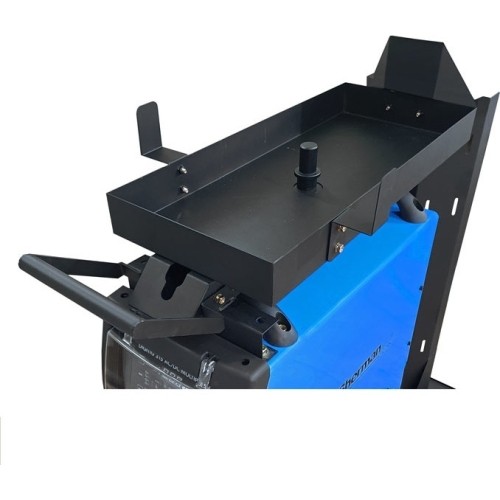

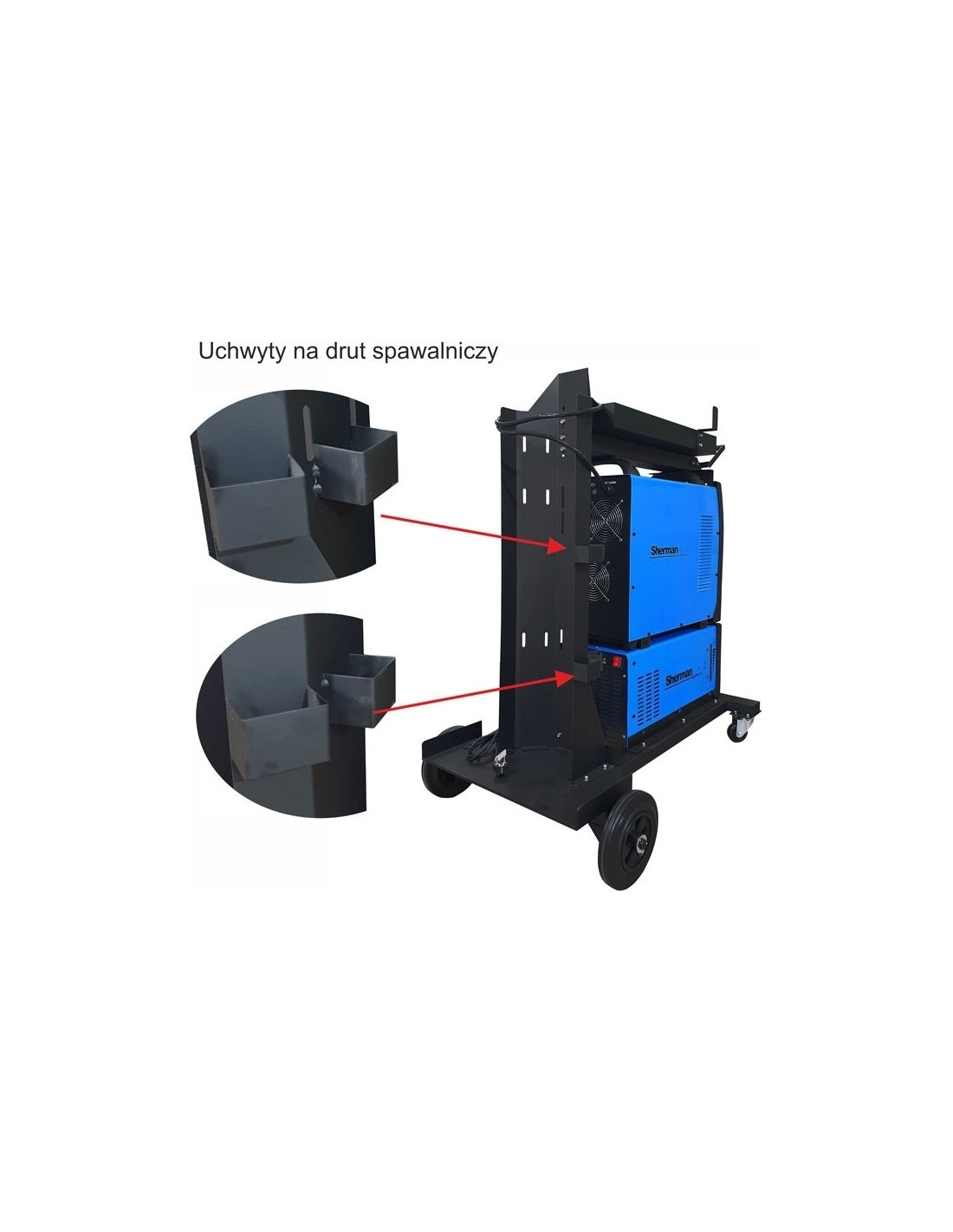

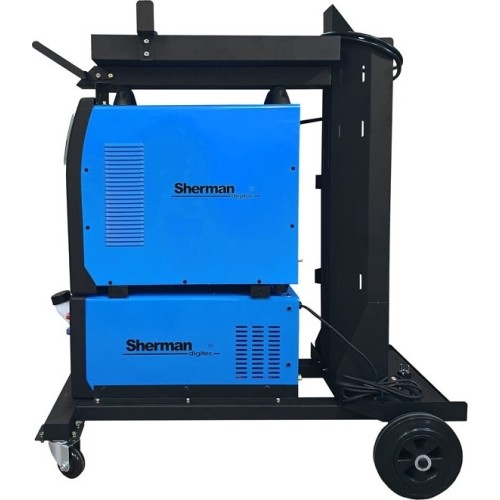

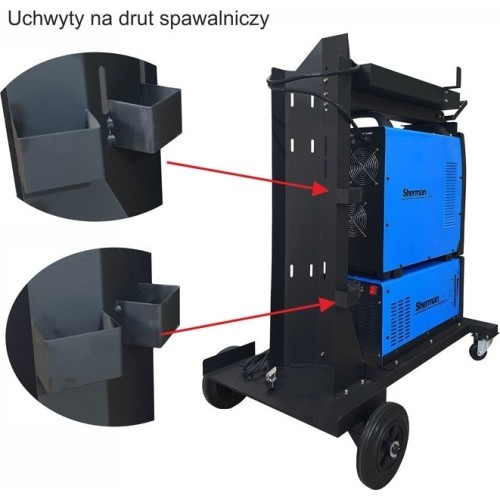

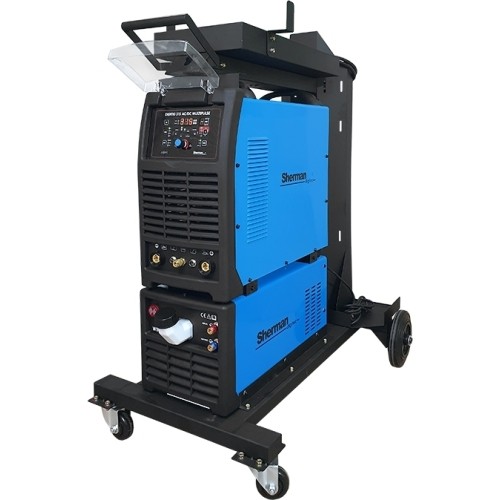

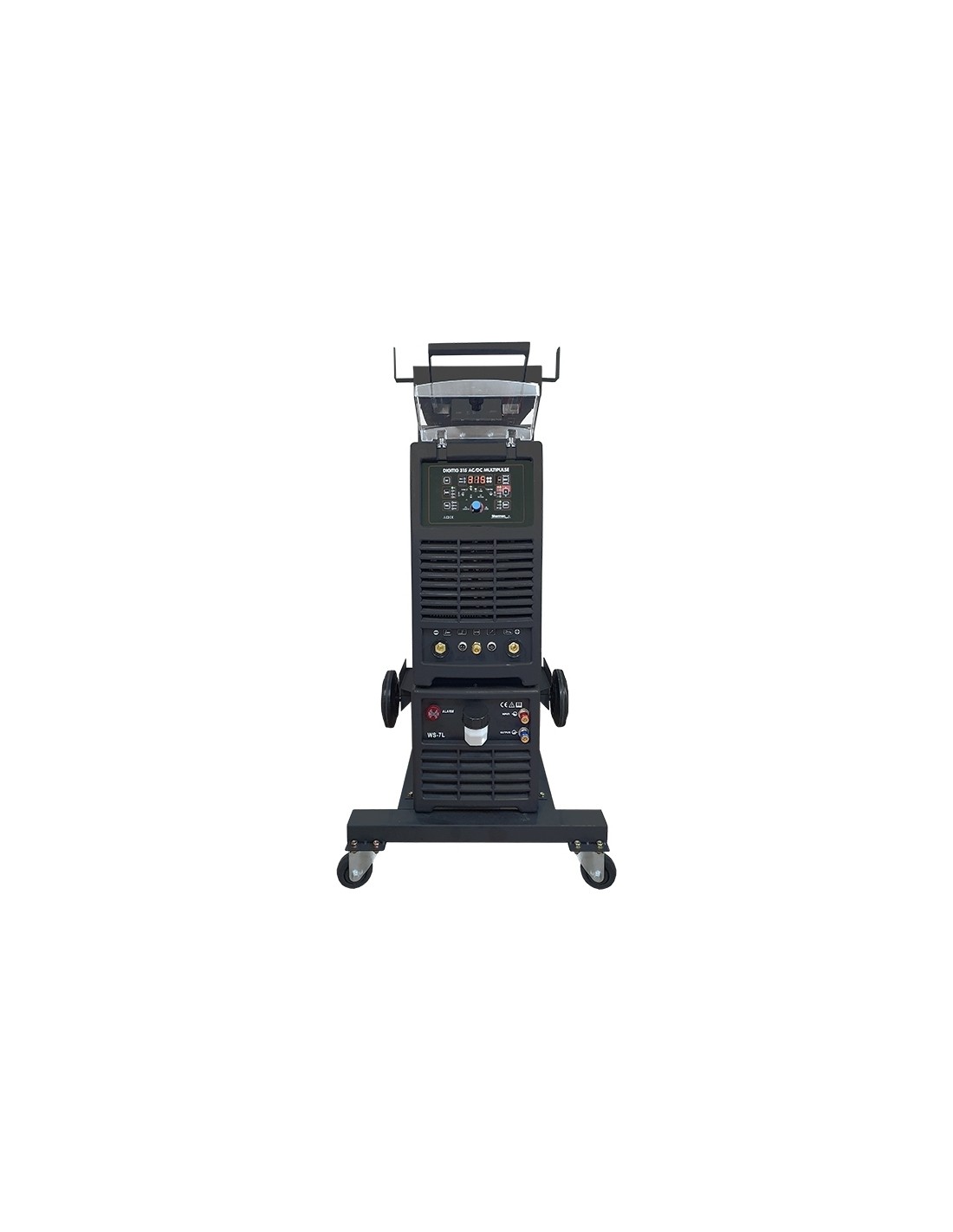

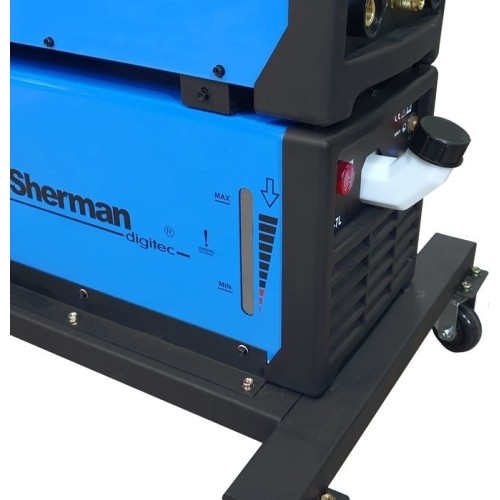

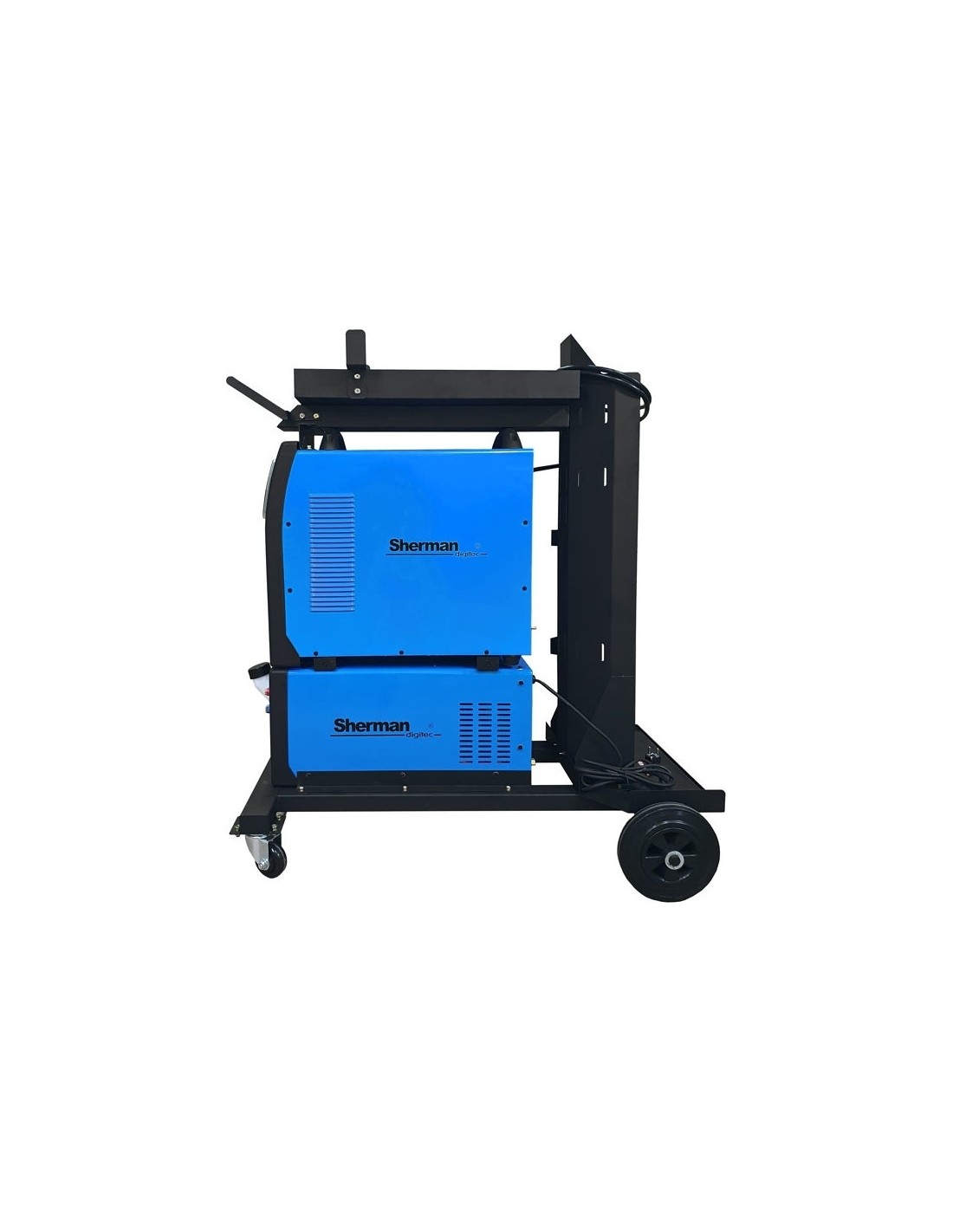

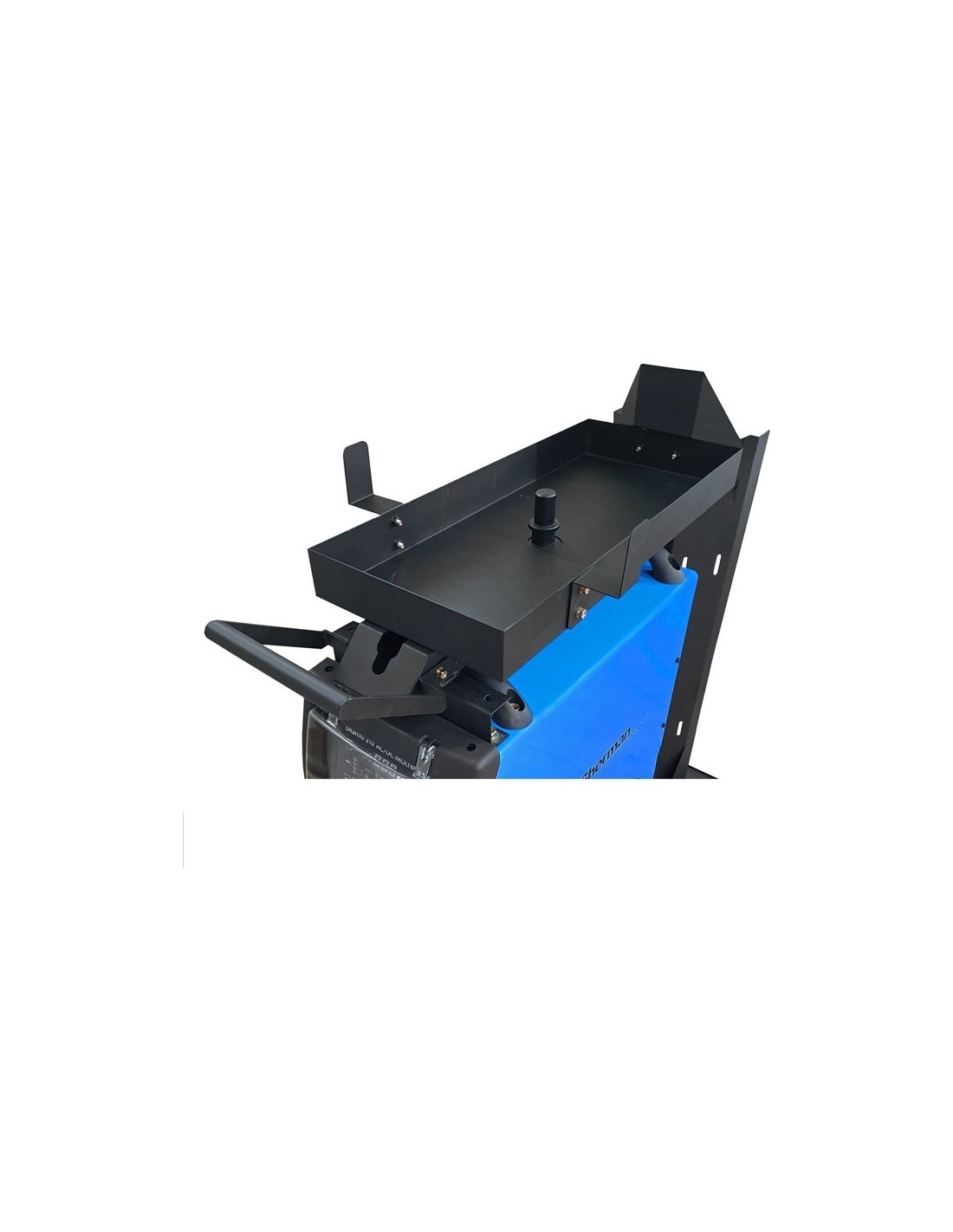

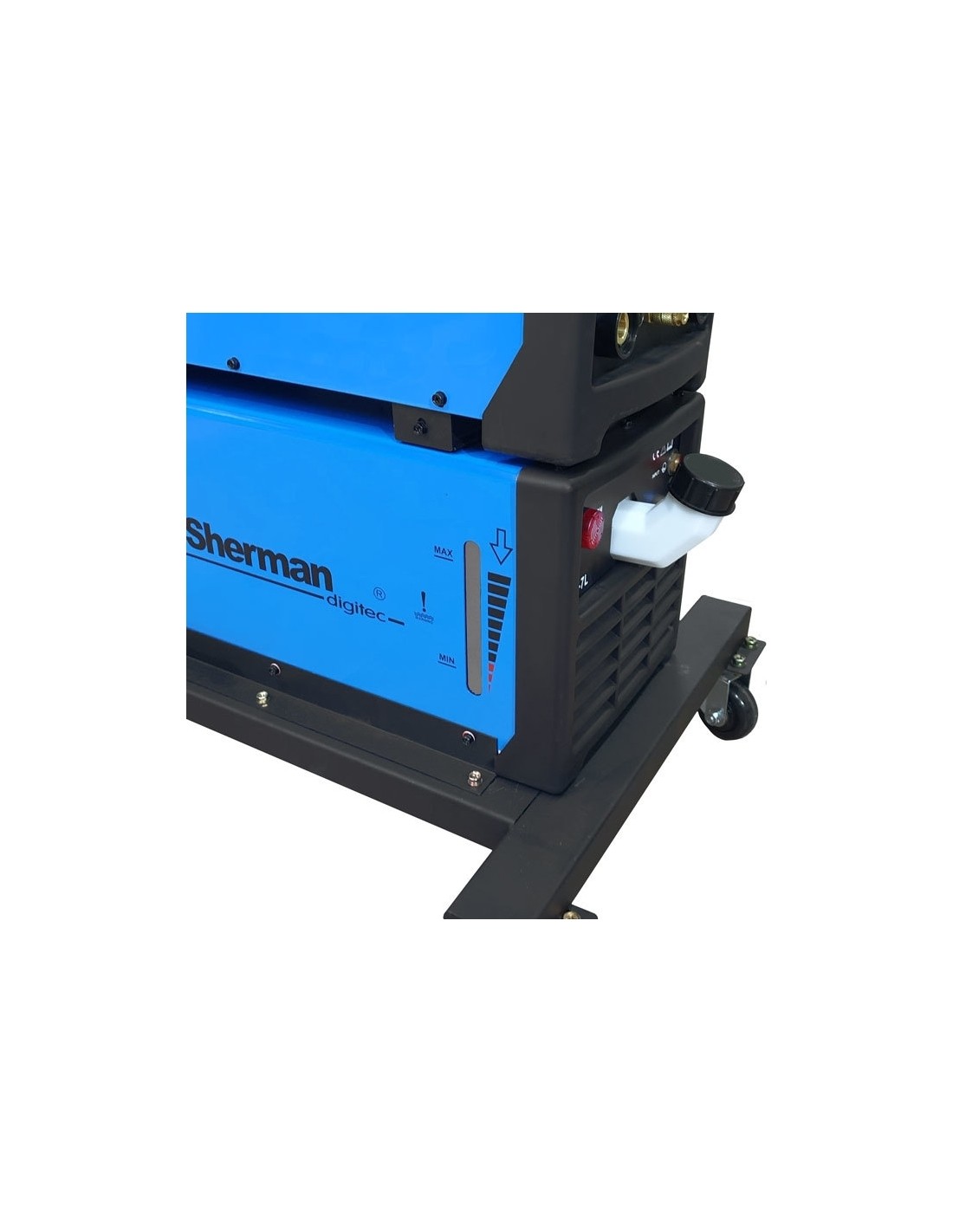

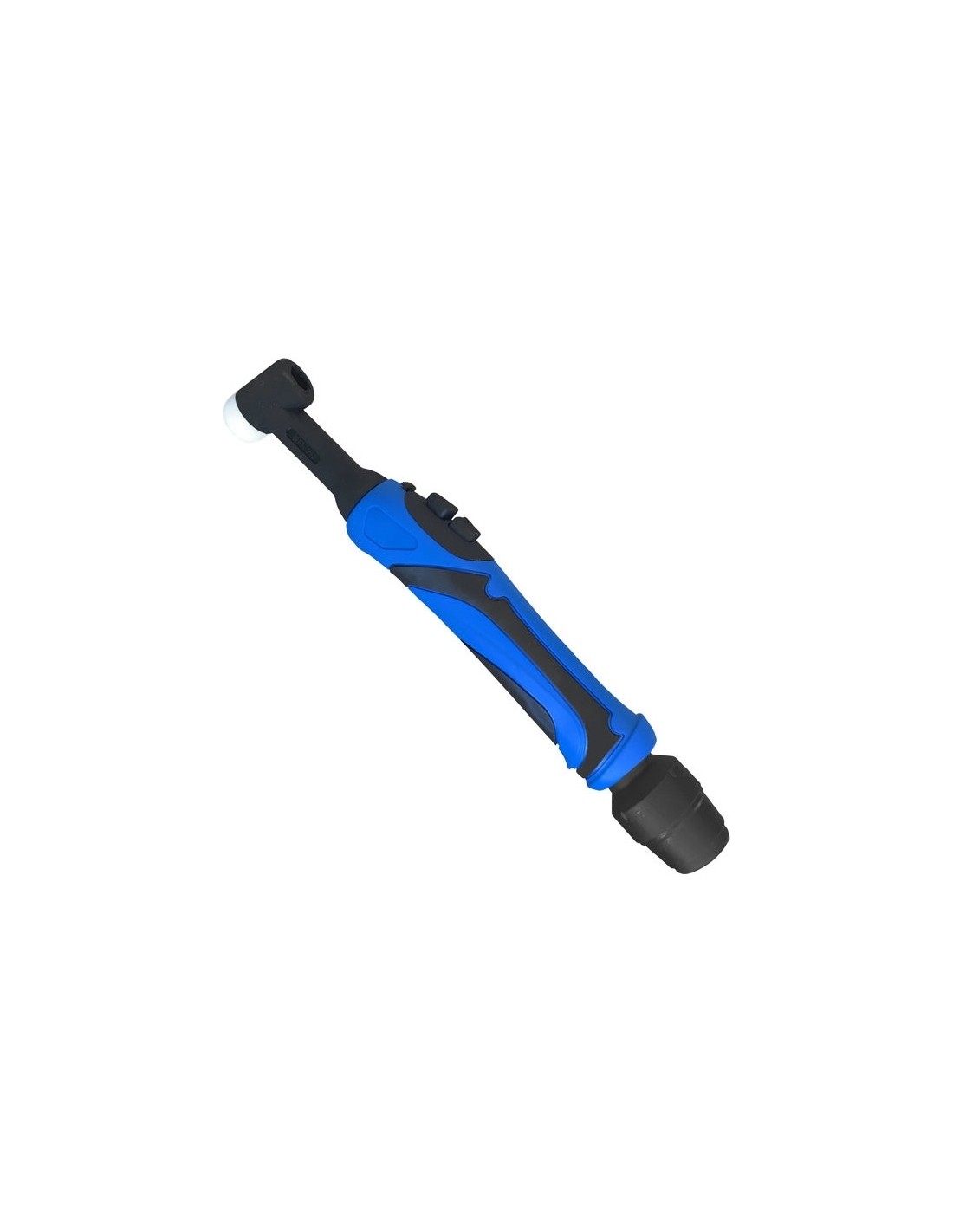

The set includes a powerful WS-7L cooler dedicated to this welder for torch cooling. A heat exchanger on a copper coil and a stainless‑steel pump enhance cooling efficiency and extend service life. The complete assembly is mounted on a stable trolley with a practical accessory shelf, wire holders, and hangers for the torch and welding cables. Cooler parameters: pump power 370 W, flow 8 l/min, pressure 0.3 MPa, tank capacity 3.5 l.
