WARRANTY
- 30 days return policy
- 24 month product warranty
- Free consultation
- 30 days return policy
- 24 month product warranty
- Free consultation
- Weight approx.
- 1250 kg
- Machine dimension (W x D x H)
- 1150 x 1240 x 1500 mm
- Motor power output S1 100%
- 7,5 kW (10,0 HP)
- Dust extraction outlet
- 2 x 150 mm
- Table size
- 1200 x 630 mm
- Shaft rotation speed
- 5000 rpm
- Planer shaft diameter
- 120 mm
- Max. cutting depth
- 10 mm
- Working width
- 630 mm
- Cutter knives
- 4 pcs.
- Feeding motor
- 1,5 kW (2,0 HP)
- Working height min./max.
- 4 - 300 mm
- Feed speed, stepless
- 5 - 18 m/min
- Thicknessing rollers
- 2 pcs.
- Workpiece length min.
- 300 mm
- Elevating motor
- 0,37 kW (0,50 HP)
TP 630 D
1353357
€13,279.00
Tax included
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 1250 kg.
Description
Properties

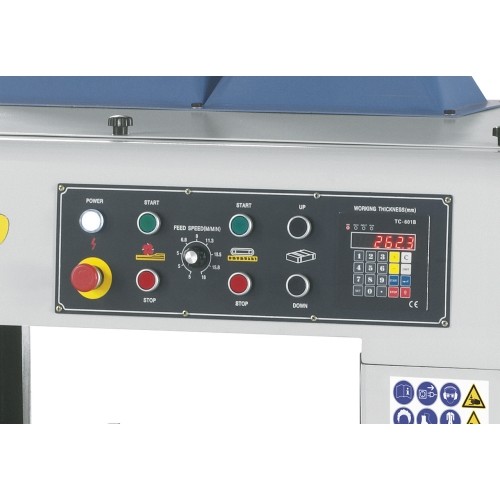

- Ergonomically arranged switches and control elements on the front of the machine
- Solid thicknessing table serially equipped with two driven infeed rollers
- Stepless infeed speed adjustment 5 - 18 m/min
- Torsion-free, grey cast iron construction assures a smooth run

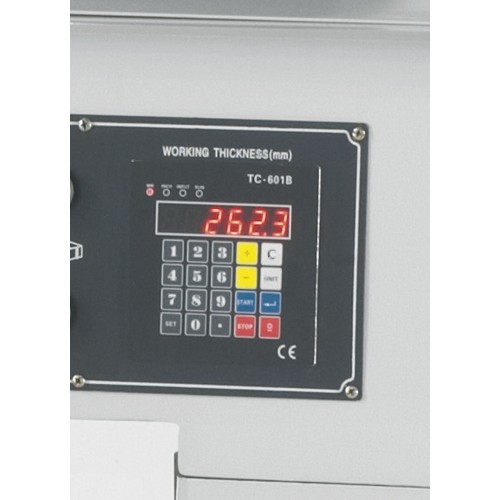

- Thicknessing table adjustment features digital display with 1/10 mm accuracy
- Quick and easy motorized height adjustment of thicknessing table
- Serially equipped with 2 dust extractor outlets Ø 150 mm
- Adjustable thicknessing table rollers allow planing of wet or rough wood
- Noise-absorbing cutterblock cover minimizes noise
- Large anti-kickback devices eliminate kickback of workpieces
Standard accessories
- Cutter knives in HSS-quality
- 1 driven thicknessing table roller
- Segmented infeed roller
- Digital display for thicknessing table adjustment
- Thicknessing table clamping
- 2 dust extractor outlets Ø 150 mm
- Stepless infeed speed
- Thicknessing table guided on 4 guide bars
- Motorized table height adjustment
