Weight approx.
239 kg
Machine dimension (W x D x H)
1110 x 710 x 1020 mm
Motor power output S1 100%
3,0 kW (4,0 HP)
Motor power input S6 40%
4,2 kW (5,7 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table size
930* x 410 mm
Shaft rotation speed
4050 rpm
Planer shaft diameter
95 mm
Max. cutting depth
5 mm
Working width
410 mm
Cutter knives
4 pcs.
Working height min./max.
5 – 230 mm
Working length min.
150 mm
Feed speed, stepless
6 m/min

DH 410 - 400 V

1056011
Price €3,630.00 Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, march 10 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 239 kg.
Prekę pristatysime Jums per: 6-12 d.d. Venipak (€40.99)
Weight: 239 kg.

Description

Properties

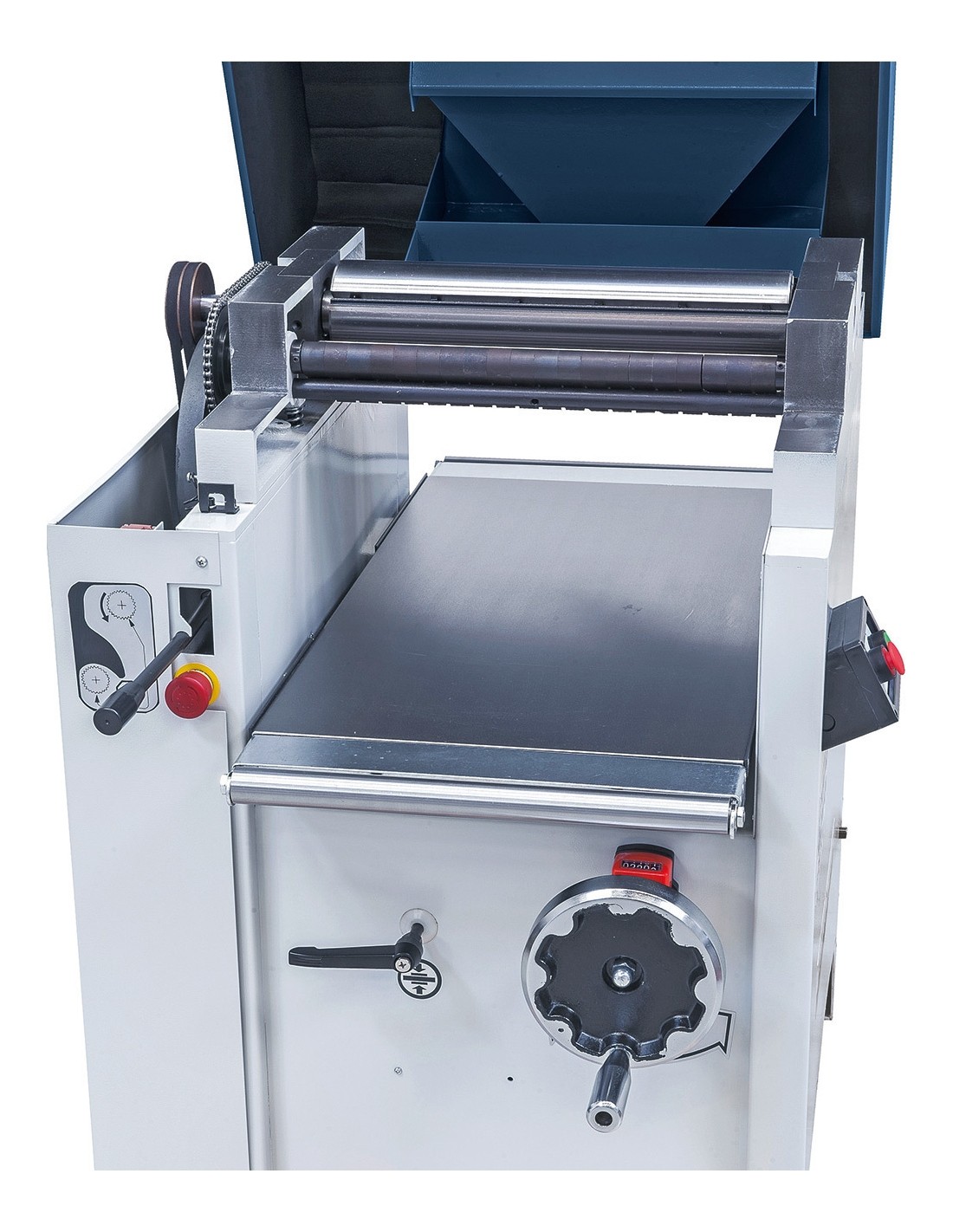

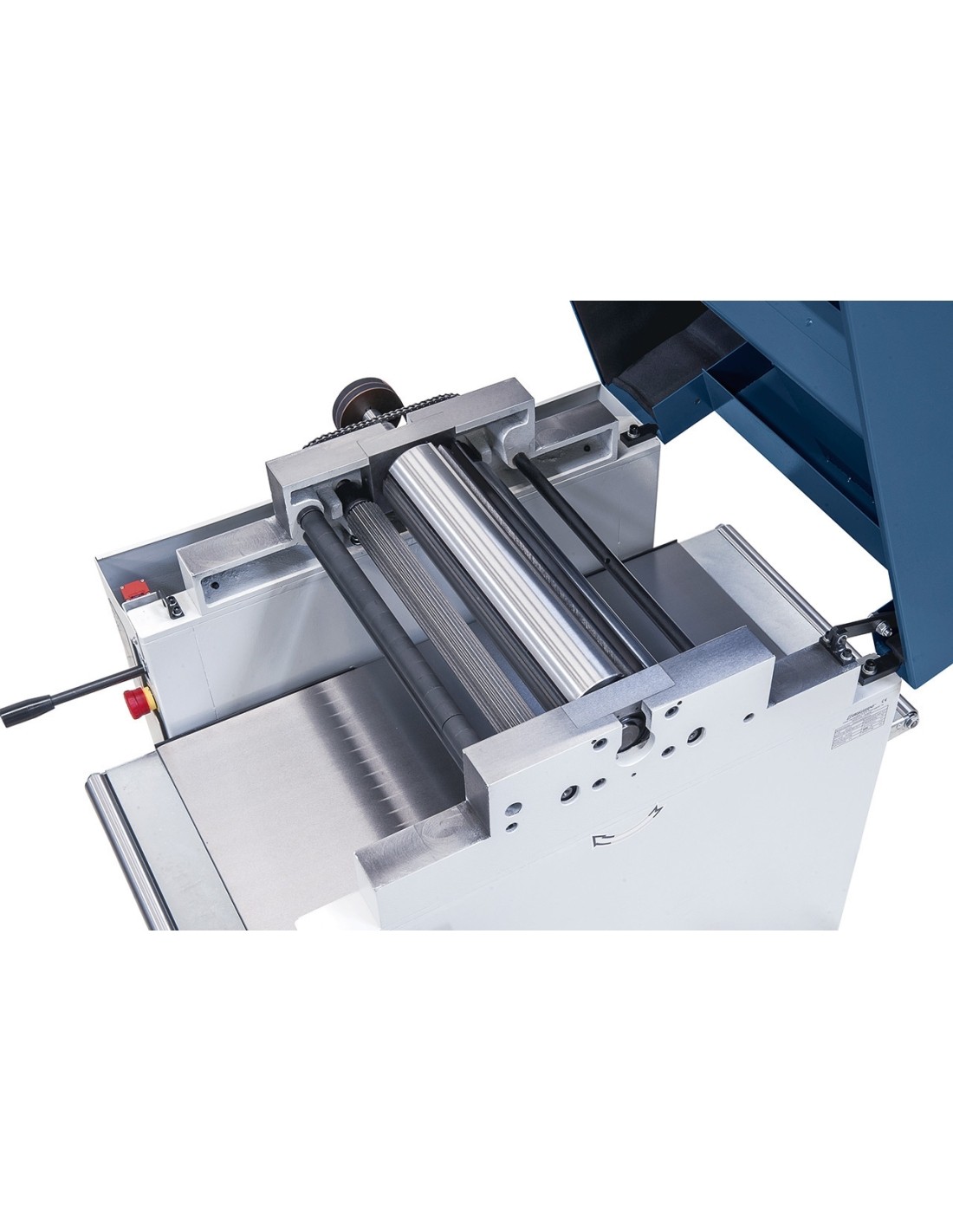

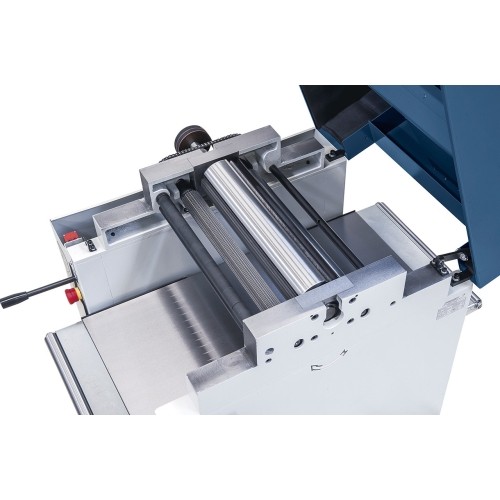

  • Precisely bedded, smooth running 4-knife cutterblock guarantees optimal results

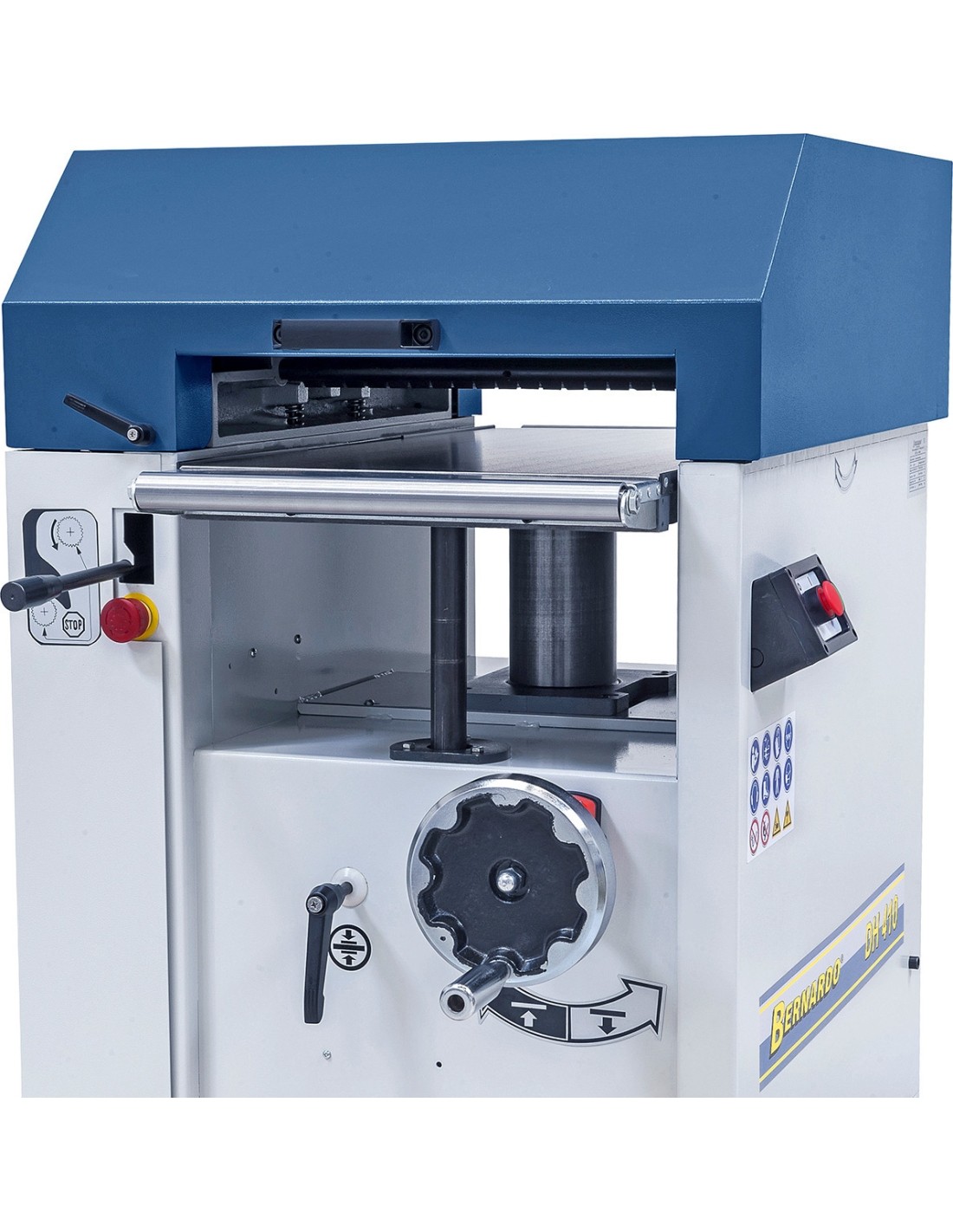

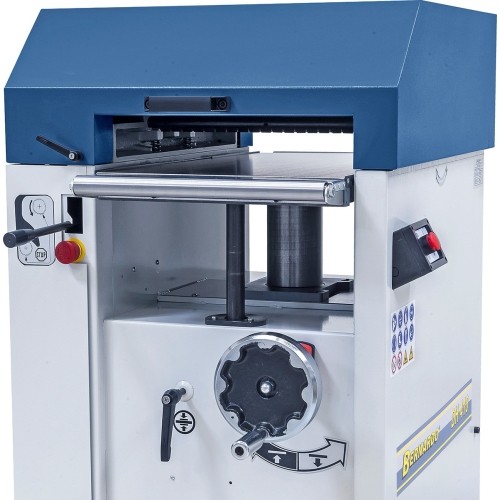

  • Thicknessing table with central column and support allow precise planing

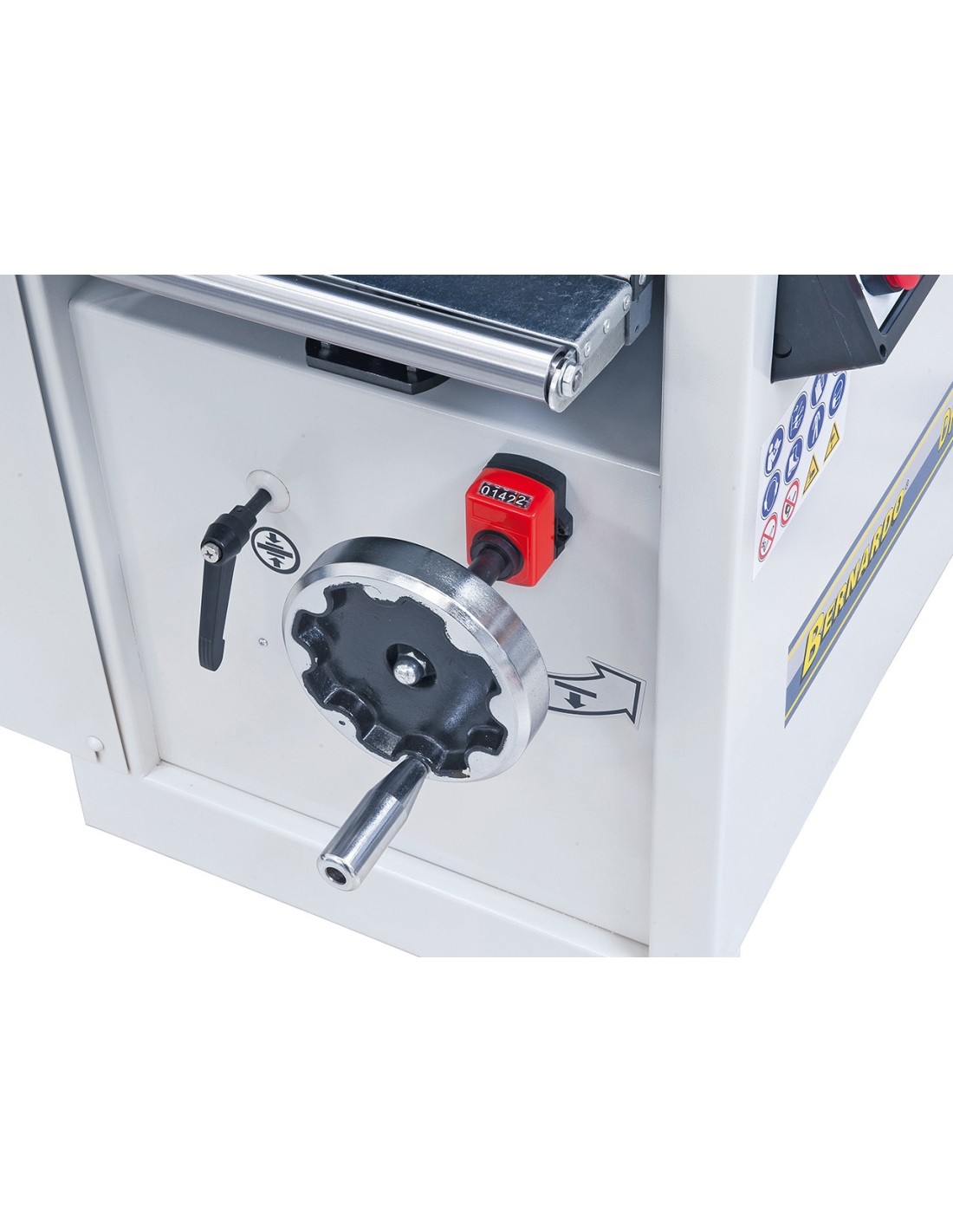

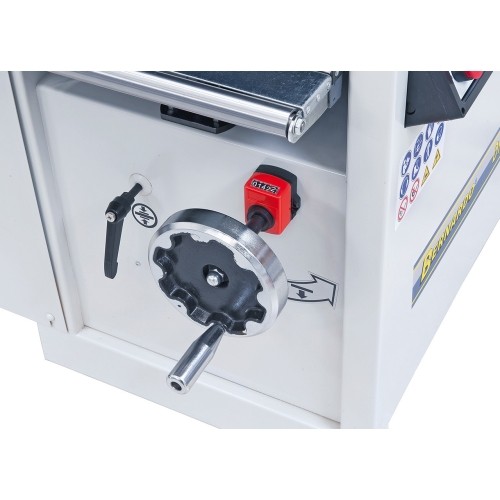

  • Digital display on handwheel features 1/10 mm scaling bfor precise adjustment of thicknessing table
  • Noise-reducing cutterblock cover keeps noise levels down

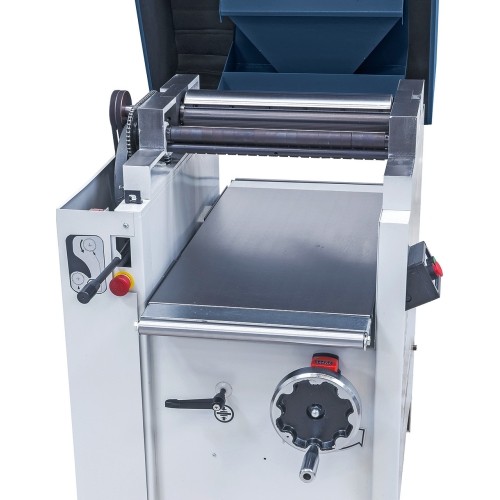

  • Ground thicknessing table for workpieces up to 230 mm in height
  • Serially with table extension with integrated rolls

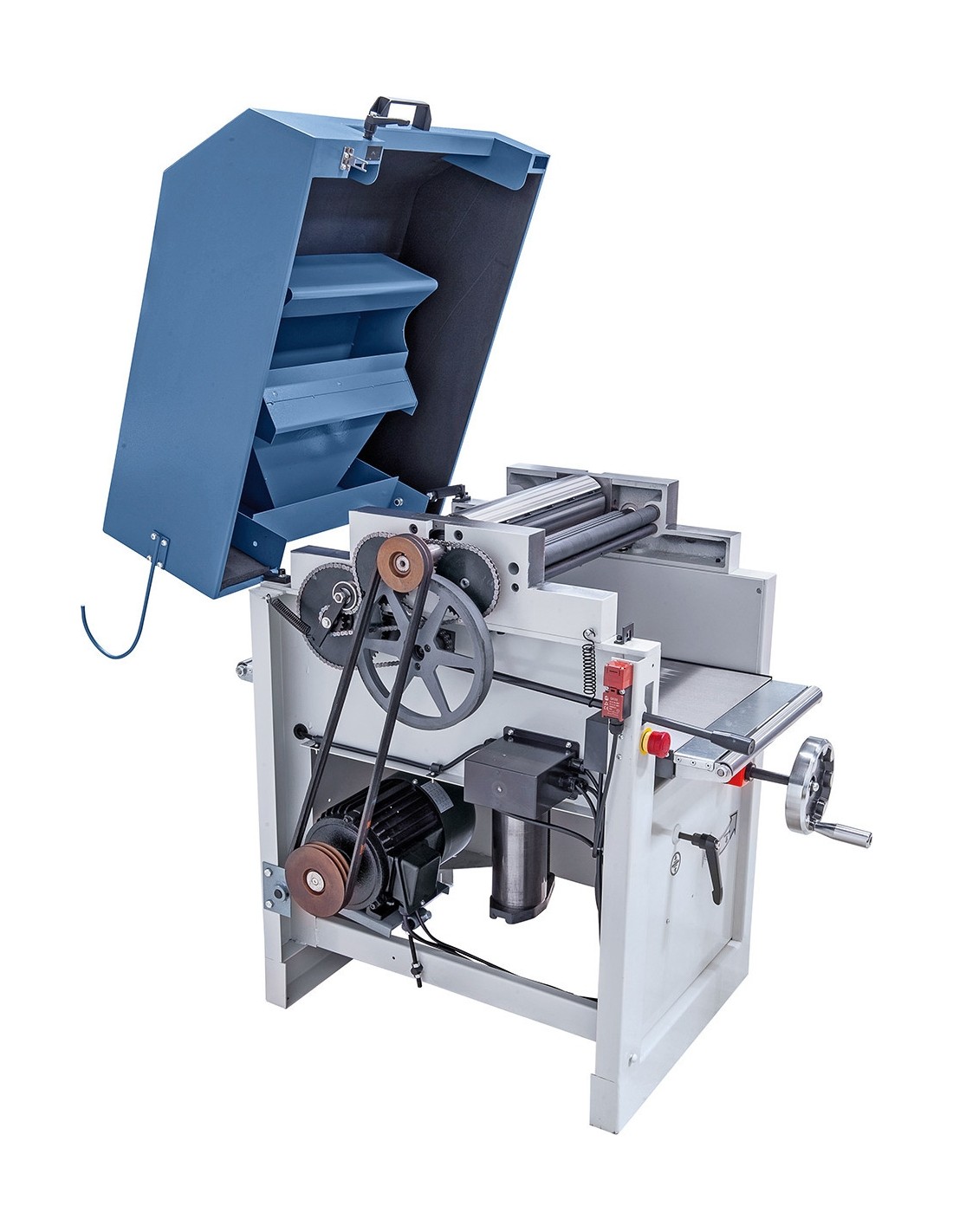

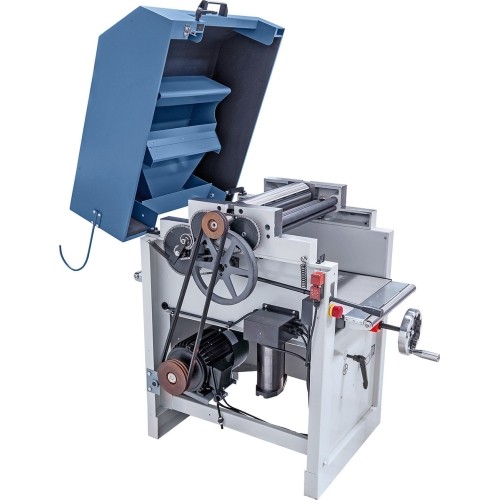

  • Chain drive allows safe and consistent workpiece infeed
  • Large anti-kickback devices eliminate ejection of workpieces

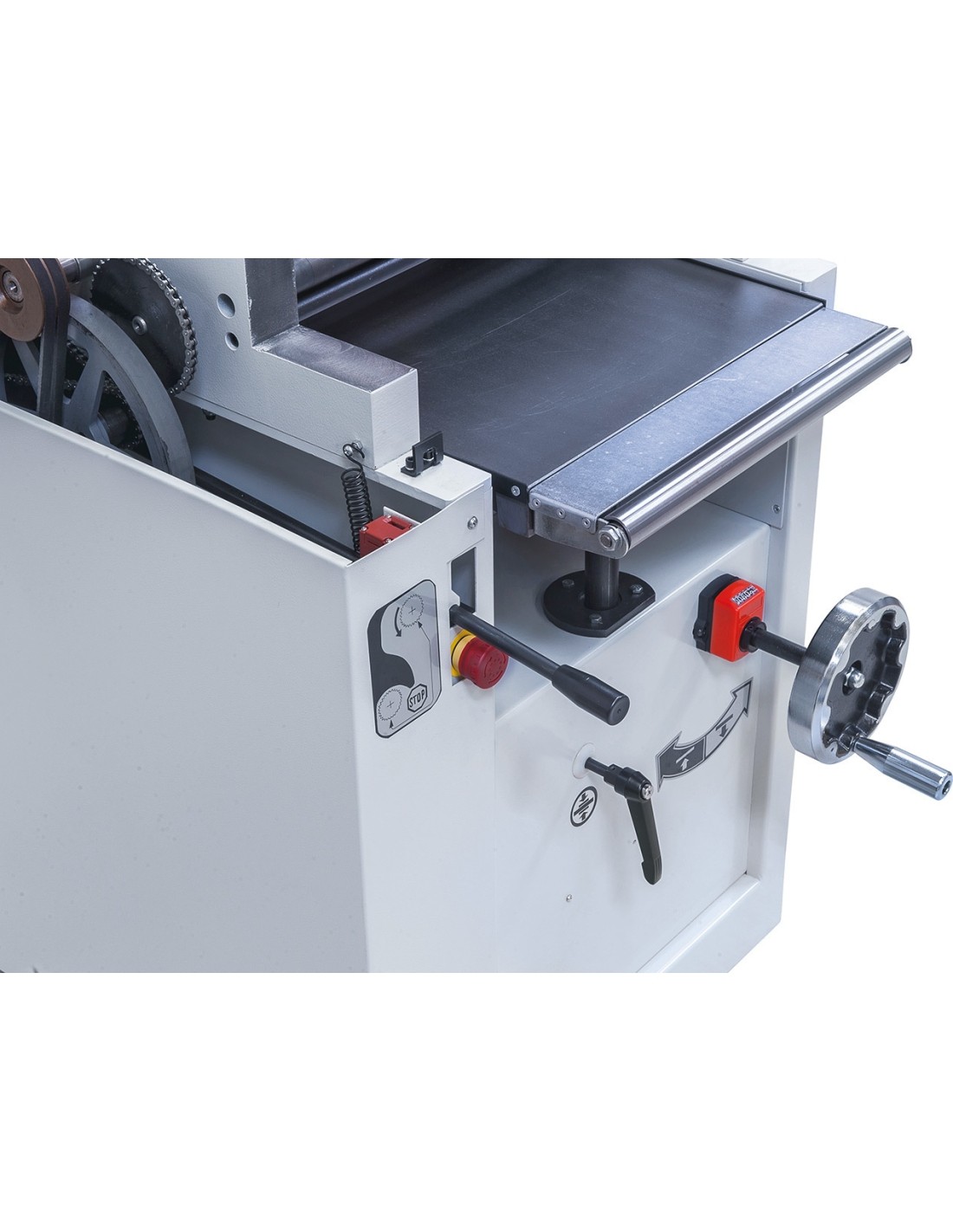

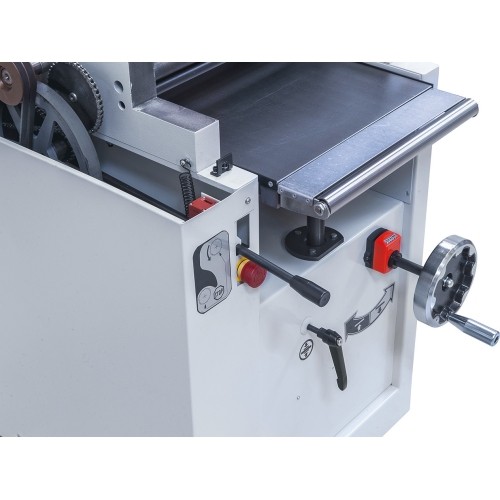

  • Several safety devices: On/Off switch with undervoltage release, limit switch to avoid accidental machine start, emergency-stop switch

Standard accessories

  • Cutter knives in HSS-quality
  • Knife gauge
  • Digital indication for thicknessing table adjustment
  • Table extension with rolls
