WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
157 kg
Spindle speed
1800 / 3000 / 6000 / 9000 rpm
Working height
840 mm
Machine dimension (W x D x H)
930 x 760 x 1160 mm
Motor power output S1 100%
2,2 kW (3,0 HP)
Motor power input S6 40%
3,0 kW (4,0 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table size
700 x 700 mm
Spindle diameter
30 mm
Working length of spindle
100 mm
Height adjustment of spindle
105 mm
Max. tool diameter
200 mm
Max. tool diameter concealed
95 mm

T 700 / 400 V

1091053
€1,914.00
Tax included
Monthly payment from 52.31€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 157 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 157 kg.

Description

Properties

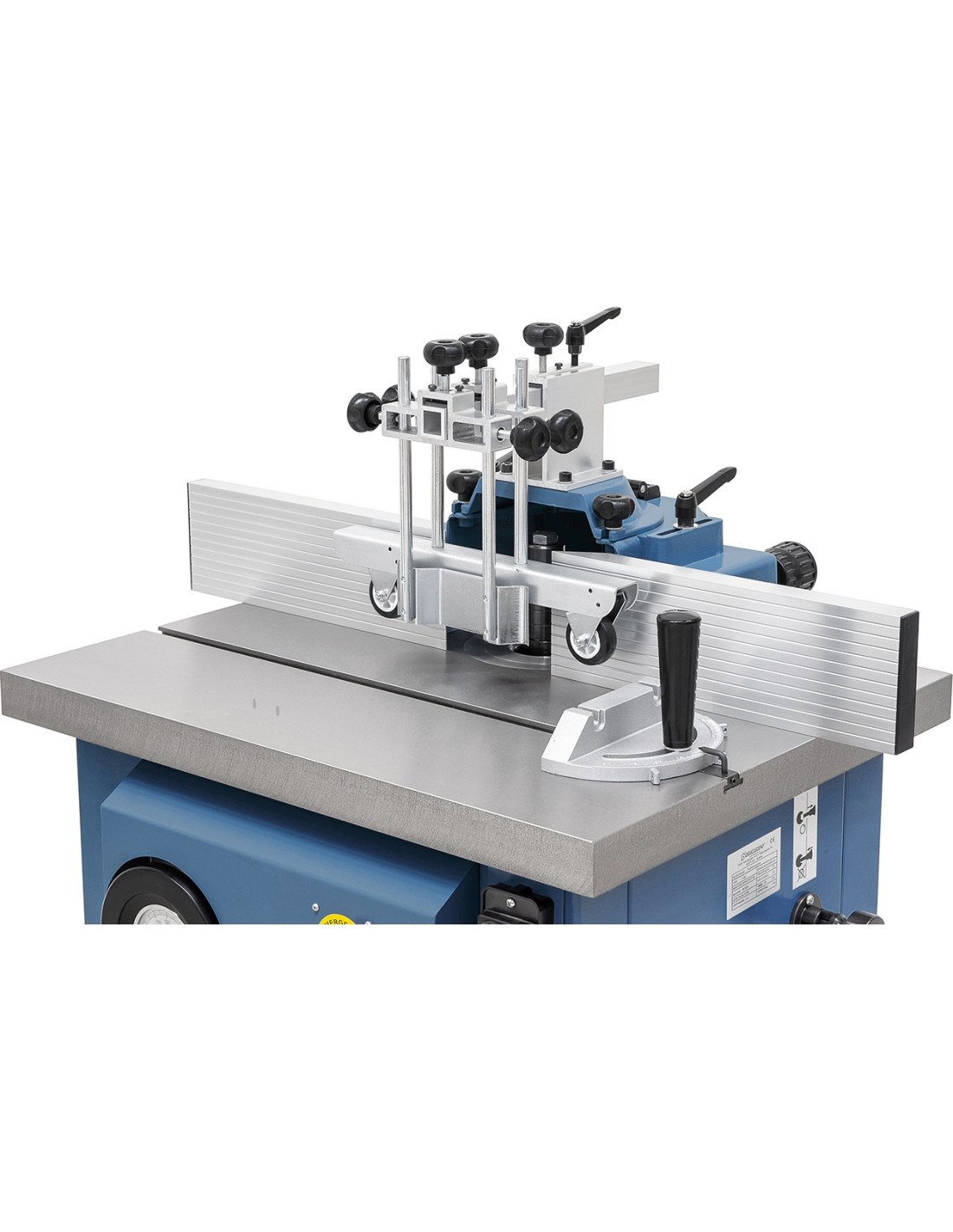

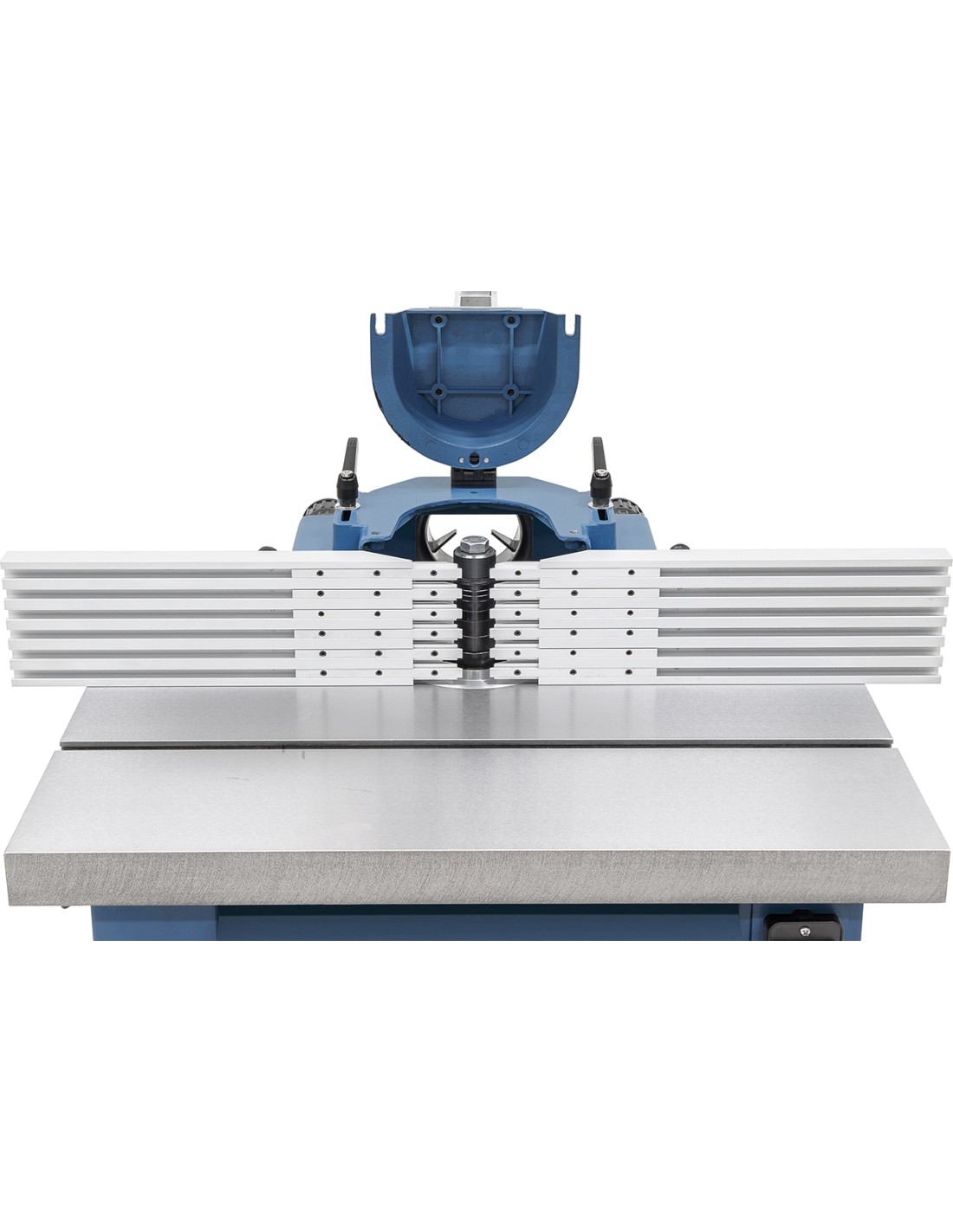

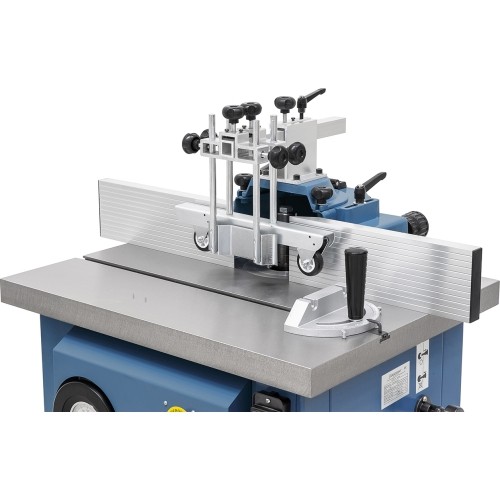

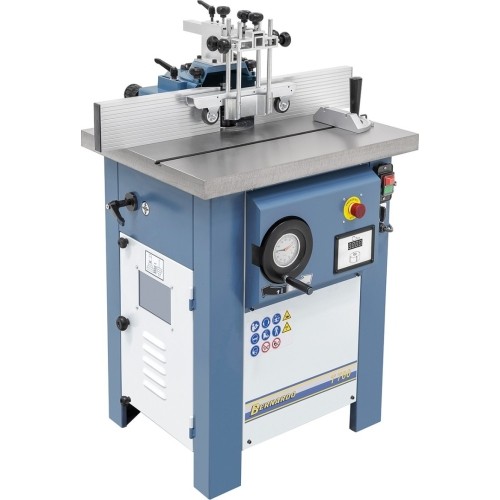

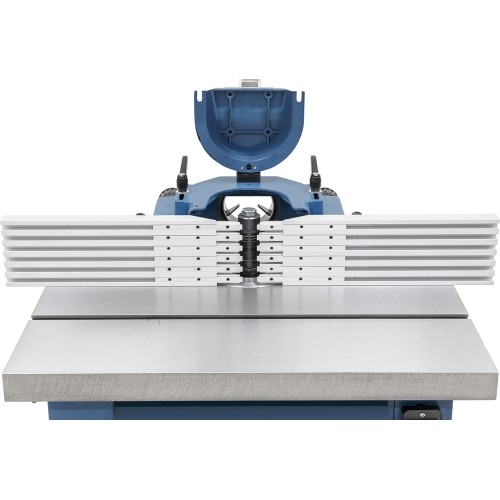

  • Solid moulding fence features finely adjustable aluminium stop bars

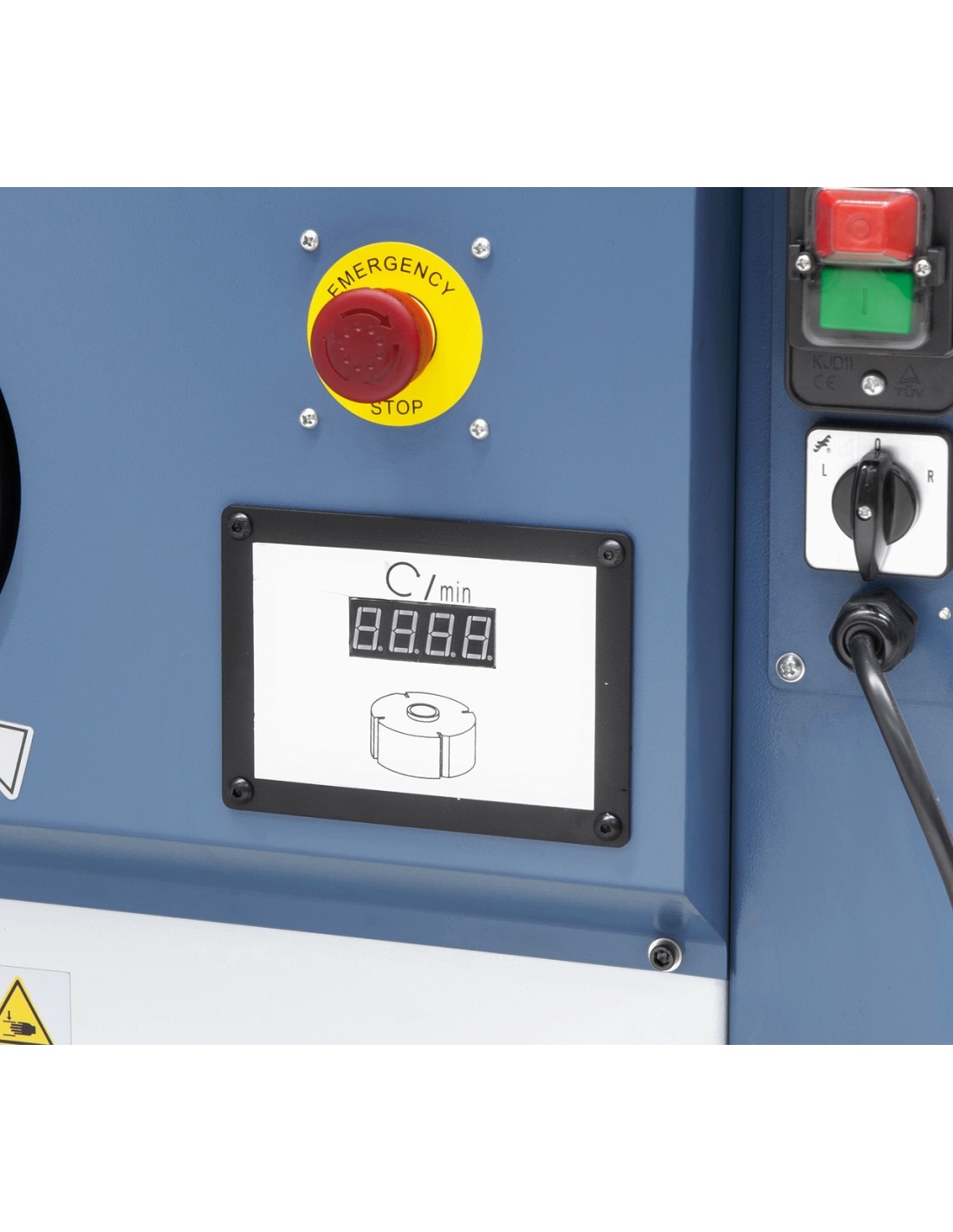

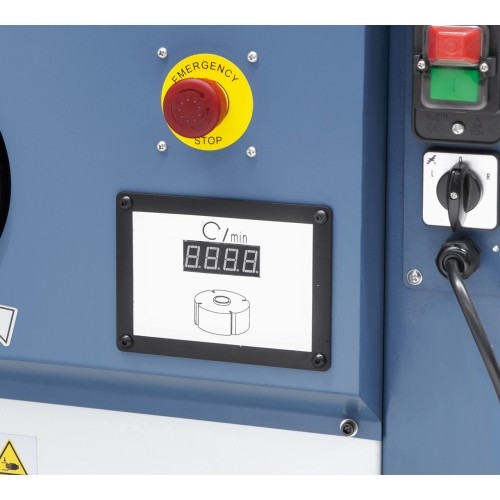

  • Quick and easy readout of spindle speed on digital display
  • Dynamically balanced moulder spindle ensures precise running

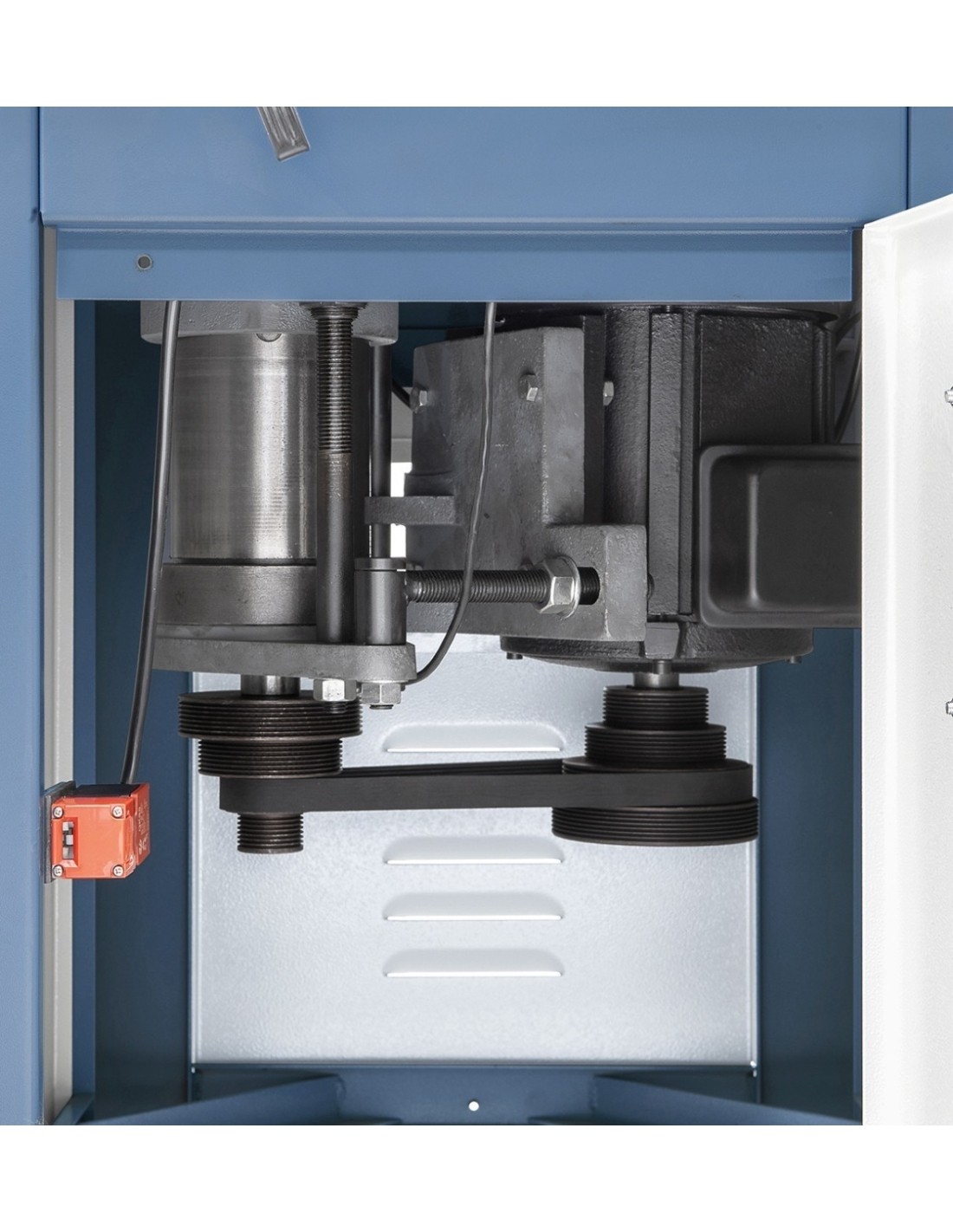

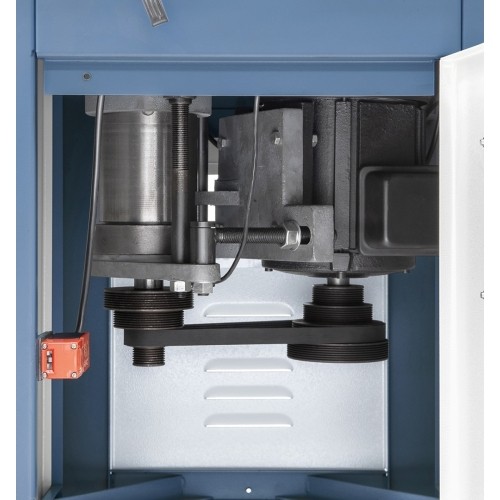

  • V-belt allows for quick and easy speed change

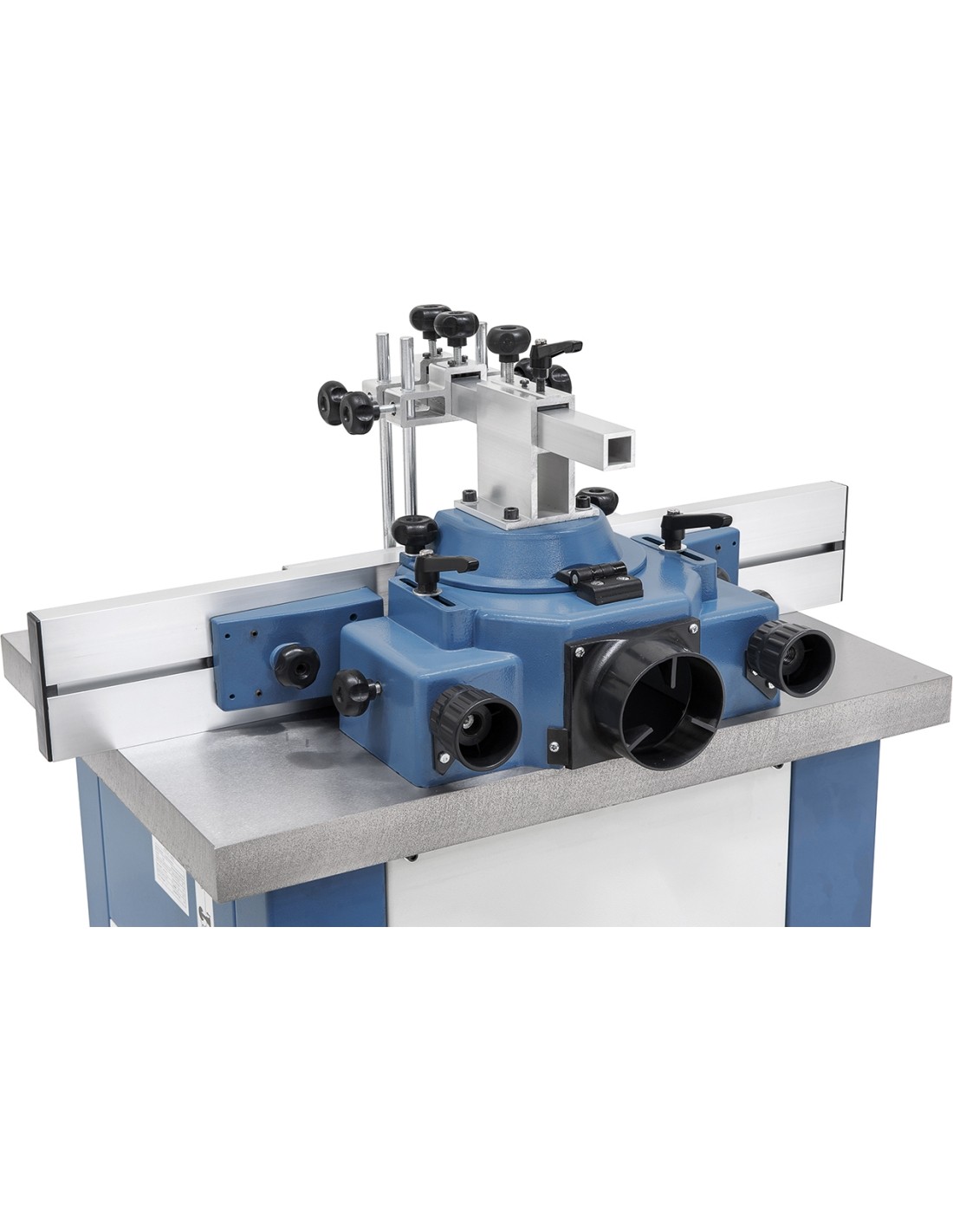

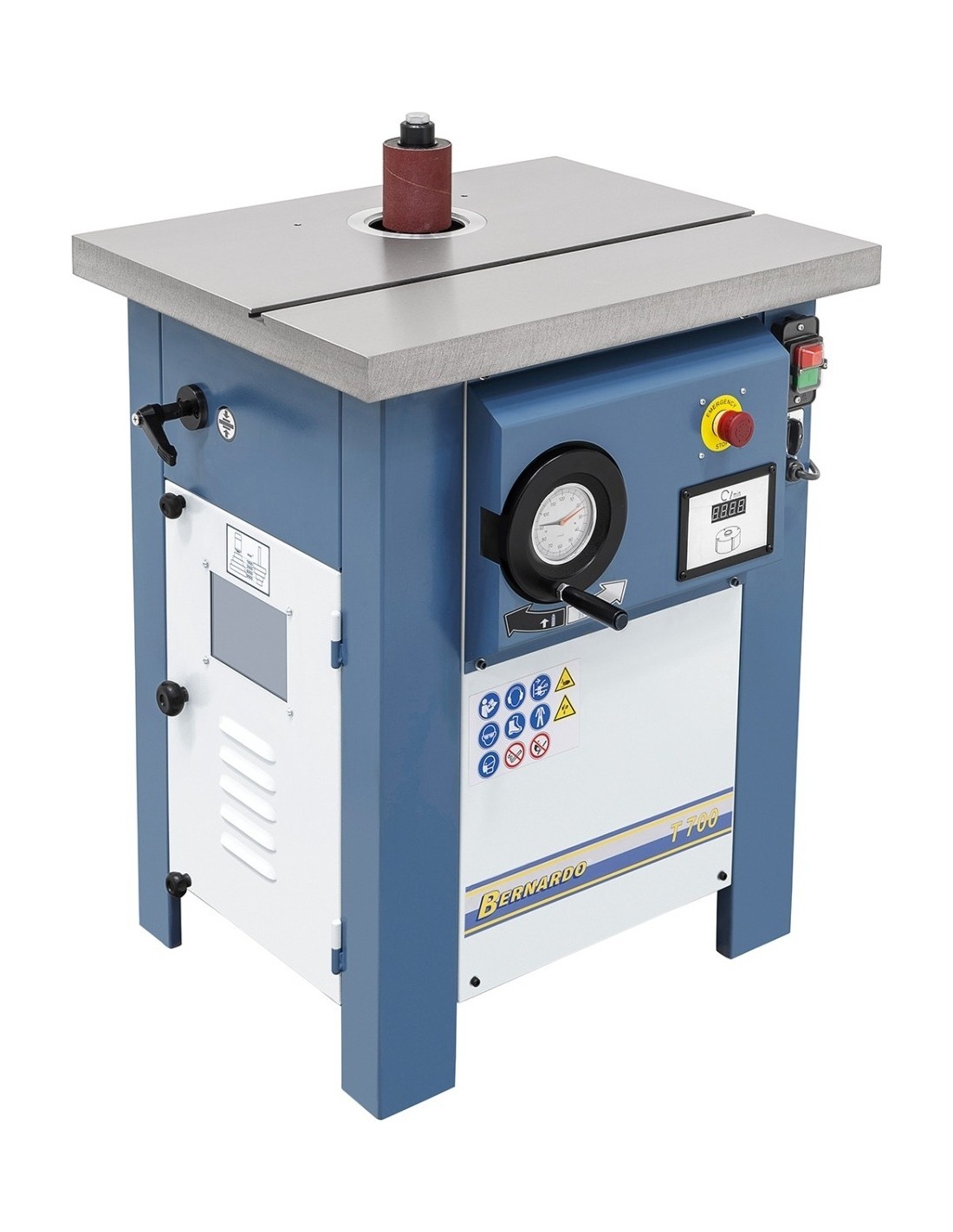

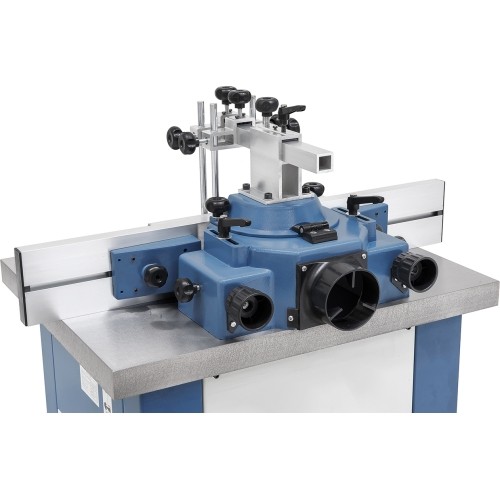

  • Complete with moulding fence featuring a dust port (diameter 100 mm) and sanding sleeve (diameter 75 mm)

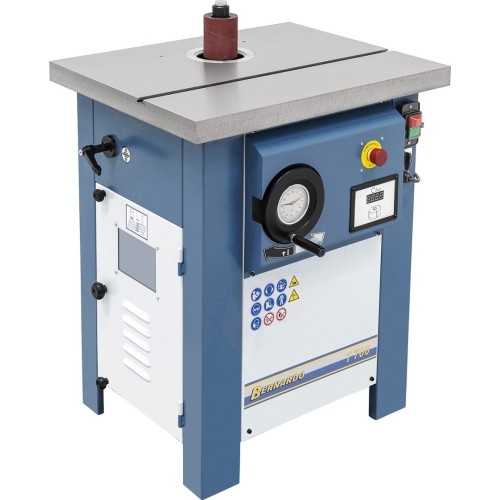

  • Torsion-free, grey cast-iron machine table for maximum accuracy
  • Ergonomically arranged switches and control elements guarantee high work comfort
  • Machine body consists of torsion-free steel construction
  • Large speed range – 4 settings from 1800 - 9000 rpm

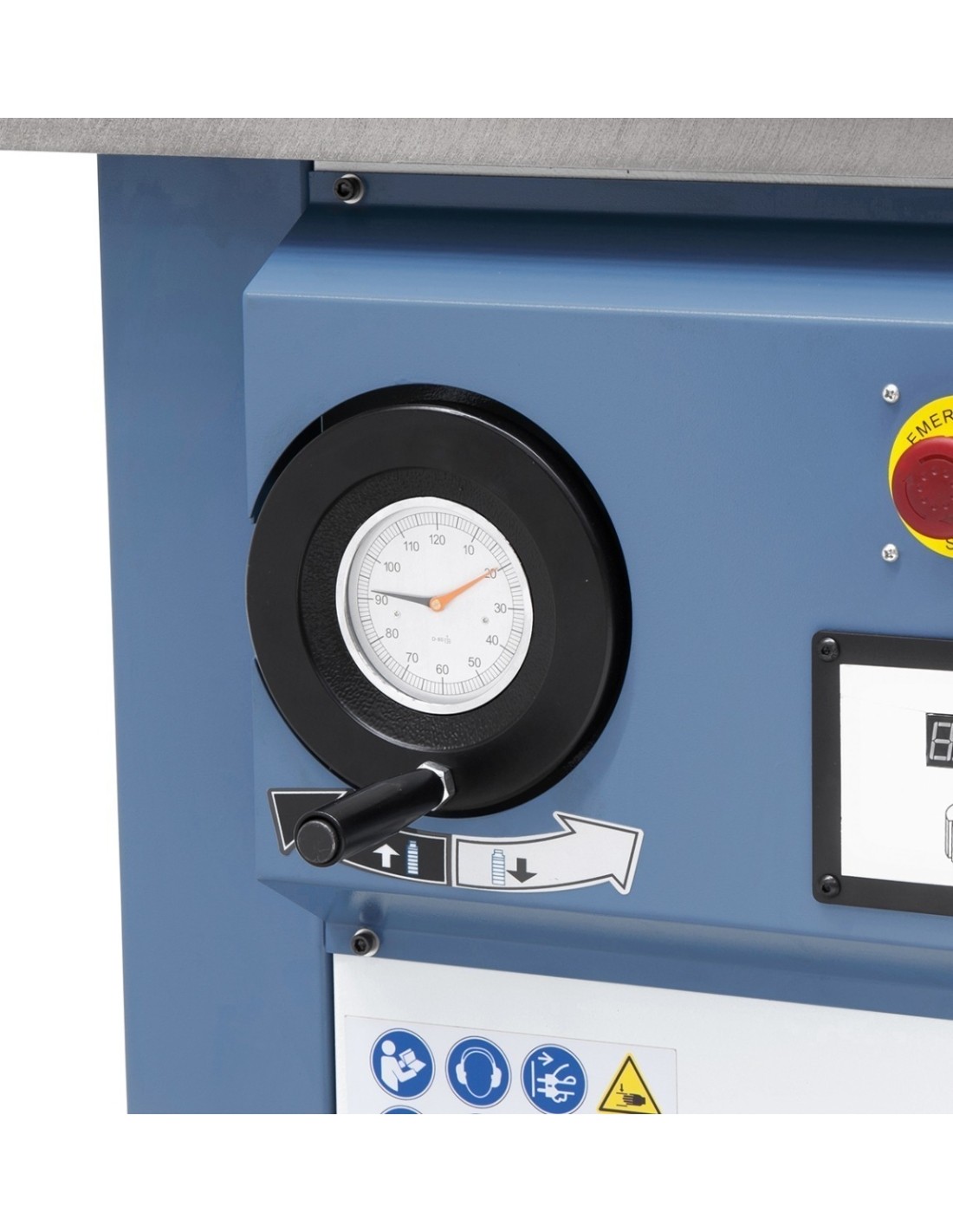

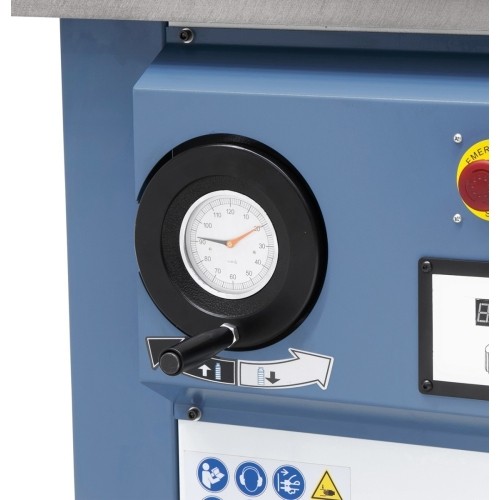

  • Hand wheel with scale for adjusting the height of the milling spindle

Standard accessories

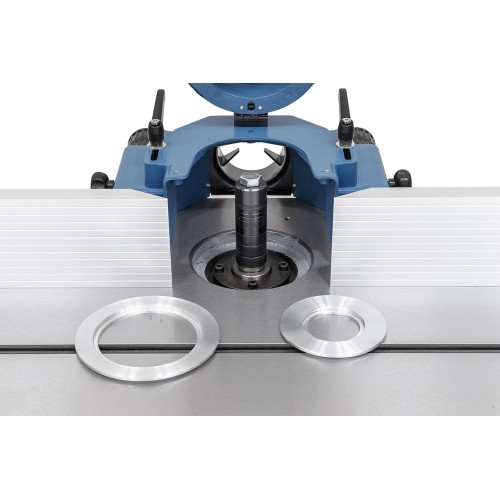

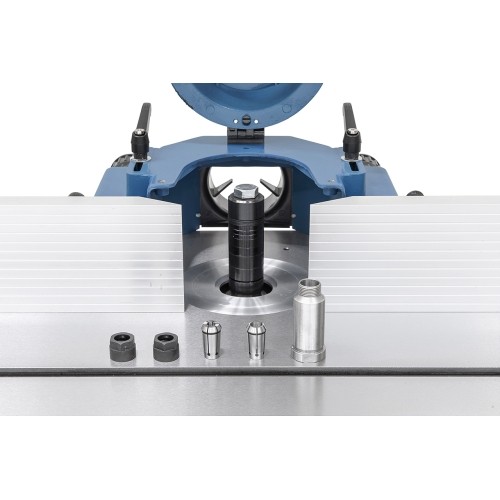

  • Interchangeable spindle 30 mm

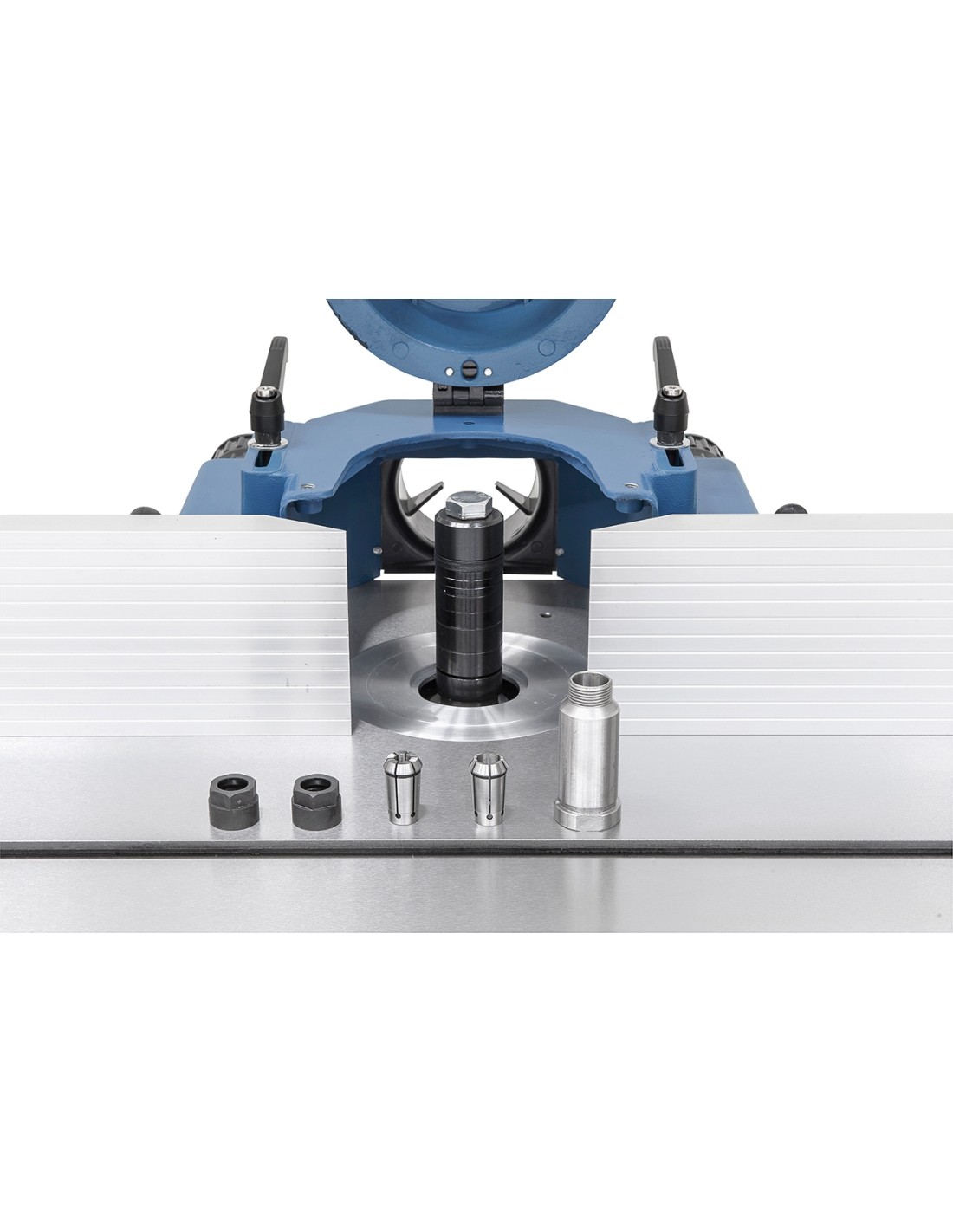

  • Interchangeable spindle for end mills 6, 8, 12 mm
  • Collets 6, 8, 12 mmv

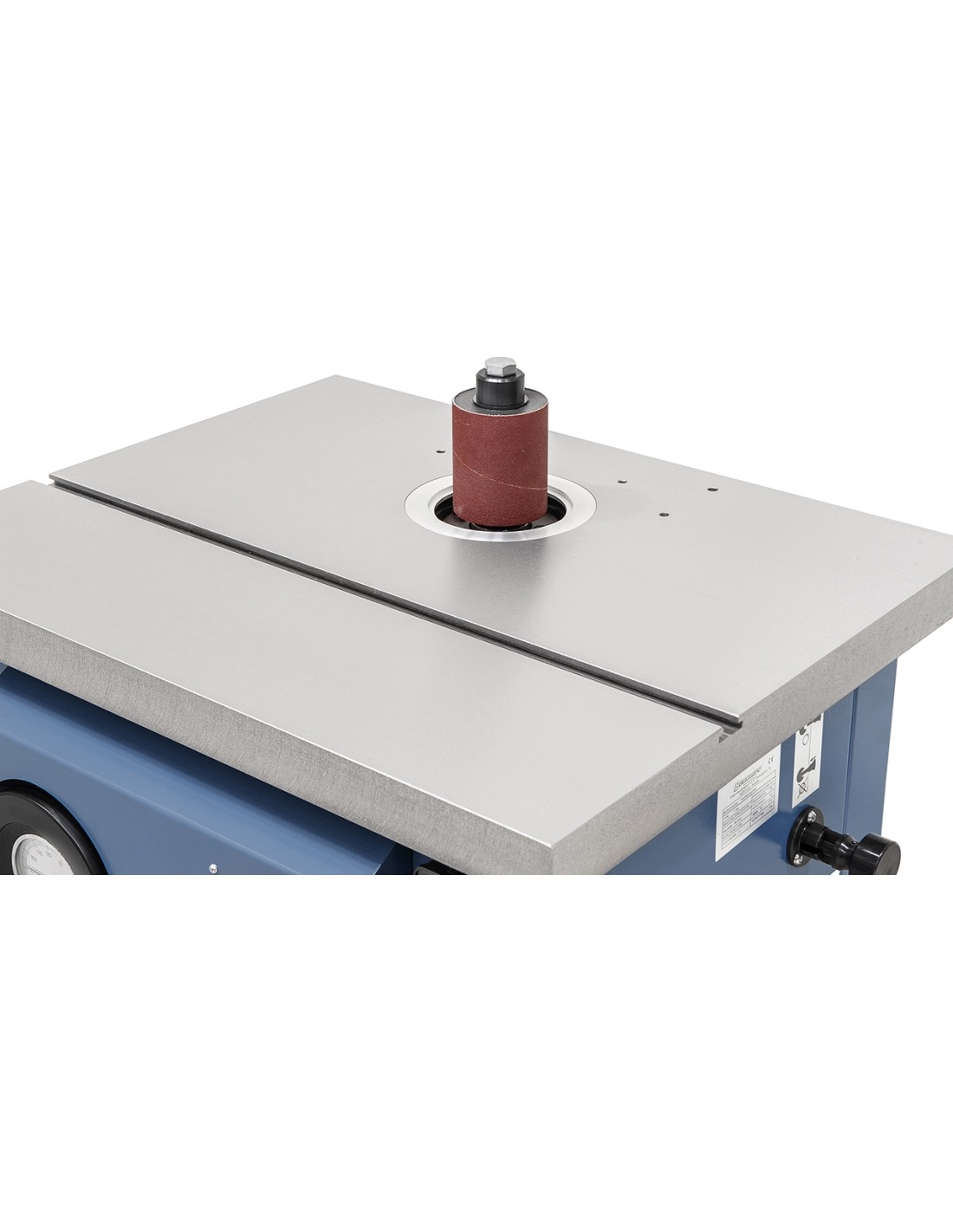

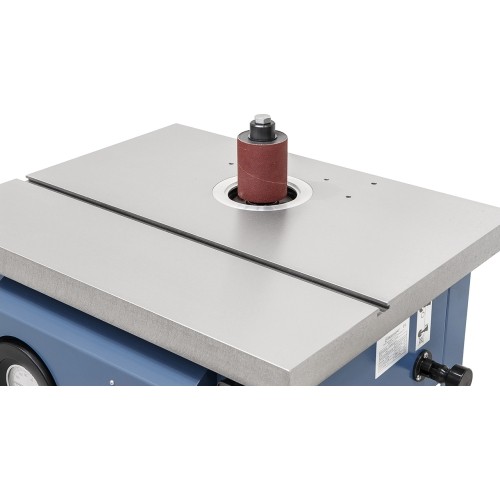

  • Sanding sleeve diam. 75 mm - G 100

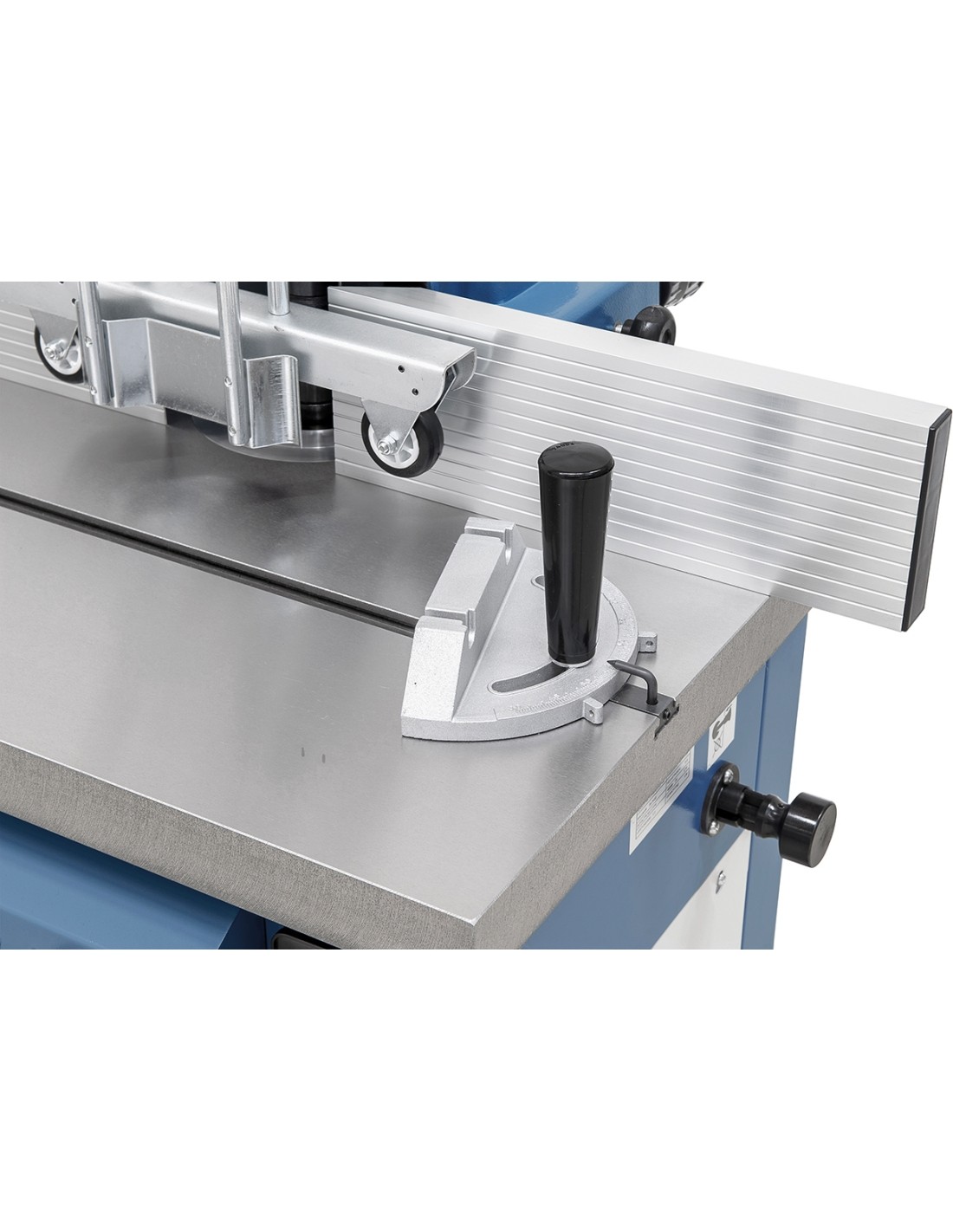

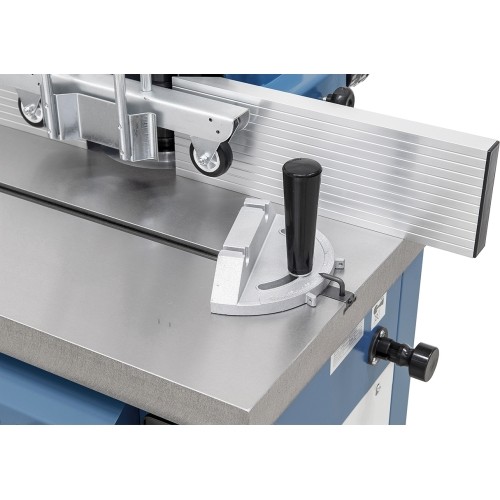

  • Mitre fence
  • Digital speed indication
  • Left and right turning
  • Protective and pressing device
