Weight approx.
157 kg
Spindle speed
1800 / 3000 / 6000 / 9000 rpm
Working height
840 mm
Machine dimension (W x D x H)
930 x 760 x 1160 mm
Motor power output S1 100%
2,2 kW (3,0 HP)
Motor power input S6 40%
3,0 kW (4,0 HP)
Voltage
230 V
Dust extraction outlet
100 mm
Table size
700 x 700 mm
Spindle diameter
30 mm
Working length of spindle
100 mm
Height adjustment of spindle
105 mm
Max. tool diameter
200 mm
Max. tool diameter concealed
95 mm

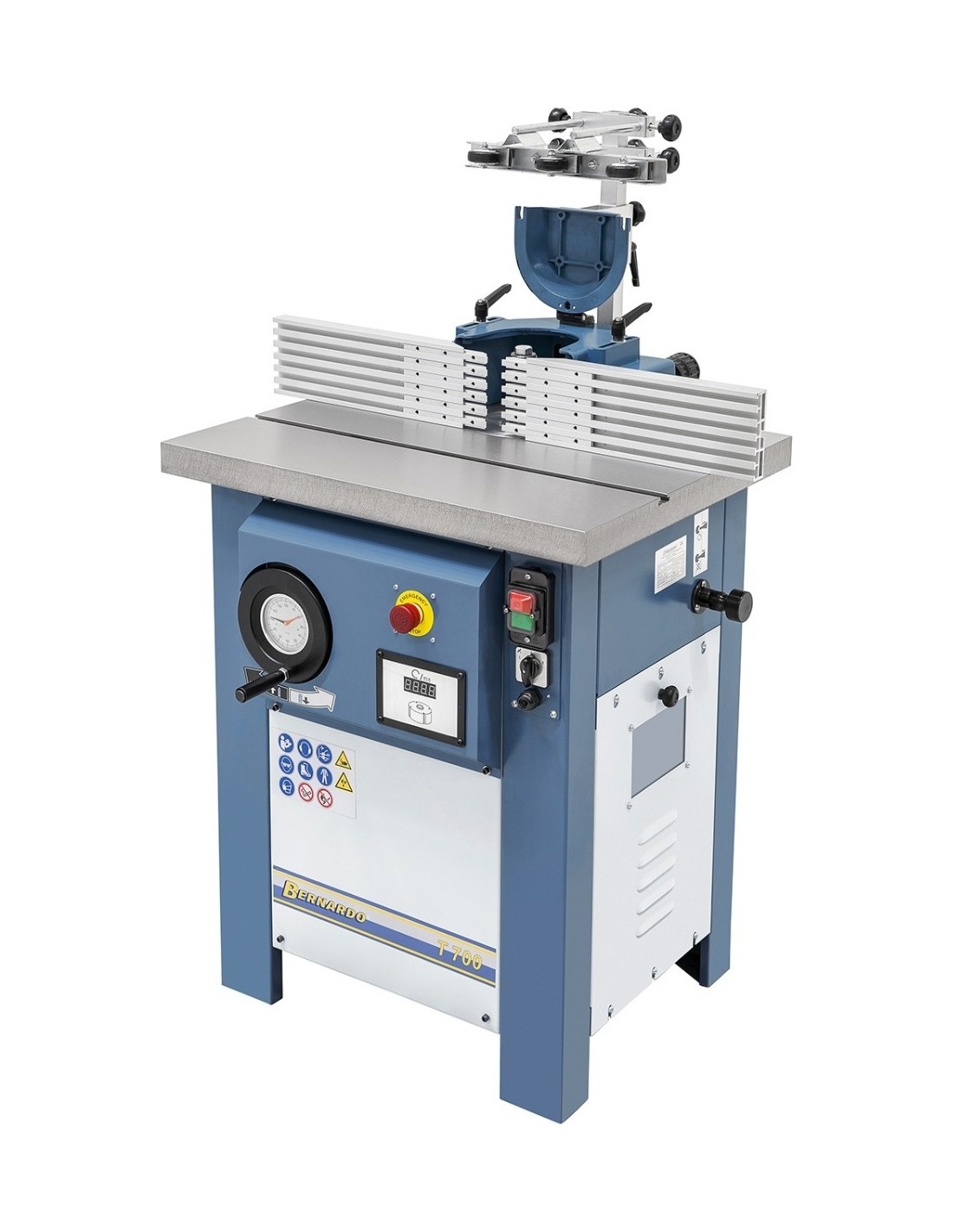

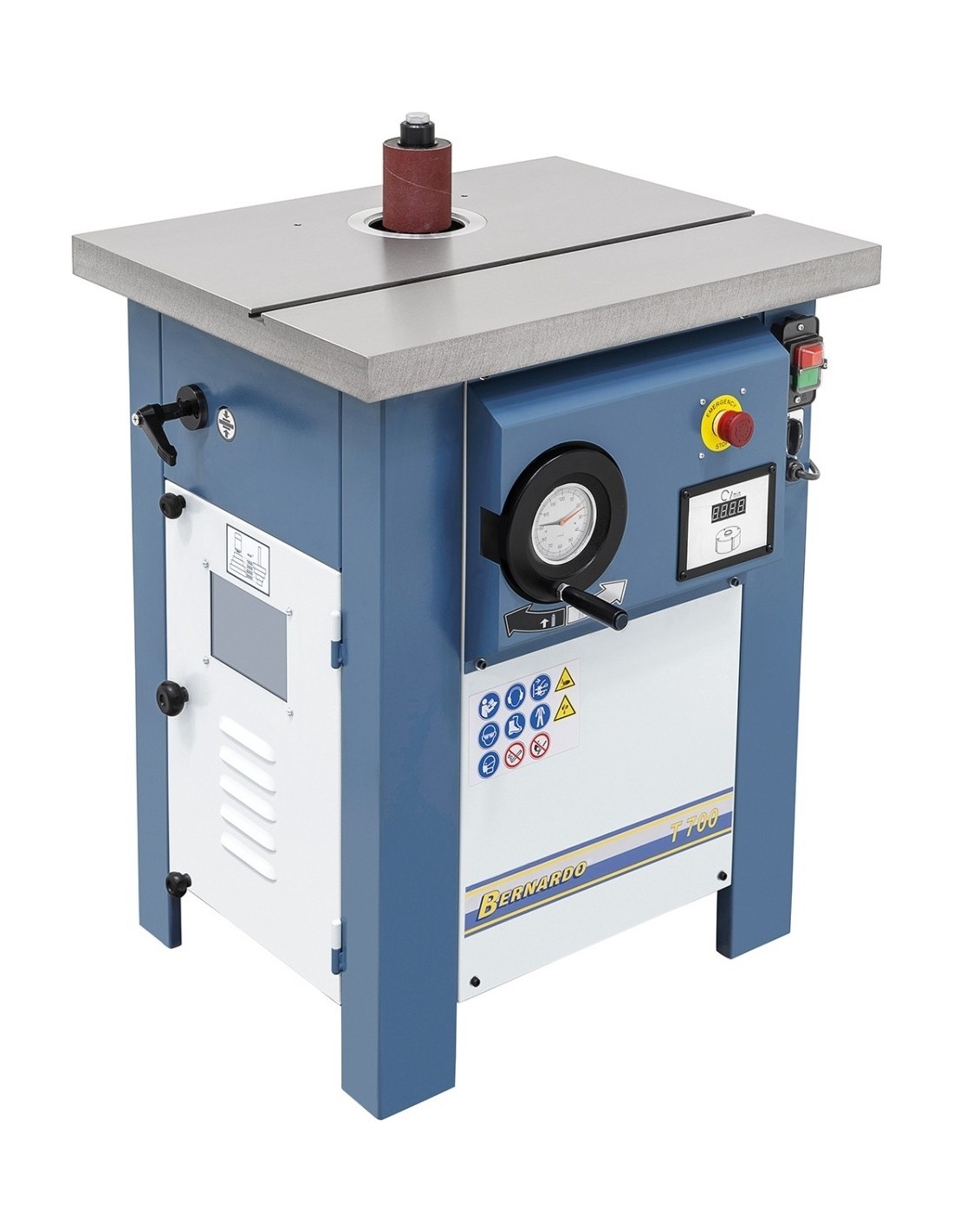

T 700 / 230 V

1091029
Price €2,346.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up thursday, april 30 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 157 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 157 kg.

Description

Properties

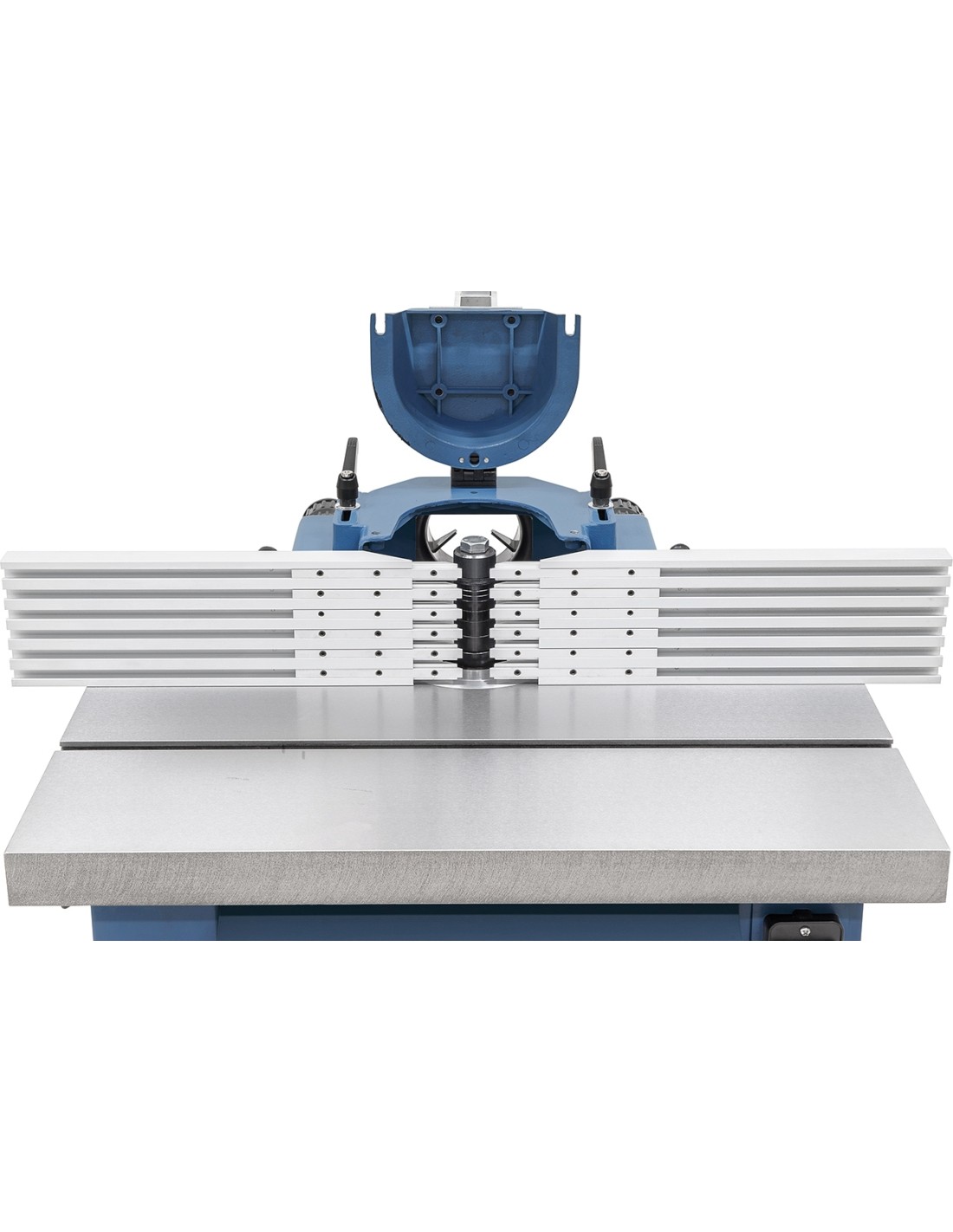

  • Solid moulding fence features finely adjustable aluminium stop bars

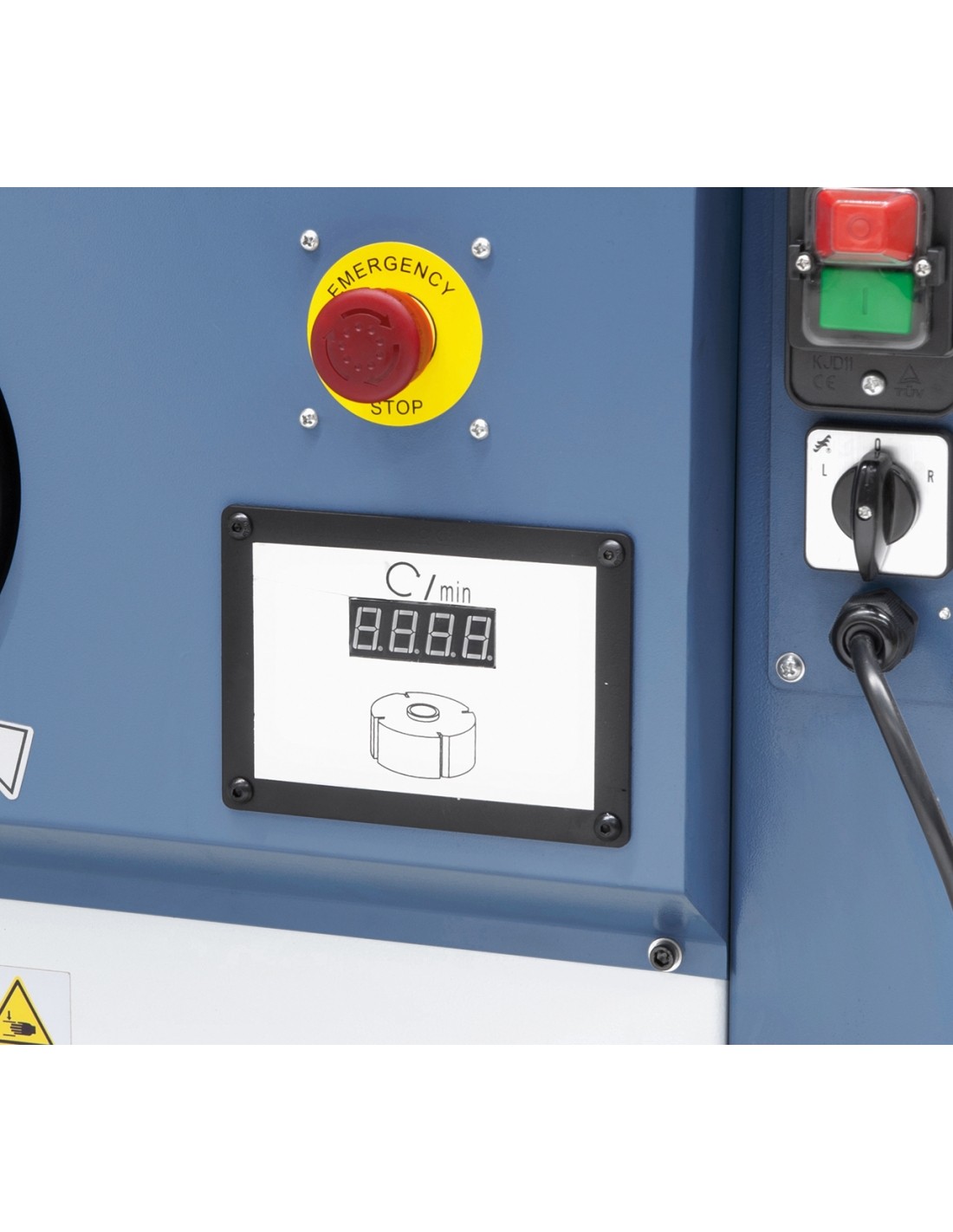

  • Quick and easy readout of spindle speed on digital display
  • Dynamically balanced moulder spindle ensures precise running

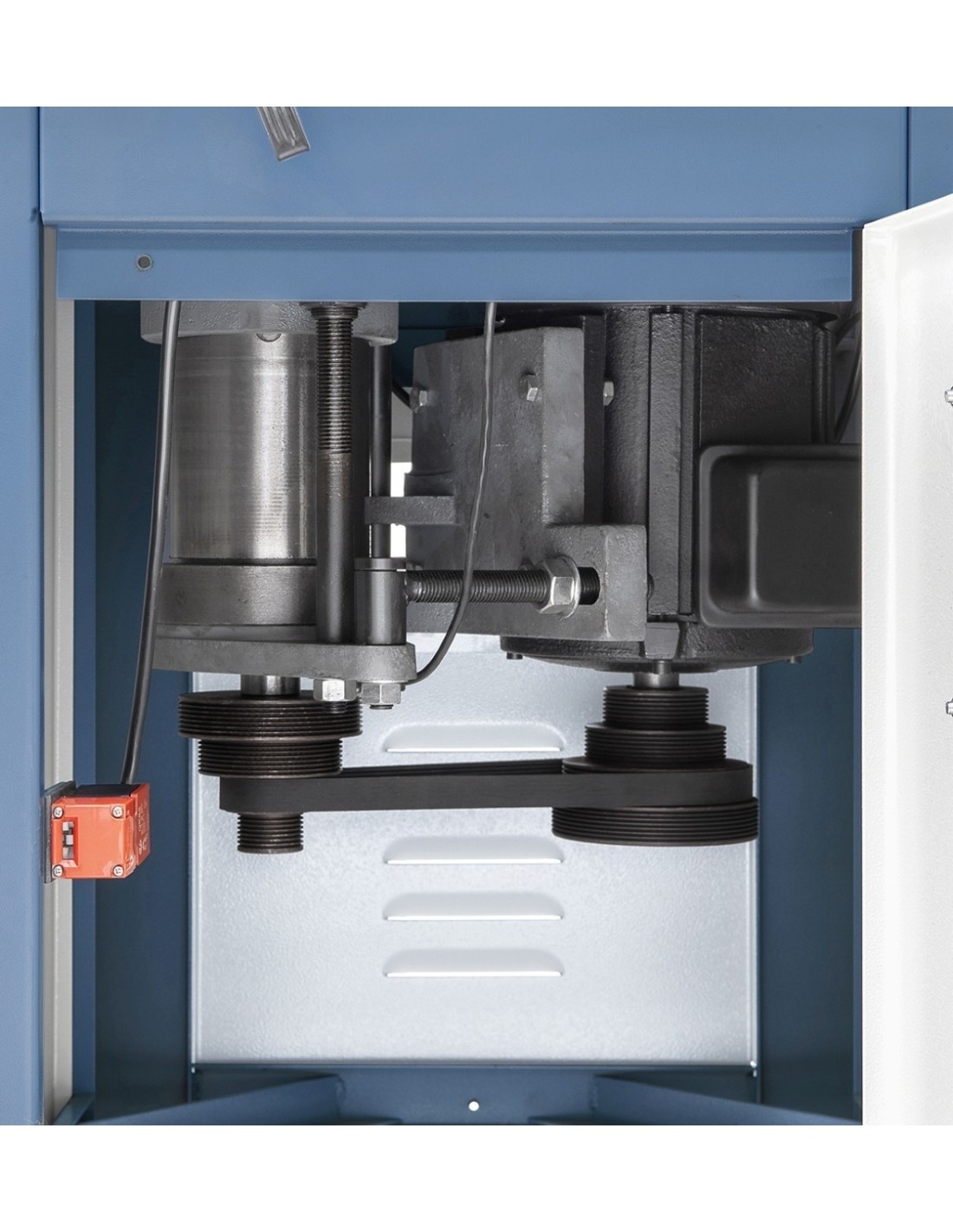

  • V-belt allows for quick and easy speed change

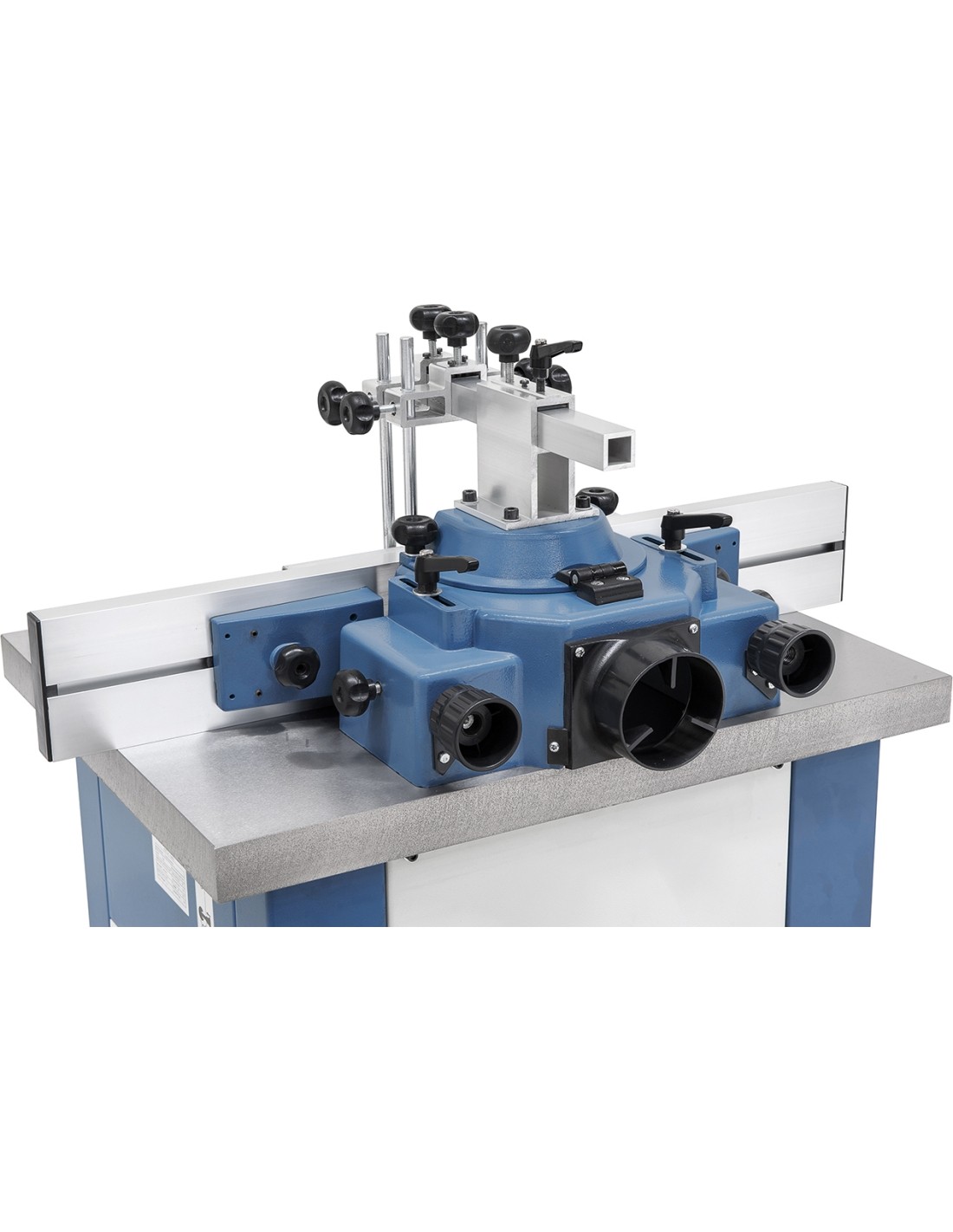

  • Complete with moulding fence featuring a dust port (diameter 100 mm) and sanding sleeve (diameter 75 mm)
  • Torsion-free, grey cast-iron machine table for maximum accuracy
  • Ergonomically arranged switches and control elements guarantee high work comfort
  • Machine body consists of torsion-free steel construction
  • Large speed range – 4 settings from 1800 - 9000 rpm

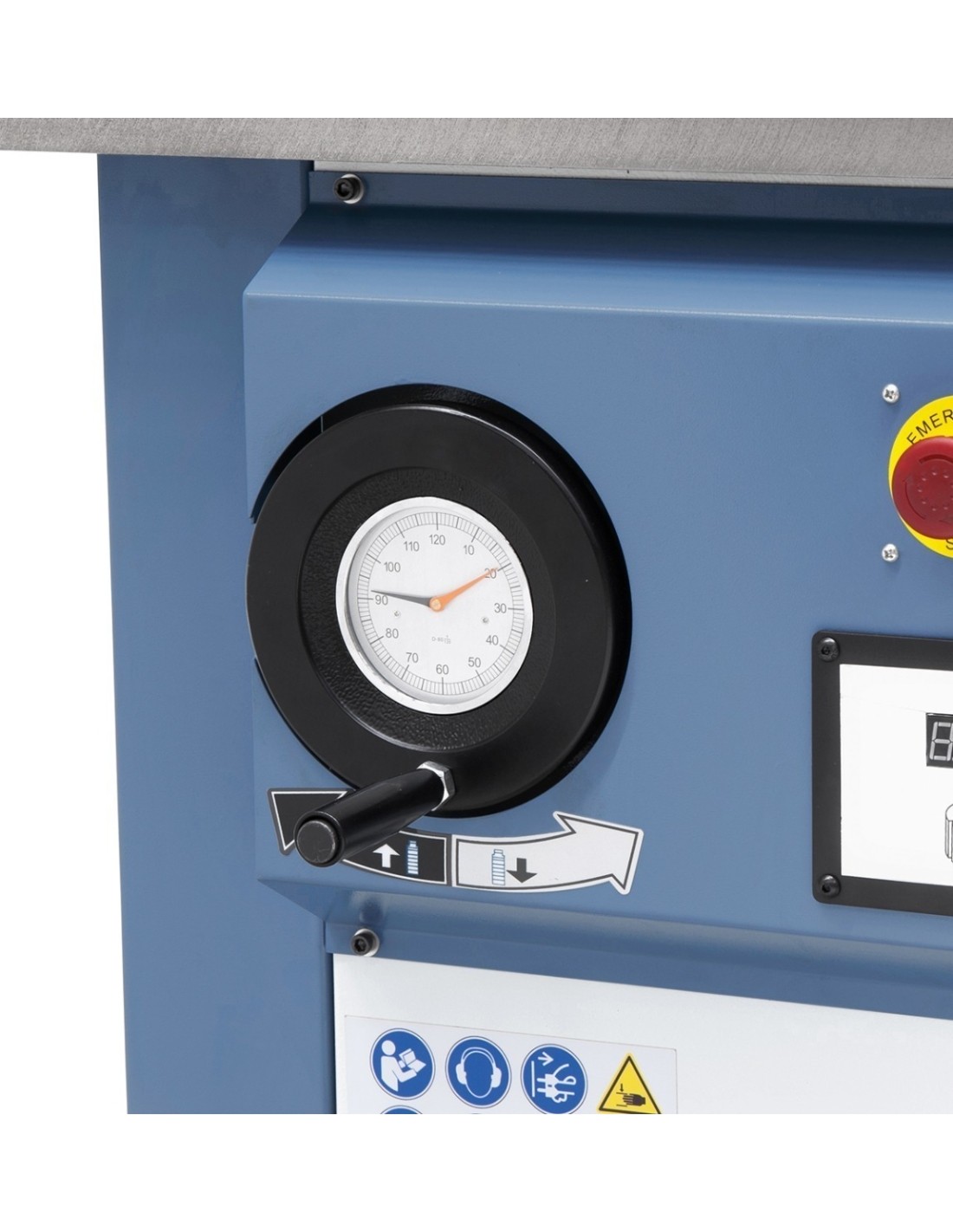

  • Hand wheel with scale for adjusting the height of the milling spindle

Standard accessories

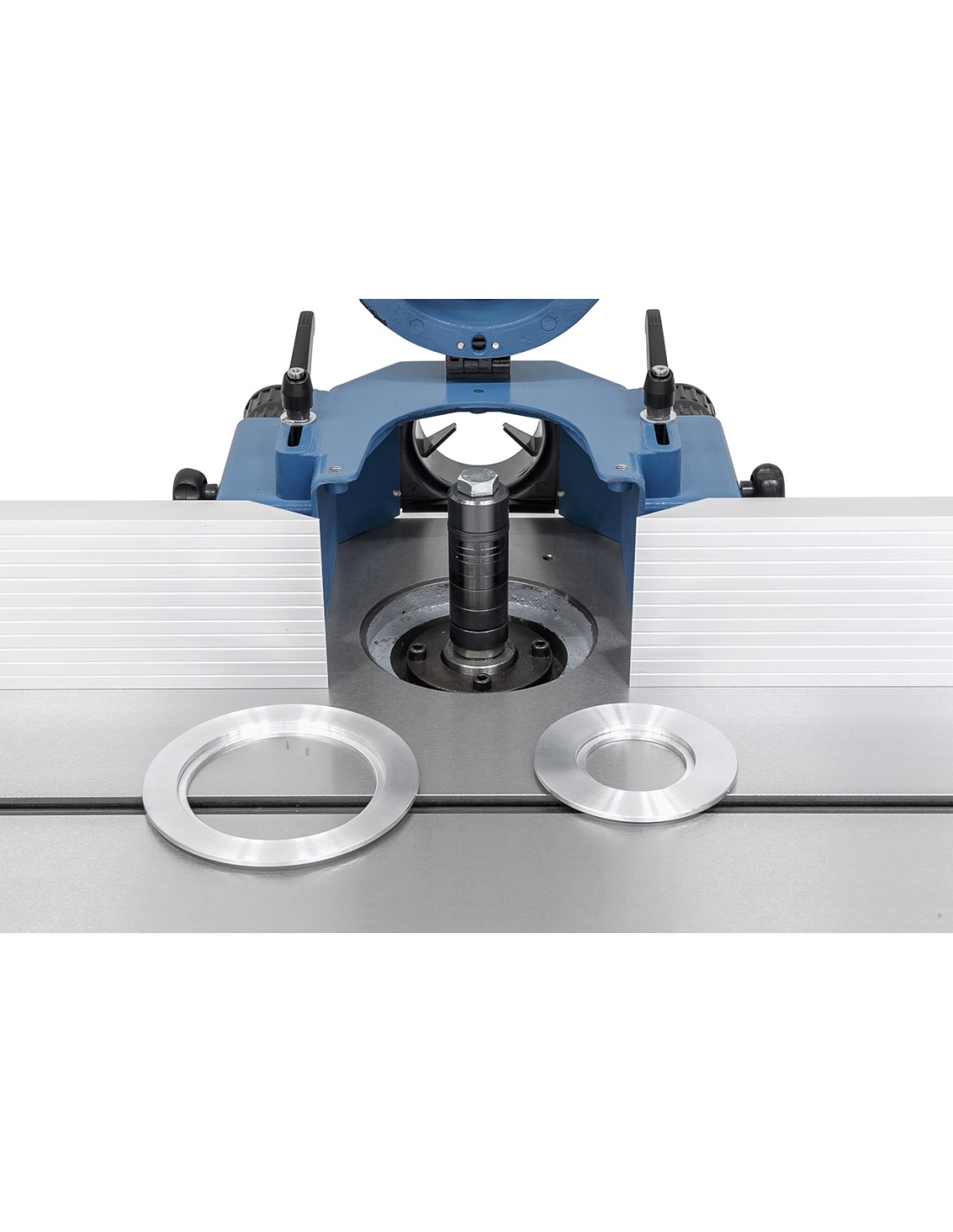

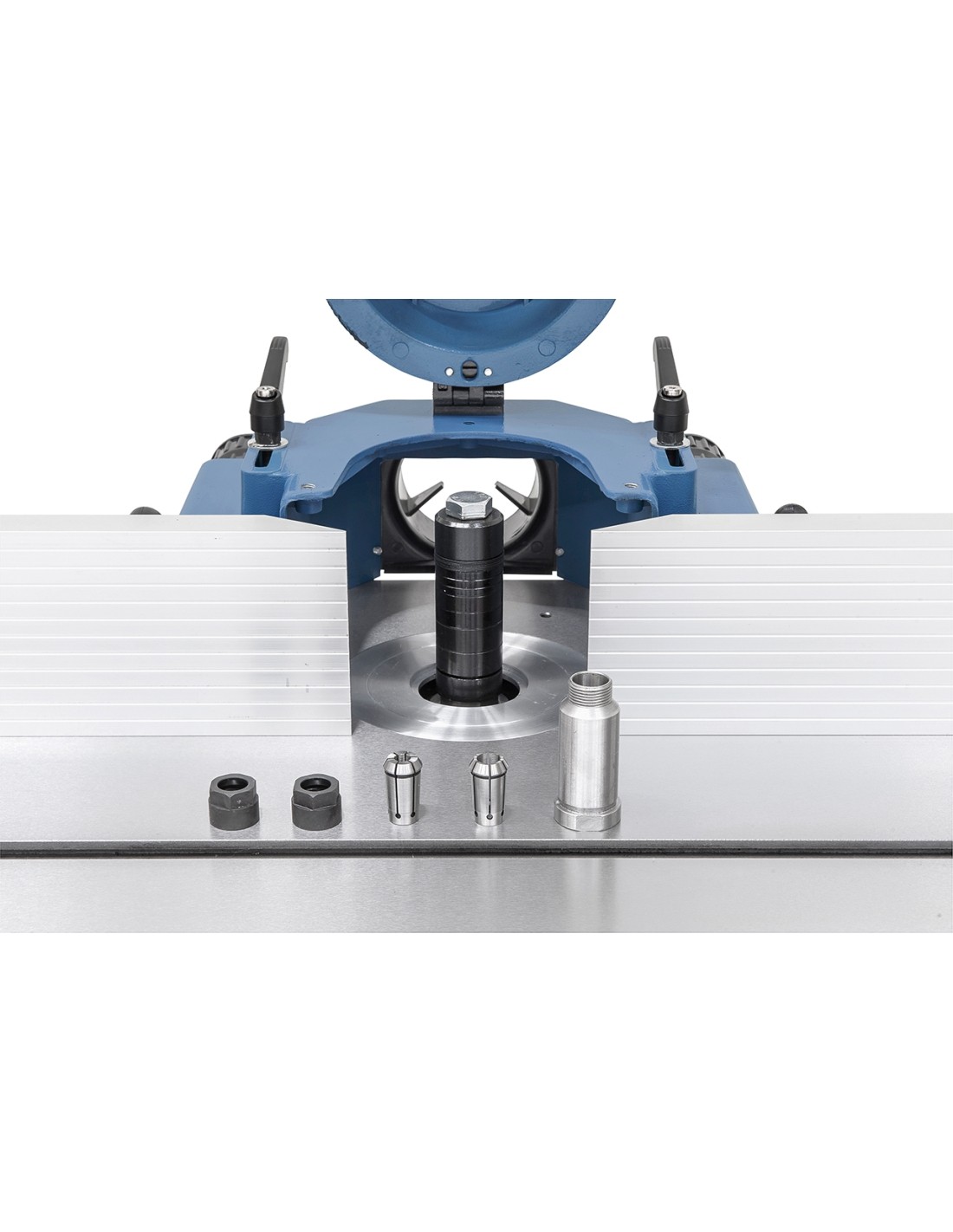

  • Interchangeable spindle 30 mm
  • Interchangeable spindle for end mills 6, 8, 12 mm
  • Collets 6, 8, 12 mmv

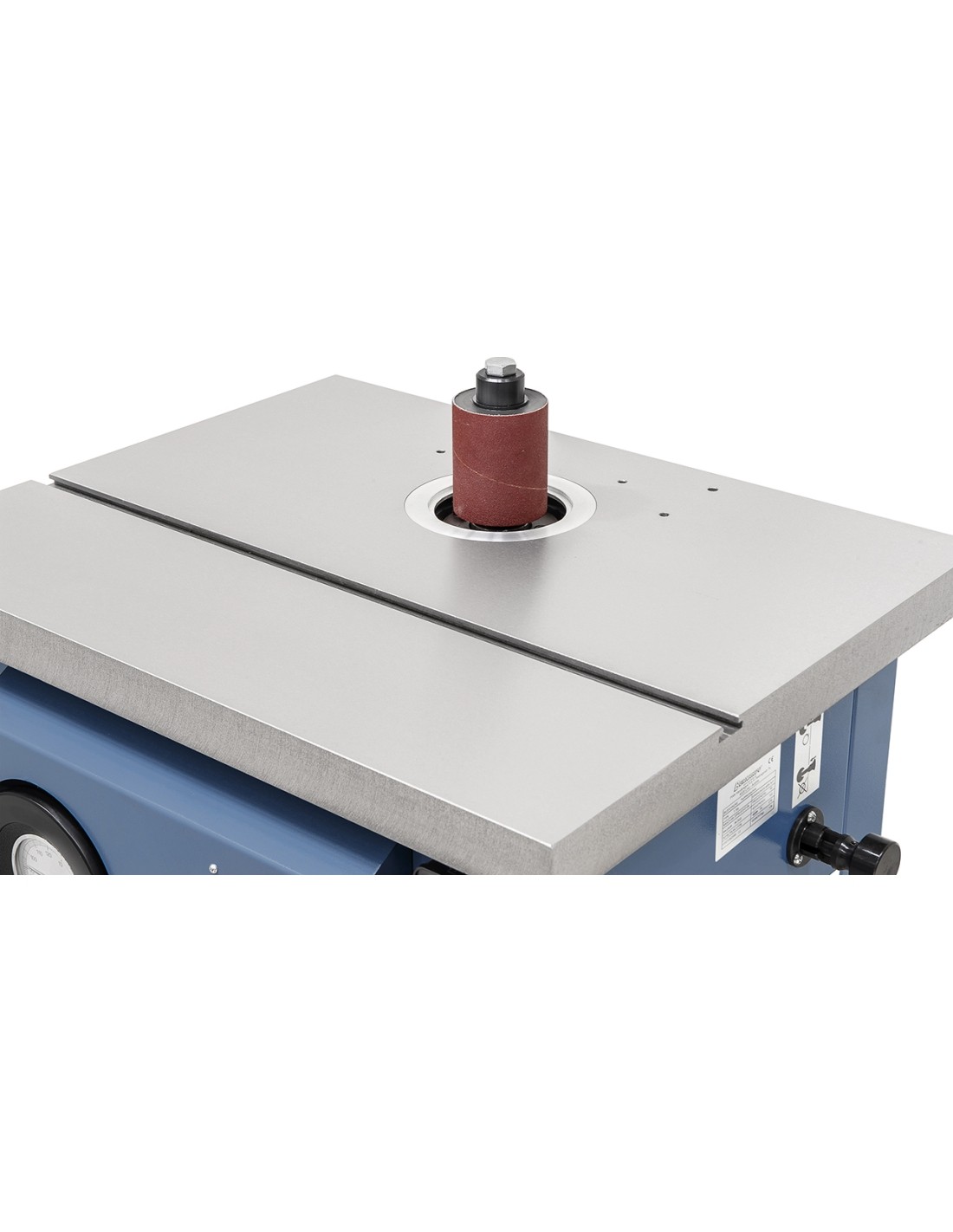

  • Sanding sleeve diam. 75 mm - G 100

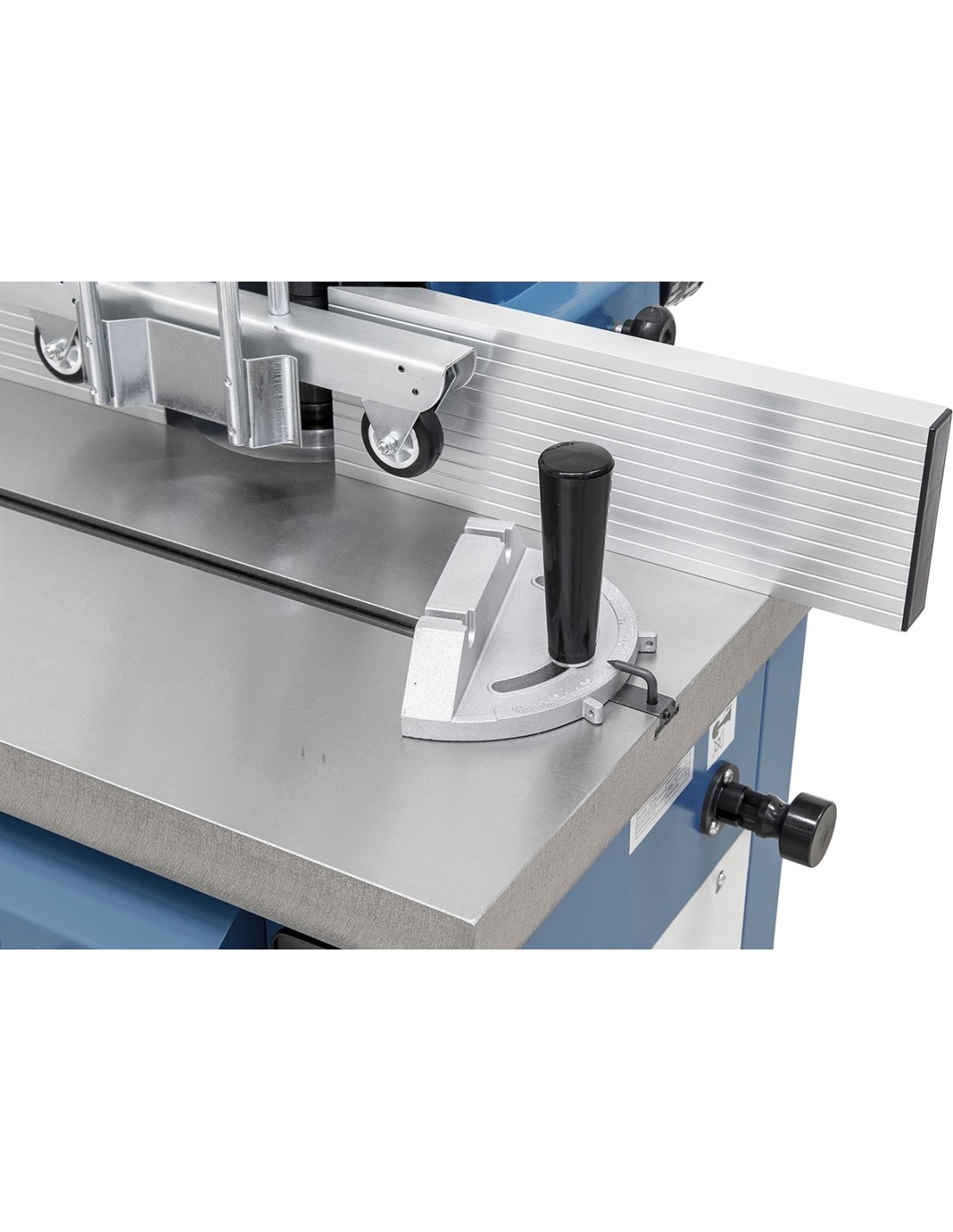

  • Mitre fence
  • Digital speed indication
  • Left and right turning
  • Protective and pressing device
