WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
104 kg
Spindle speed
1400 / 3790 / 5670 / 8650 rpm
Working height
820 mm
Machine dimension (W x D x H)
810 x 670 x 1130 mm
Motor power output S1 100%
1,5 kW (2,0 HP)
Motor power input S6 40%
2,1 kW (2,8 HP)
Voltage
230 V
Dust extraction outlet
100 mm
Table size
600 x 620 mm
Spindle diameter
30 mm
Working length of spindle
105 mm

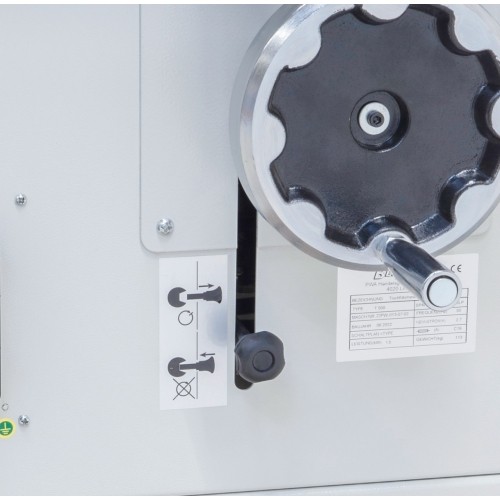

Height adjustment of spindle
110 mm
Max. tool diameter
160 mm
Max. tool diameter concealed
160 mm

T 500 / 230 V

1091057
€1,214.00
Tax included
Monthly payment from 33.05€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 104 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 104 kg.

Description

Properties

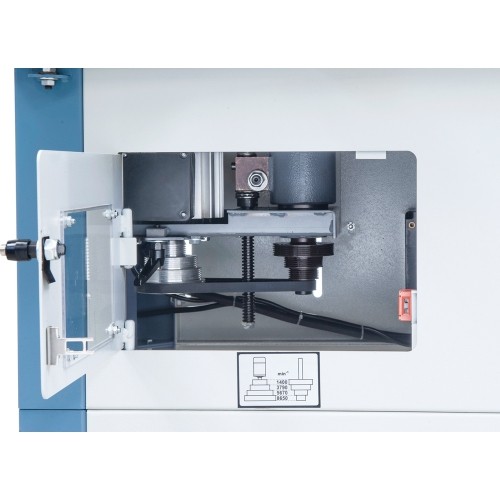

  • V-belt allows for fast and convenient speed change

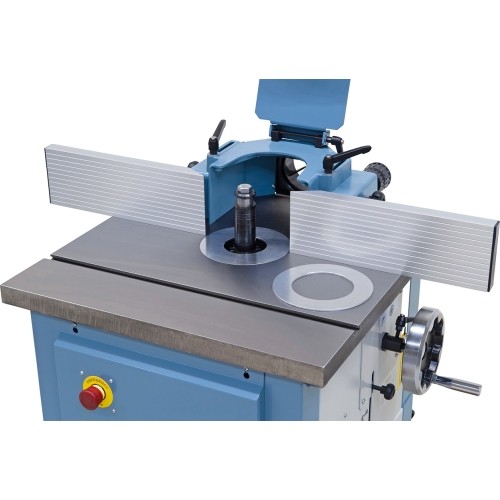

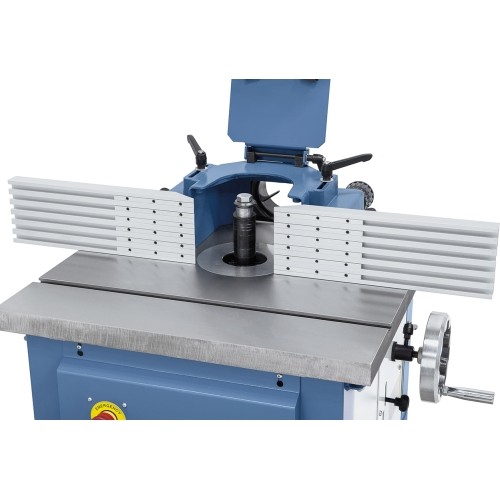

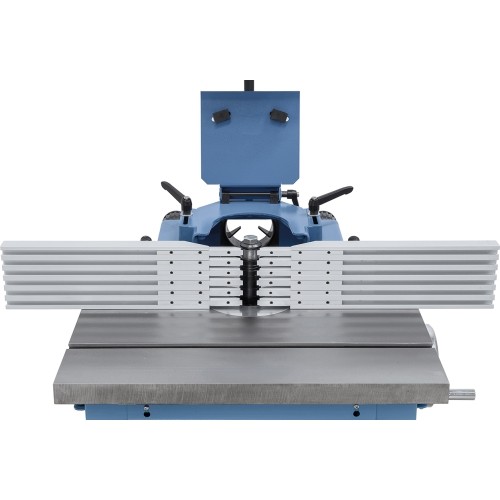

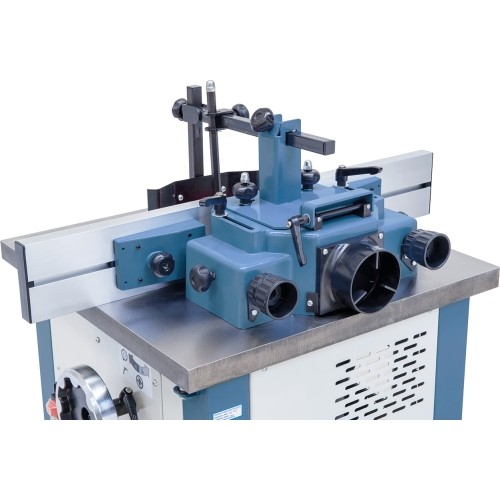

  • Moulding fence features finely adjustable aluminium stop bars on both sides
  • Machine body consists of torsion-free steel construction
  • Amply sized moulding fence with dust extraction outlet 100 mm
  • Large speed range – 4 settings from 1400 - 8650 rpm
  • Amply sized grey cast-iron moulder unit

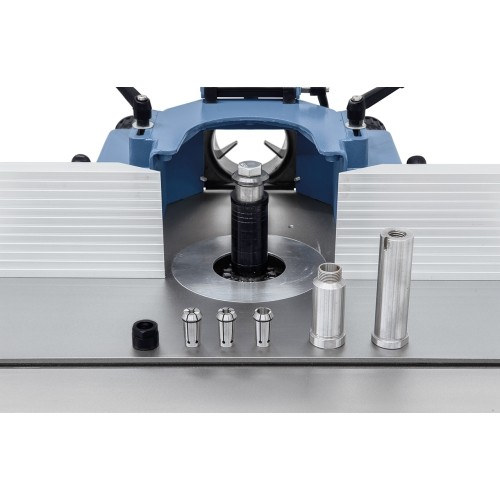

  • Dynamically balanced moulder spindle ensures accurate run

Standard accessories

  • Mitre fence

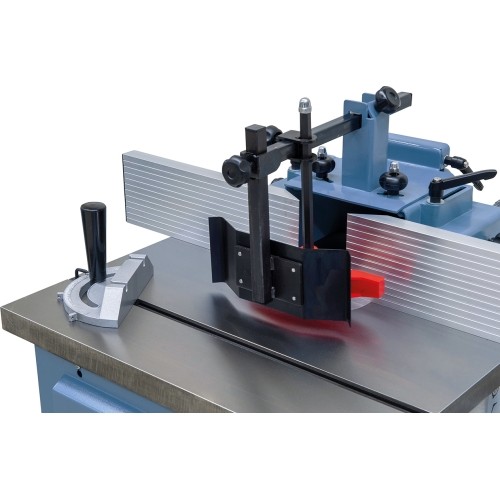

  • Protective and pressing device
