WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
97 kg
Spindle speed
1400 / 3790 / 5670 / 8650 rpm
Working height
820 mm
Machine dimension (W x D x H)
1040 x 730x 1130 mm
Motor power output S1 100%
1,5 kW (2,0 HP)
Motor power input S6 40%
2,1 kW (2,8 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table size
600 x 400 mm
Spindle diameter
30 mm
Working length of spindle
95 mm
Table size sliding table
1000 x 215 mm
Height adjustment of spindle
110 mm
Max. tool diameter
160 mm
Max. tool diameter concealed
160 mm

T 500 PF - 400 V

1055978
Price €1,984.00 Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite wednesday, february 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 97 kg.
Prekę pristatysime Jums per: 5-11 d.d. Venipak (€40.99)
Weight: 97 kg.

Description

Properties

  • Solid, amply sized grey cast-iron table ensures vibration-free run
  • Smooth sliding table for easier procesing of large workpieces

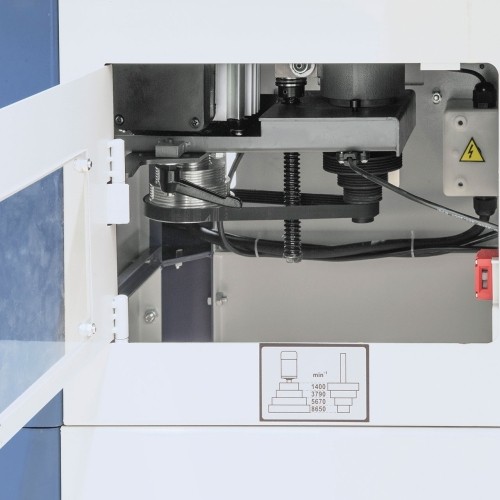

  • 4 speed settings come standard to allow for optimal adjustment to each workpiece
  • Solid moulder unit with powerful motor

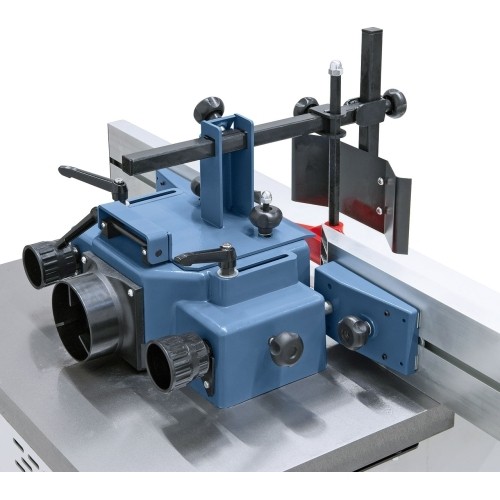

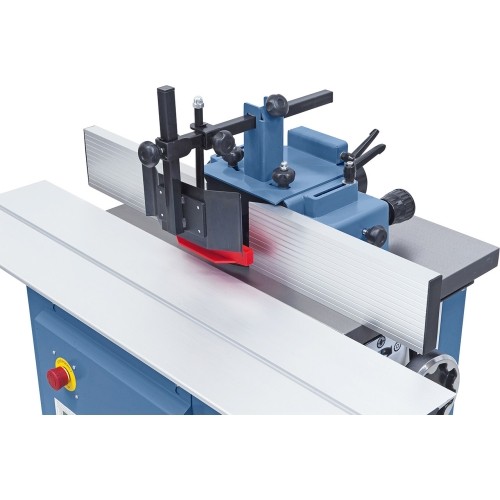

  • Robust moulding fence with finely adjustable aluminium stop bars
  • Dynamically balanced moulder spindle ensures precise running
  • Complete with mitre fence and downholder

Standard accessories

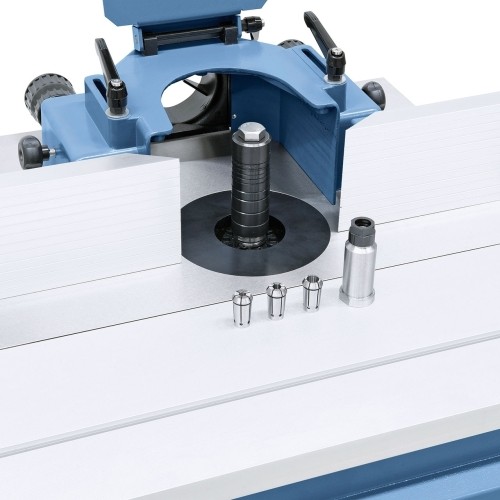

  • Interchangeable spindle 30 mm
  • Interchangeable spindle for end mills 6, 8, 12 mm
  • Collets 6, 8, 12 mm
  • Sliding table

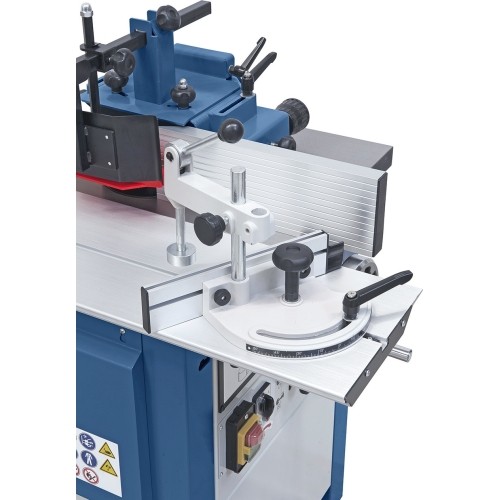

  • Mitre fence

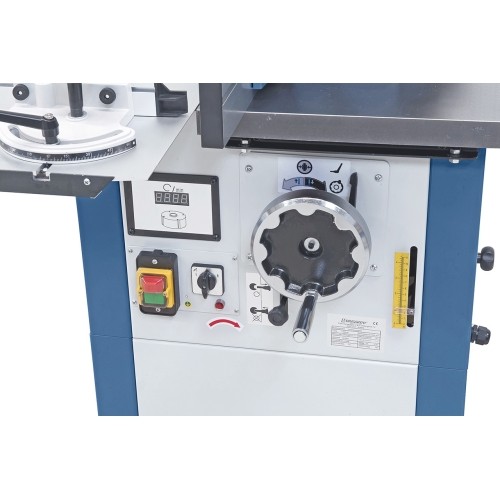

  • Digital speed indication
  • Downholder
  • Stop bar
  • Protective and pressing device
