WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Machine dimension (L x W x H)
1400 x 900 x 980 mm
Weight approx.
205 kg
Motor power output S1 100%
3,0 kW (4,0 HP)
Motor power input S6 40%
4,2 kW (5,7 HP)
Voltage
230 V
Dust extraction outlet
100 mm
Table height
825 mm
Planing width
310 mm
Table length
600 mm
Shaft rotation speed
4500 rpm
TCT-blades
30 pcs.
Planer shaft diameter
75 mm
Planer fence
1120 x 150 mm
Fence tiltable
90° to 45°
Max. cutting depth
3 mm
Working width
305 mm
Working thickness, min./max.
5 – 240 mm
Feed speed
5,4 m/min

FS 310 PS - 230 V

1091277
€2,614.00
Tax included
Monthly payment from 71.18€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 205 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 205 kg.

Description

Properties

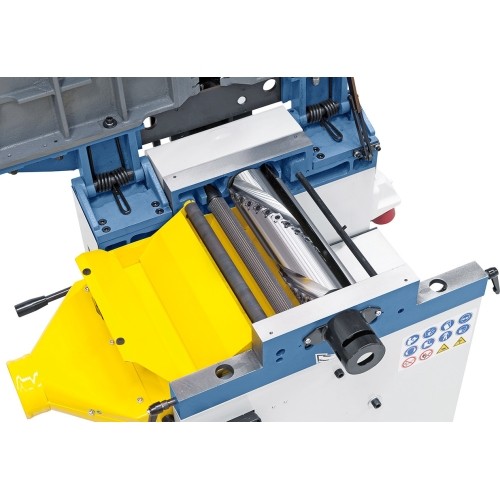

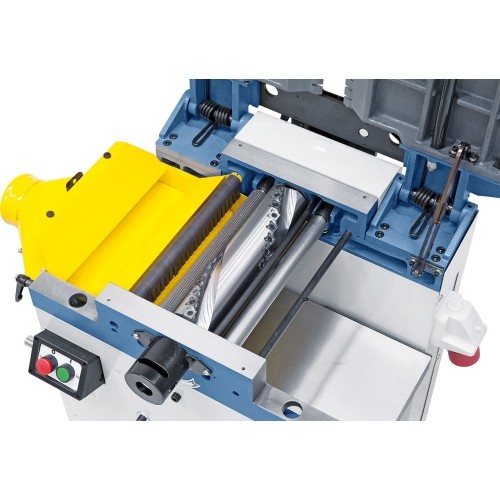

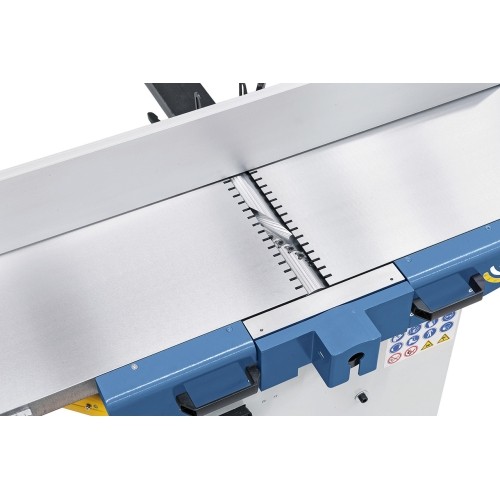

  • Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
  • Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned

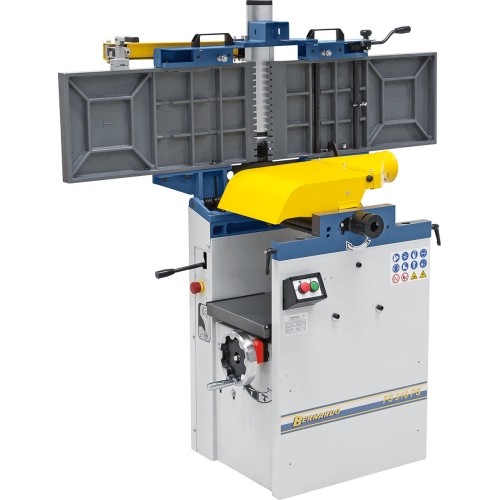

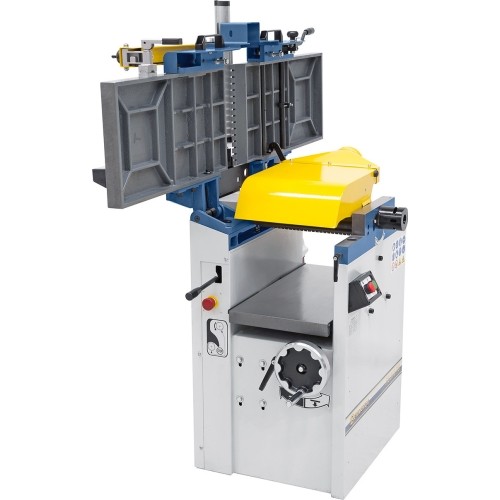

  • Planing tables fold to the backside of the machine to minimize space requirements
  • The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
  • Integrated tiltable dust hood, extraction outlet 100 mm

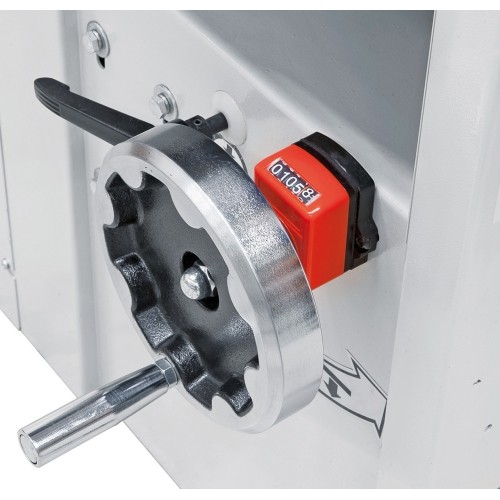

  • Digital display on handwheel features 1/10 mm scaling for precise adjustment of thicknessing table

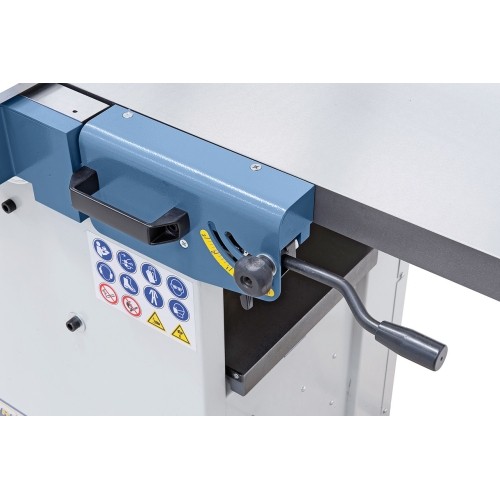

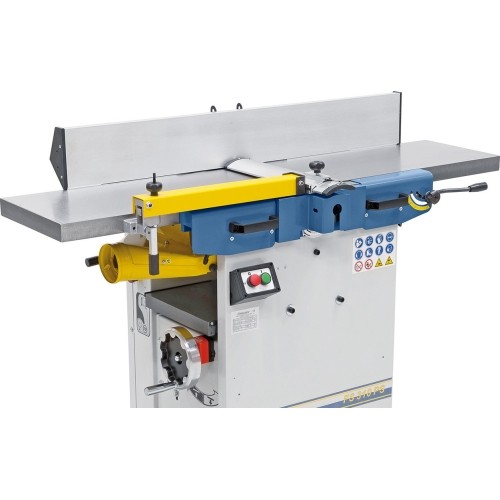

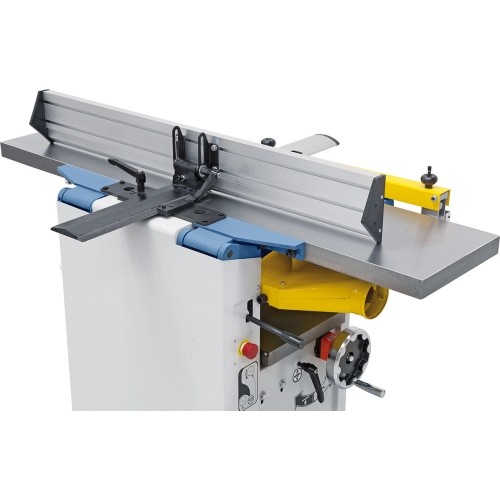

  • Anodized aluminium planing fence, tilts from 90º to 45º
  • Powerful motor for optimal planing results
  • Quick and easy adjustment of chip removal

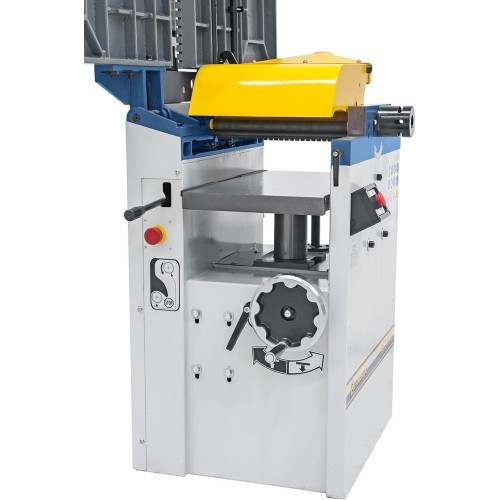

  • Simultaneous folding of planing tables allows fast conversion from planing to thicknessing

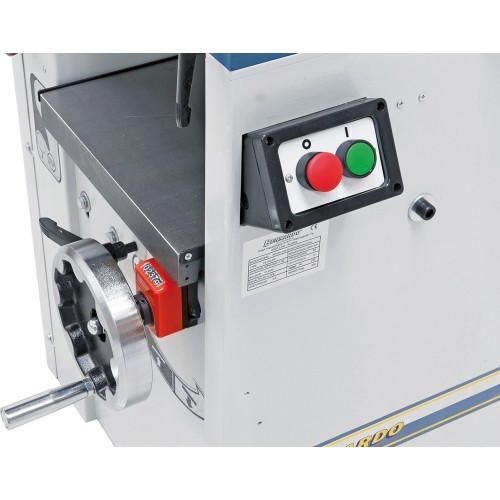

  • Several safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start

Standard accessories

  • Spiral cutter head with 24 pcs. TCT-blades
  • Replacement TCT-blades (5 pcs.)
  • Digital display for thicknessing table
  • Push handle
