Machine dimension (L x W x H)
1150 x 800 x 1000 mm
Weight approx.
173 kg
Motor power output S1 100%
2,0 kW (2,7 HP)
Motor power input S6 40%
2,8 kW (3,8 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table height
835 mm
Planing width
250 mm
Table length
600 mm
Shaft rotation speed
4000 rpm
TCT-blades
24 pcs.
Planer shaft diameter
75 mm
Planer fence
715 x 130 mm
Fence tiltable
90° to 45°
Max. cutting depth
2,5 mm
Working width
250 mm
Working thickness, min./max.
5 - 185 mm
Feed speed
4,8 m/min

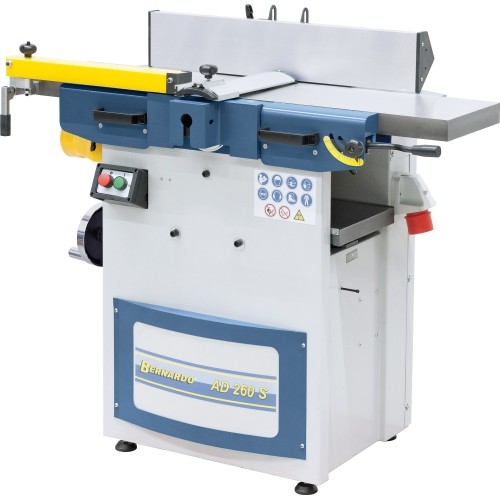

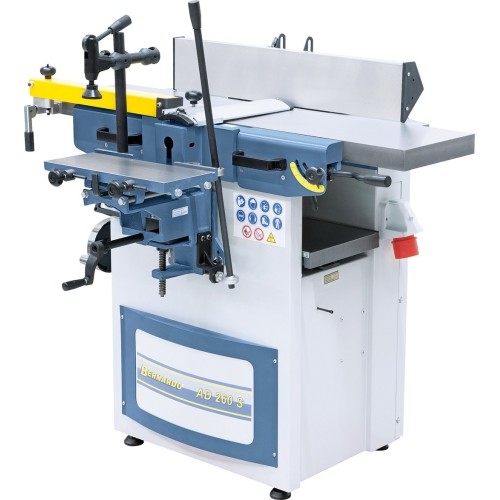

AD 260 S - 400 V

1091303
Price €2,691.00 Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, march 10 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 173 kg.
Prekę pristatysime Jums per: 6-12 d.d. Venipak (€40.99)
Weight: 173 kg.

Description

Properties

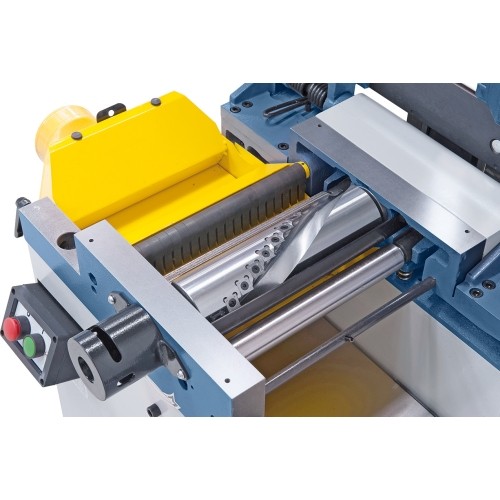

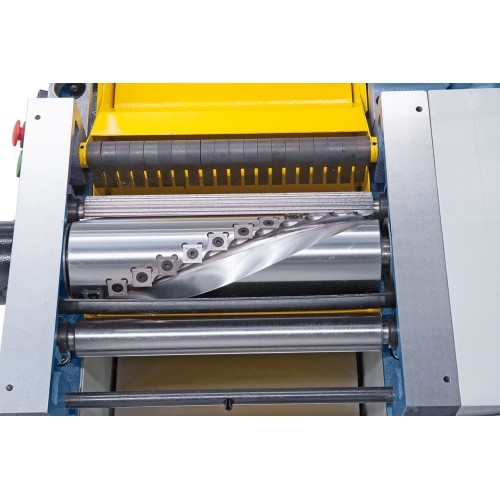

  • Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
  • Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned

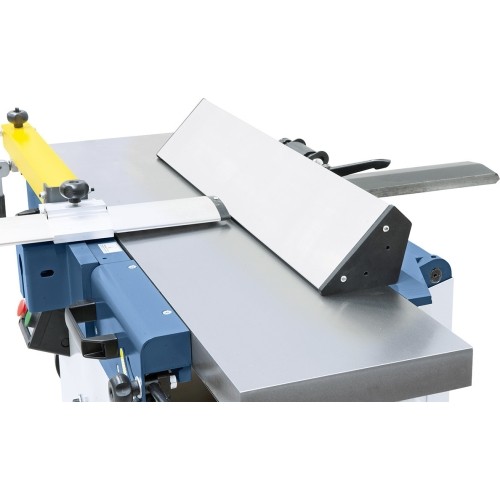

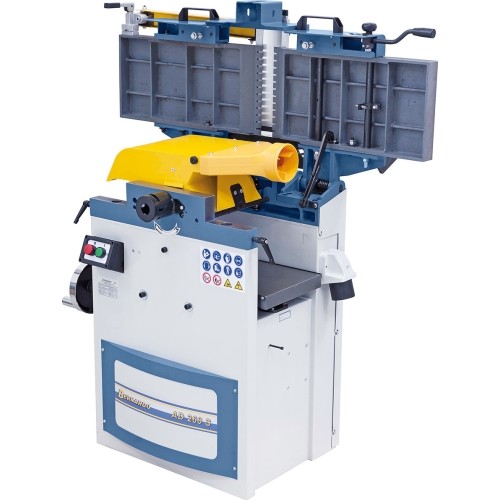

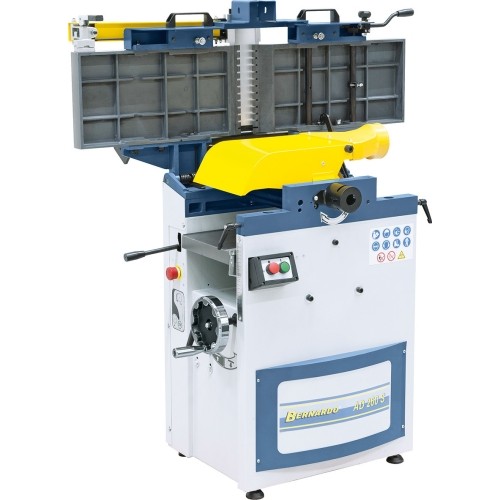

  • Planing tables tilt to the back of the machine to keep space requirements to a minimum
  • The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
  • Simultaneous tilting of planing tables to achieve maximum comfort
  • Thicknessing table feed can be switched off when planing

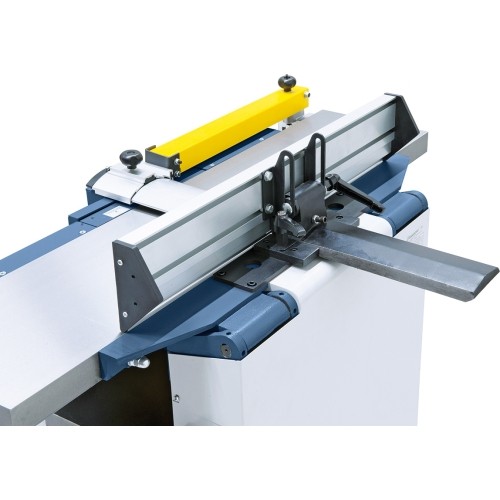

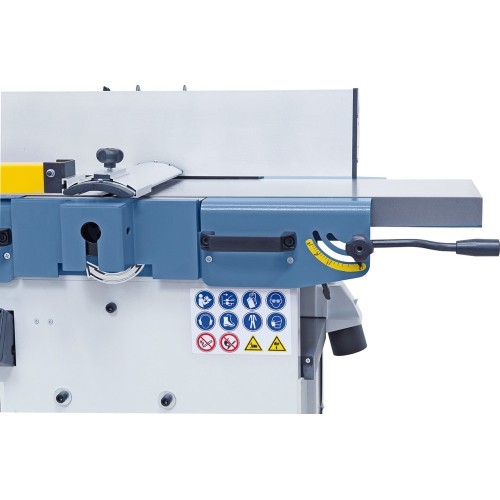

  • Hard-anodized aluminium planing fence, tiltable fro (wird übersetzt) m 90° to 45°

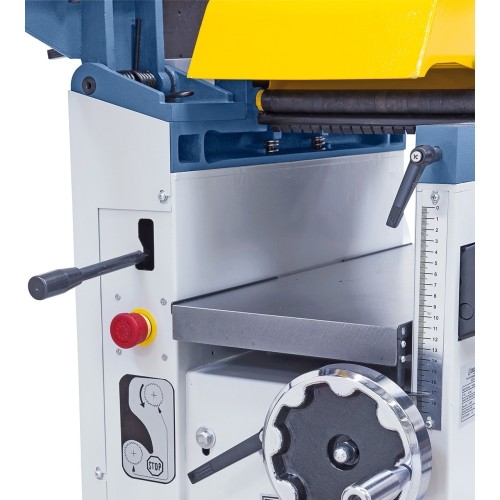

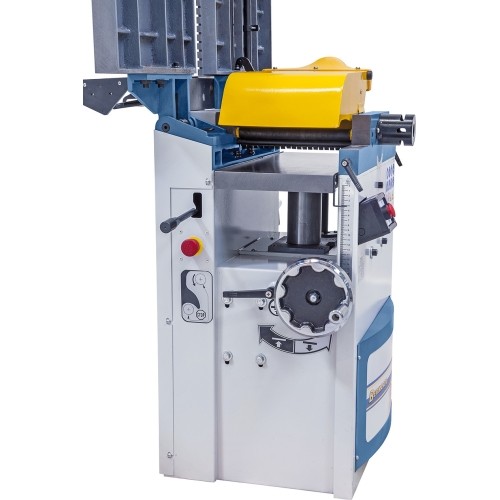

  • Thicknessing table with central column and support allow precise planing
  • Numerous safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start,...

Standard accessories

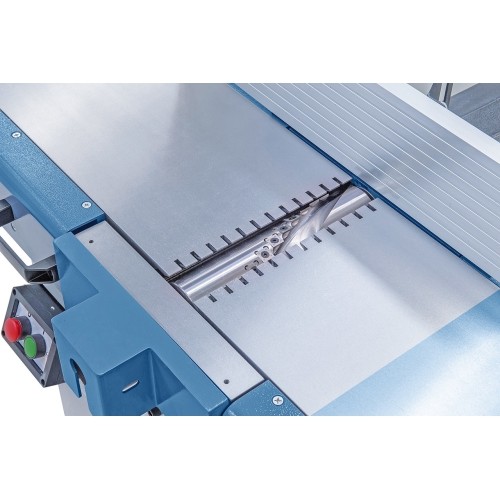

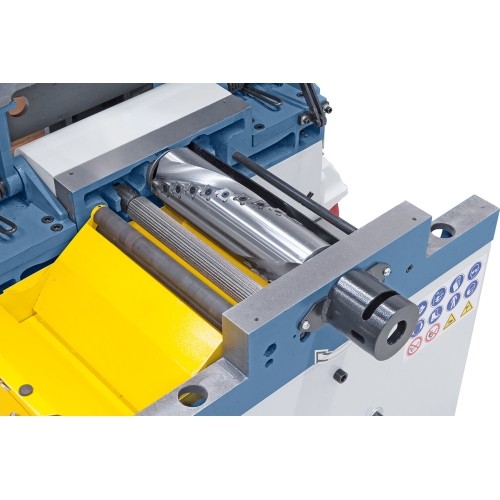

  • Spiral cutter head with 24 pcs. TCT-blades

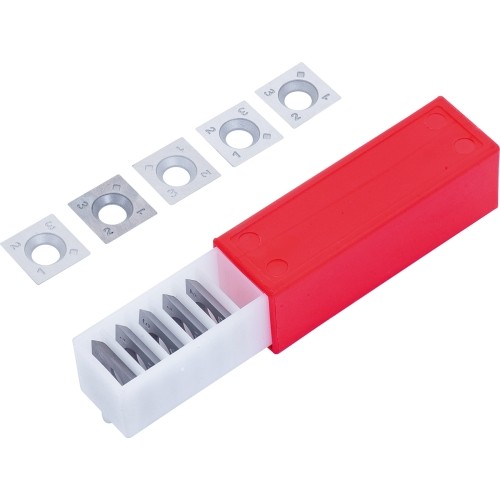

  • Replacement TCT-blades (5 pcs.)
  • Push handle
