Weight approx.
218 kg
Spindle speed
1800 / 3000 / 6000 / 9000 rpm
Working height
895 mm
Motor power output S1 100%
2,8 kW (3,8 HP)
Motor power input S6 40%
3,9 kW (5,3 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table size
1000 x 360 mm
Spindle diameter
30 mm
Table opening
200 mm
Working length of spindle
100 mm
Machine dimensions (W x D x H)
1240 x 710 x 1200 mm
Table size sliding table
1000 x 240 mm
Height adjustment of spindle
100 mm
Max. tool diameter
200 mm
Max. tool diameter concealed
180 mm
Tilting spindle
+5° to -45°
Size square table (optional)
600 x 410 mm

T 800 F - 400 V

1091845
€3,577.00
Tax included
Monthly payment from 91.6€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 218 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 218 kg.

Description

Properties

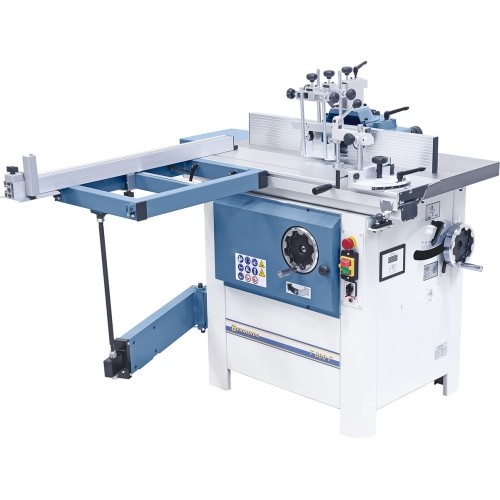

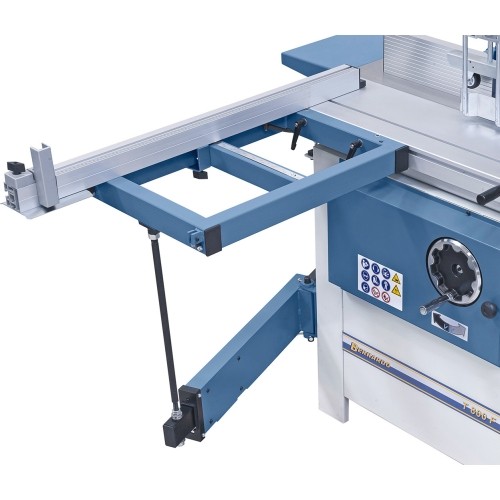

  • Smooth sliding table allows for easier processing of large workpieces

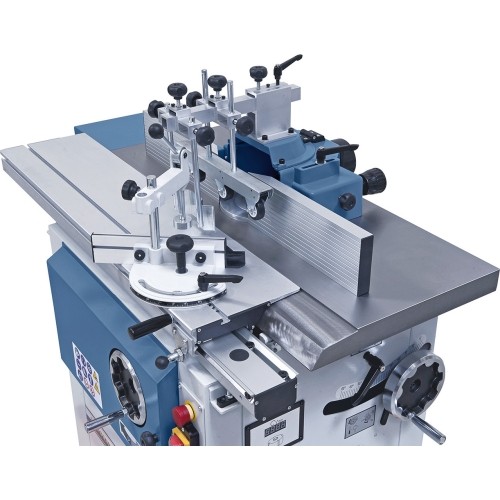

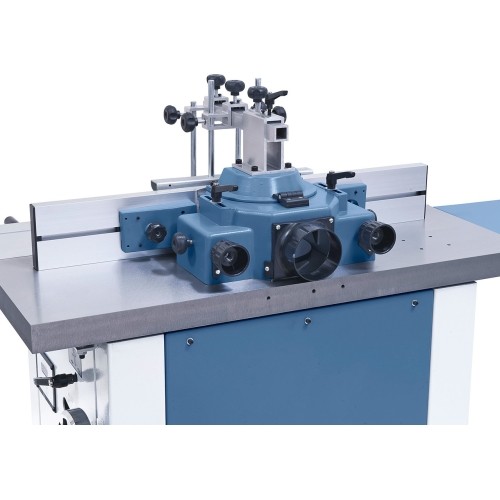

  • Solid moulding fence features finely adjustable aluminium fence rails

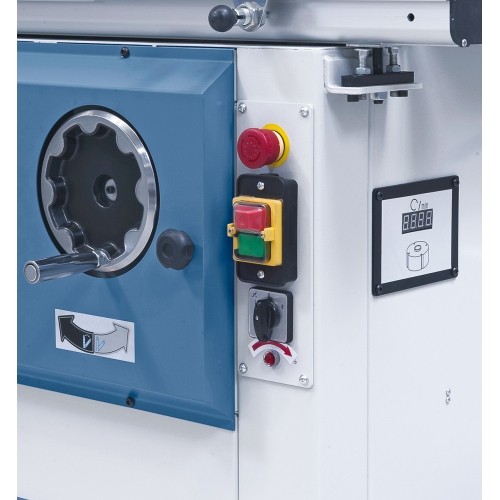

  • Quick and easy readout of spindle speed on digital display
  • Mitre fence with eccentric holder is part of standard equipment
  • Dynamically balanced moulder spindle ensures for precise run

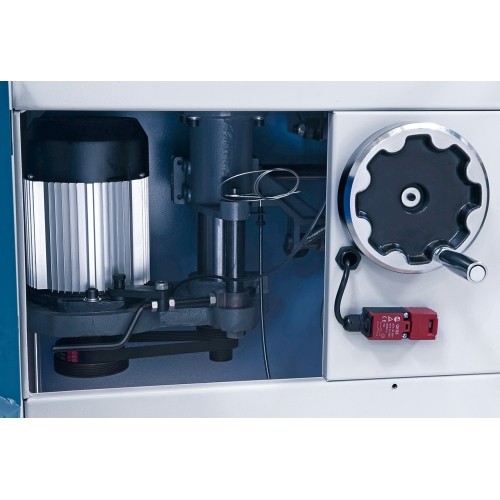

  • V-belt allows for fast and convenient speed change
  • Solid square table for processing of large workpieces without needing extra support (optional extra)
  • All alluminium parts (sliding table, fences etc.) are anodized

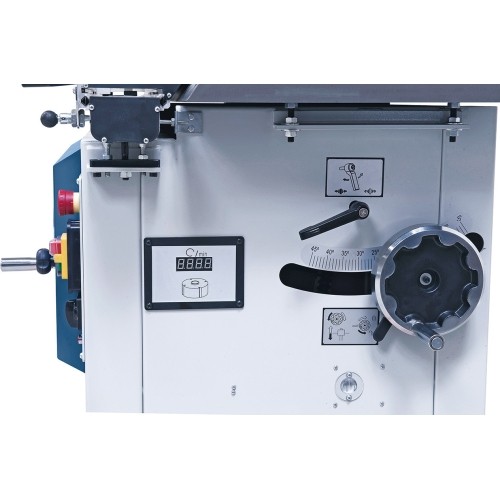

  • Large, grey cast-iron moulder unit, tilts from +5º to -45º
  • Moulder spindle tilts to the back which results in the following advantages: optimal use of power feeder, high safety standards and immaculate finish

Standard accessories

  • Sliding table
  • Mitre fence with downholder
  • Digital speed indication
  • Left and right turning
  • Table extension
  • Protective and pressing device
