- Online only
- Weight approx.
- 850 kg
- Machine dimension (W x D x H)
- 3420 x 3600 x 1610 mm
- Motor power output S1 100%
- 5,5 kW (7,5 HP)
- Motor power input S6 40%
- 7,5 kW (10 HP)
- Dust extraction outlet
- 100 mm
- Table size
- 1100 x 735 mm
- Table height
- 890 mm
- Table extension
- 600 x 615 mm
- Cutting length
- 3200 mm
- Table enlargement
- 825 x 750 mm
- Sliding table
- 3200 x 400 mm
- Max. sawblade diameter
- 400 x 30 mm
- Max. cutting height 90° / 45°
- 125 / 88 mm
- Cutting width on rip fence
- 1300 mm
- Speed main sawblade
- 3000 / 4000 / 5000 rpm
- Speed scoring sawblade
- 8000 rpm
- Scoring sawblade
- 120 x 20 mm
- Square table with roll
- 1240 x 860 mm
- Motor scoring unit
- 0,75 kW
- Phase
- Trifazis (400V)

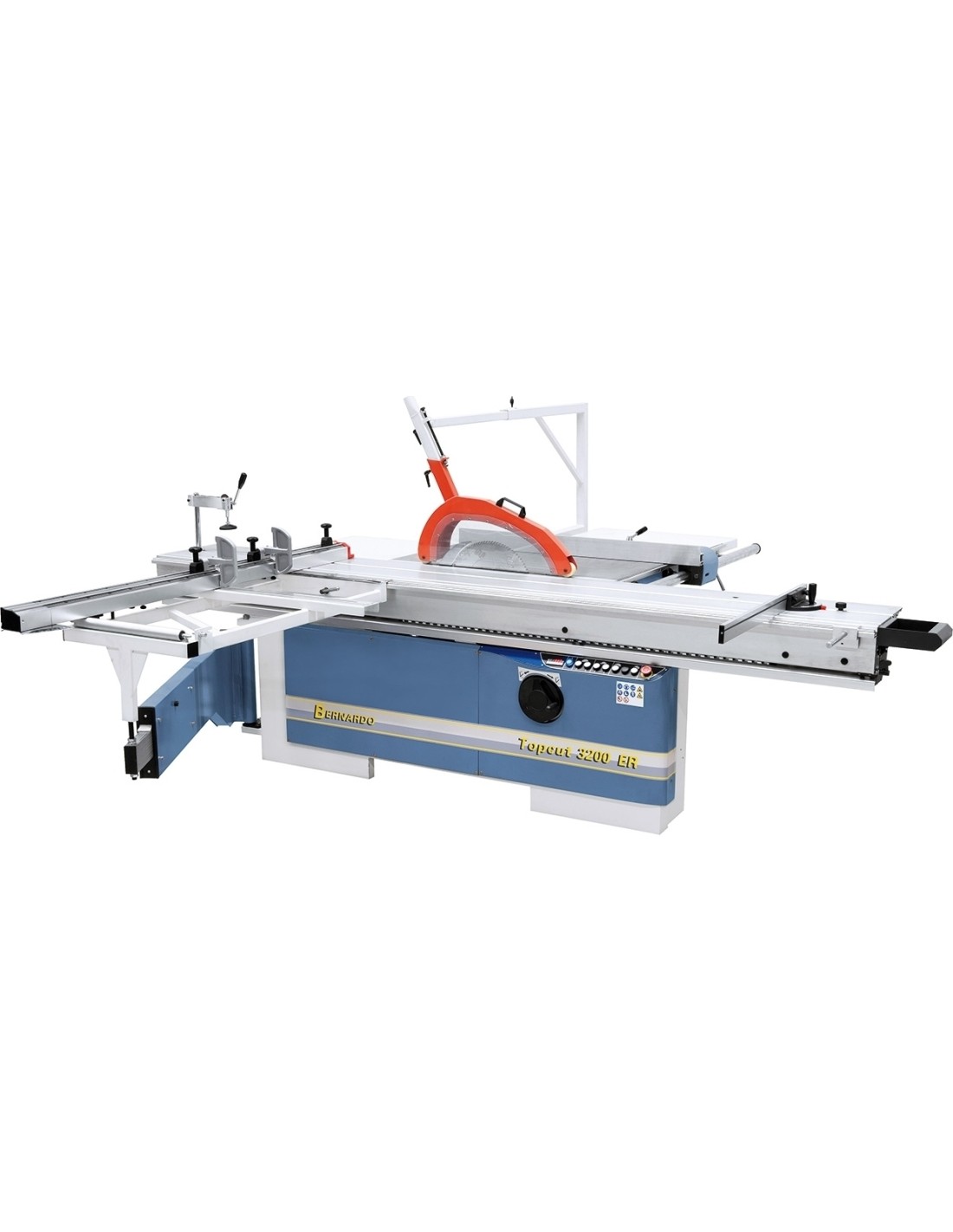

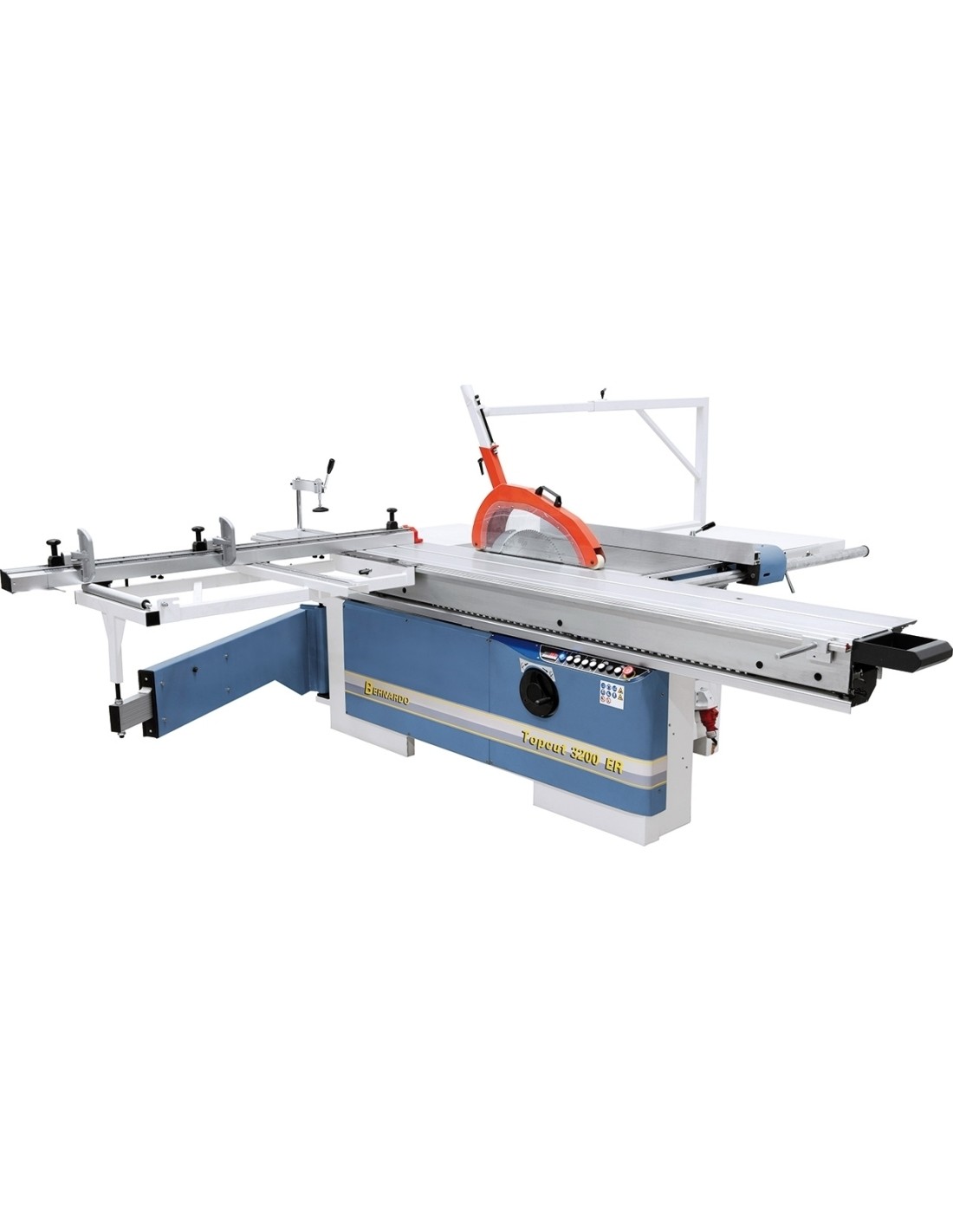

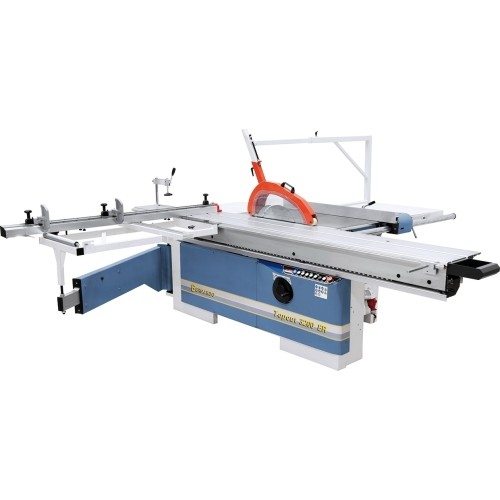

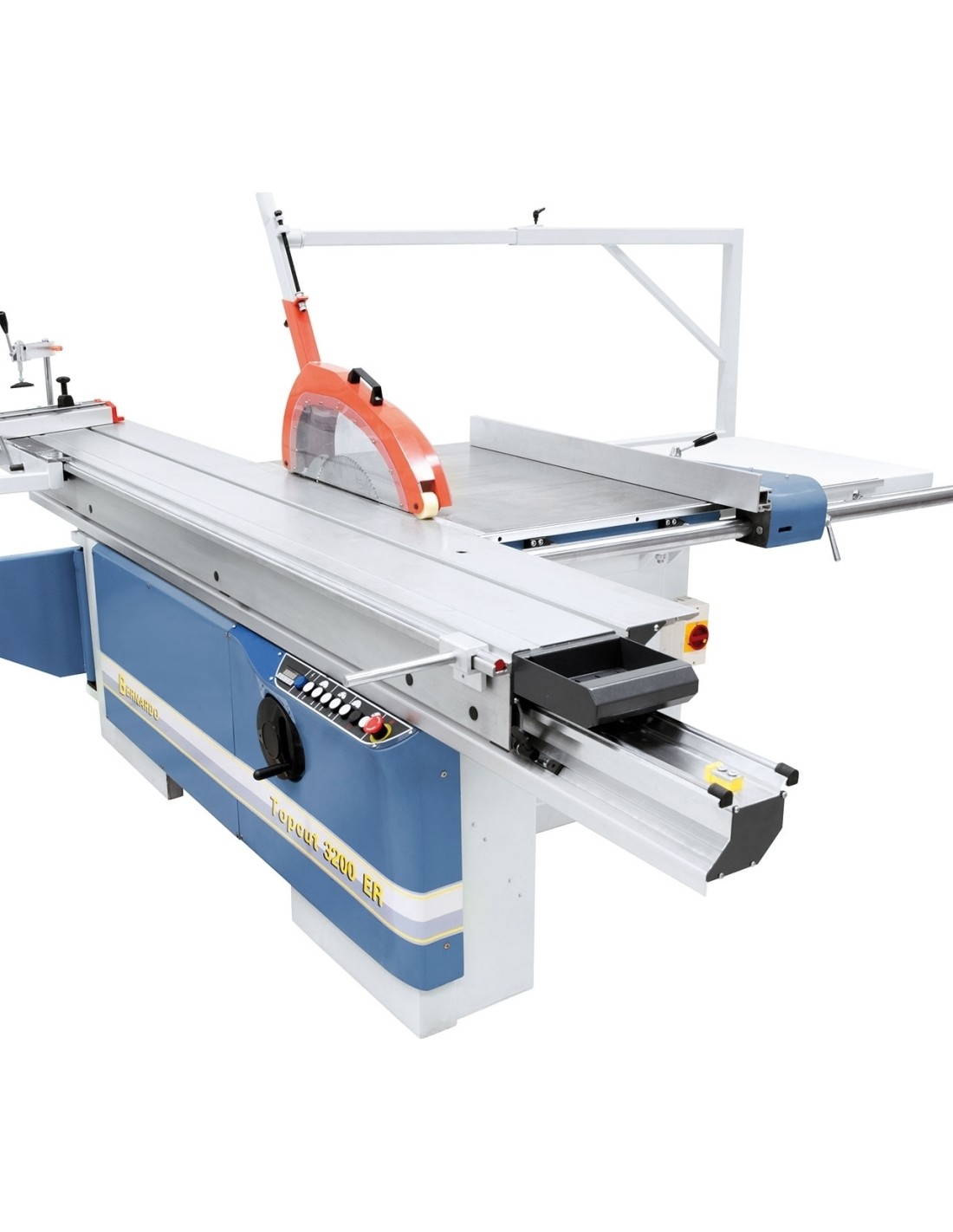

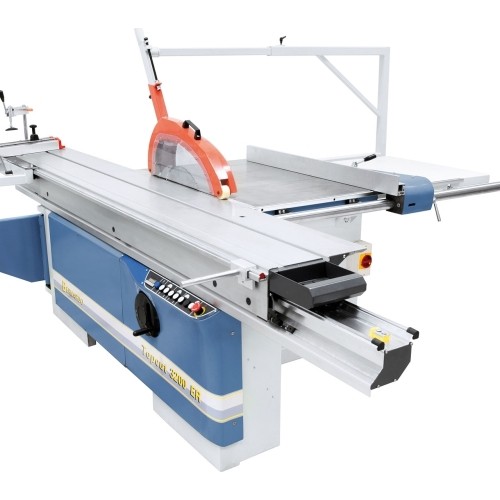

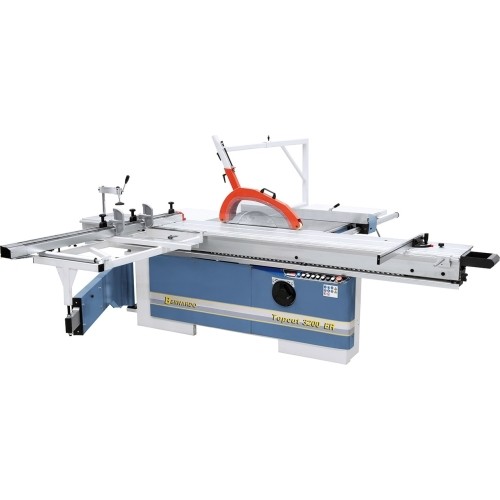

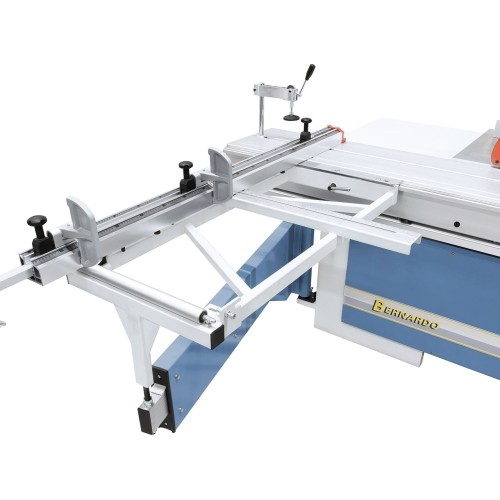

Formatinės pjovimo staklės Bernardo Topcut 3200 ER
1055983
Price
€12,337.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up thursday, may 14 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 850 kg.
Description
Properties
- Powerful drive motor (5.5 kW) features a high torque, designed for optimal cutting capacity
- Smooth running sliding table on double rollers locks at middle or end position for precise cuts
- Maximum sawblade diameter 400 mm for cutting height up to 125 mm
- Square table with roll for more convenience with oversize workpieces

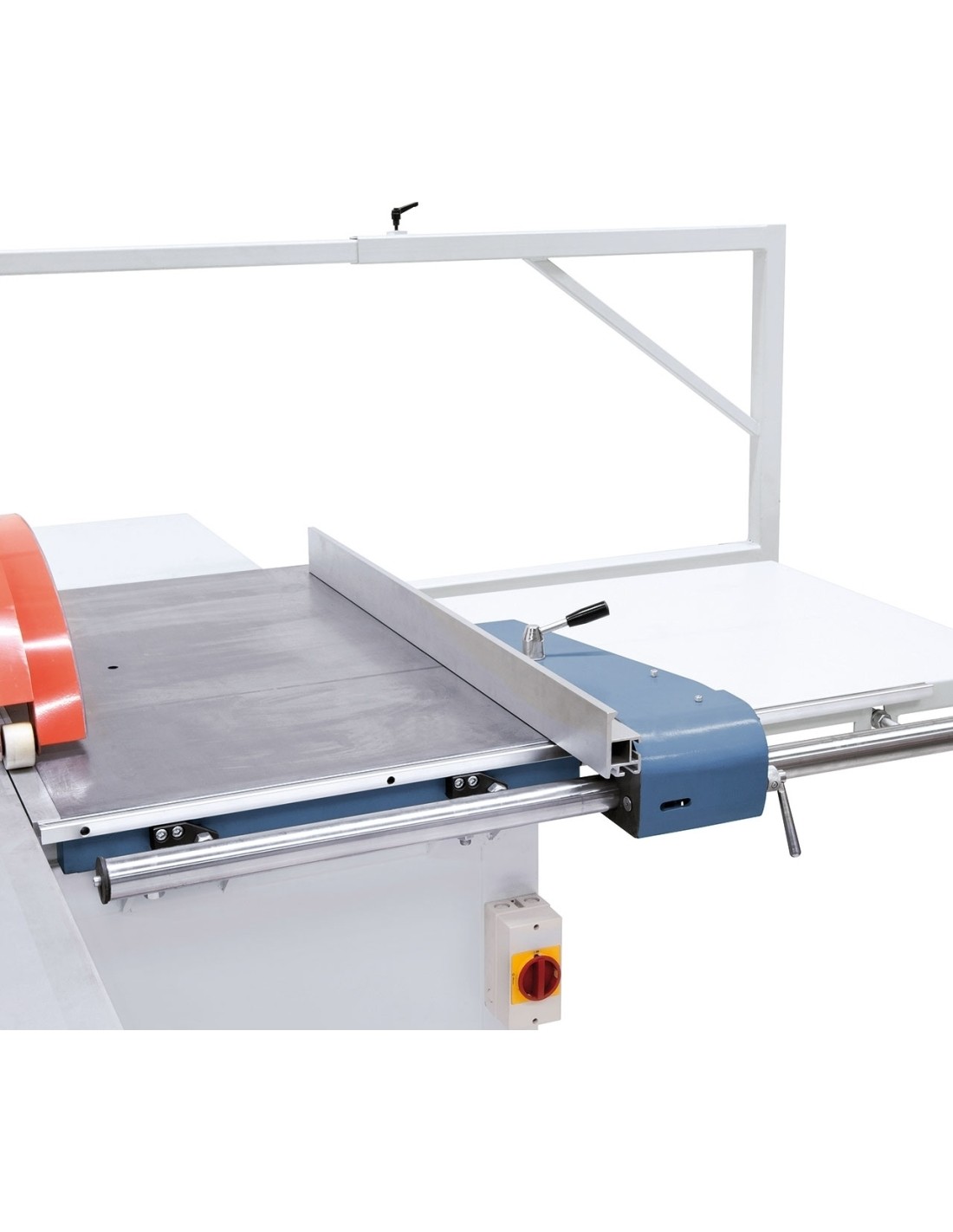

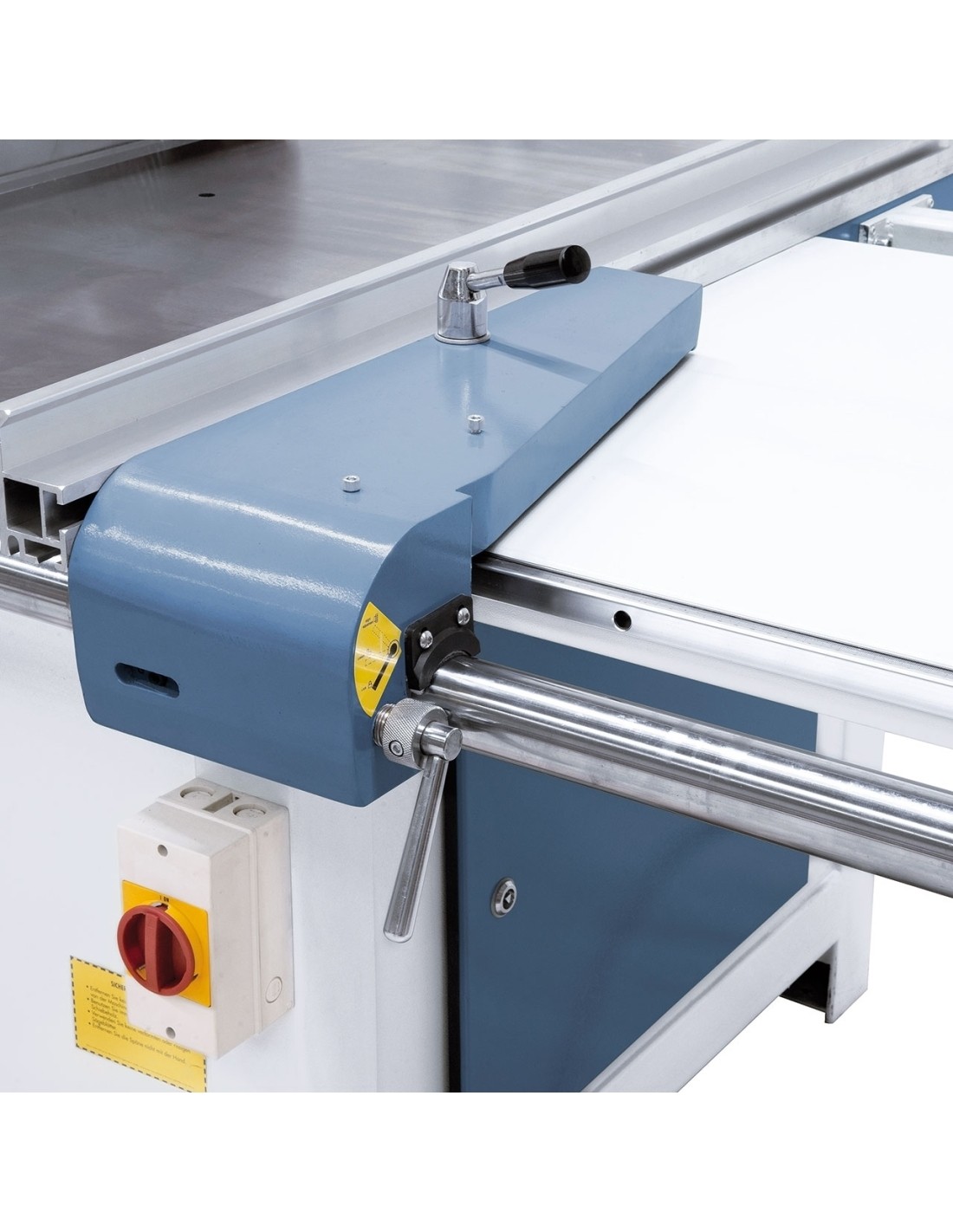

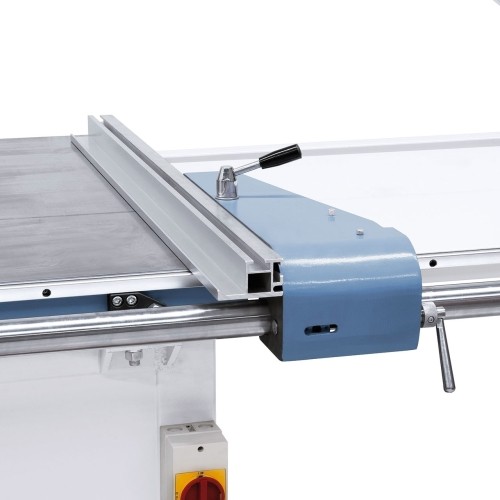

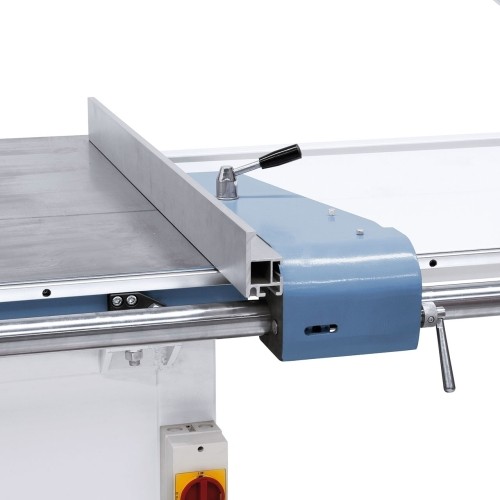

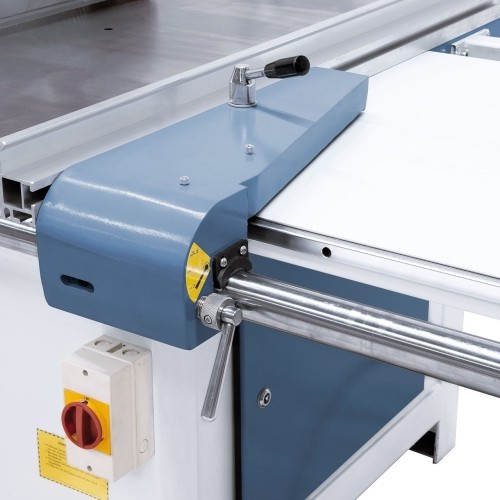

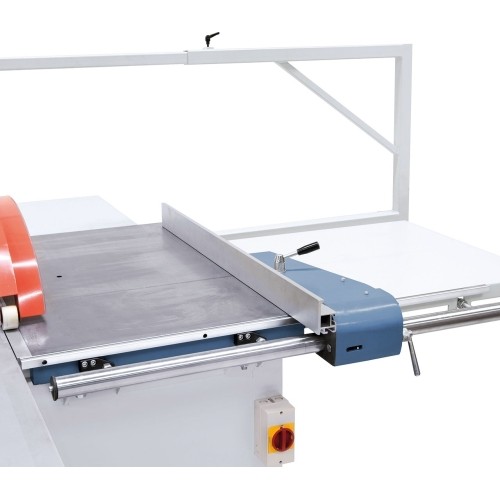

- Tiltable parallel fence with micro-metric fine adjustment (advantage with oversize panels)

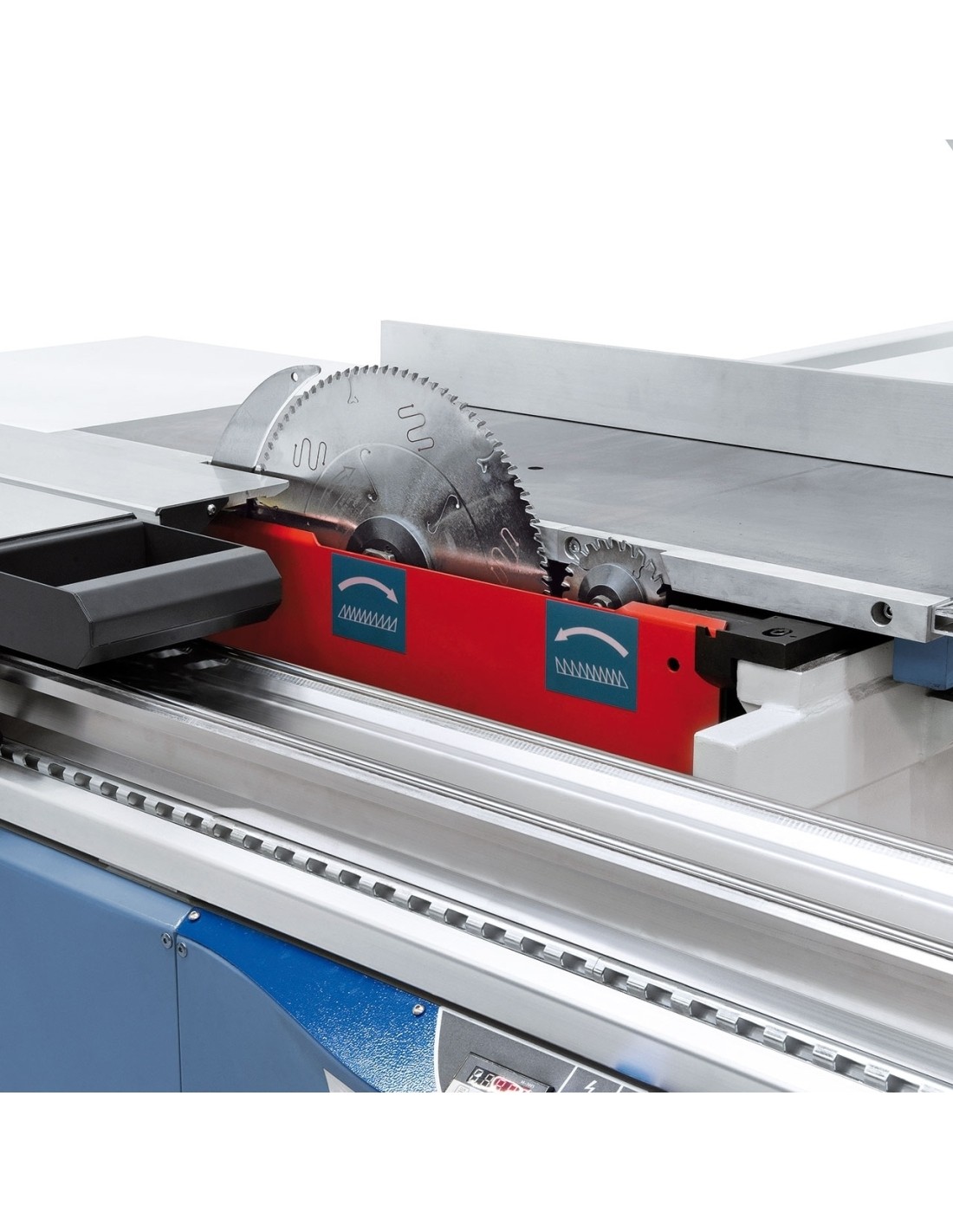

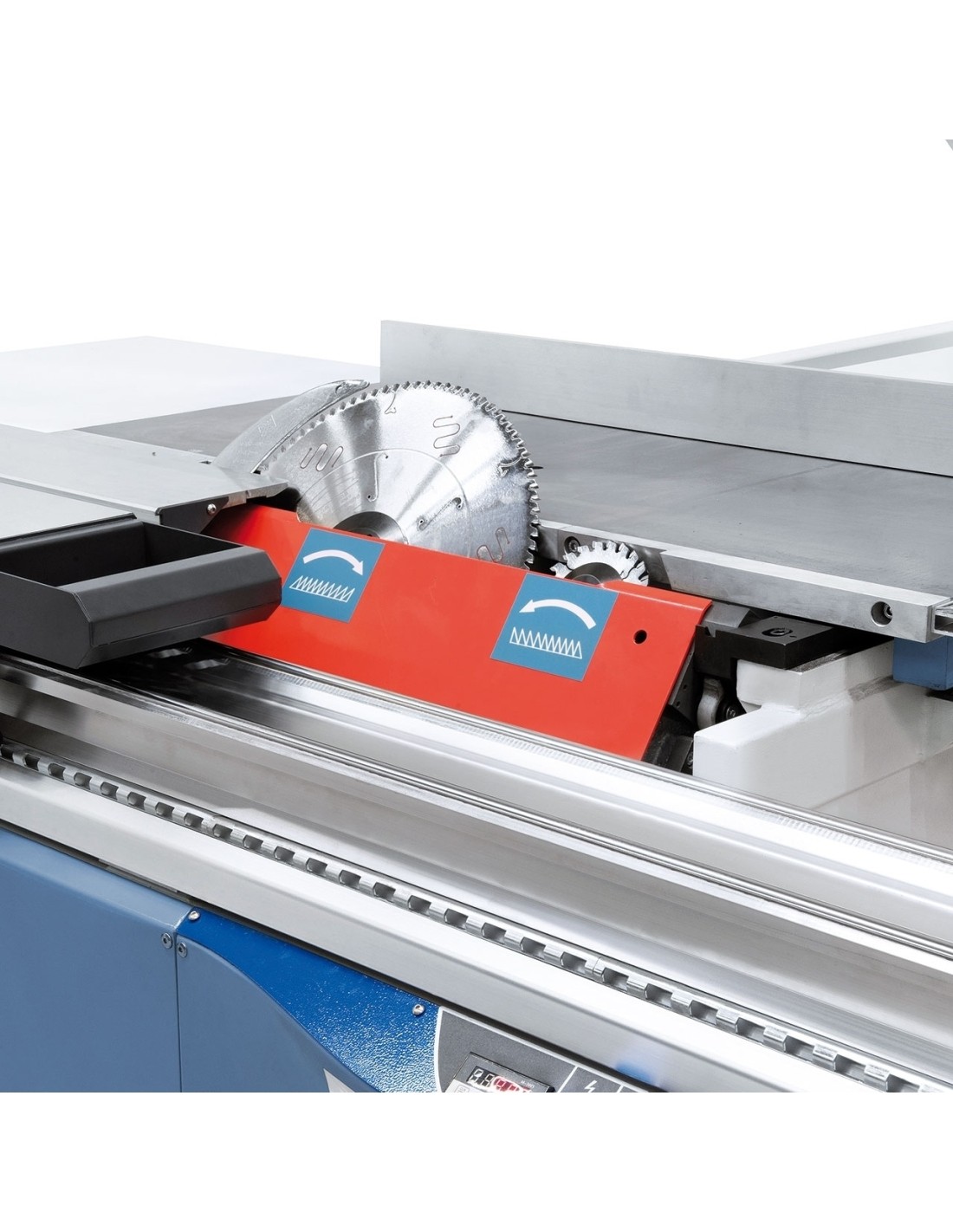

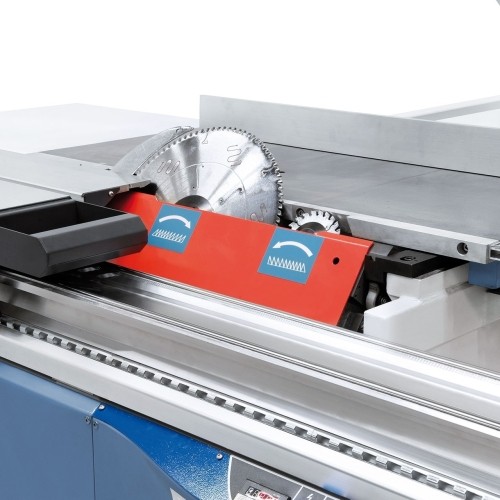

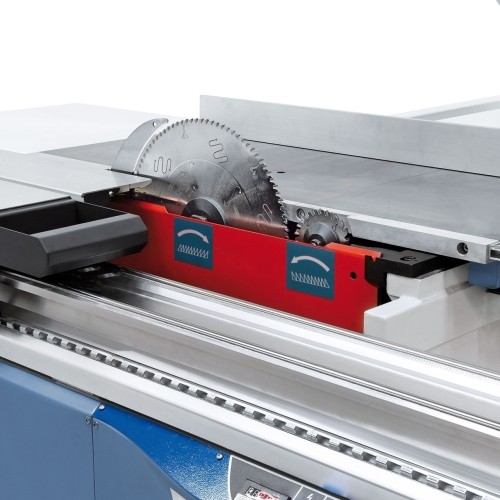

- Equipped with separately driven scoring unit (motor power 0.75 kW)
- Solid saw unit with grey cast iron tilting elements supported on both sides

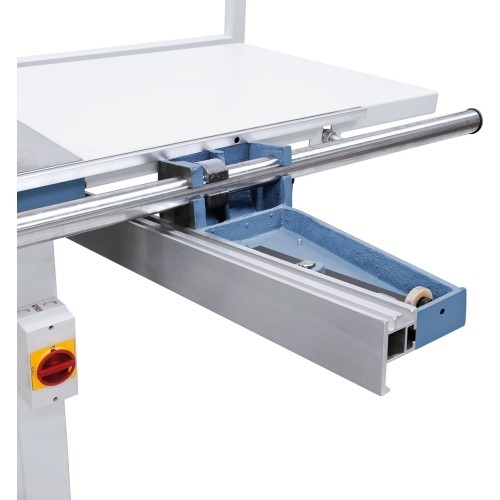

- Table extension for cutting width up to 1300 mm
- All aluminium parts (square table, fences etc.) are anodized

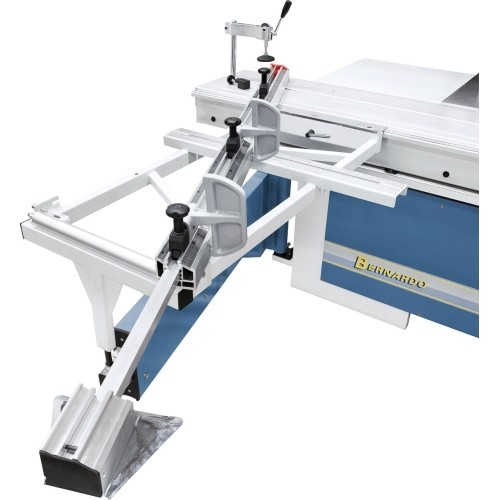

- Extractable telescopic fence (up to 3200 mm) can be mounted at front or back of square table, stepless tiltable between 90º and 45º.
Standard accessories

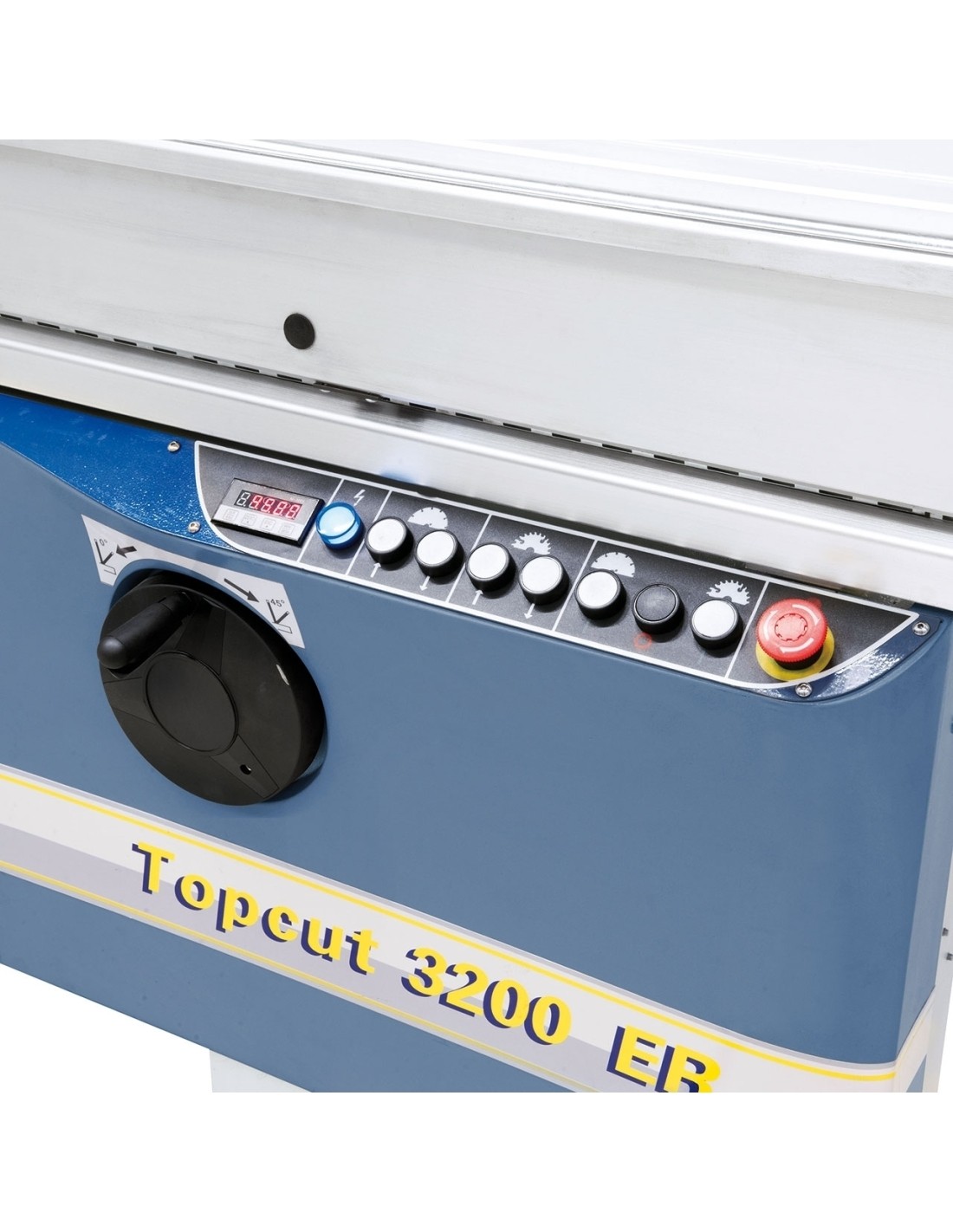

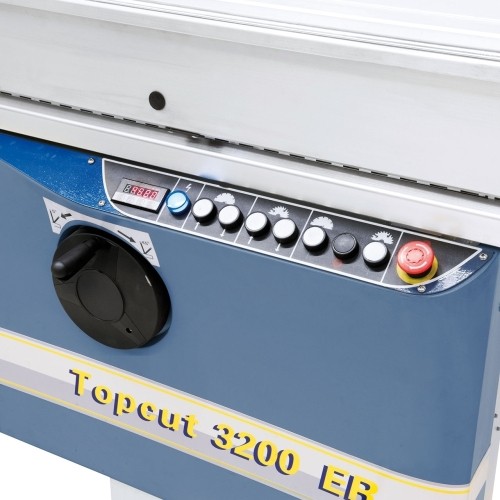

- Electric sawblade height adjustment
- Digital cutting height indication

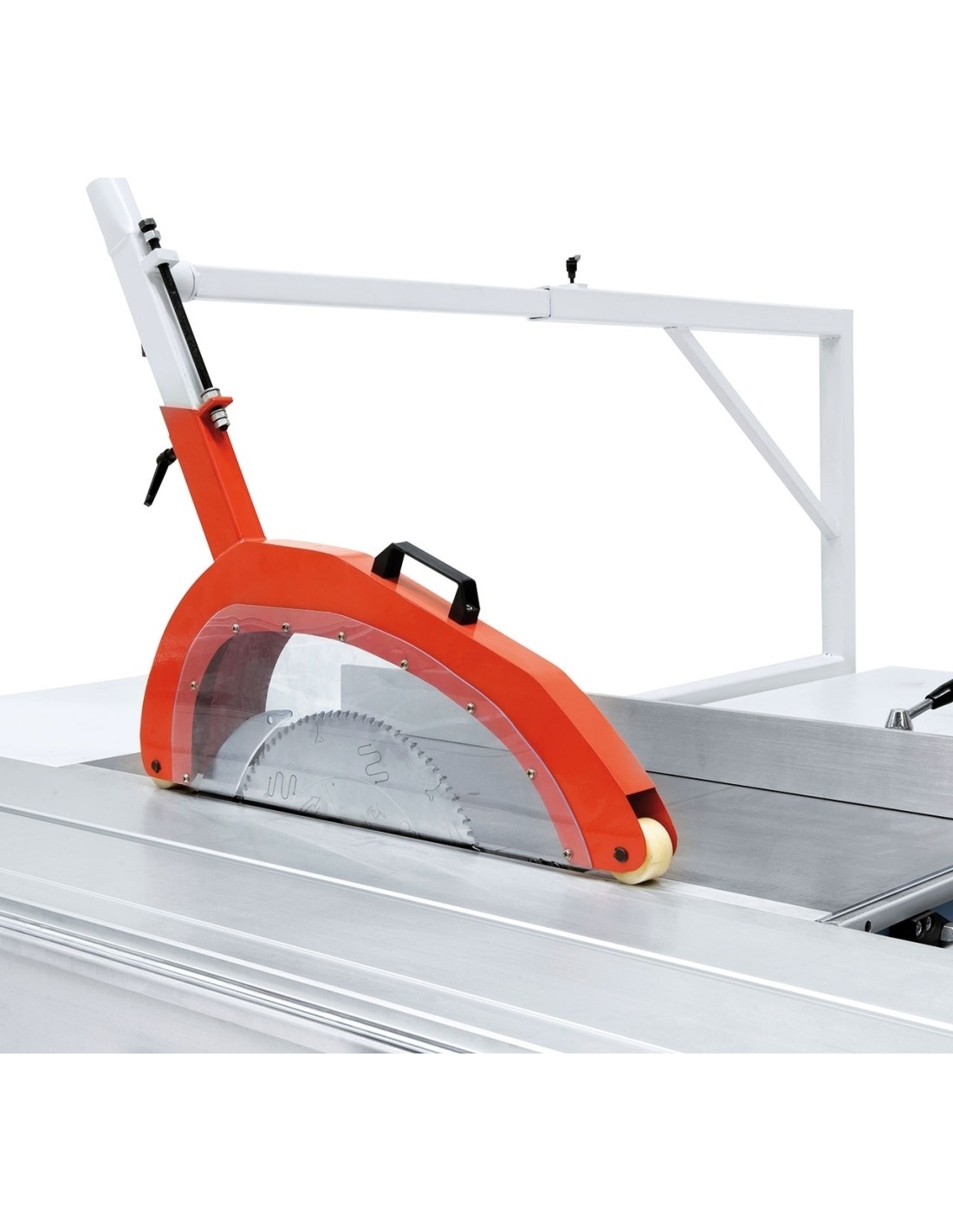

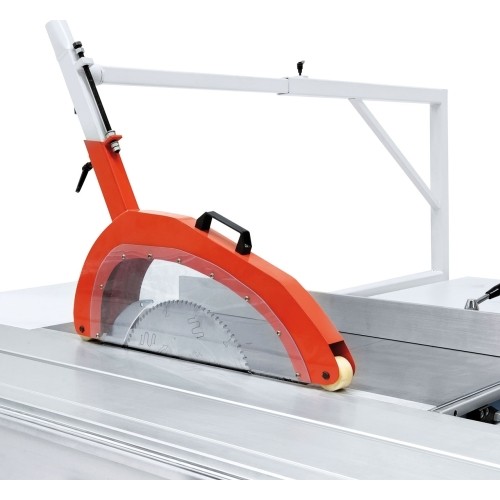

- Sawblade cover with infeed roller
- End stop
- Eccentric holder
- Table extension
- Extractable telescopic fence
- Longitudinal stop

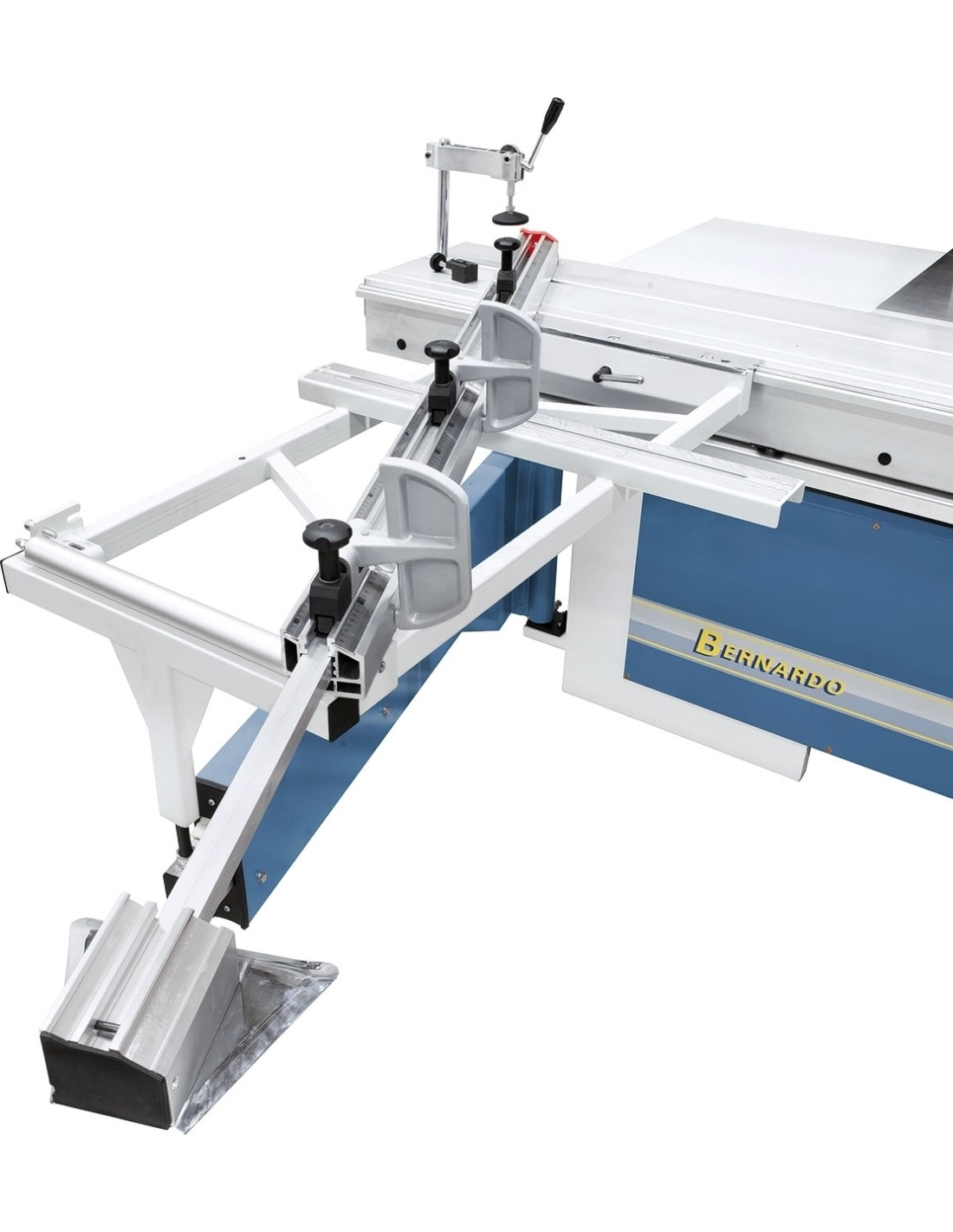

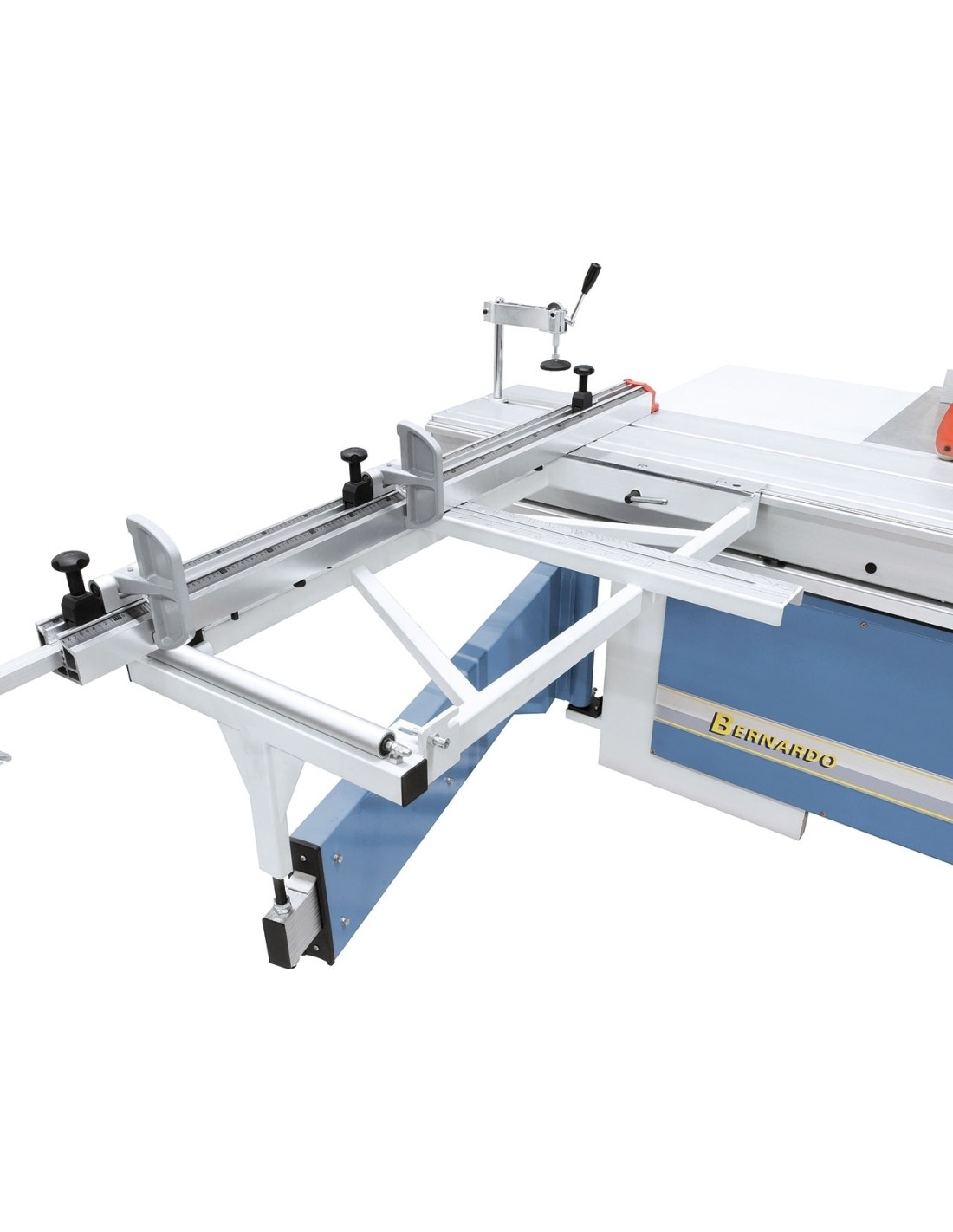

- Square table with roll
- Push stick
- Scoring unit with independent motor
- Tools
Technical specifications
|
Table size |
1100 x 735 mm |
|
Sliding table |
3200 x 400 mm |
|
Cutting length |
3200 mm |
|
Max. sawblade diameter |
400 x 30 mm |
|
Max. cutting height 90° / 45° |
125 / 88 mm |
|
Cutting width on rip fence |
1300 mm |
|
Table height |
890 mm |
|
Table extension |
600 x 615 mm |
|
Table enlargement |
825 x 750 mm |
|
Square table with roll |
1240 x 860 mm |
|
Speed main sawblade |
3000 / 4000 / 5000 rpm |
|
Speed scoring sawblade |
8000 rpm |
|
Scoring sawblade |
120 x 20 mm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
5,5 kW (7,5 HP) |
|
Motor power input S6 40% |
7,5 kW (10 HP) |
|
Motor scoring unit |
0,75 kW |
|
Voltage |
400 V |
|
Machine dimension (W x D x H) |
3420 x 3600 x 1610 mm |
|
Weight approx. |
850 kg |
