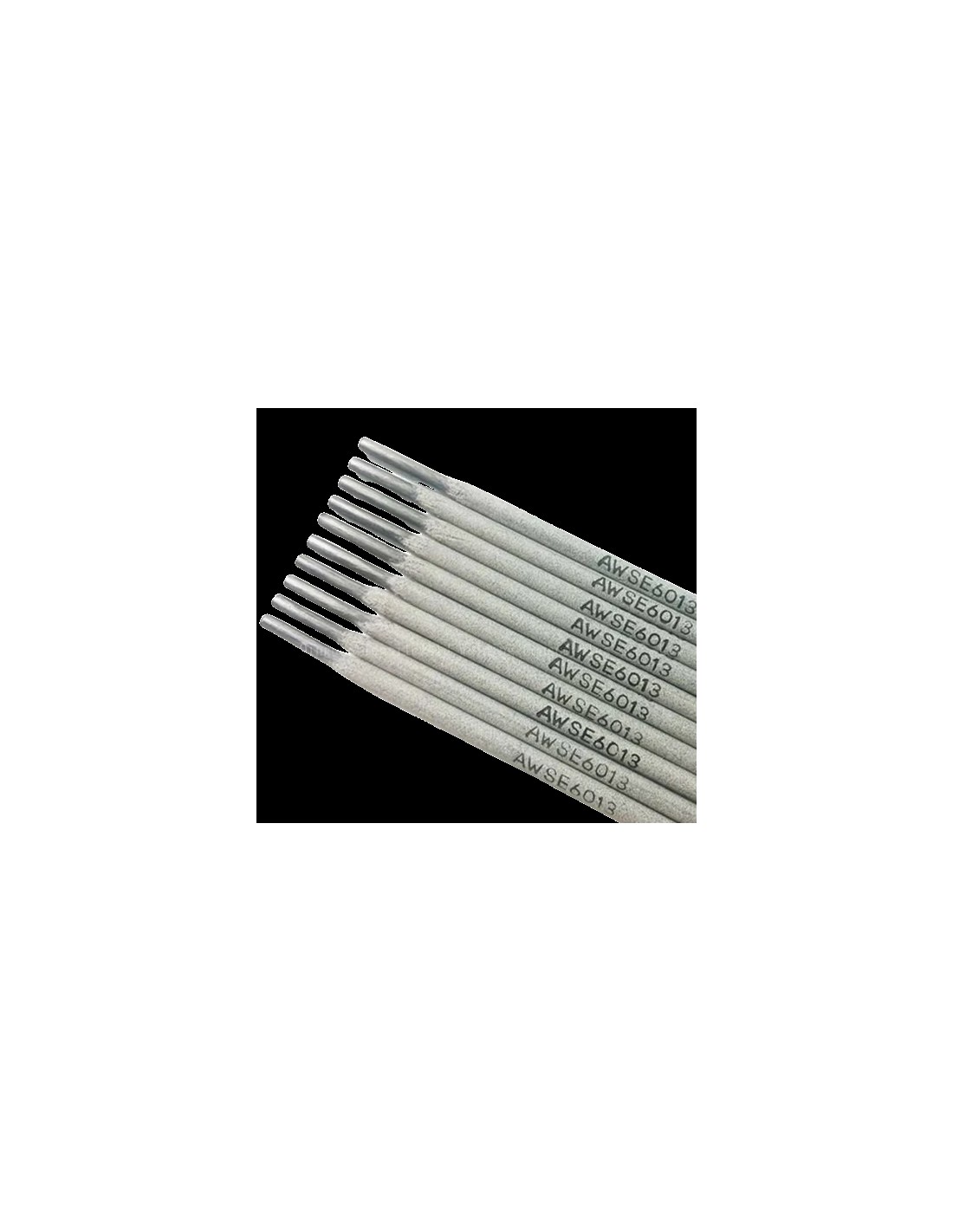

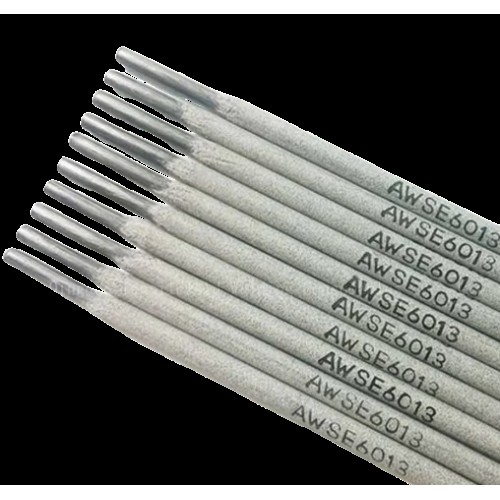

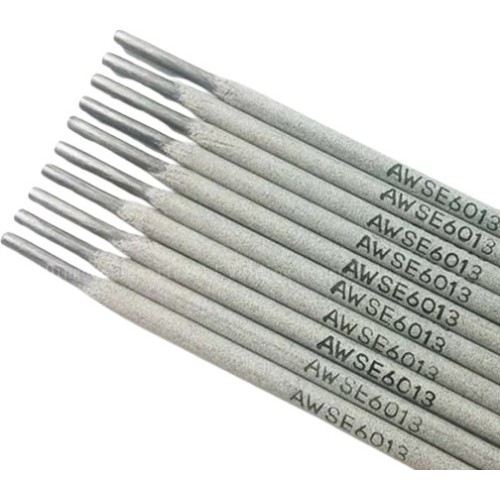

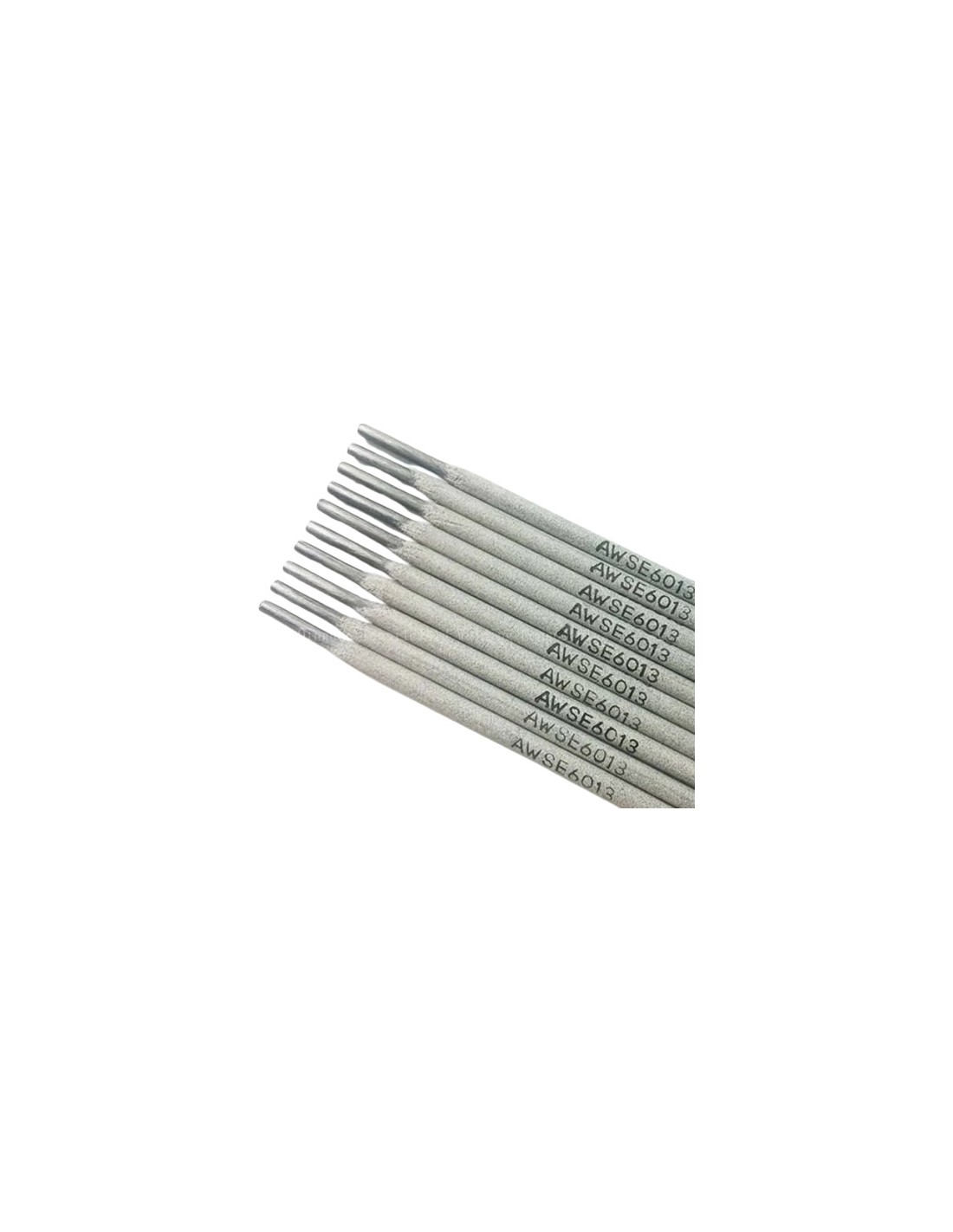

AWS 6013 rutile cellulosic mild steel rods have excellent weld characteristics with a soft arc, minimal weld spatter and easy slag removal.
Rod Diameter | Amps (A)
2.5x350mm | 60A – 100A
3.2x350mm | 90A- 140A
4.0x350mm | 150A – 190A
Electrode identification mark:
E6013 E 42 0 RC 11
Typical analysis of all-weld metal (wt.-%):
C: 0.08 | Si: 0.4 | Mn: 0.5
Polarity: DC (-) / AC
Redrying: Not necessary
Classification:
AWS A5.1 E6013 / SFA-5.1 : E6013
EN ISO 2560-A: E 42 0 RC 11
