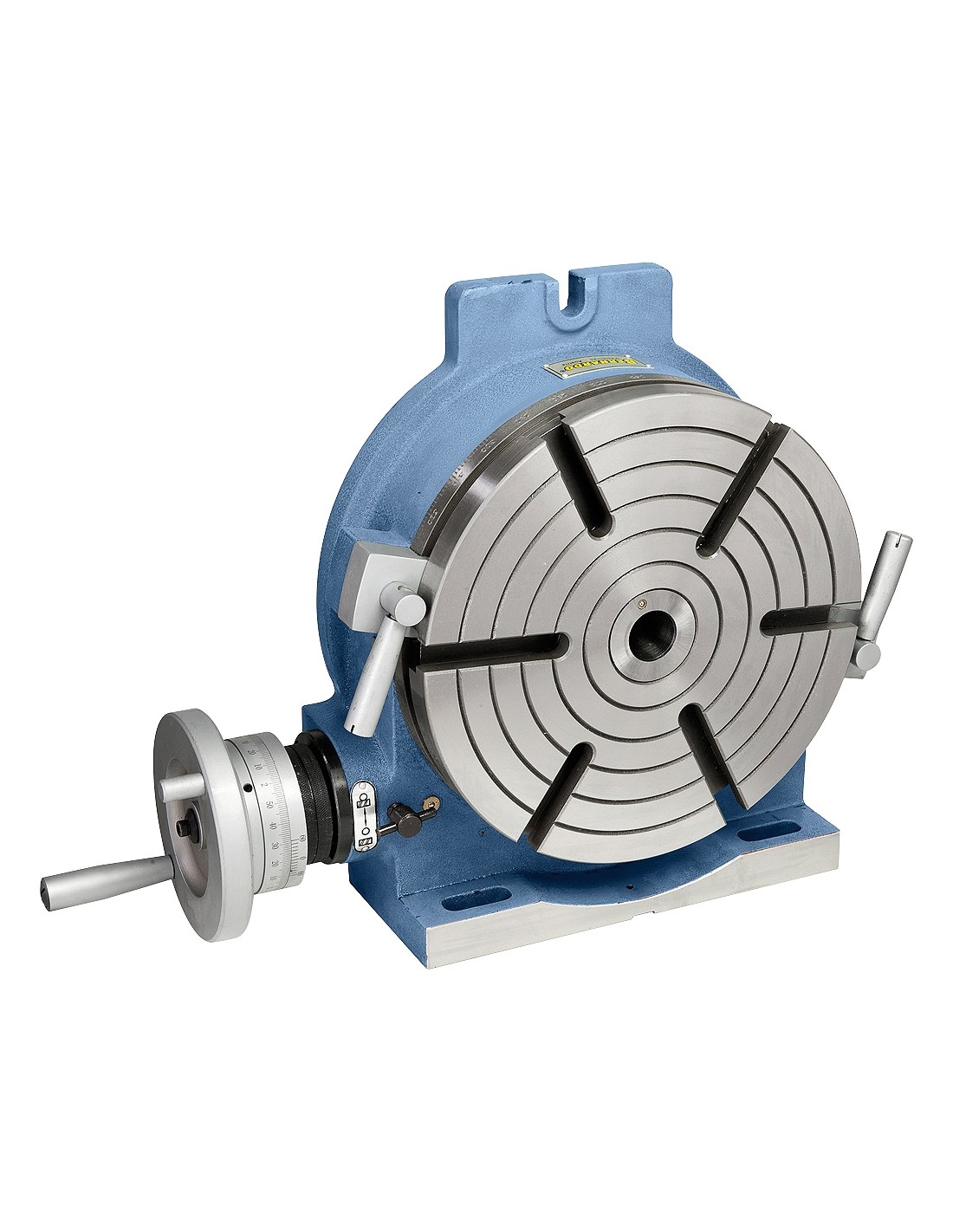

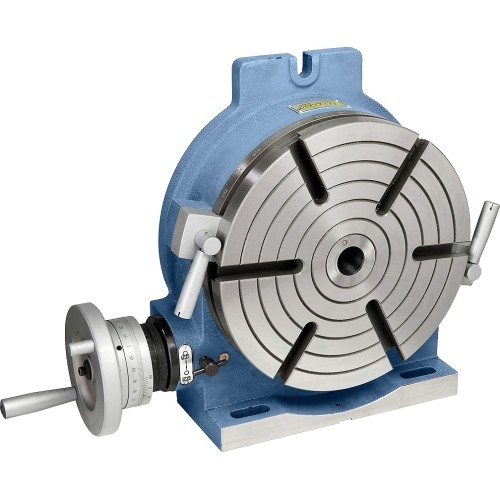

Horizontal & vertical rotary table HV 12
Horizontal & vertical rotary table HV 12
Horizontal & vertical rotary table HV 12
Horizontal & vertical rotary table HV 12

WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

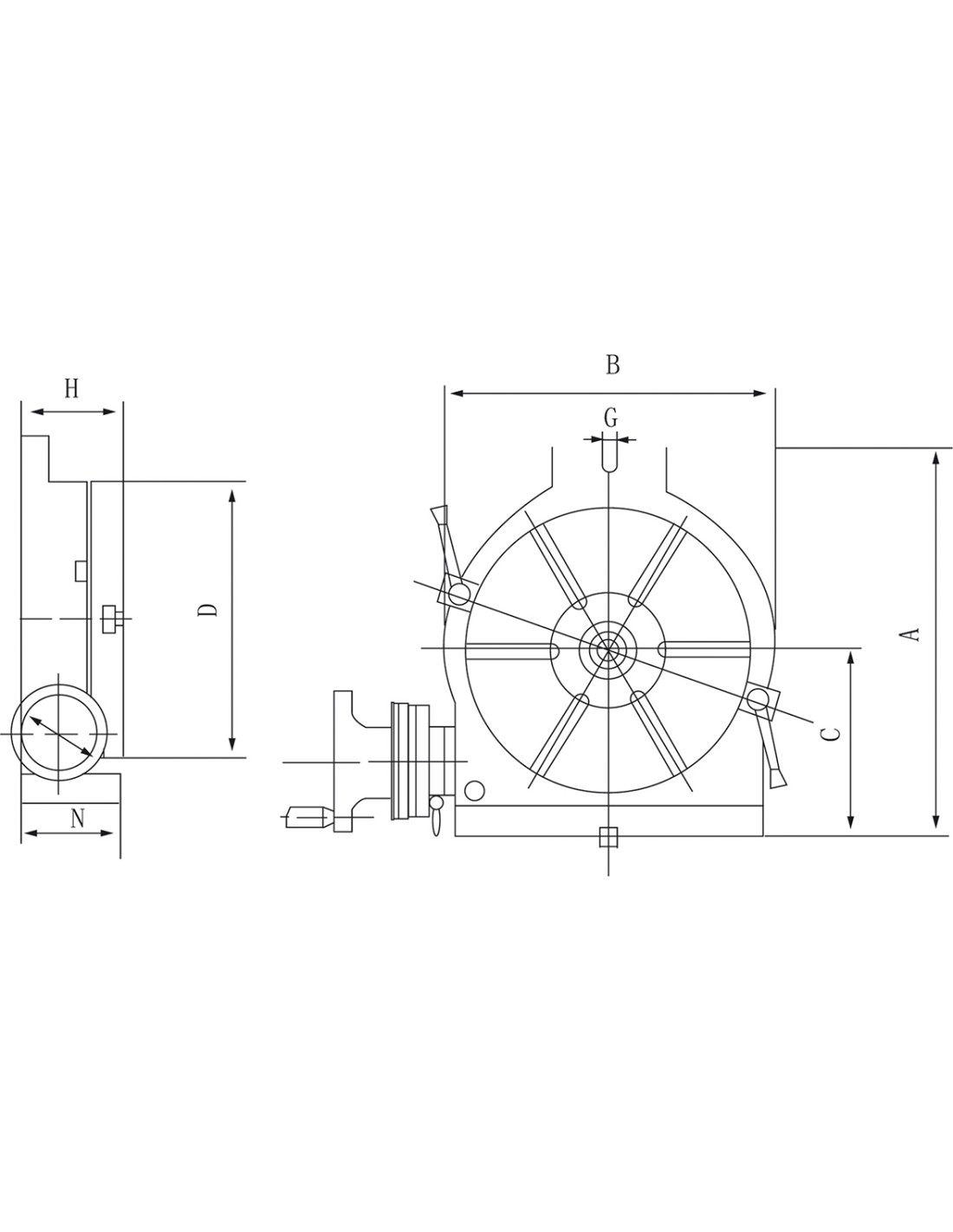

Morse taper
MT 4
D
300 mm
A
388 mm
B
330 mm
C
195 mm
E
16 mm
G
18 mm
H
135 mm
Table diameter
300 mm
Quantity of T-slots
6 pcs.
Ratio
90:1
Max. load horizontal
120 kg
Max. load vertical
60 kg
N
133 mm
Weight ca.
71 kg

Horizontal & vertical rotary table HV 12

1054663
€908.00
Tax included
Monthly payment from 24.61€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite friday, november 15 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
NEMOKAMAI Prekę pristatysime Jums per: 5-11 d.d. Venipak (€0.00)

Description

Properties

  • Suitable for milling and drilling works on horizontal or vertical milling machines, drilling machines, etc.
  • Table is made of high-quality Meehanite casting
  • Worm shaft hardened and grounded, worm gear made of special cast
  • 2 clamping lever for clamping of the table
  • Transmission ratio of worm gearbox 90:1
  • Grade indexing via scale drum with adjustable nonius
  • Direct indexing via 360° scale mounted on the table
