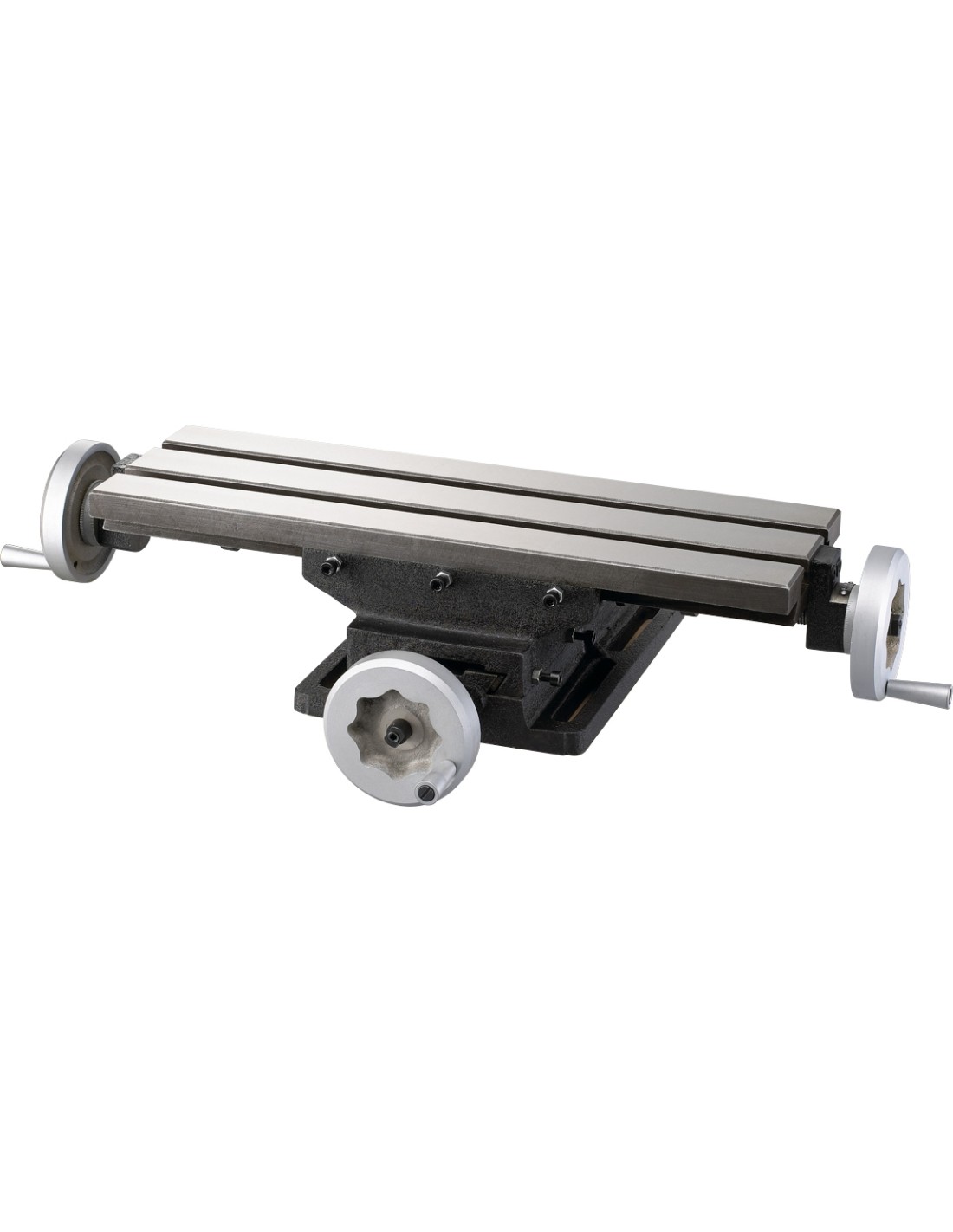

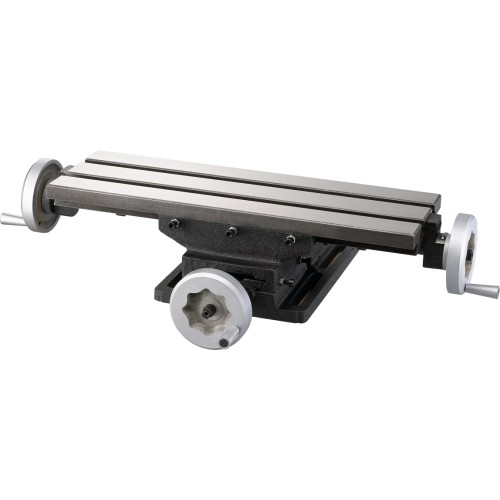

Cross table KT 150

WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Width
376 mm
Max. workpiece weight
30 kg
Weight approx.
25 kg
Length
665 mm
Height
125 mm
T-slot size
14 mm
Table length
470 mm
Quantity of T-slots
2 pcs.
Table width
150 mm
Base width
195 mm
Base length
265 mm
Travel x-axis
330 mm
Travel y-axis
150 mm
Nonius handwheels
0,02 mm

Cross table KT 150

1054071
€412.00
Tax included
Monthly payment from 13.68€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite friday, november 15 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Prekę pristatysime Jums per: 5-11 d.d. Venipak (€8.00)
Prekę pristatysime Jums per: 5-11 d.d. Venipak pickup (paštomatas) (€8.00)

Description

Properties

  • for small milling works on table and column drilling machines
  • Working surface grounded
  • Dovetailg guiding adjustable via gibs

Technical specifications

Length

665 mm

Width

376 mm

Height

125 mm

T-slot size

14 mm

Quantity of T-slots

2 pcs.

Table length

470 mm

Table width

150 mm

Max. workpiece weight

30 kg

Base width

195 mm

Base length

265 mm

Travel x-axis

330 mm

Travel y-axis

150 mm

Nonius handwheels

0,02 mm

Weight approx.

25 kg
