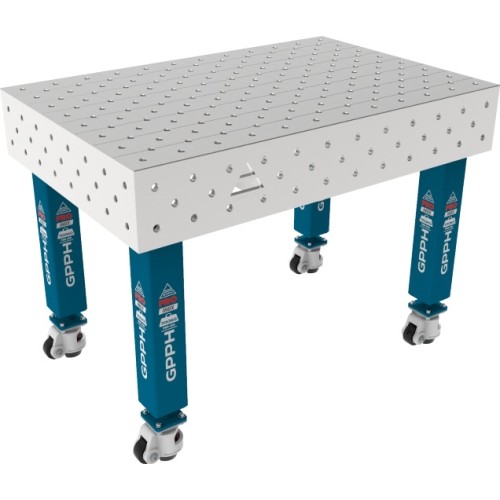

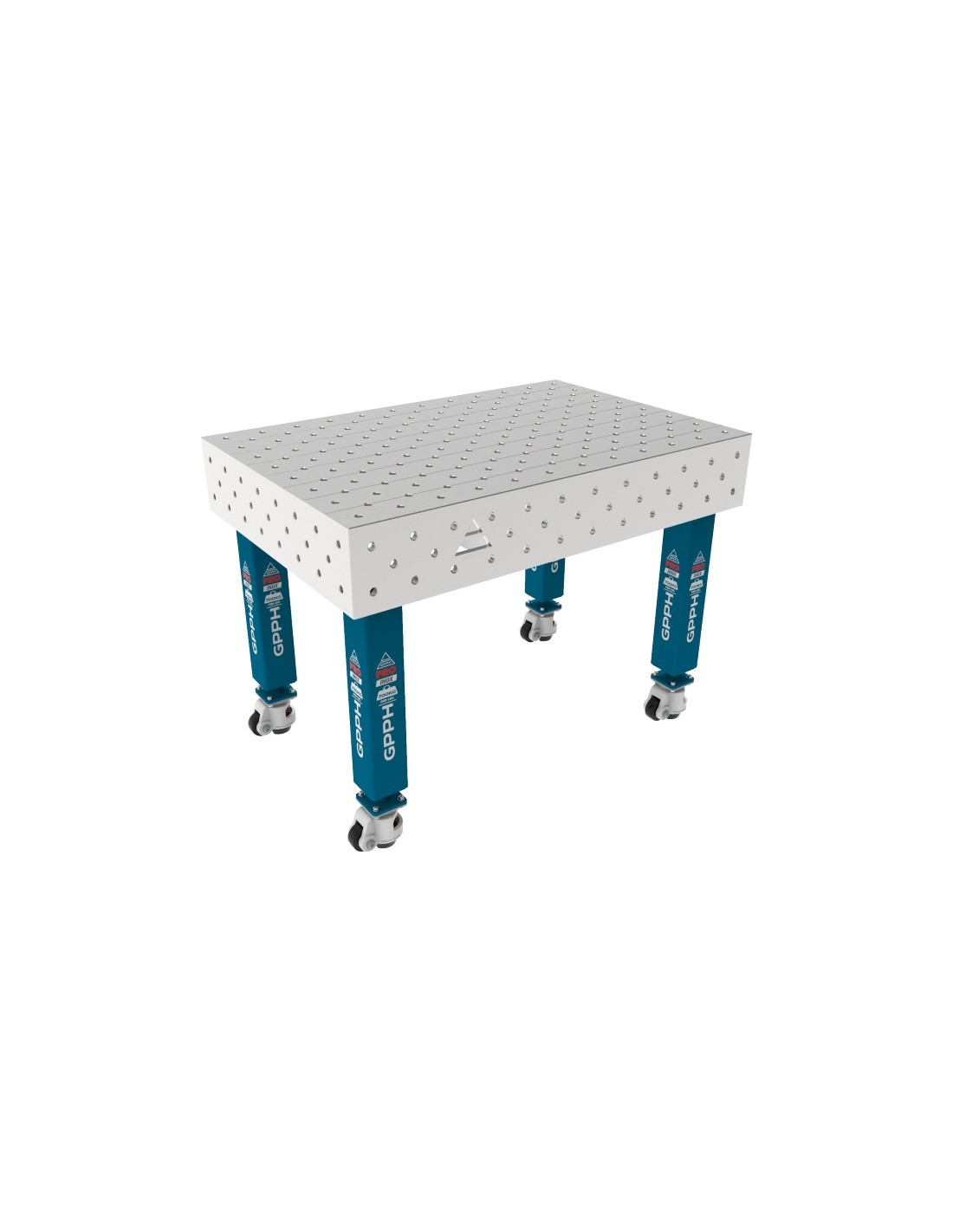

PRO INOX Welding Table 15mm - 1200x800mm

Welding Tables are essential wherever precision during welding is required. They can be used for manual or robotic welding. Your constructions will finally be made accurately, without unnecessary corrections!

They also ensure ergonomic and fast work while maintaining precision and repeatability of the constructions made.

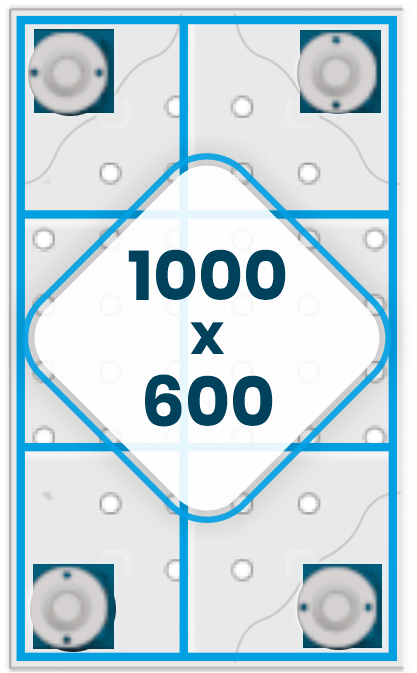

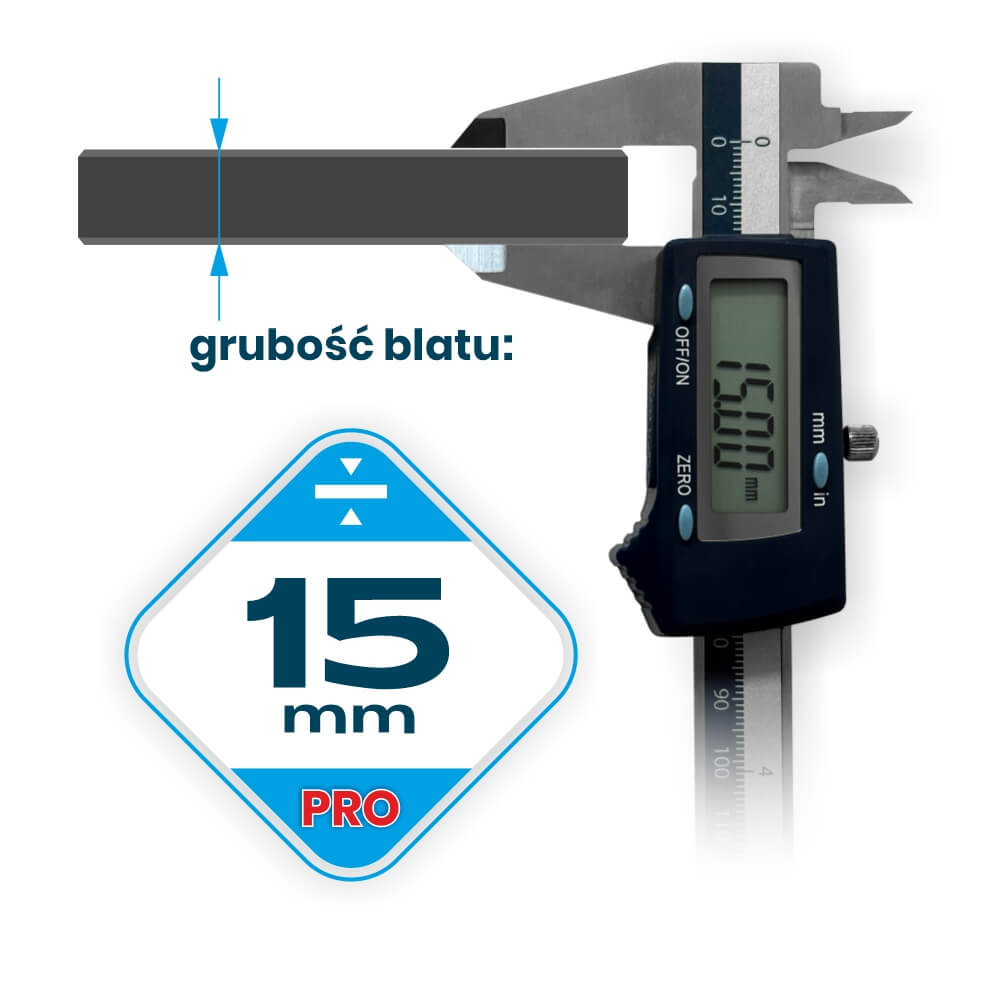

The Welding Table must be flat! The PRO INOX table tops, with a thickness of 15mm, feature dense ribbing that ensures a perfectly flat working surface. A table measuring 1000×600 mm has 1 longitudinal rib and 2 transverse ribs. The massive and rigid tabletop support guarantees the highest stability during use and protection against deformation. The flatness tolerance of the table over the entire surface is ≤0.15 mm*.

Stainless steel welding tables from the INOX series are made of stainless steel grade 1.4301, which has better electrical conductivity than ordinary steel – electrical resistance at 20°C = 0.73 (Ω mm²)/m. They are used wherever precise welding of stainless steel is required.

Stainless steel welding tables are characterized by high quality and wear resistance. Made from stainless steel with a high chromium content, they ensure durability and corrosion resistance. Thanks to GPPH INOX Welding Tables, when welding stainless steel constructions, there is no risk of iron precipitation and corrosion spots.

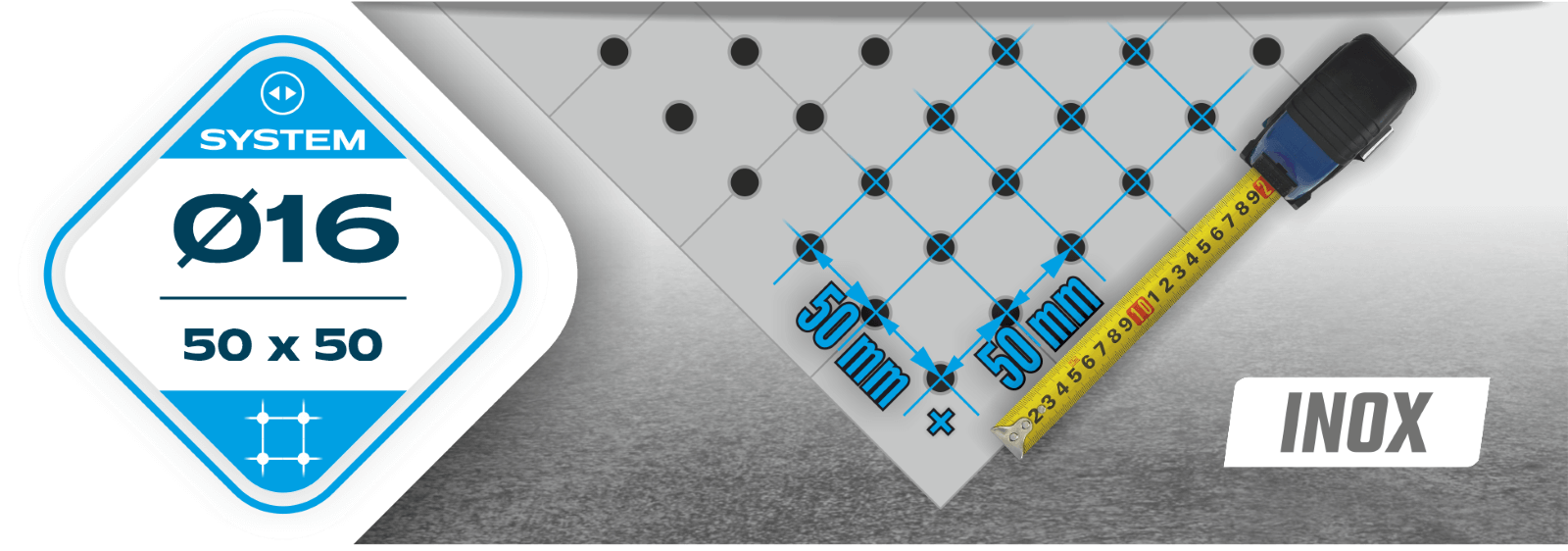

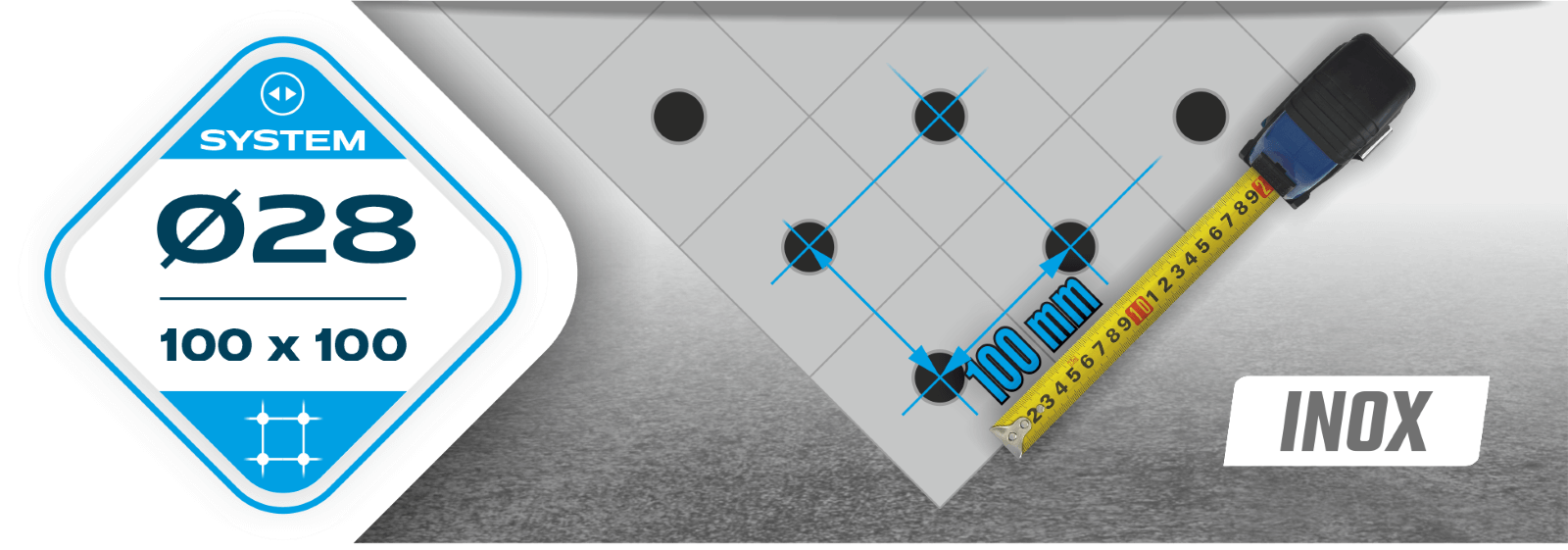

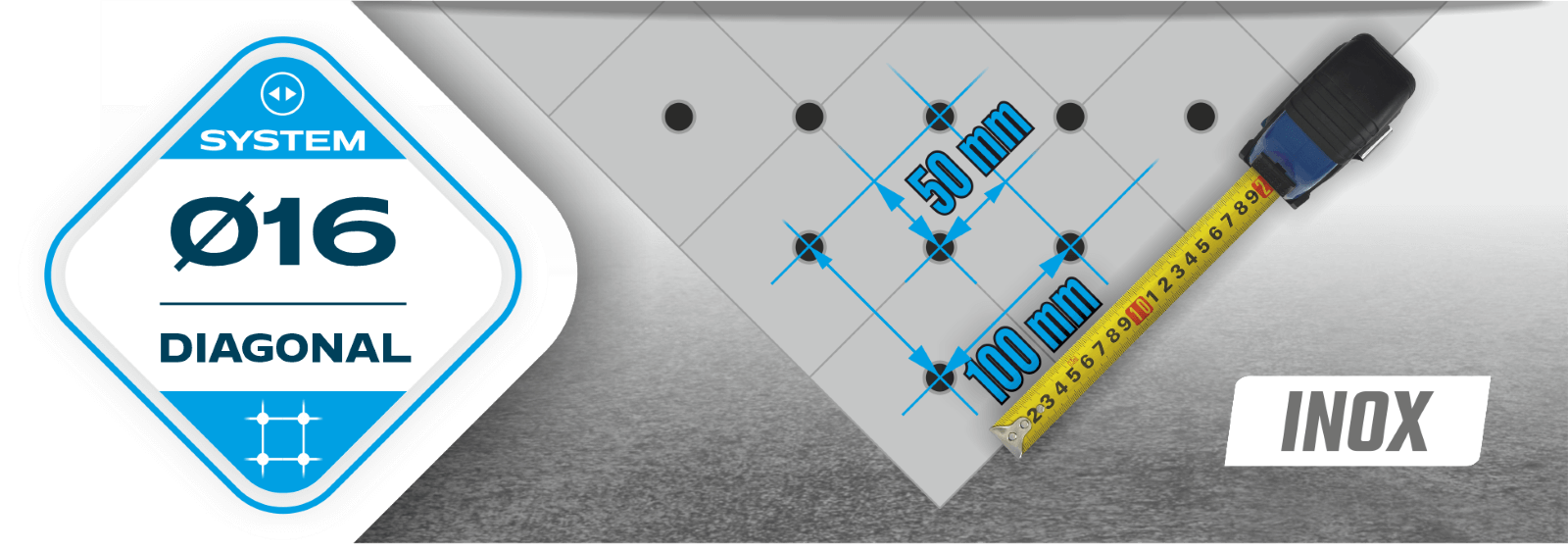

The choice is yours!

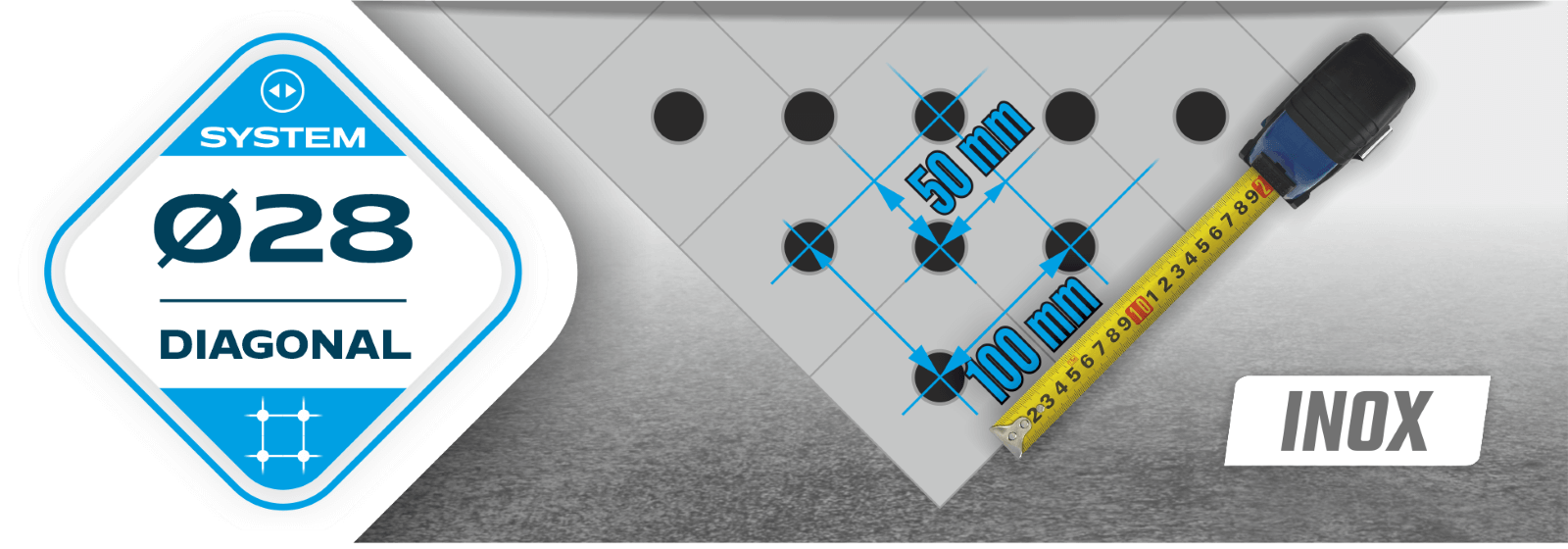

Milled and chamfered holes in the table top facilitate easy mounting and dismounting of tools during your work, thanks to the precise fit of the holes to the tools. This also contributes to less wear – you don't need much force to mount and dismount them. This design is the best available solution on the Welding Tables market! The tolerance for the holes in the welding table is ±0.05 mm.

Engraved scale on the table top consists of vertical and horizontal lines in a 100x100mm grid. It serves as a reference point when arranging constructions and during tool mounting. Using measuring tools, you can properly position your construction to achieve the required dimensions.

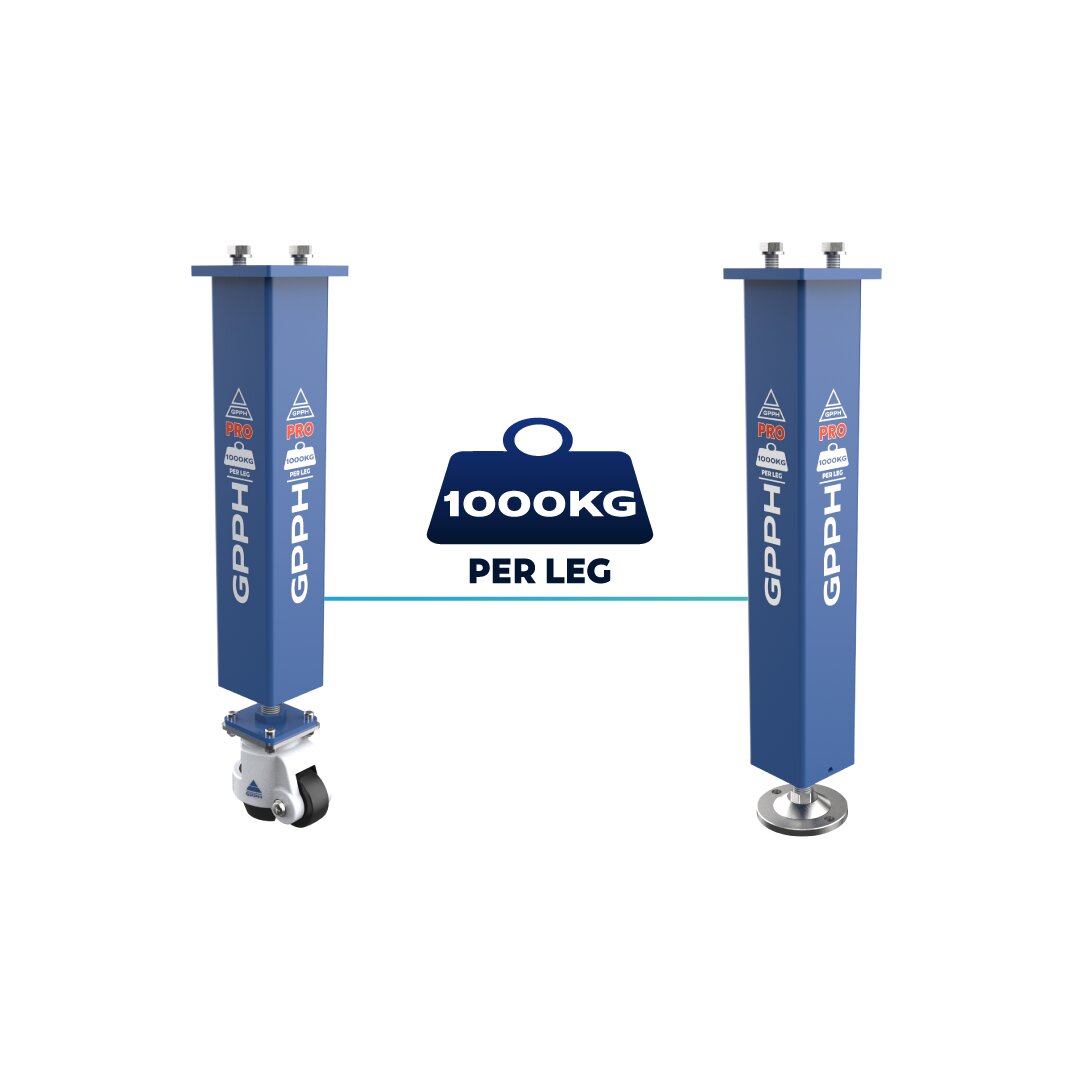

The legs of PRO INOX Welding Tables, made from 100×100 mm profiles, have a load capacity of 1000 kg per leg. For the 3000×1480 mm size, which has 8 legs, the maximum load capacity is 8000 kg.

You have a choice: legs with feet or on wheels – check what suits you best!

For work on PRO INOX Welding Tables, use milled tools from the PRO series. With them, you can precisely create any flat 2D or spatial 3D construction. And all this in a much shorter time!

*provided the table is properly leveled.
