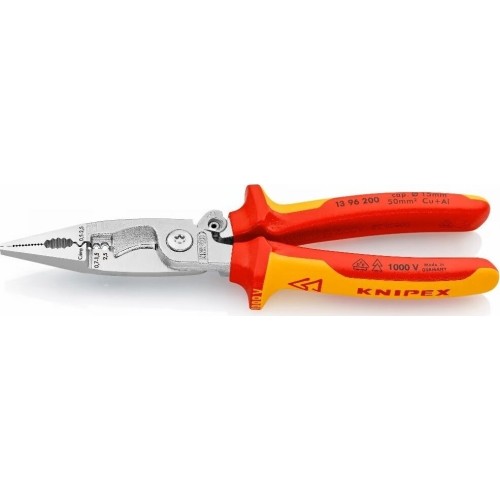

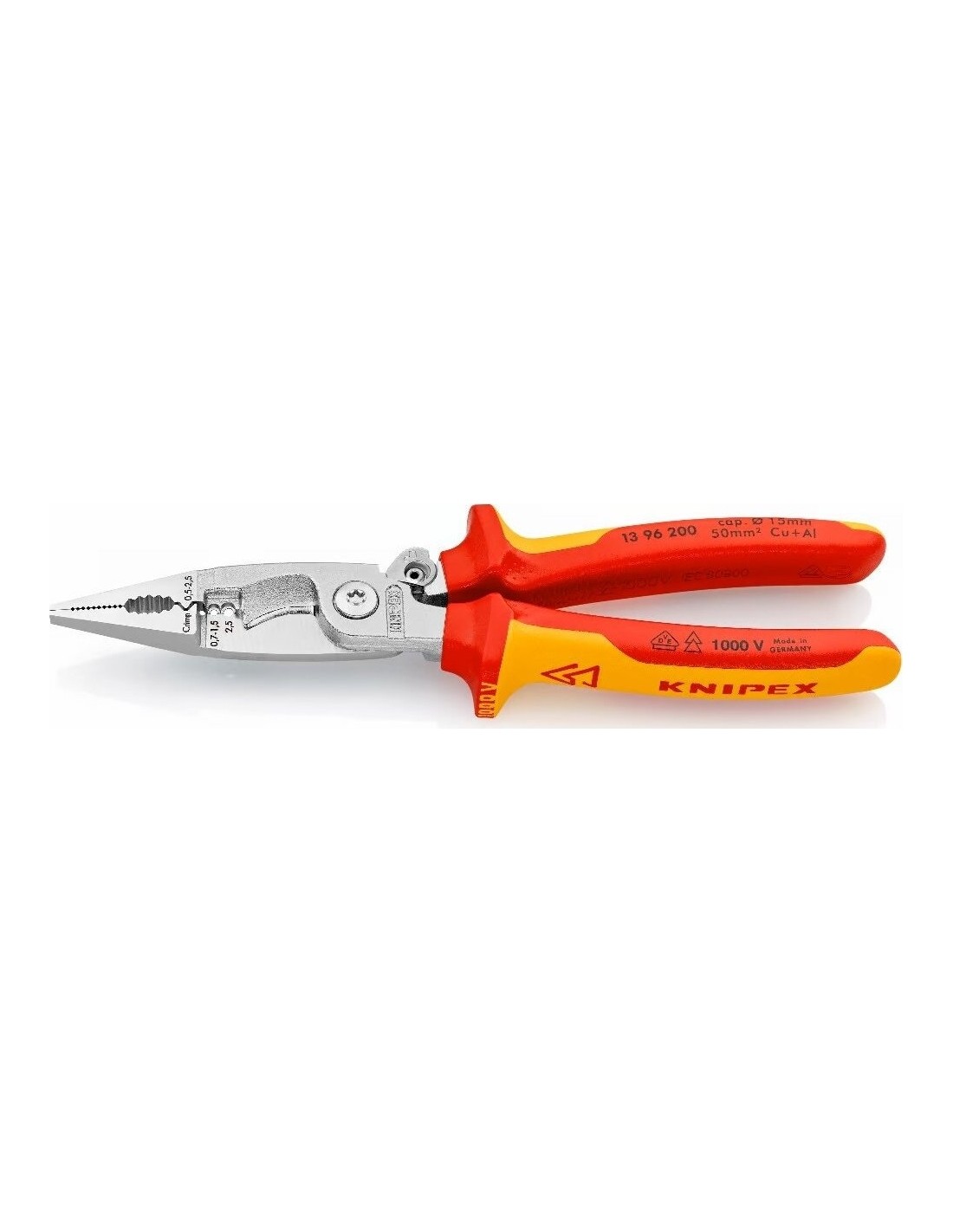

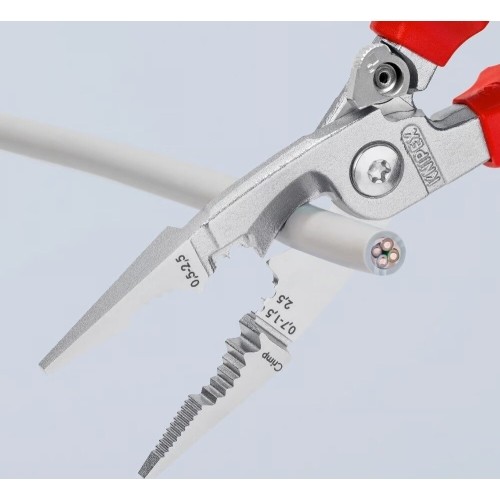

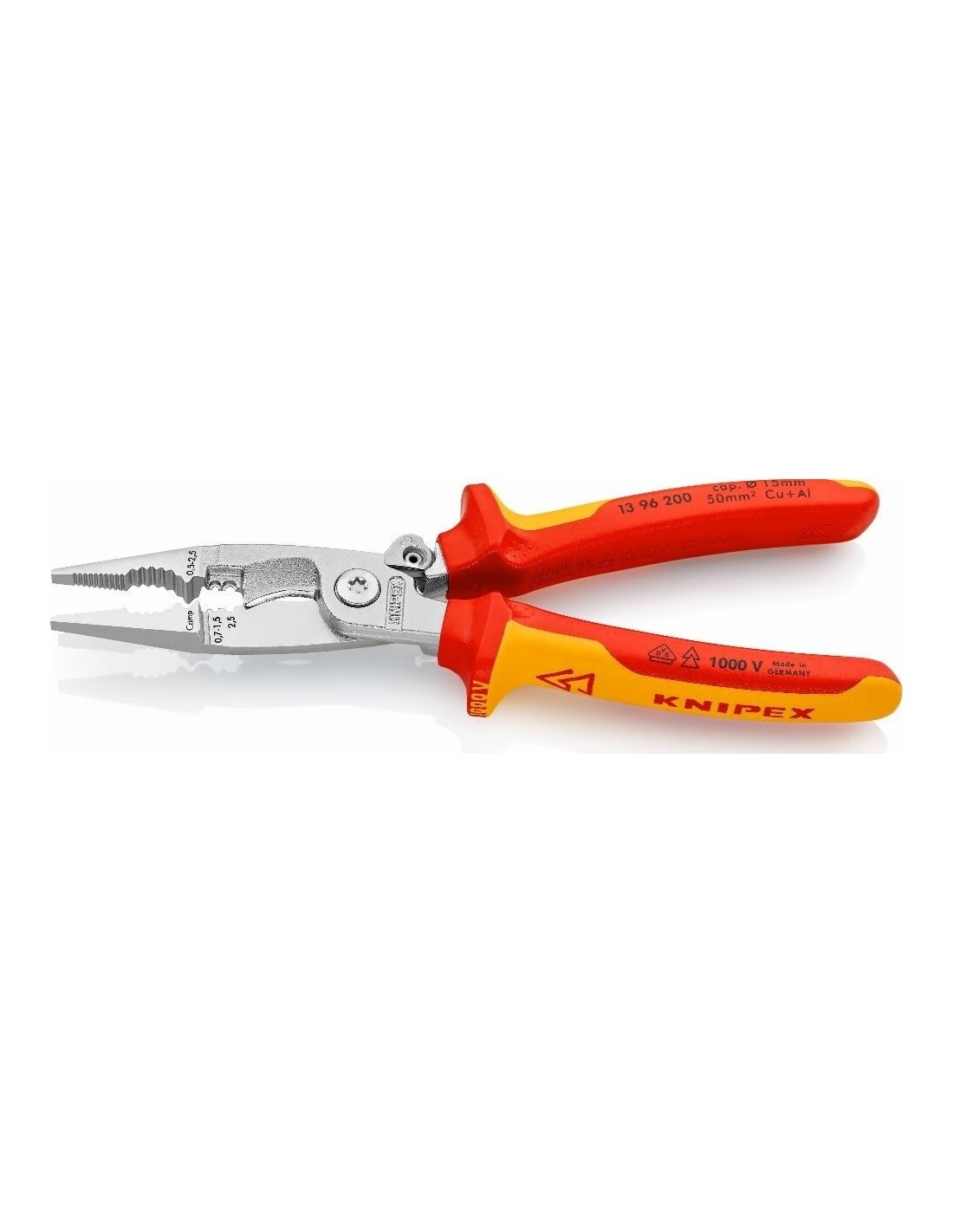

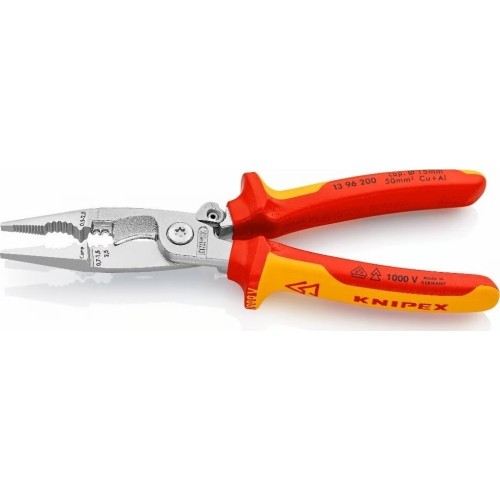

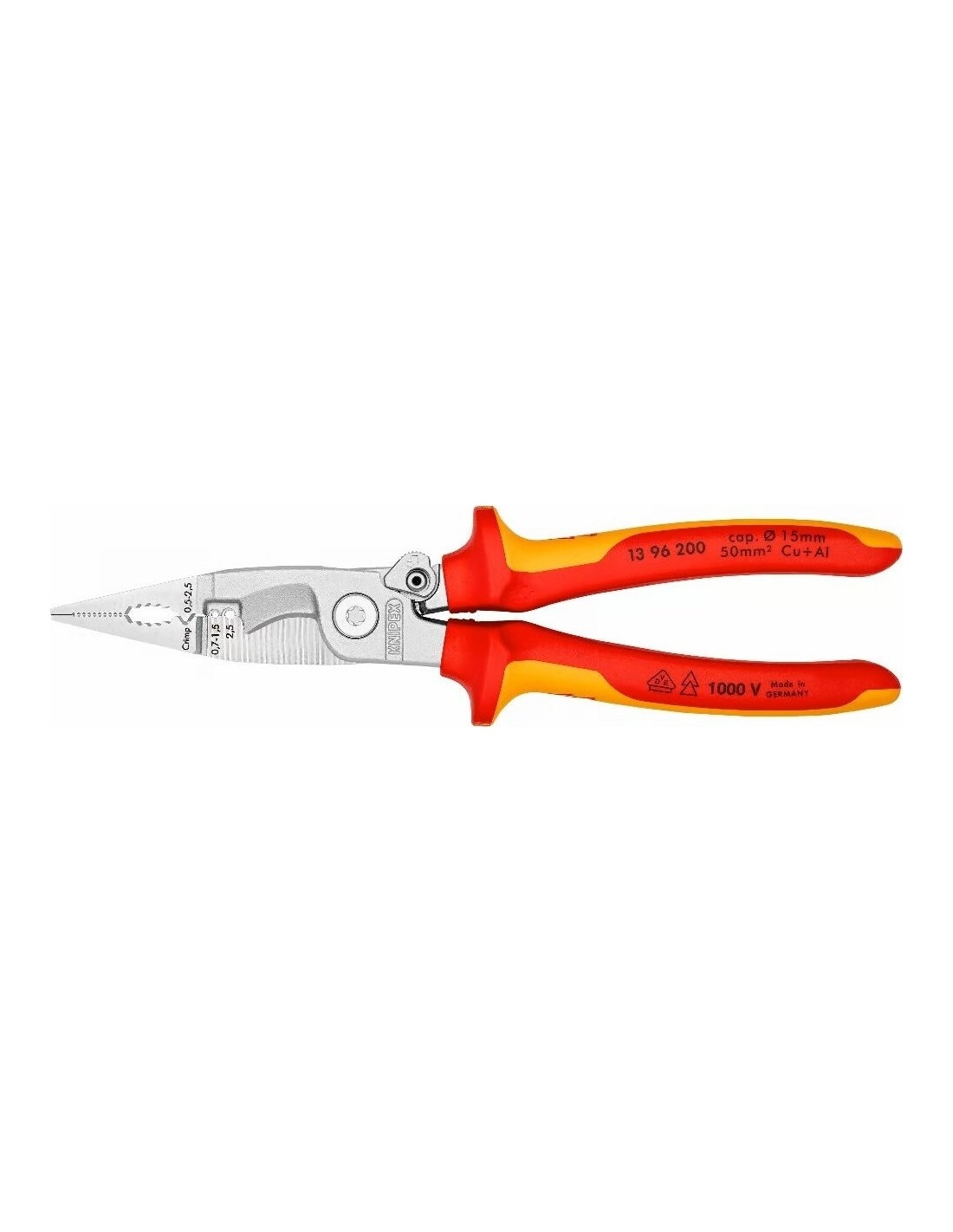

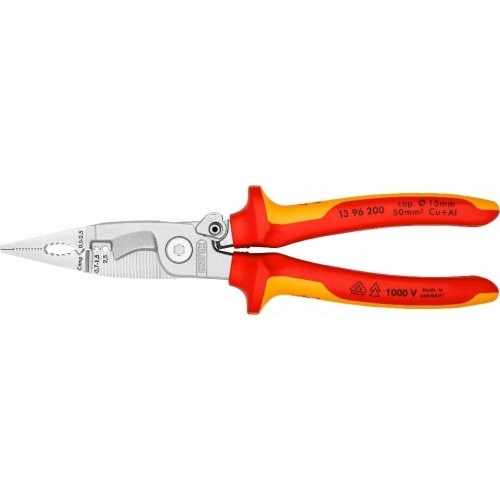

Pliers for electrical installation VDE 200mm KNIPEX

Article No:. 13 96 200
EAN: 4003773075110
6 functions in one pair of pliers
To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules
Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material

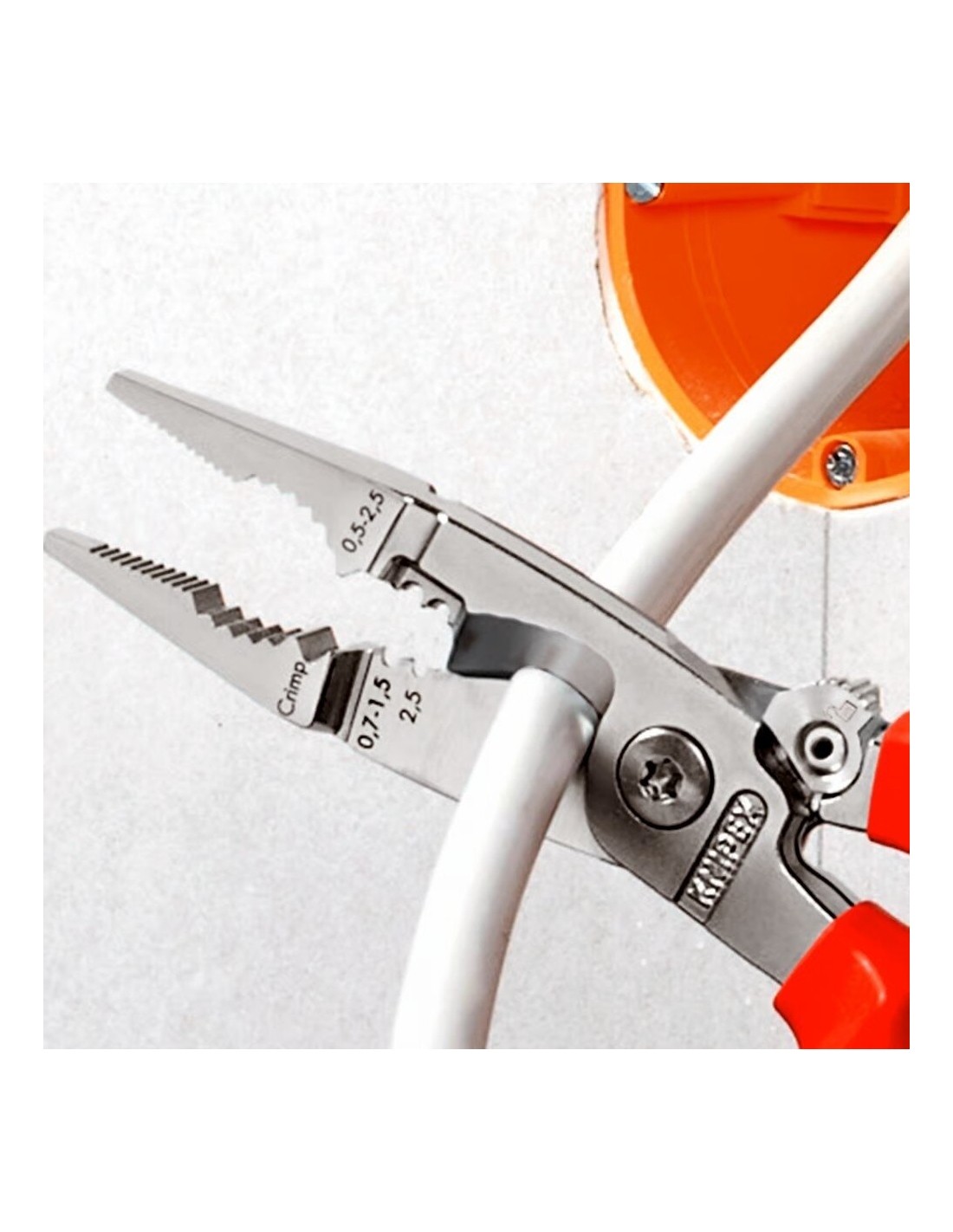

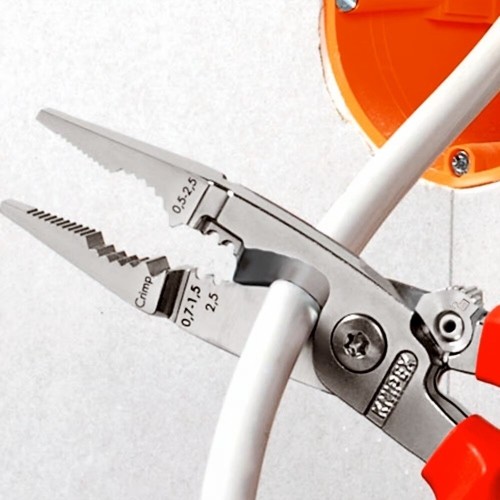

Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes
Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²

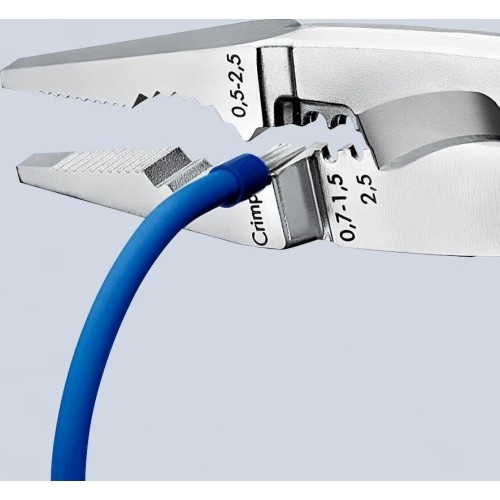

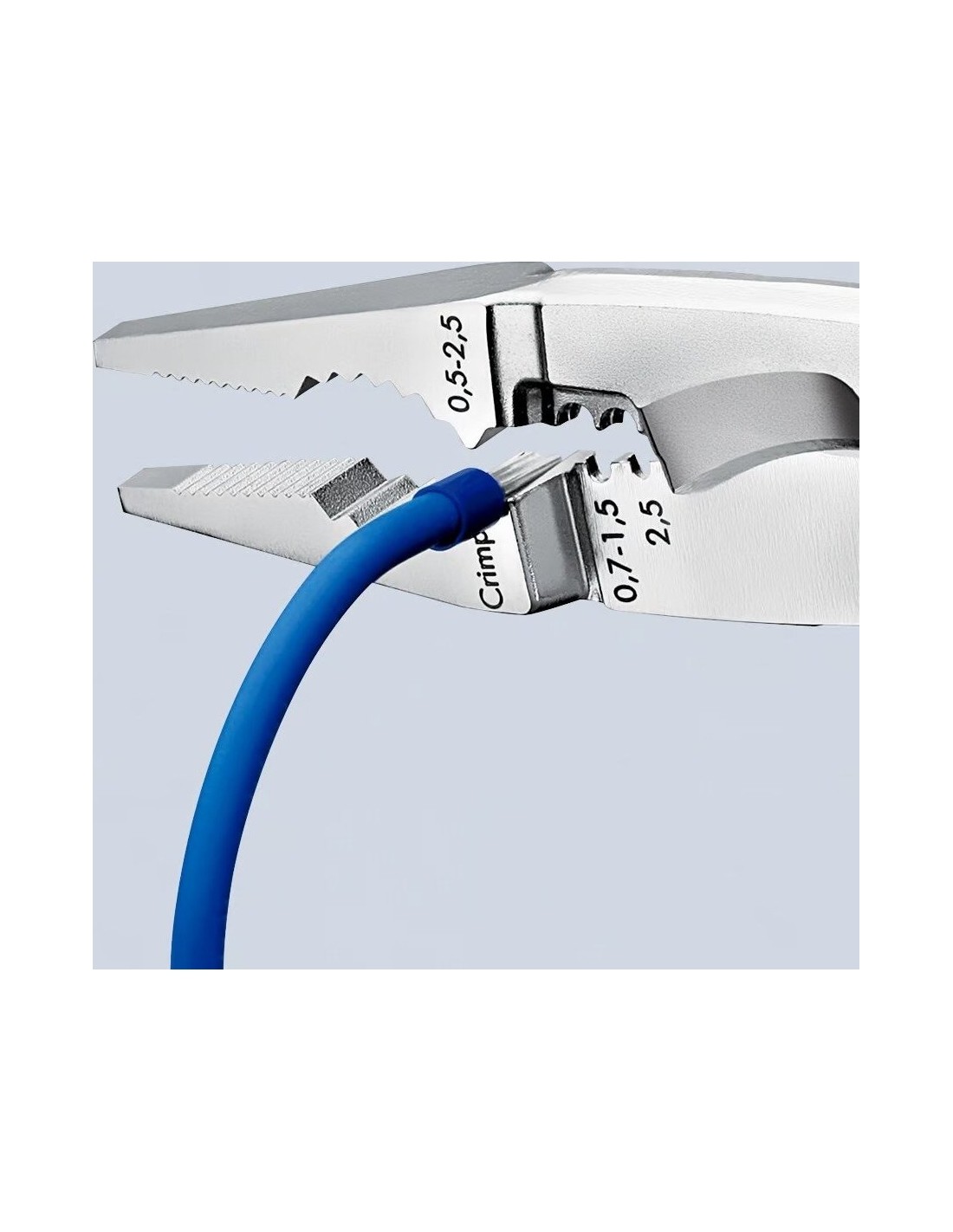

Crimping die for wire ferrules 0.5 - 2.5 mm²

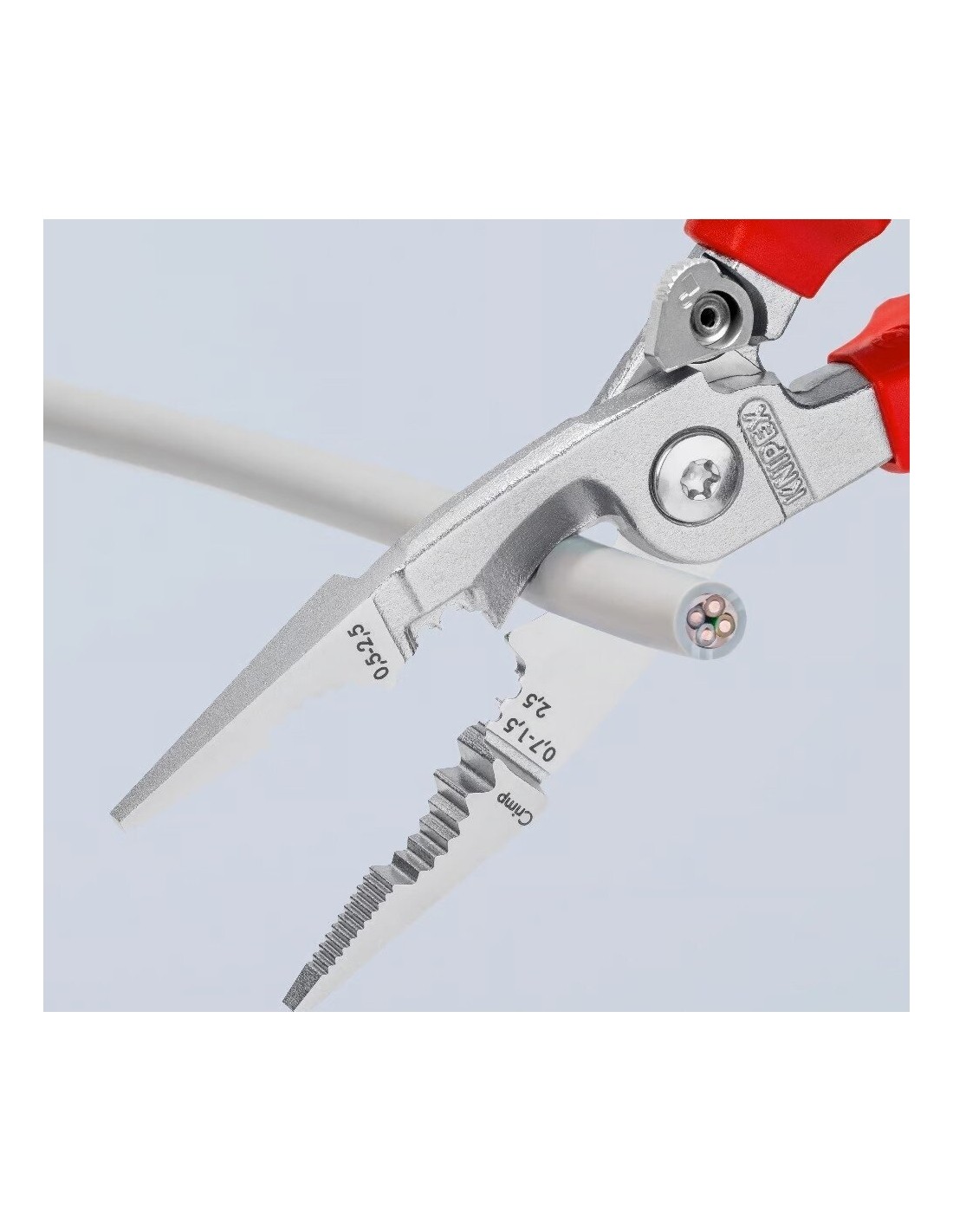

Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm

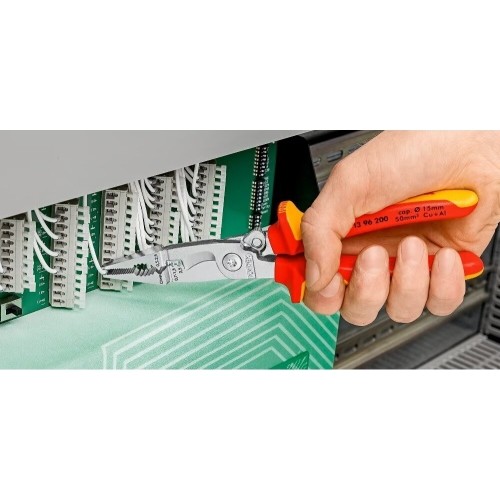

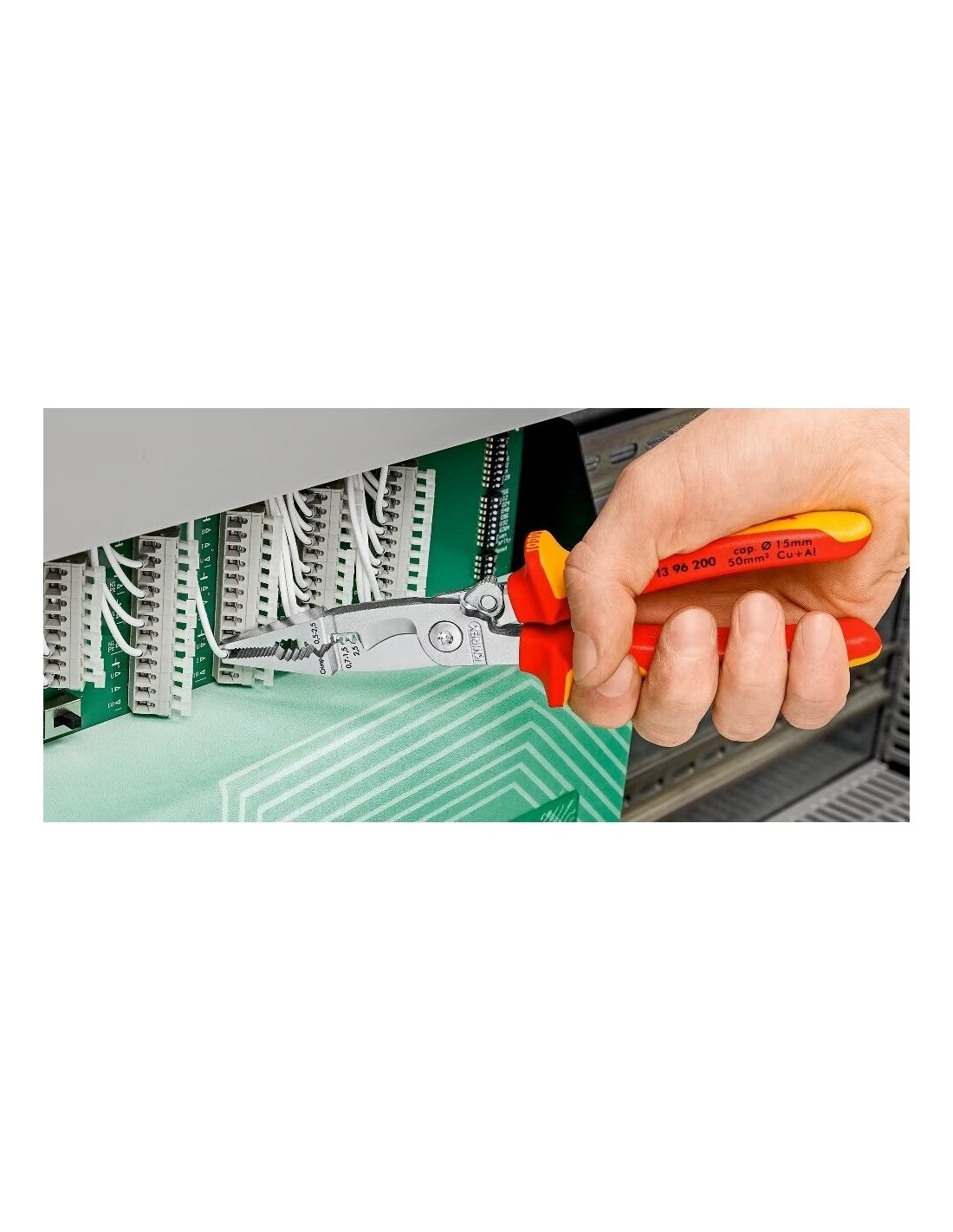

Slim dimensions for easy access
Bolted joint: precise, zero backlash operation of pliers
In case of models with opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active
The intelligent latching mechanism enables you to "grip" without opening the pliers. The cutting edge remains closed and protected.
Stripping capacity for single strands 0.75 - 1.5 mm²  / 2.5 mm²
Capacity in square milimeters 0.5 - 2.5 mm²
Cutting capacities copper cable, multiple stranded Ø 15 mm
Cutting capacities copper cable, multiple stranded 50 mm²
VDE tested: yes
Dimensions 200 x 85 x 20 mm
Standard DIN EN 60900 IEC 60900
Weight 276 g
