- Weight approx.
- 370 kg
- Spindle speed
- 2800 rpm
- Motor power
- 1,5 kW
- Machine dimension (W x D x H)
- 1100 (3000*) x 1130 x 1300 mm
- Voltage
- 400 V
- Table size
- 870 x 560 mm
- Max. drill depth
- 50 mm

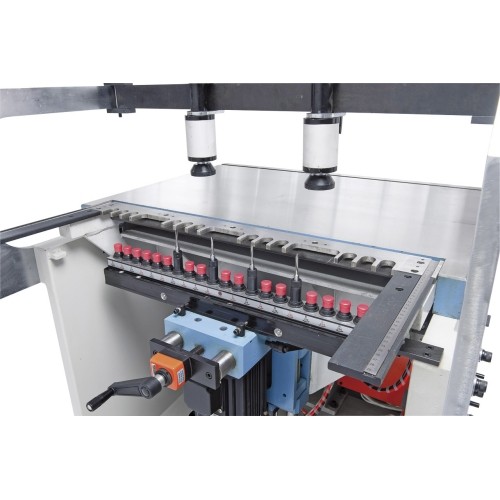

- Spindles
- 21 pcs.
- Distance between spindles
- 32 mm
- Distance first / last spindle
- 640 mm
- Air pressure
- 6 - 8 bar

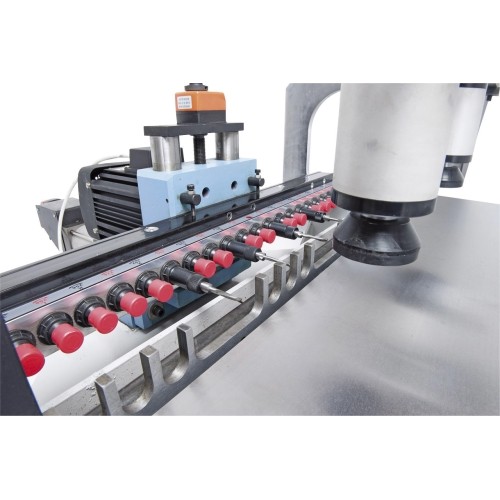

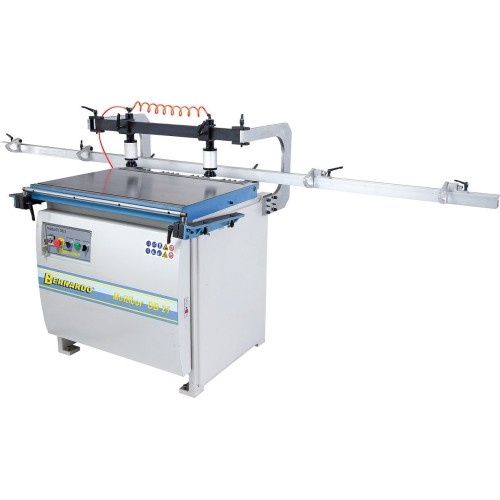

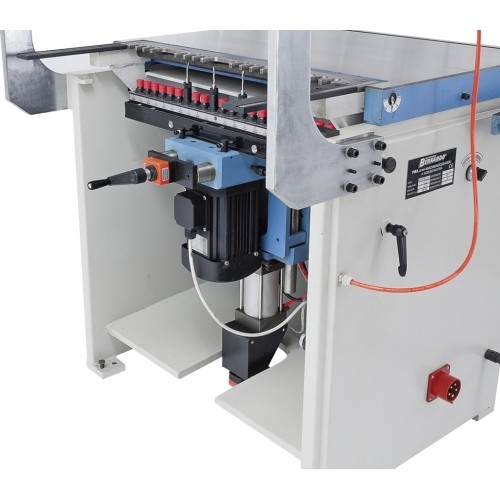

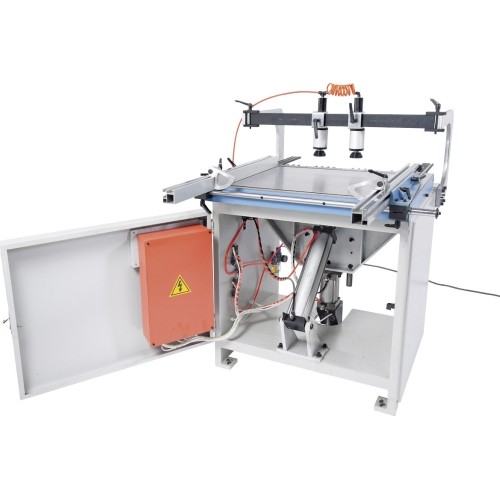

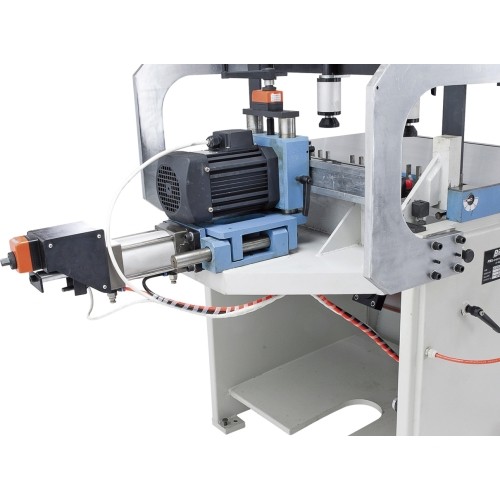

Multibor DB 21
1091866
€4,910.00
Tax included
Monthly payment from 120.47€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 370 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak
(€40.99) Weight: 370 kg.
Description
Properties
- Automatic drill unit return when reaching set drill depth
- Includes fittings for multiple hole drilling up to 280 mm, ideal for multiple hole drilling eg. Side panels, sliding door cupboards and many more
- Adjustable feed rate allows clean perforation of holes

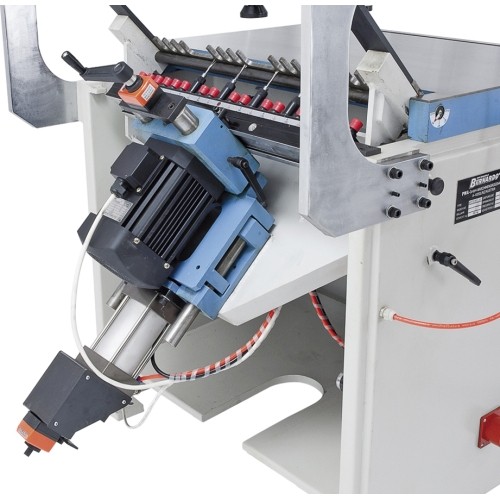

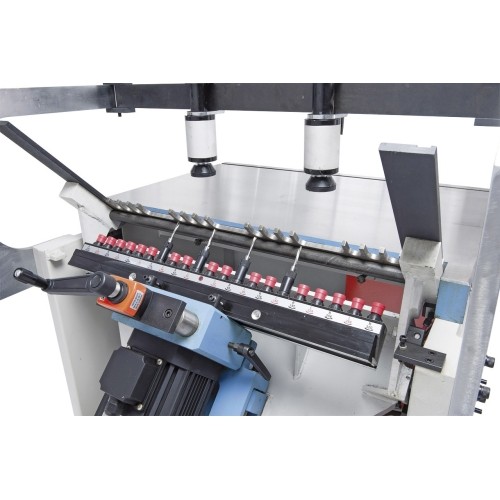

- Drill unit adjustable to 45° angle for mitre corpus-dowelling
- Mechanical digital display allows drill height adjustment over support table
- Automatic pneumatic control with foot pedal for clamping - drilling - releasing
- Reliable end stop system allows for short conversion times
Standard accessories

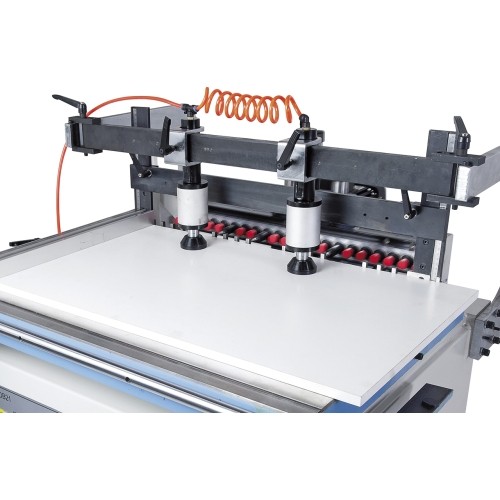

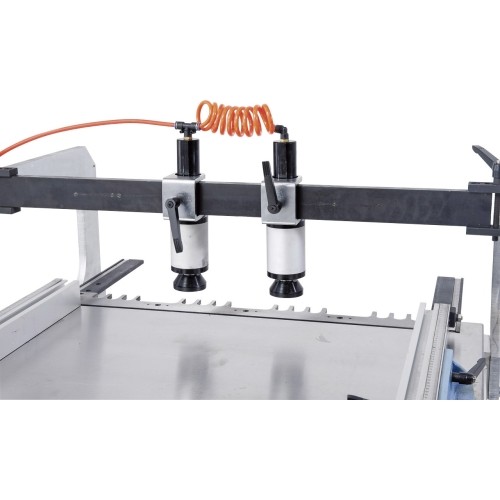

- 2 pcs. pneumatic clamping cylinder
- 4 pcs. keyless drill chuck
- Pneumatic tilting of the drill head
- Mechanical digital readout of drill depth
- Mechanical digital readout for drill depth over support table

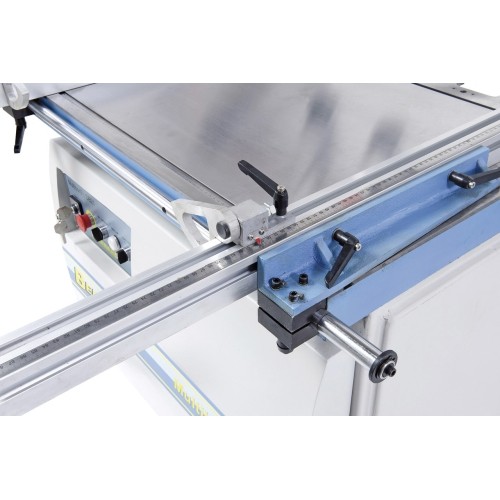

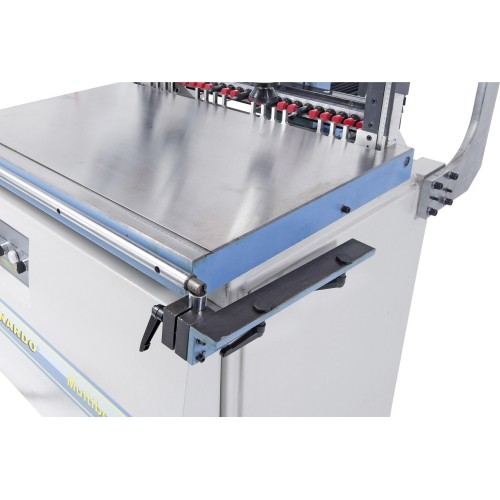

- 2 pcs. side fence with stops
- Foot pedal
