Width
1840 mm
Weight approx.
1235 kg
Depth
1060 mm
Height
1200 mm
Motor power
2,2 kW
Sheet thickness max. (400 N / mm2)
6,5 mm
Roll length
1050 mm
Roll diameter
150 mm
Pre-bending
6,0 mm
Min. bending diameter
225 mm
Roll speed
7 rpm
Motor power back roll
1,5 kW

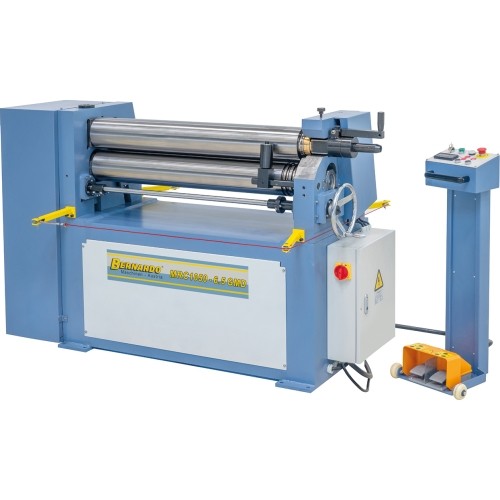

MRC 1050 - 6,5 GMD

1341179
Price €13,259.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up wednesday, august 5 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1235 kg.

Description

Properties

  • Extremely robust sheet steel construction for precise work

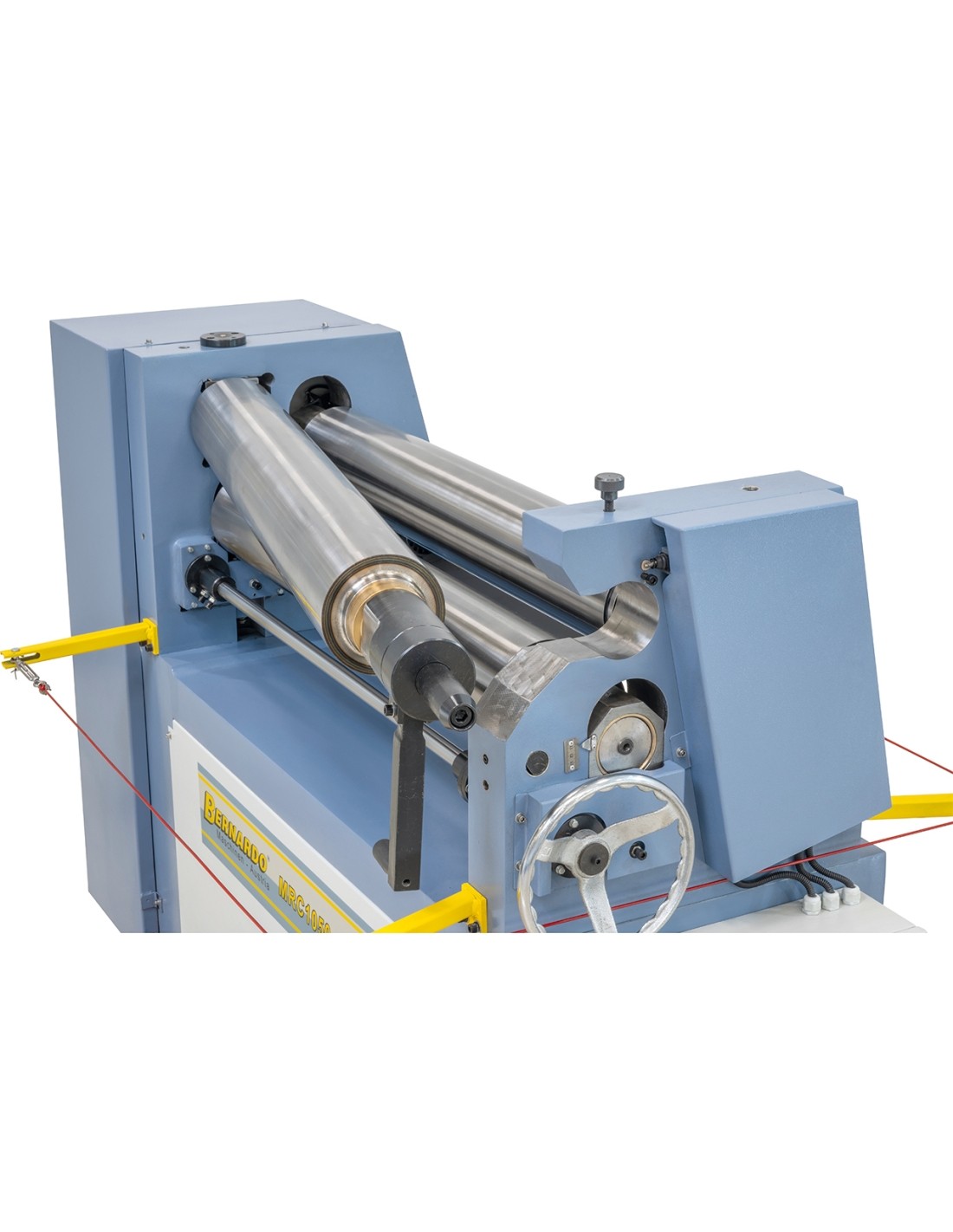

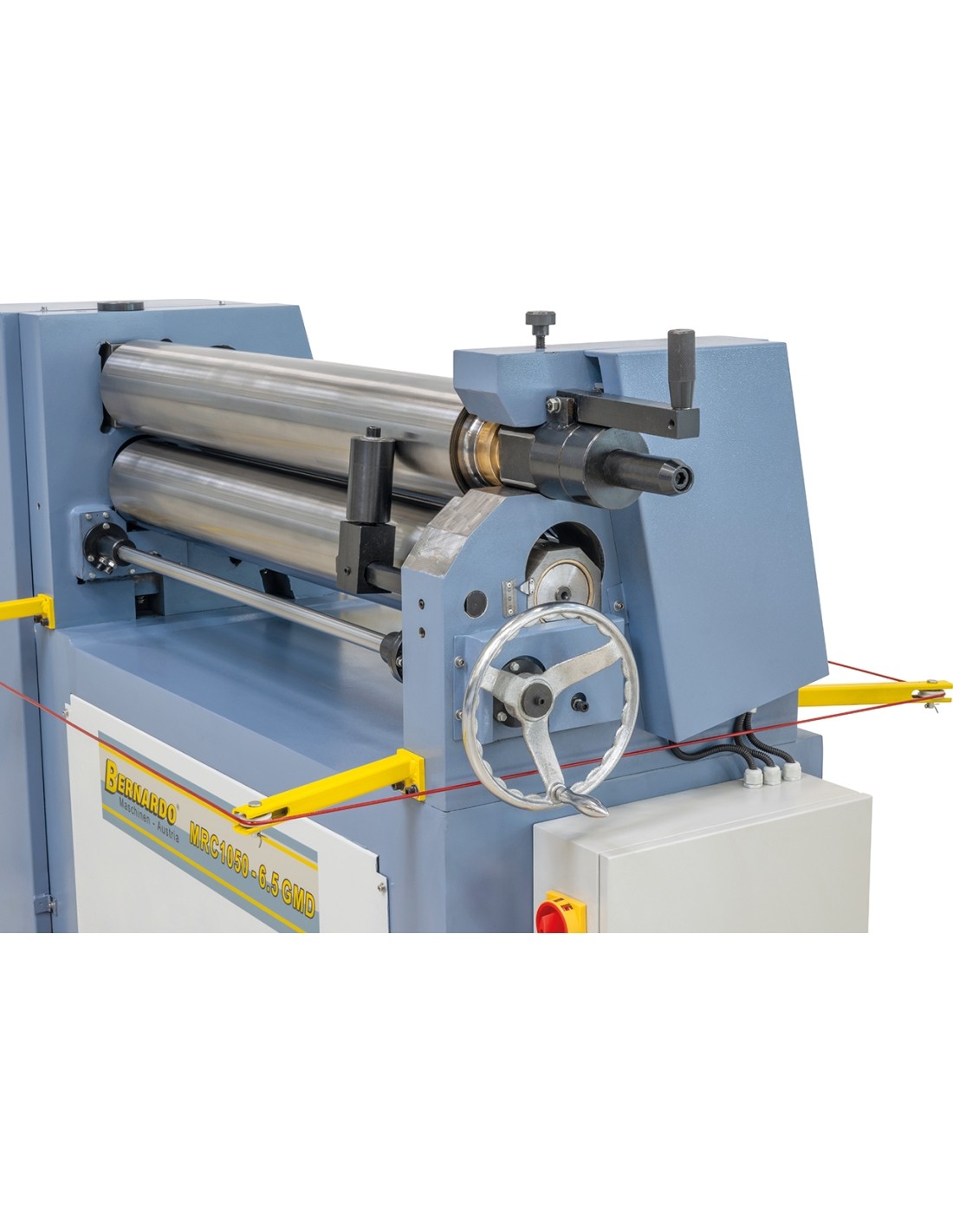

  • Swivelling upper roller for easy removal of the finished workpiece
  • Conical bending device included

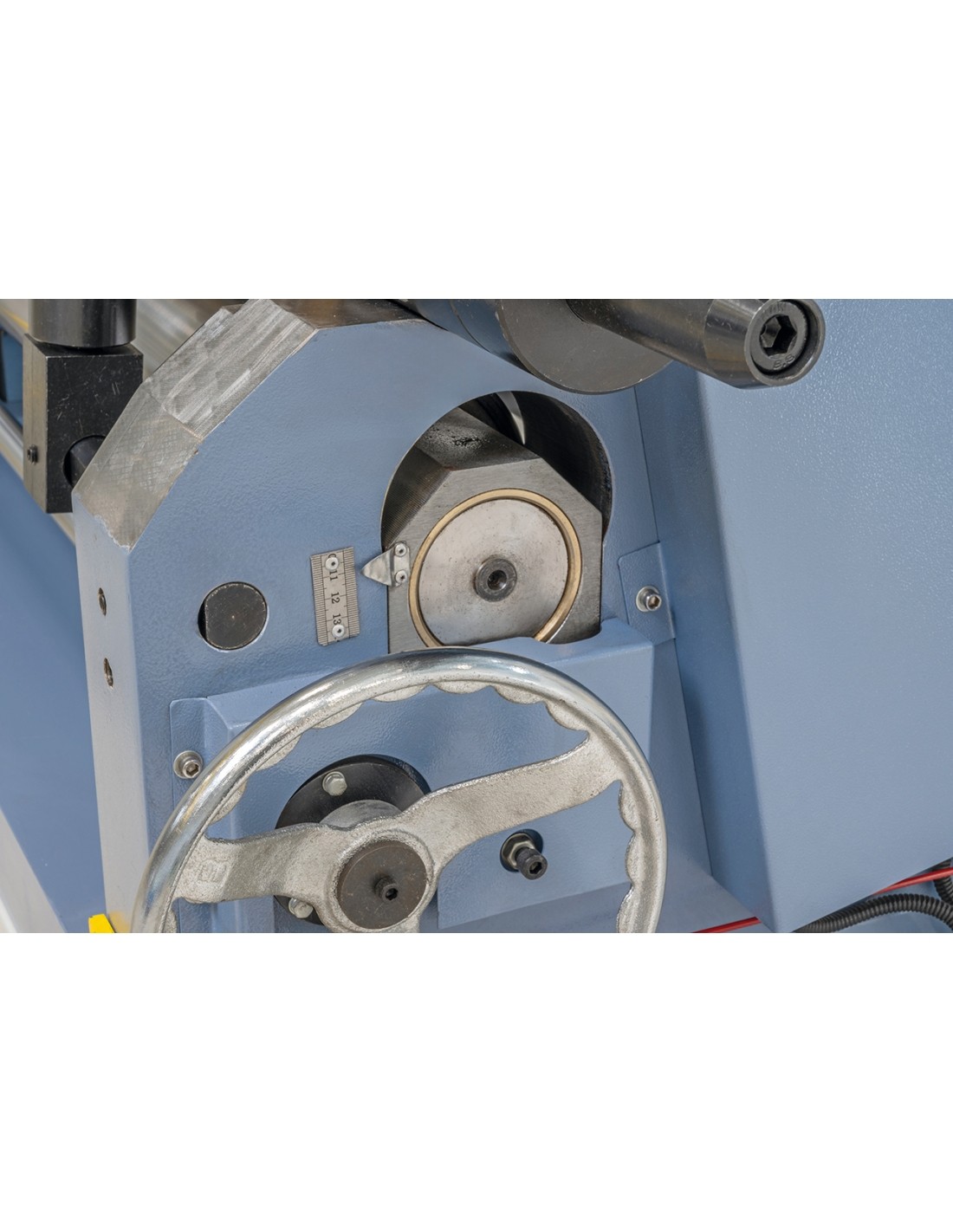

  • Bottrom roller manually adjustable by handwheel
  • Fixed upper roller, adjustable bottom and back roller
  • Mobil foot pedal for left and right turning and emergency stop function
  • For rolling of steel sheet, stainless steel and aluminum
  • Bending rolls made of high quality steel (GMD models additionally hardened)

Standard accessories

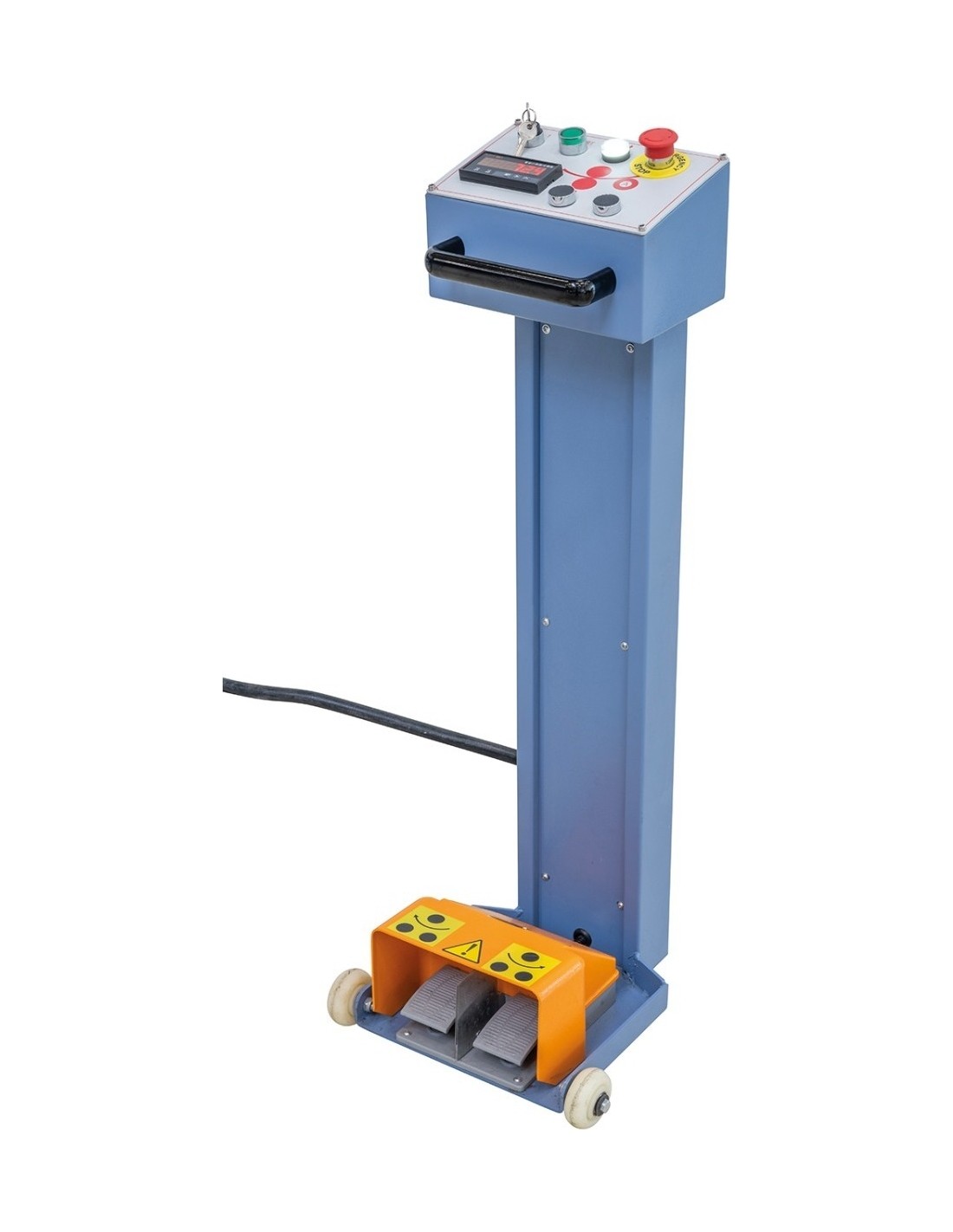

  • Foot pedal with emergency stop

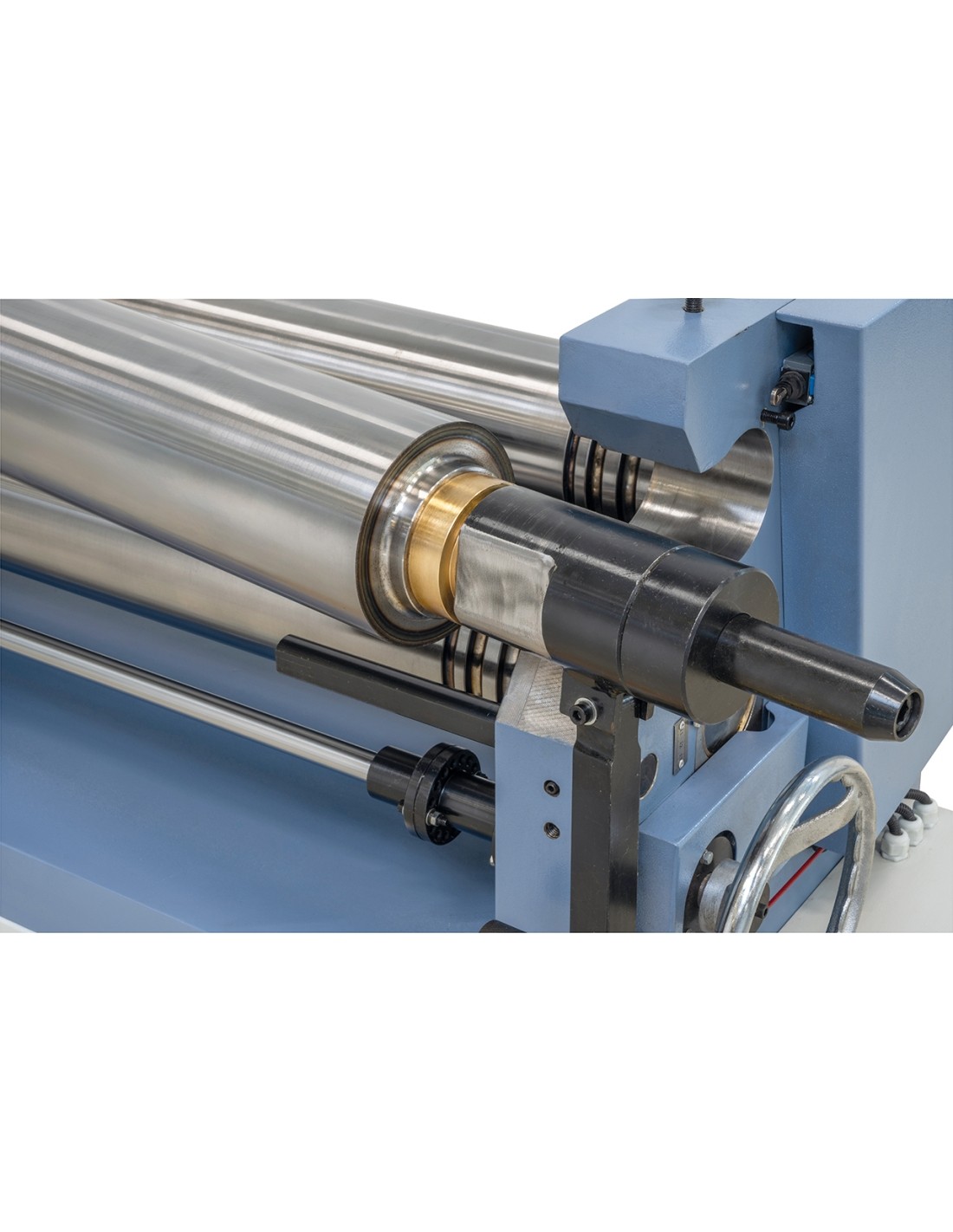

  • Conical bending device
  • Motorized adustment of the back roll

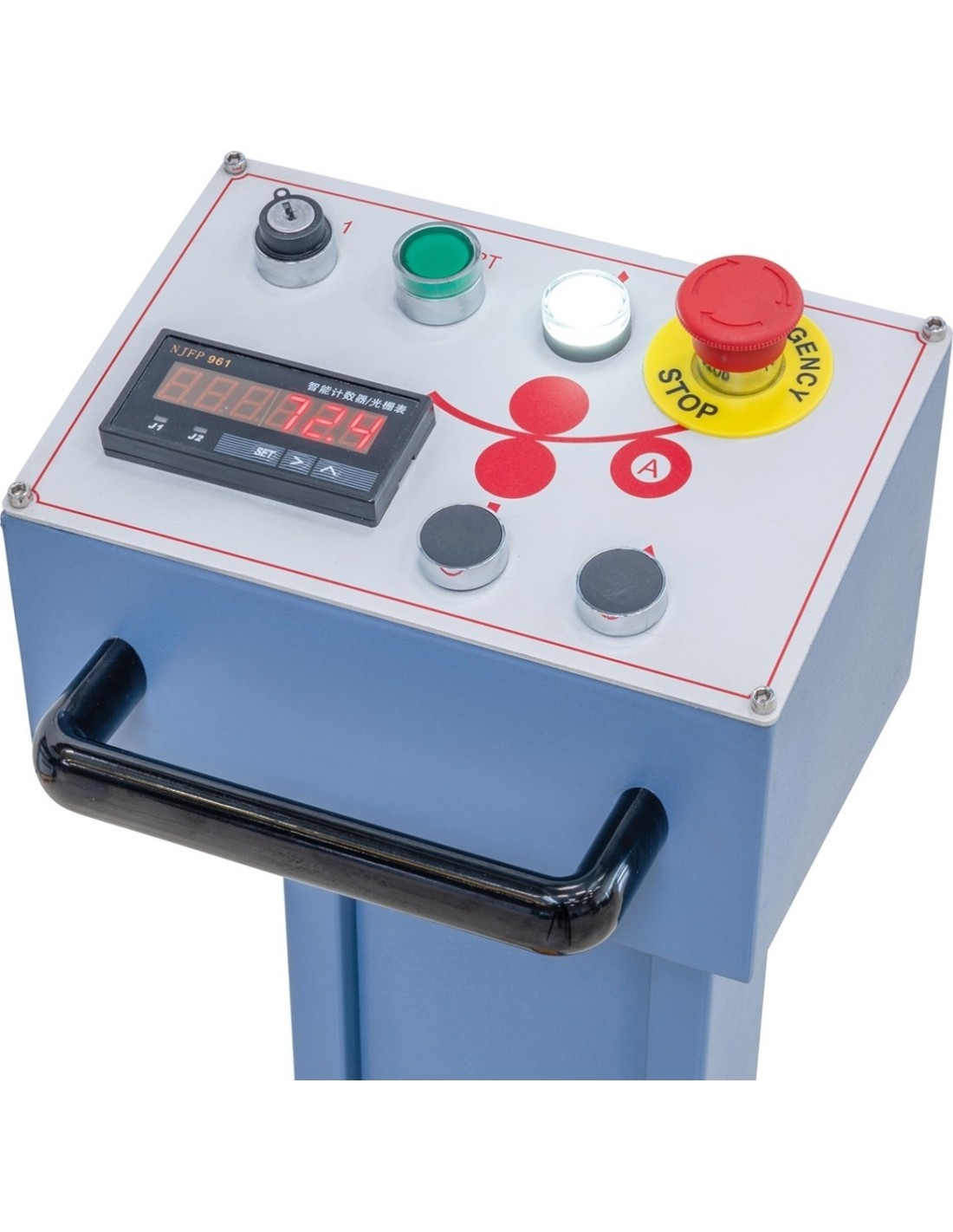

  • Digital readout

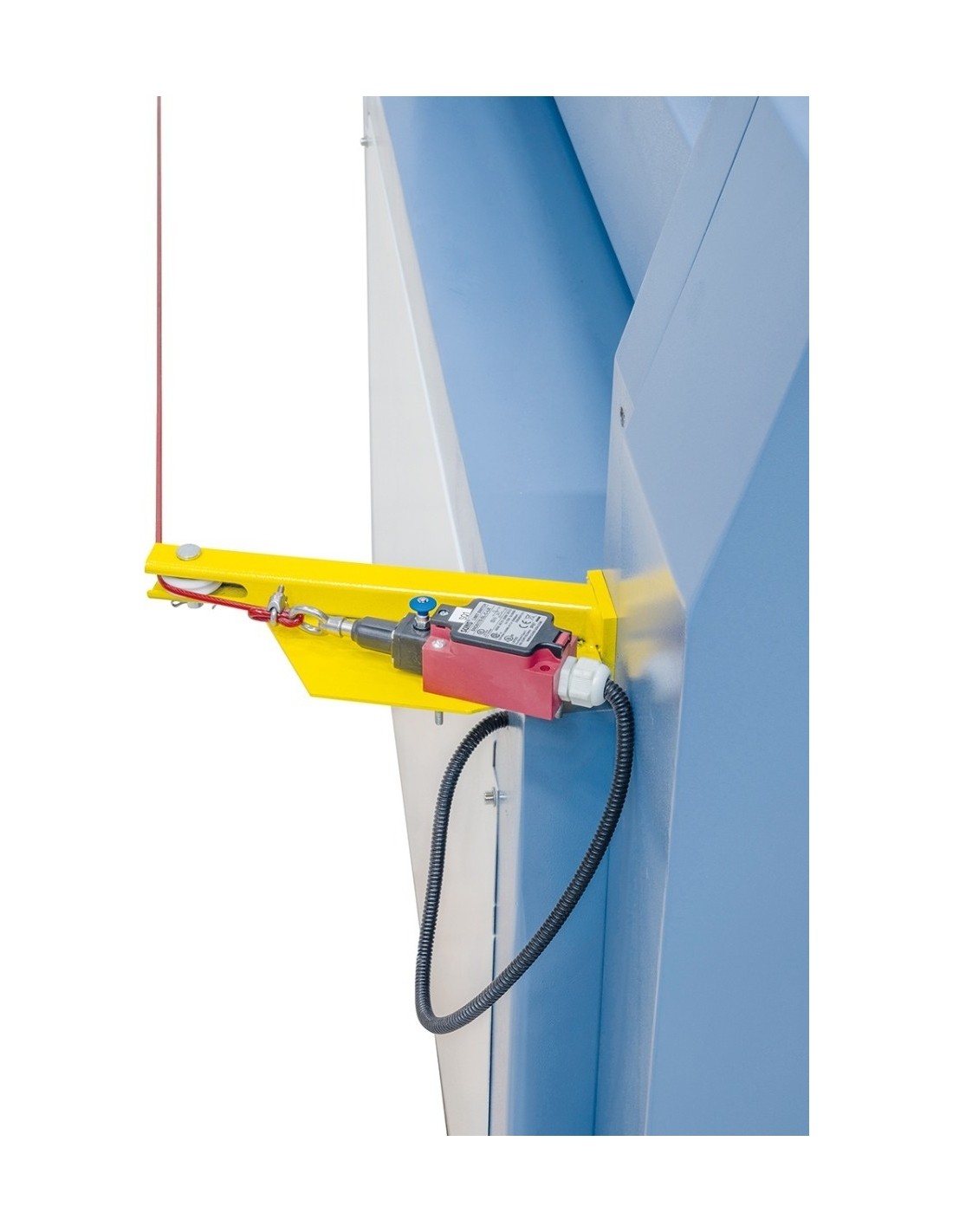

  • Safety device via rope

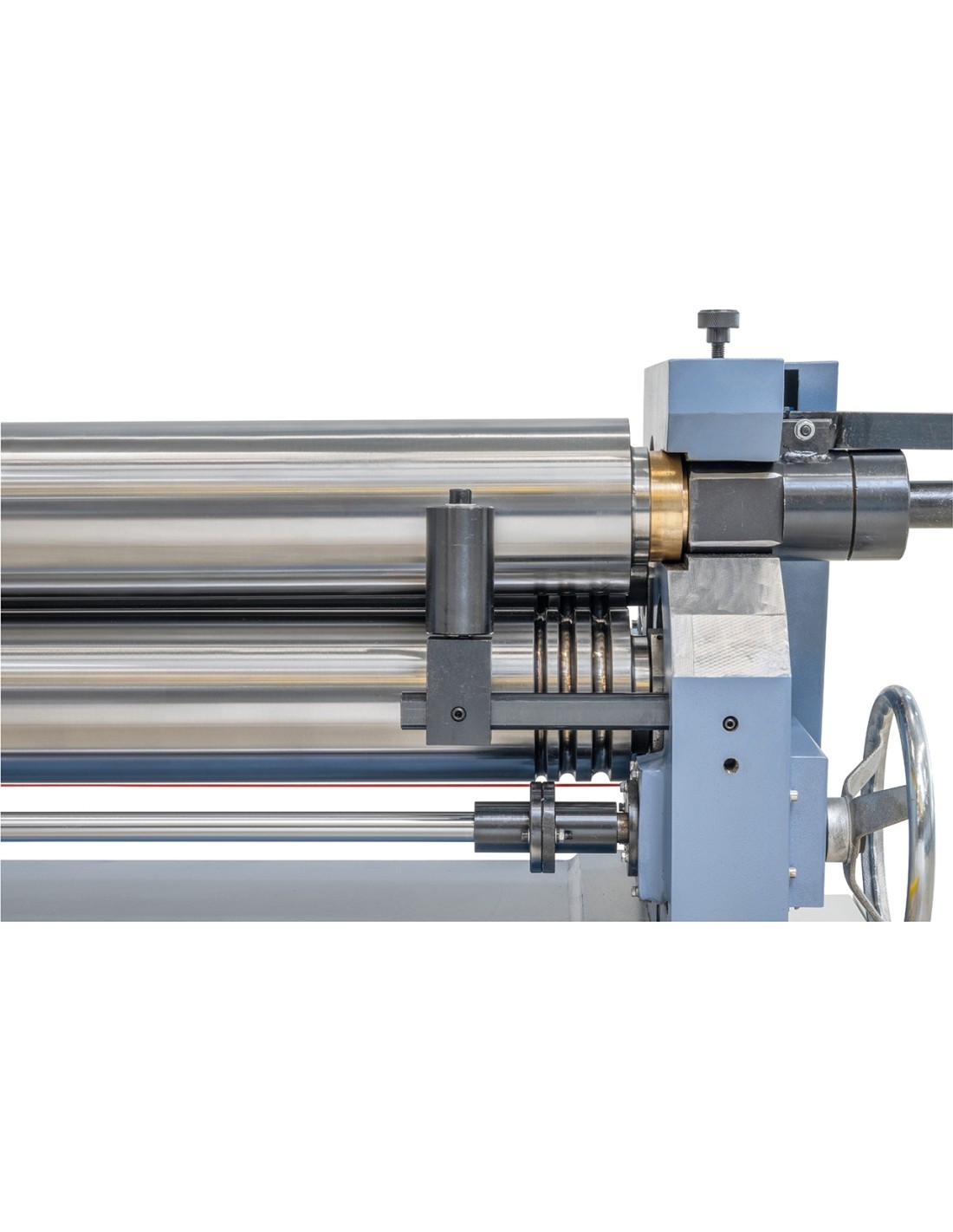

  • Bottom and back roller with wire insert groove
  • Hardened bending rolls
