WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Width
810 mm
Weight approx.
230 kg
Depth
700 mm
Height
1350 mm

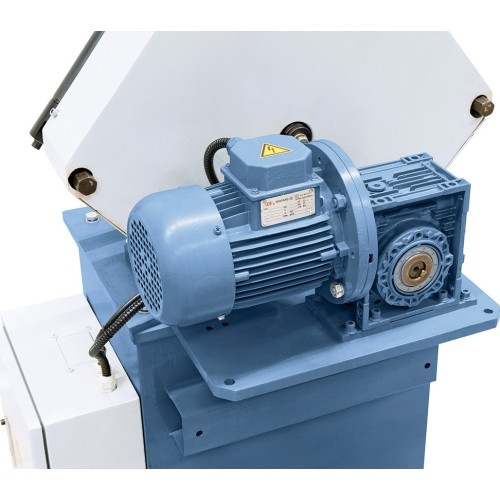

Motor power
0,75 kW / 400 V
Bending speed
3 m/min
Shaft diameter
30 mm
Upper roll diameter
132 mm
Lower roll diameter
132 mm

Profilių lenkimo staklės Bernardo RBM 35

1053412
Price €4,250.00 Tax included

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 5 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 230 kg.
We will deliver the product to you via: 6-12 w.d. Venipak (€40.99)
Weight: 230 kg.

Description

Properties

  • Suitable for bending pipes and profile materials made of steel, aluminum, brass,......

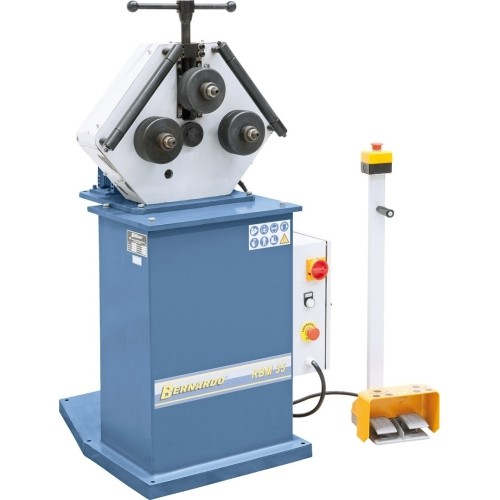

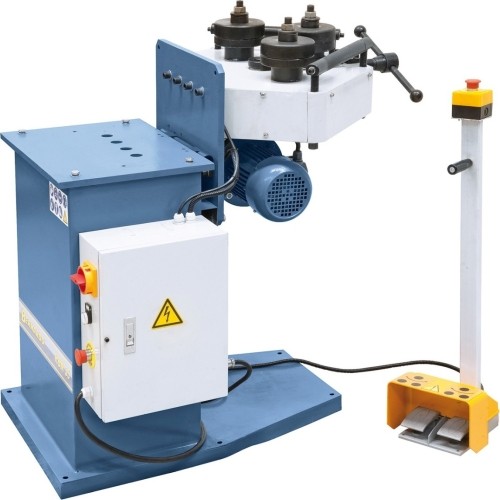

  • Includes foot pedal for right and left rotation and integrated emergency stop

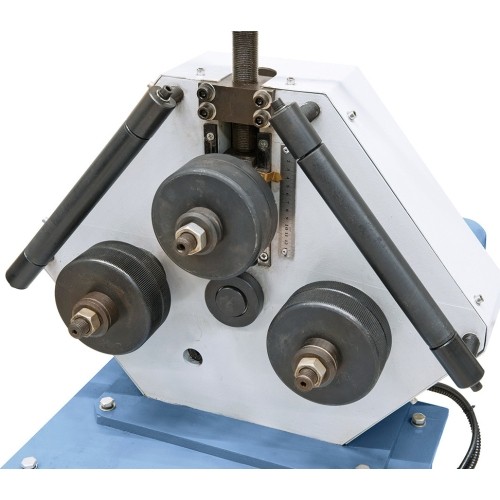

  • Infeed of the top roll is done mechanically, adjustment is read off on a mm-scale
  • Guiding of the upper roll by precision ground guide bars
  • Precise work due to massive grey cast iron machine body

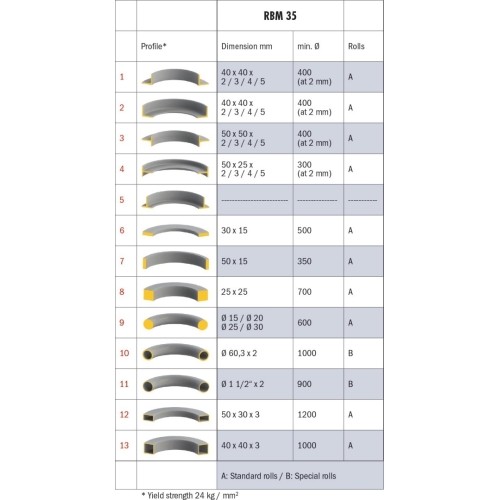

  • Optional roll sets allow you to machine a wide variety of profiles

Standard accessories

  • Standard roll set
  • Lateral guide rolls
  • Foot pedal with emergency stop
