- Width
- 2620 mm
- Weight approx.
- 1710 kg
- Depth
- 2100 mm
- Height
- 1200 mm
- Working height
- 805 mm
- Motor power
- 4,0 kW
- Cutting length
- 2060 mm
- Cutting angle
- 1° 30‘
- Backgauge
- 750 mm
- Table width
- 455 mm
- Max. sheet metal thickness
- 3 mm
- Stroke / min
- 35

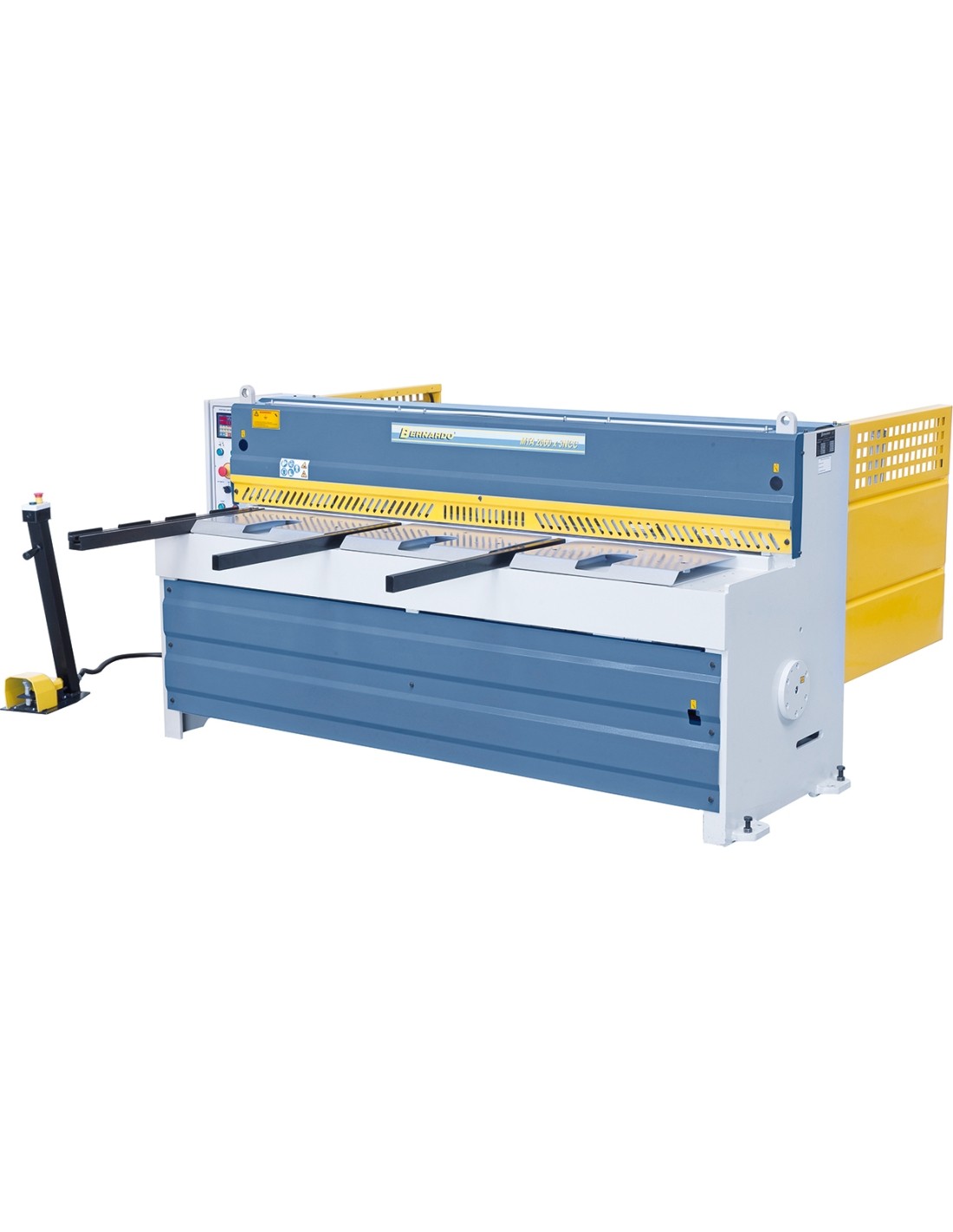

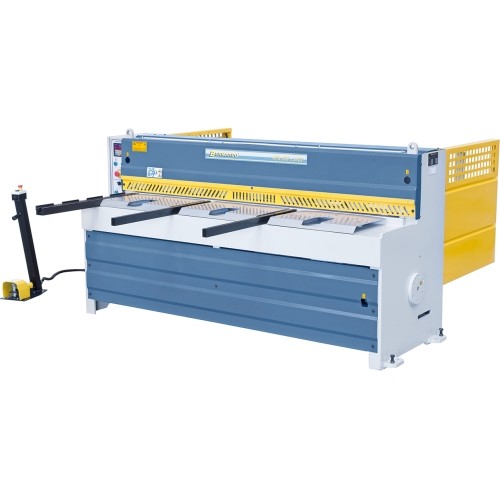

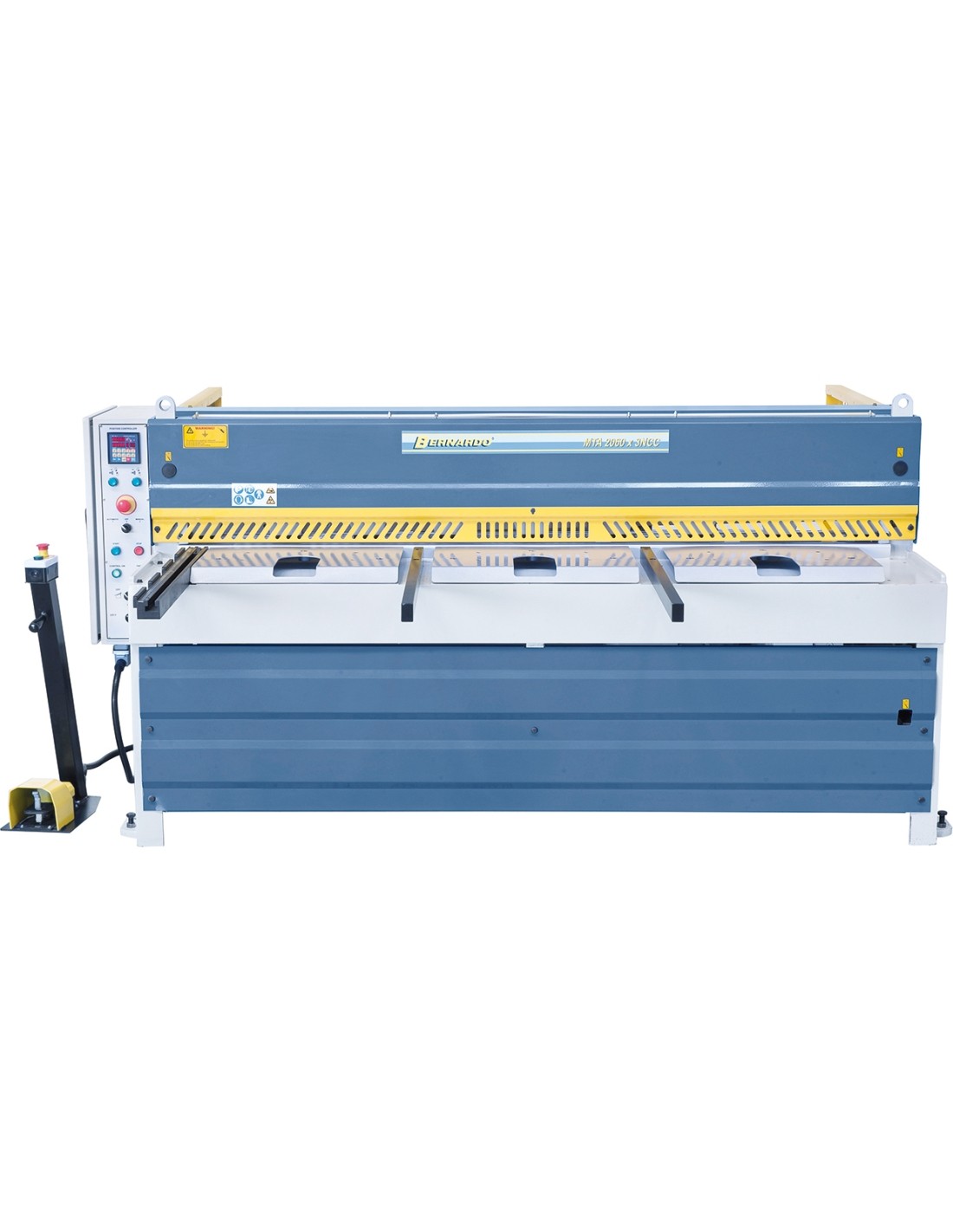

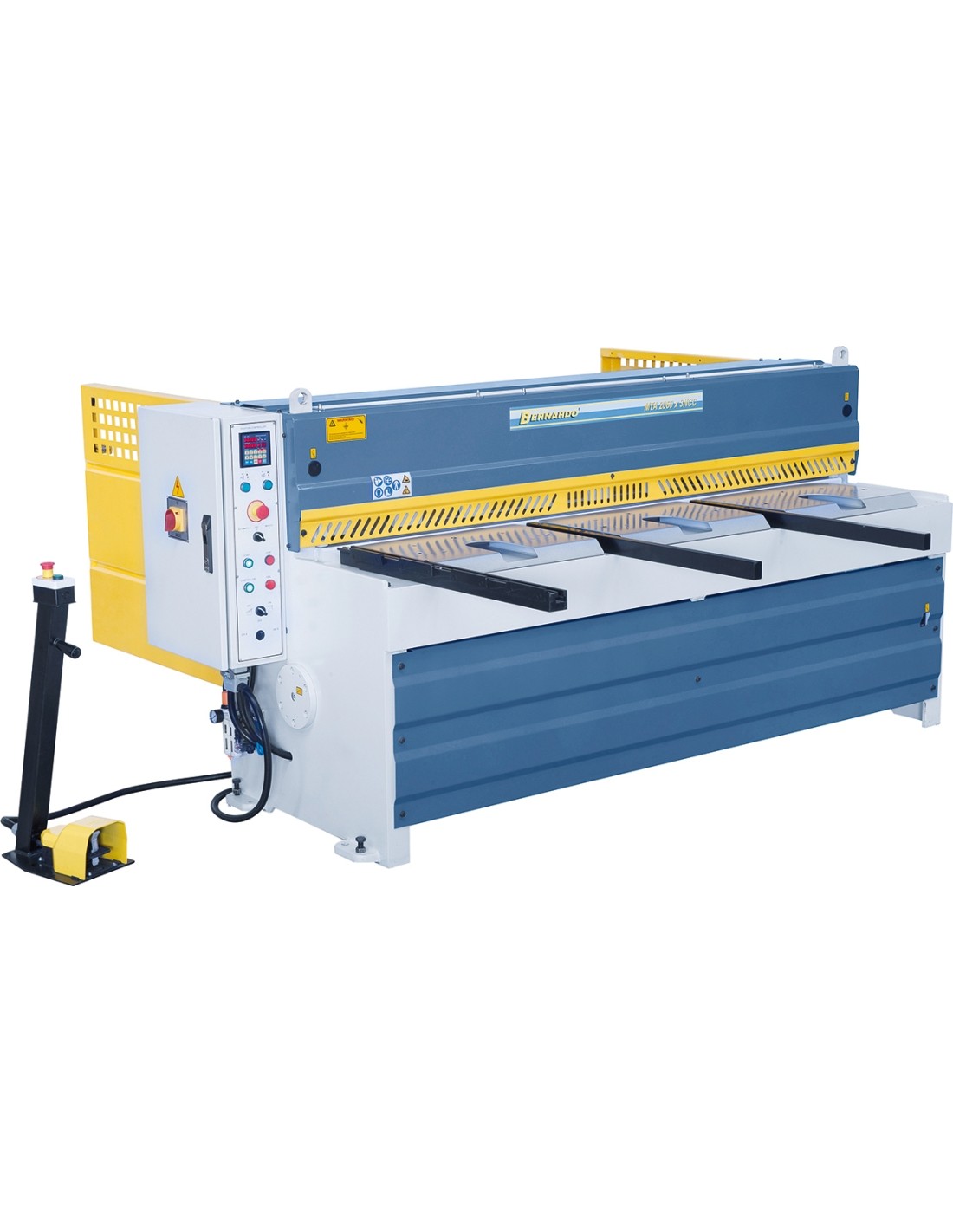

Giljotininės skardos žirklės Bernardo MTA 2060 x 3 mm NCC
1053345
Price
€29,445.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
Delivery terms:
FREE pick up thursday, june 25 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 1710 kg.
Description
Properties

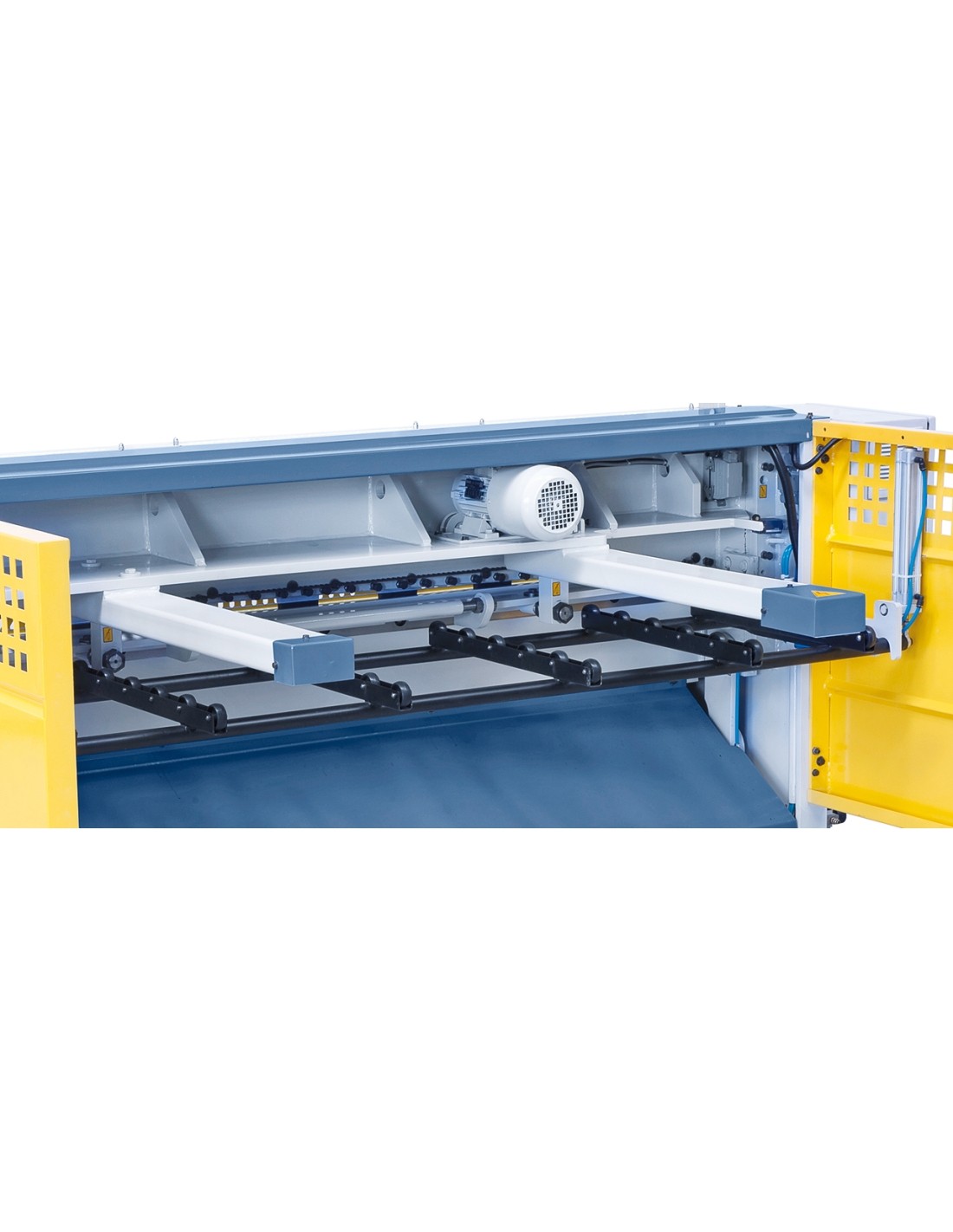

- Serially with pneumatic sheet support system, ideal for thin sheets
- Support arms on the front for easy handling of large plates

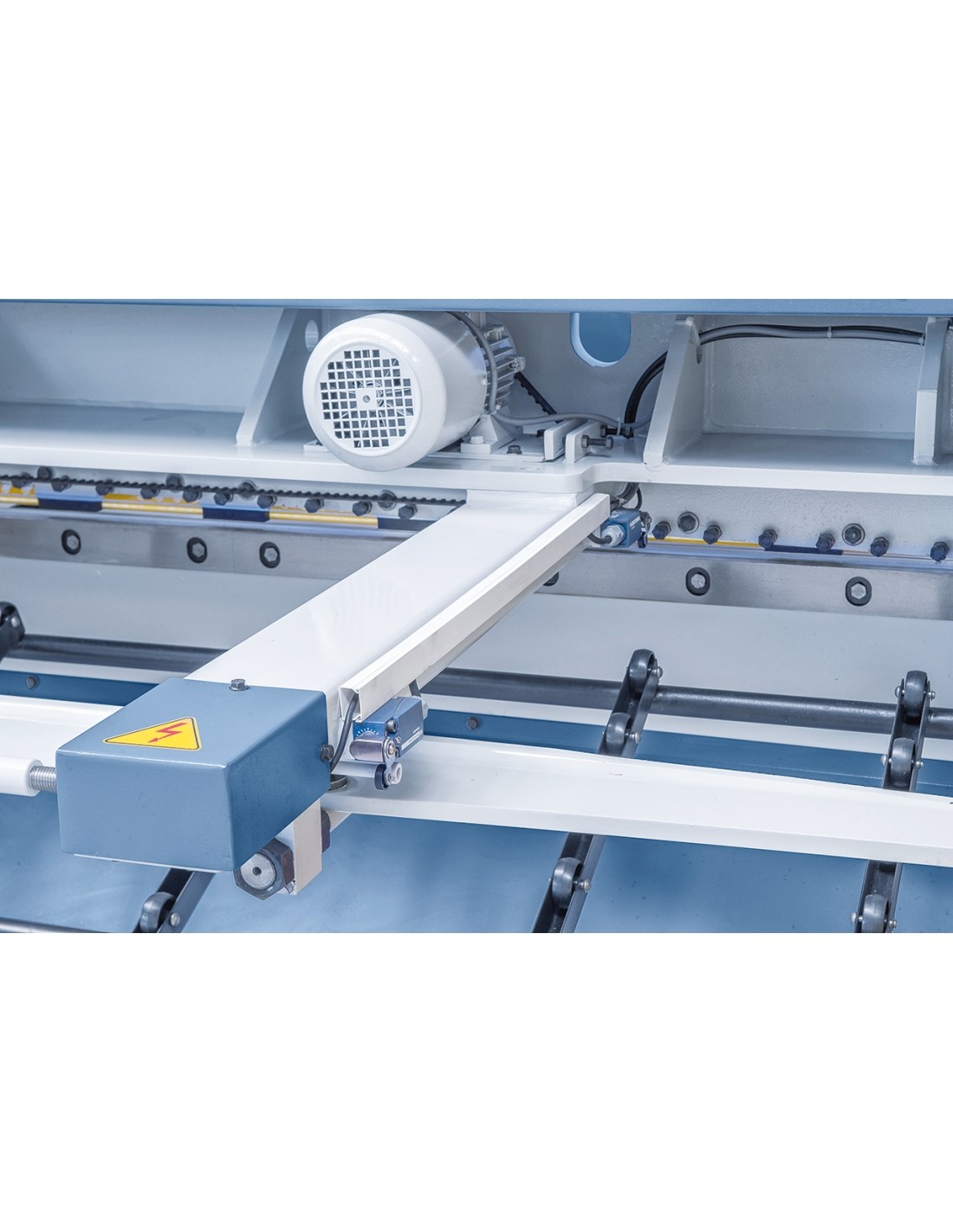

- Motorized backgauge, precise movement through ball screws

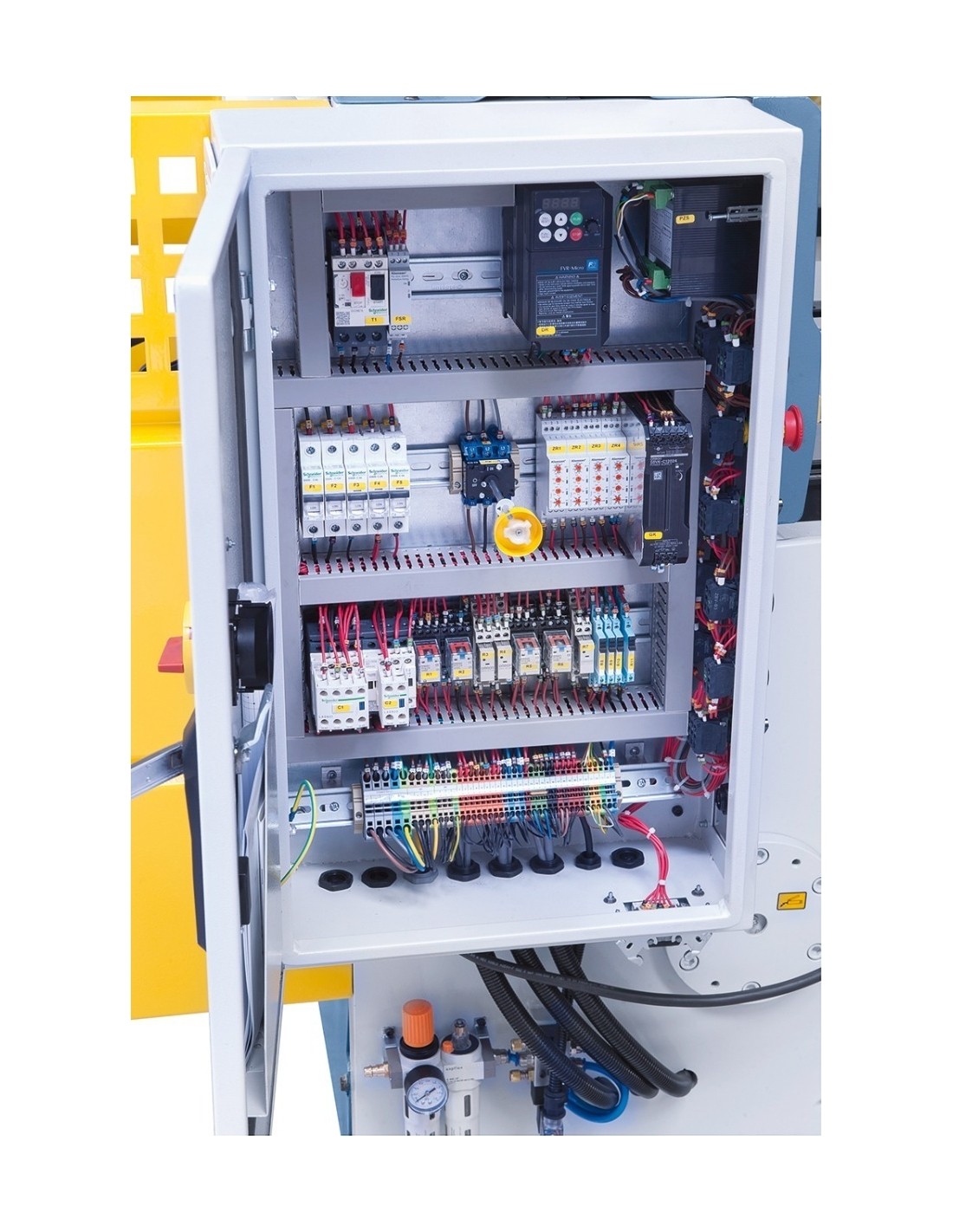

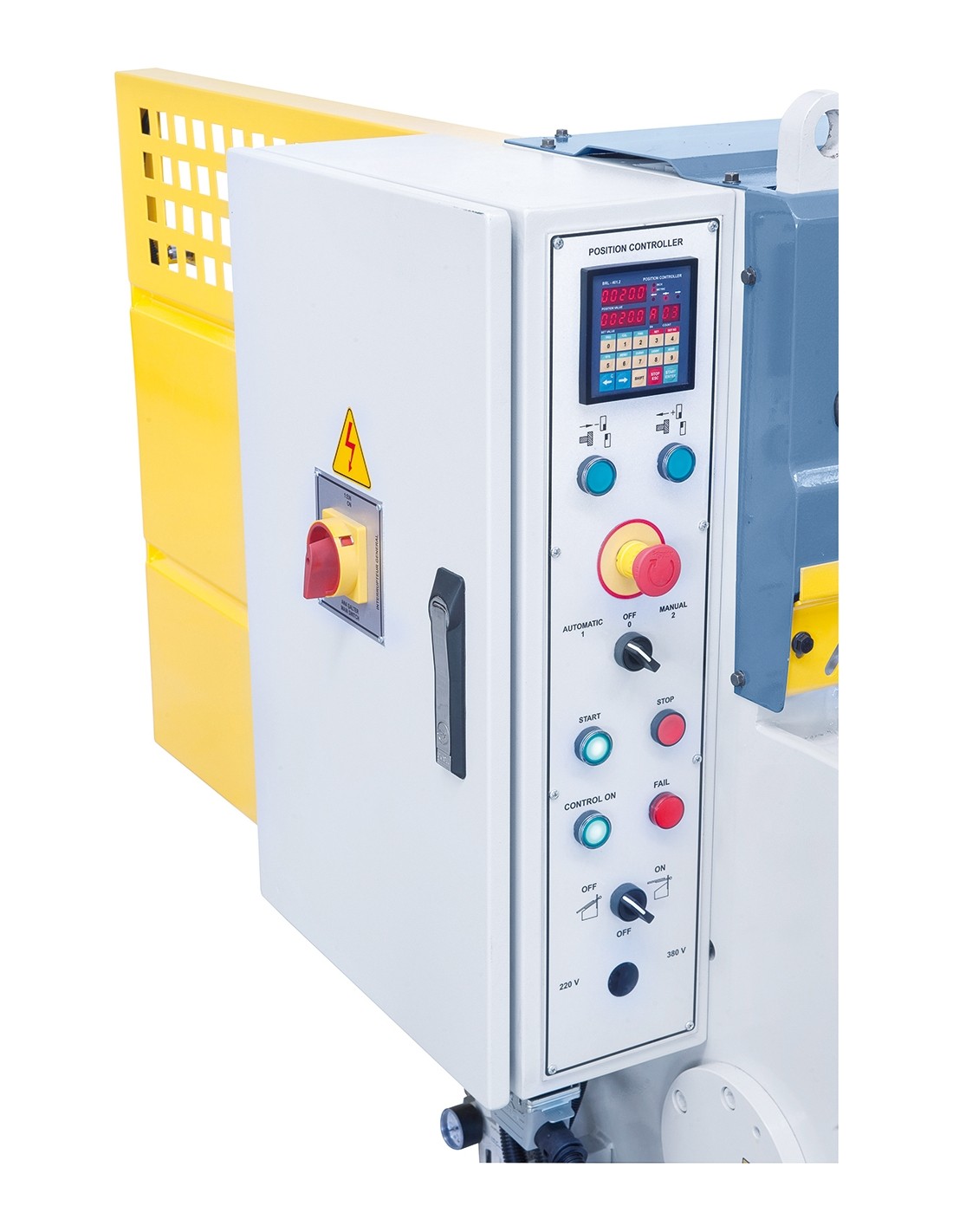

- Clearly structured control panel with integrated control
- Robust steel sheet construction for torsion-free working

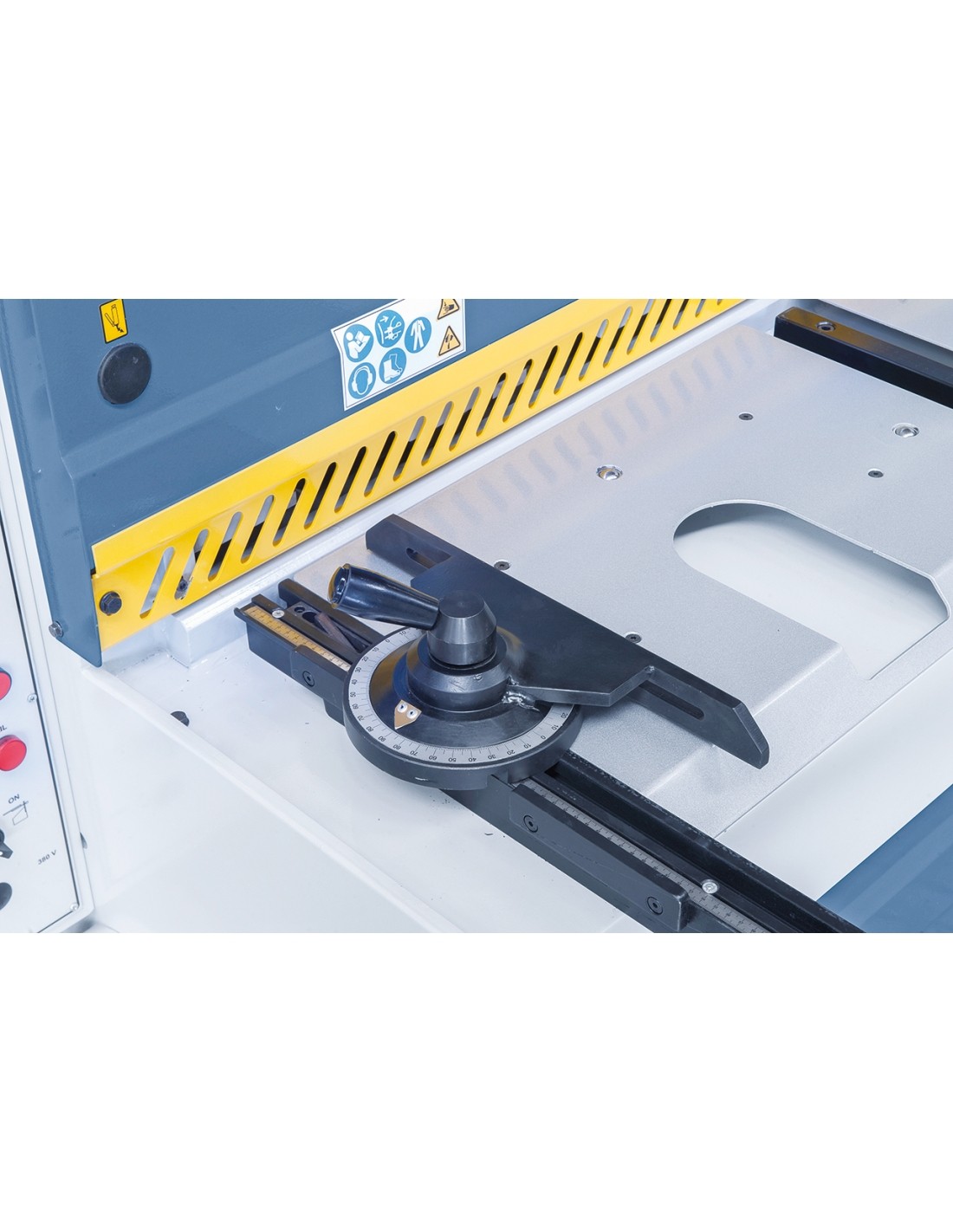

- Working table with right-angled stop for exact adjustment of the workpiece

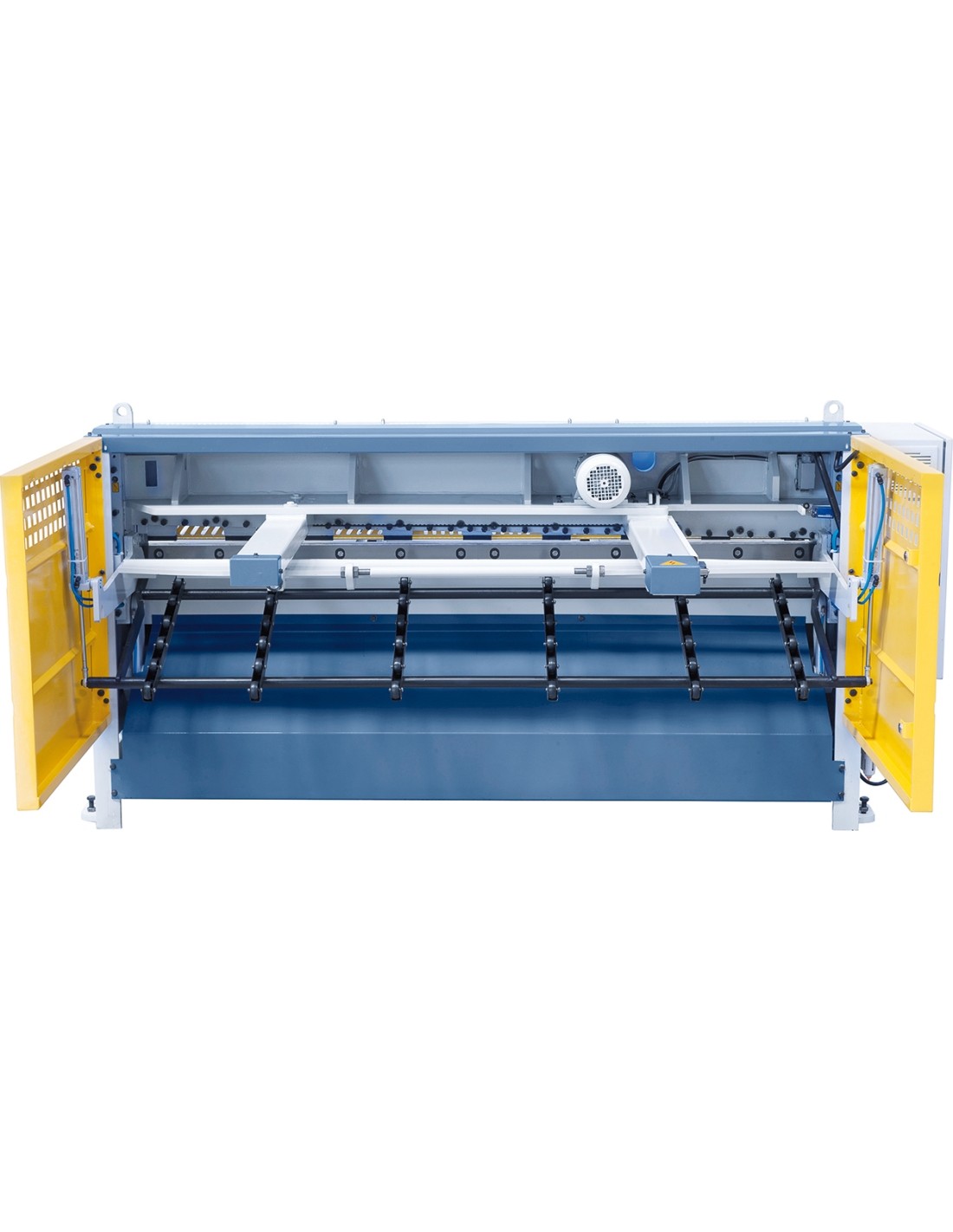

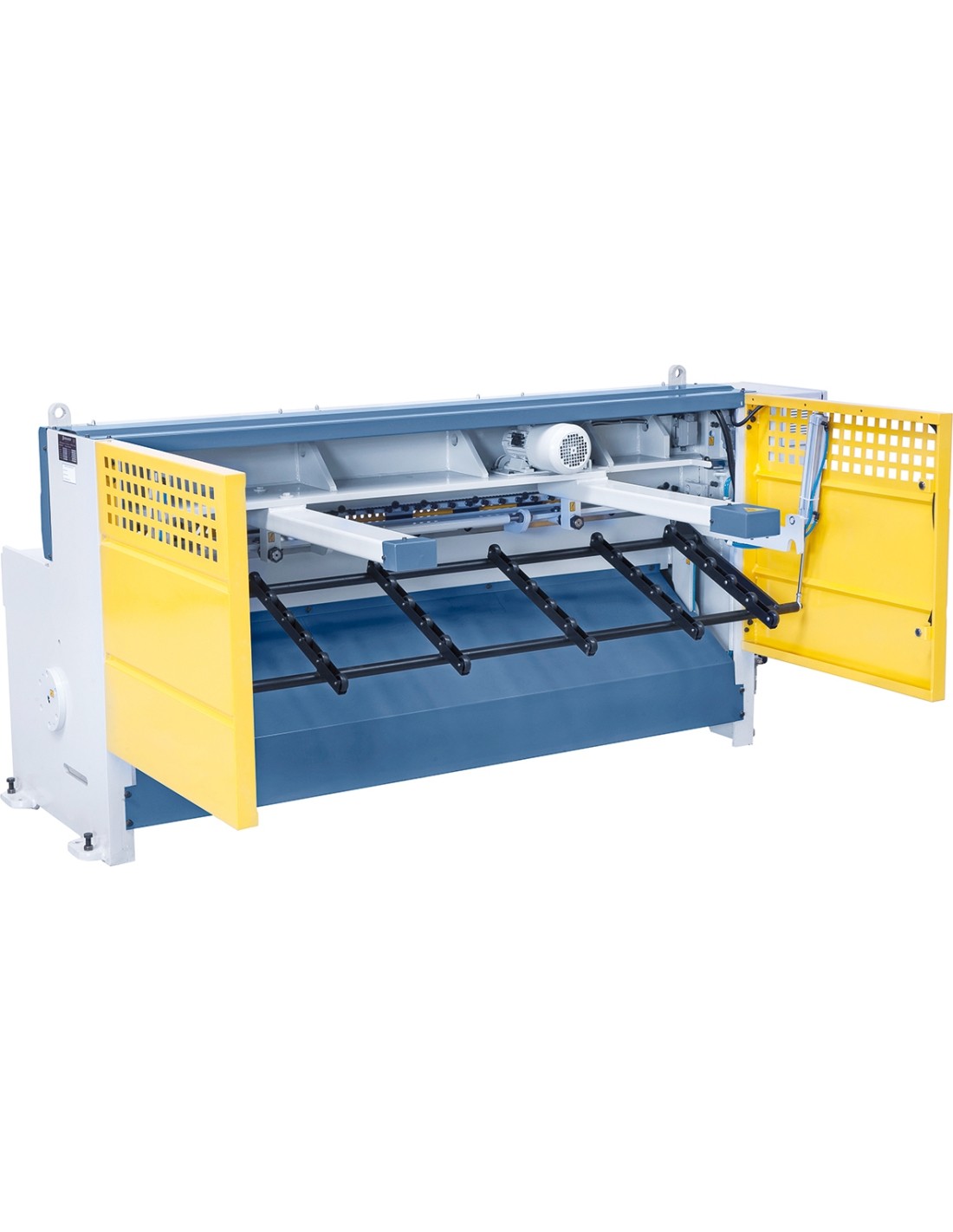

- High operator safety through protective plate and photocells on the back of the machine
- Double-edged top and bottom blades made of quality steel guarantee a clean and burr-free cutting
- Automatic downholder for fixing the sheet metal
Standard accessories
- Cutting counter
- Cutting line illumination

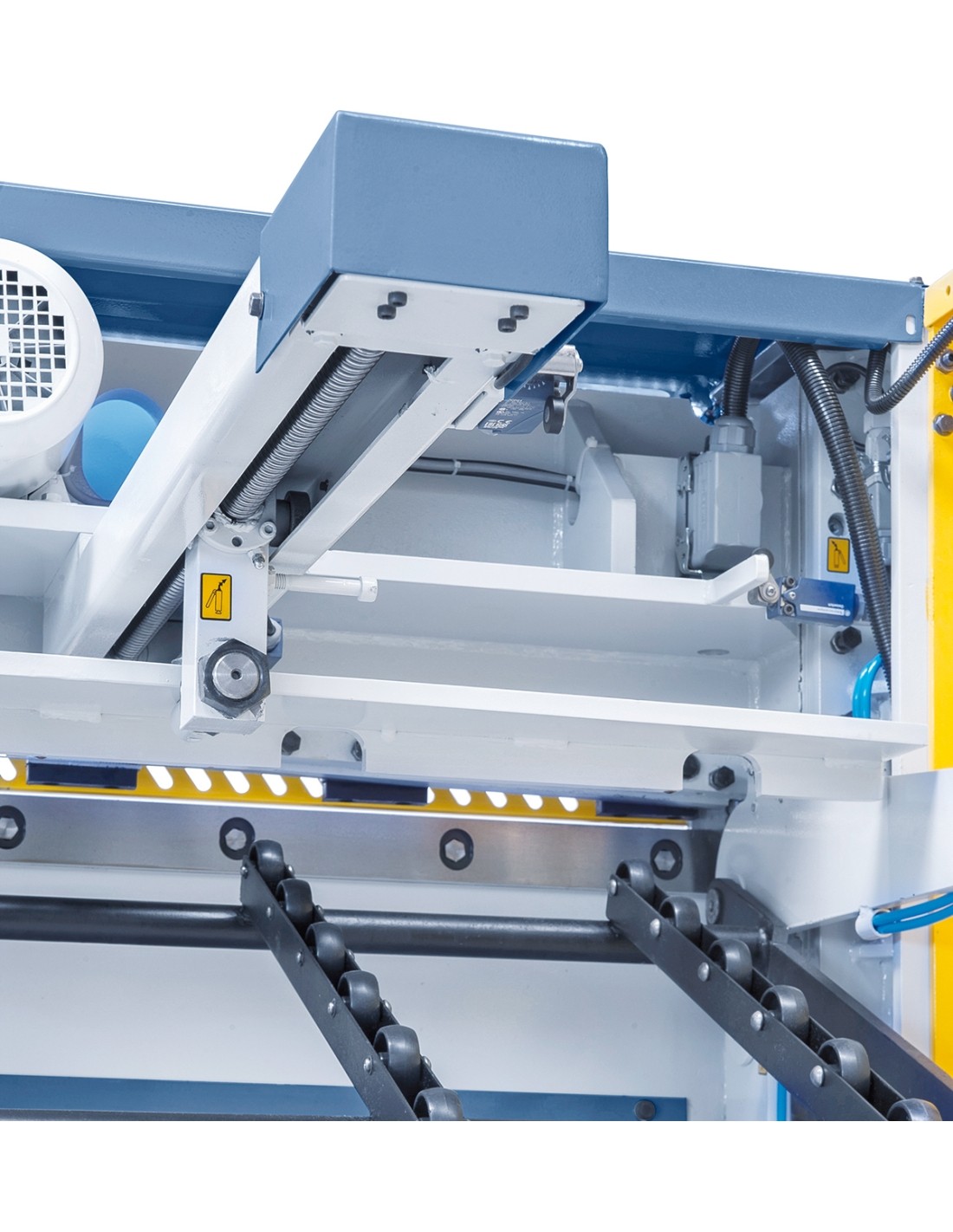

- Motorized NC-backgauge
- Front sheet metal support
- Table surface with integrated rolls

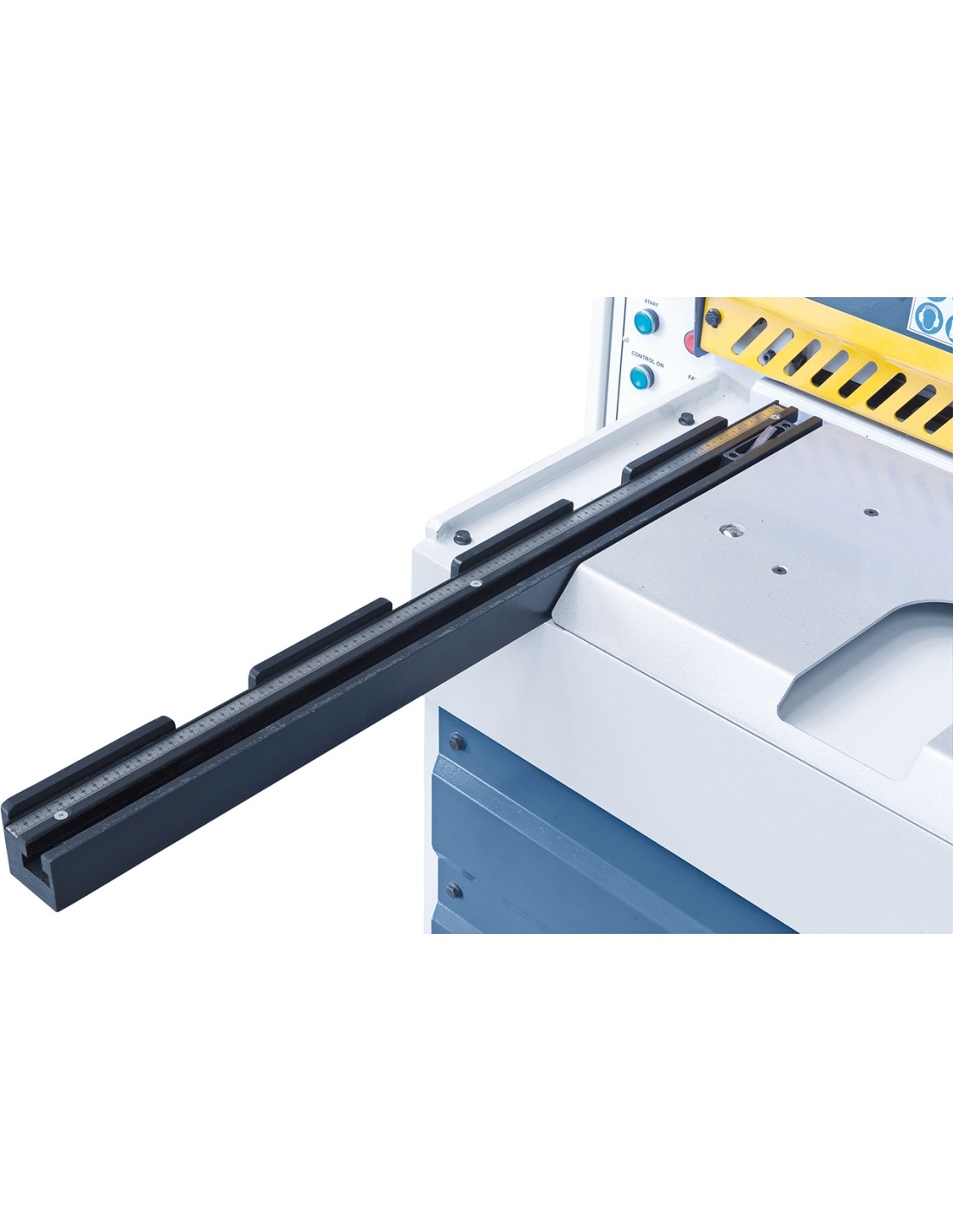

- Lateral stop ruler

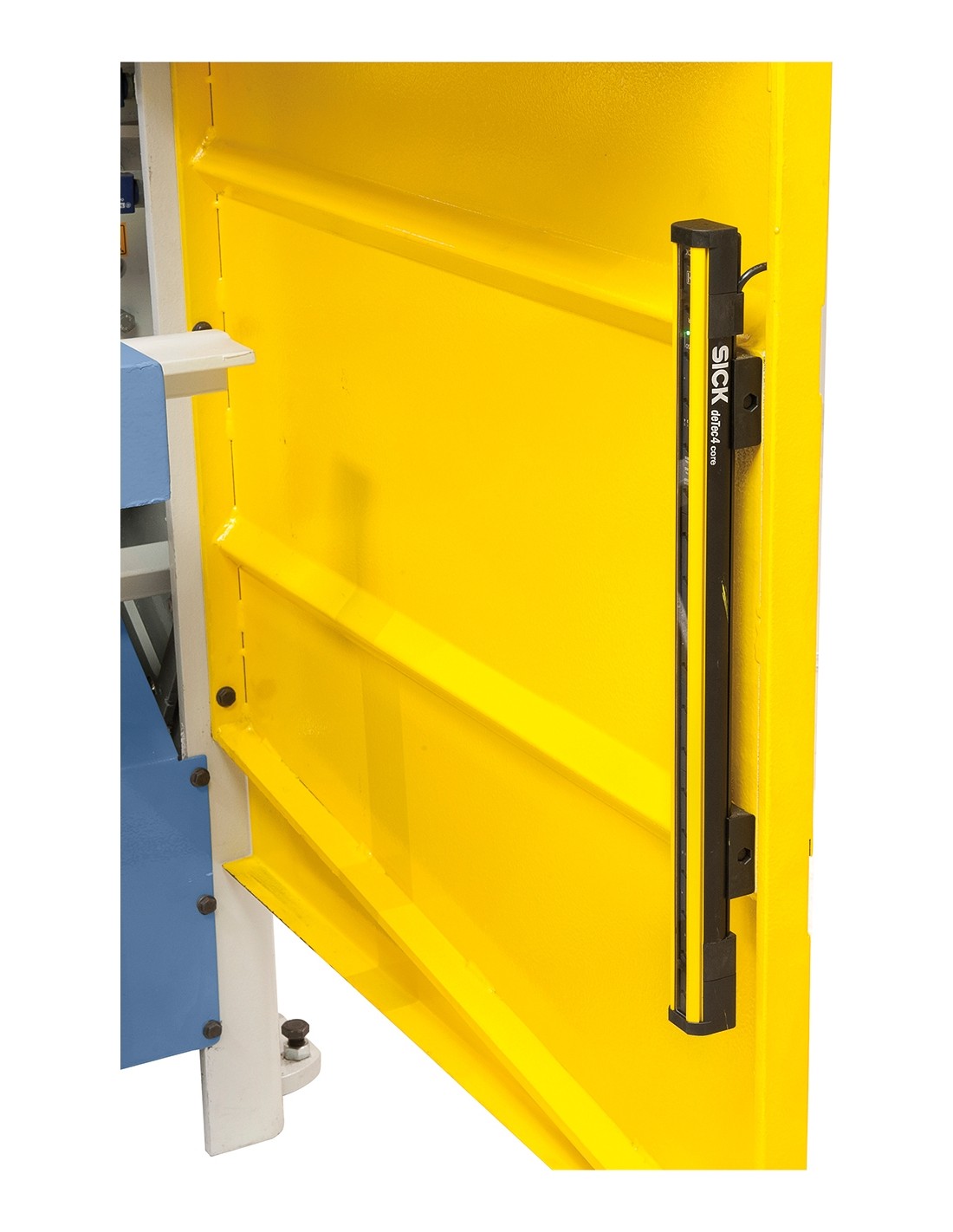

- Protective plate with photocells
- NC-control BRL 401.2

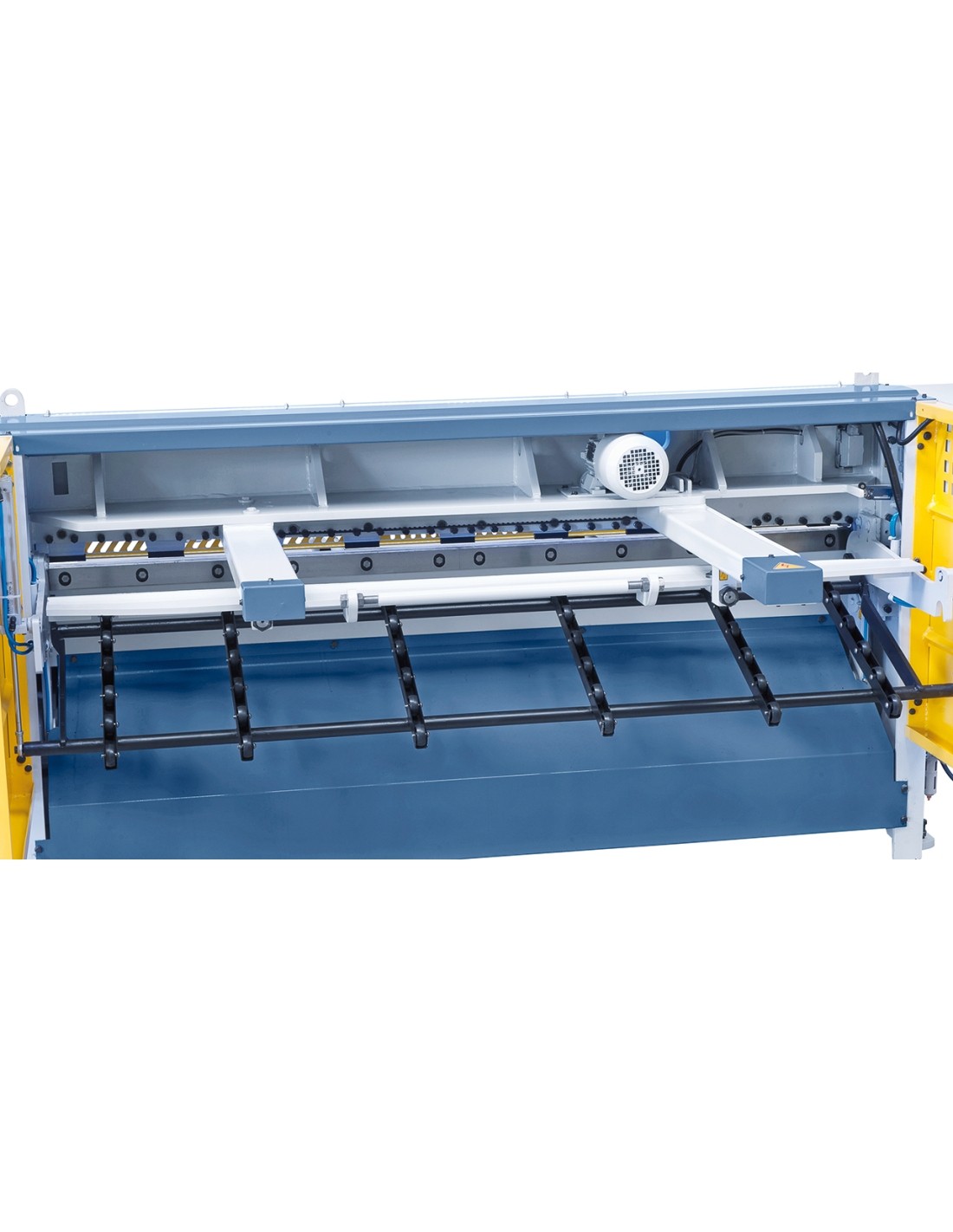

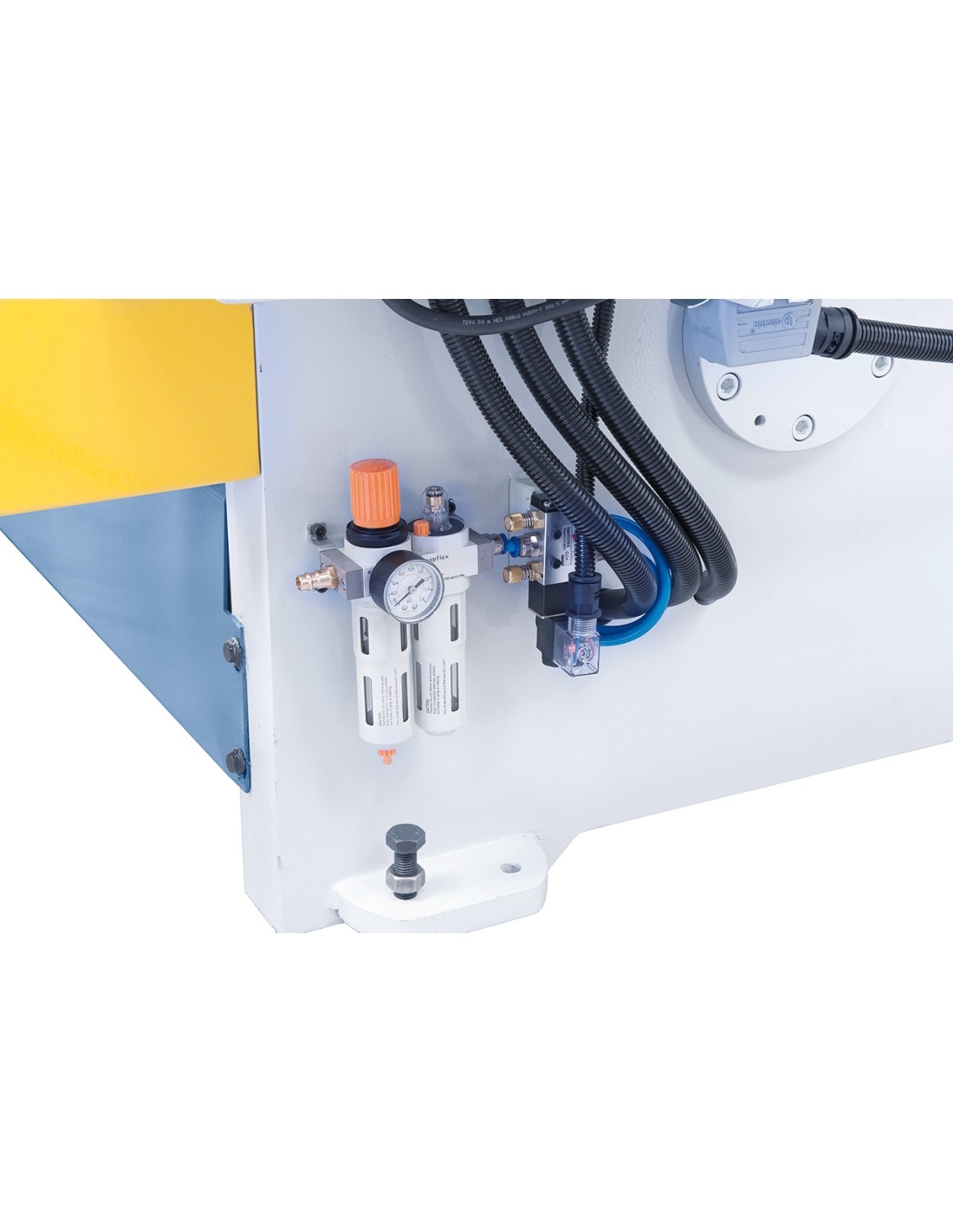

- Pneumatic sheet support system

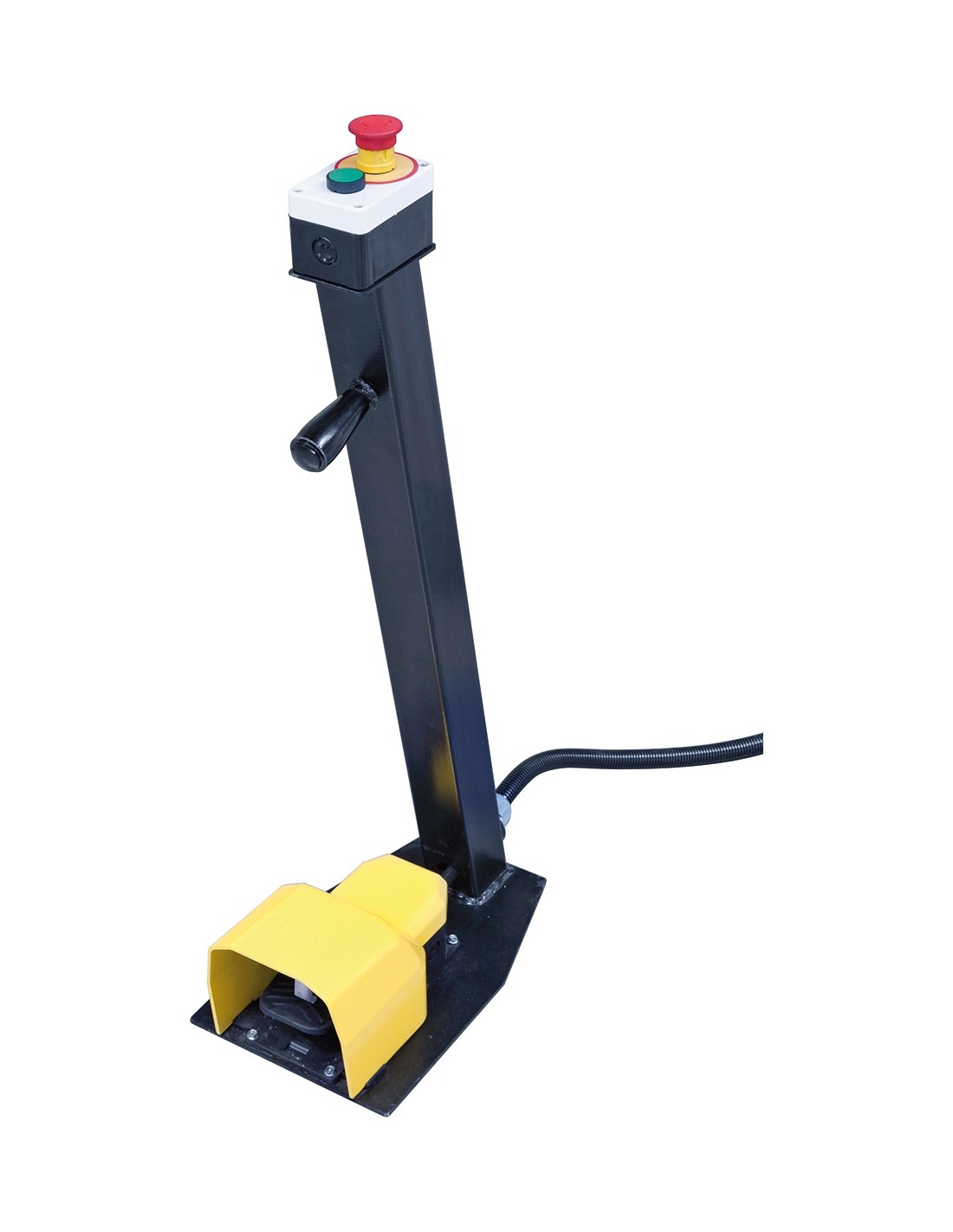

- Foot pedal with emergency stop
- Knives made of tool steel
