- Width
- 3680 mm
- Weight approx.
- 1630 kg
- Depth
- 760 mm
- Height
- 1450 mm
- Working height
- 880 mm
- T-slot size
- 12 mm
- Voltage
- 400 V
- Working length
- 3020 mm
- Sheet thickness max. (400 N / mm2)
- 1,0 mm
- Bending angle
- 0 - 135°
- Max. opening with segments
- 100 mm
- Max. opening without segments
- 130 mm
- Max. clearance closed
- 30 mm
- Motor power upper beam
- 0,37 kW
- Motor power bending beam
- 0,75 kW

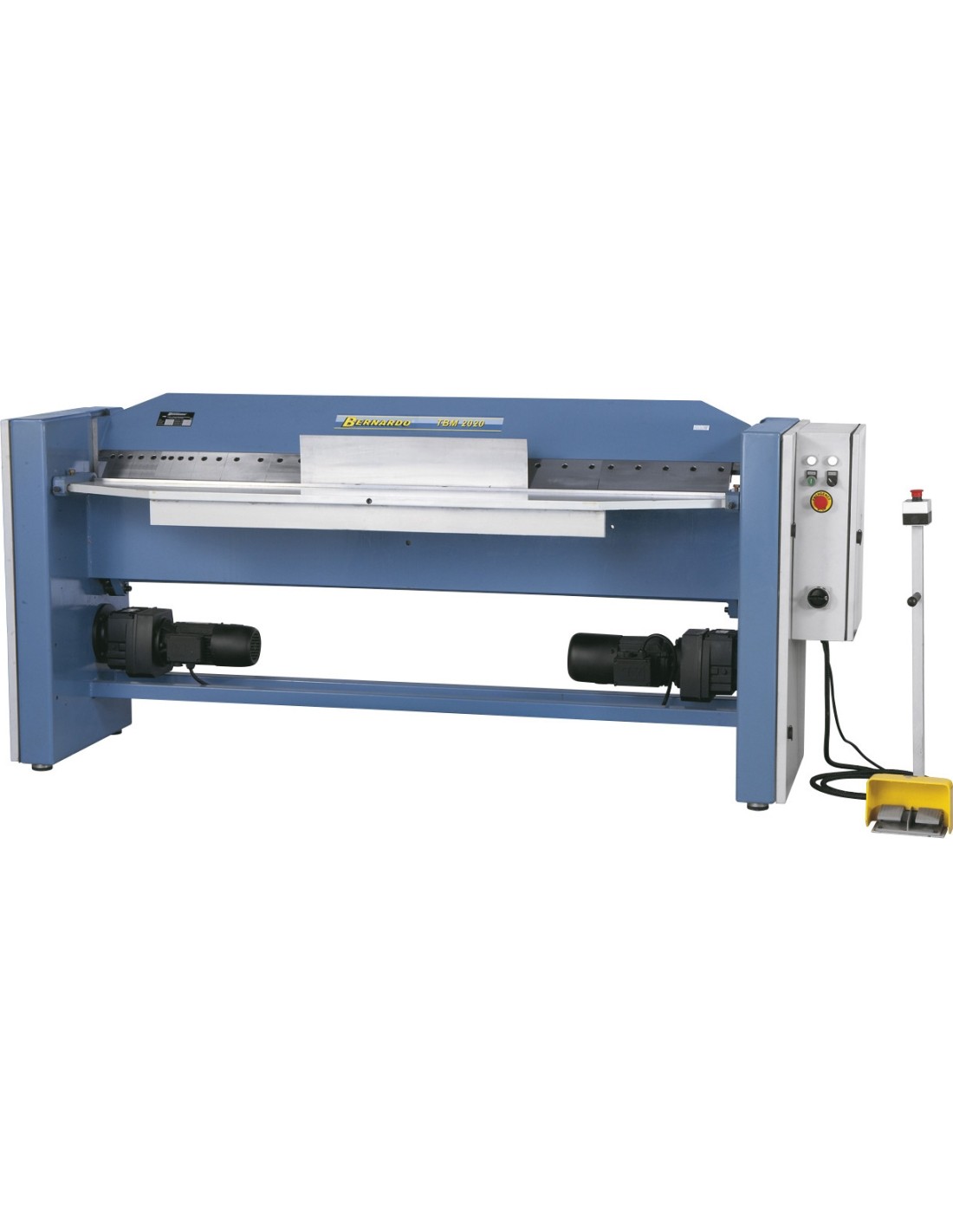

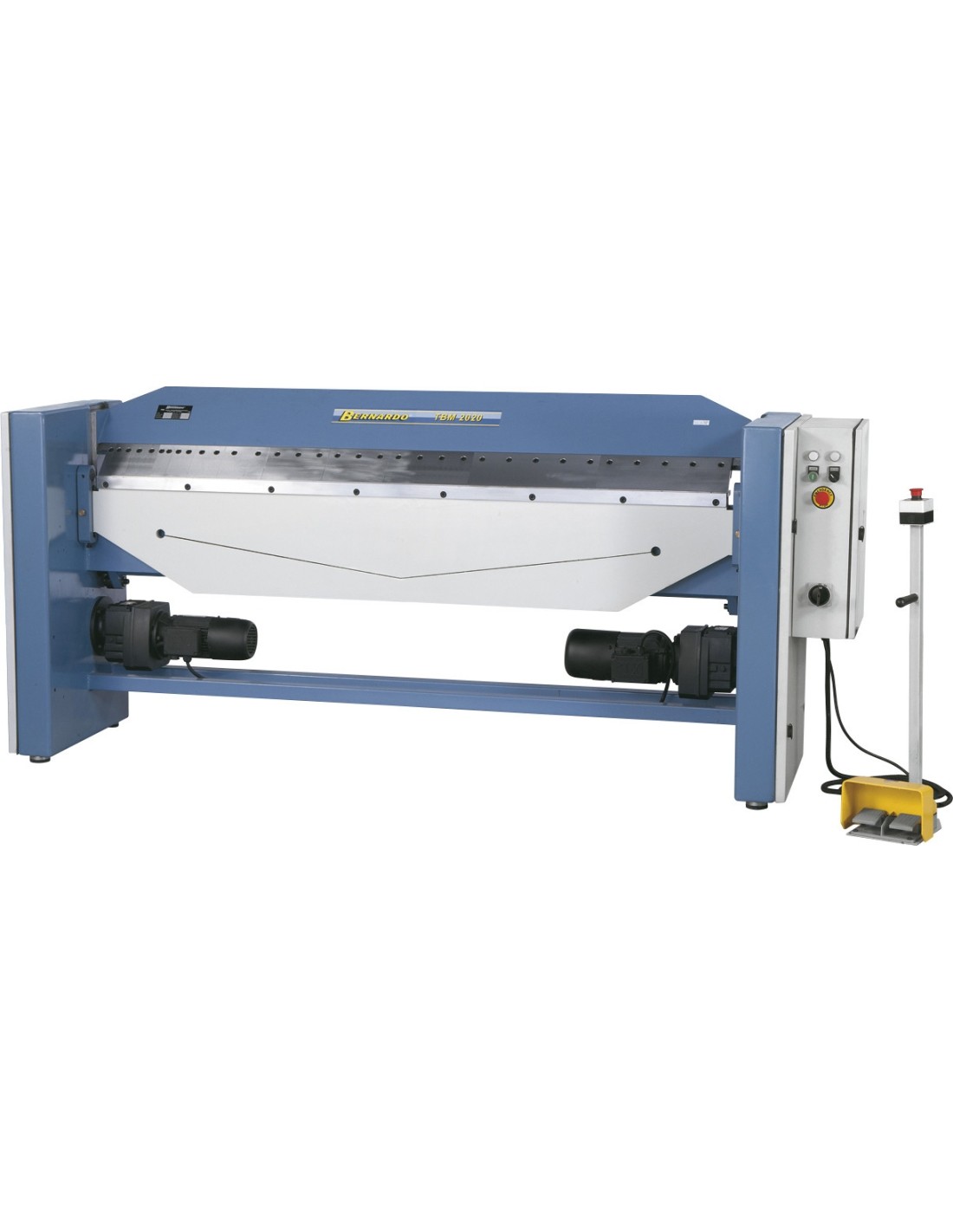

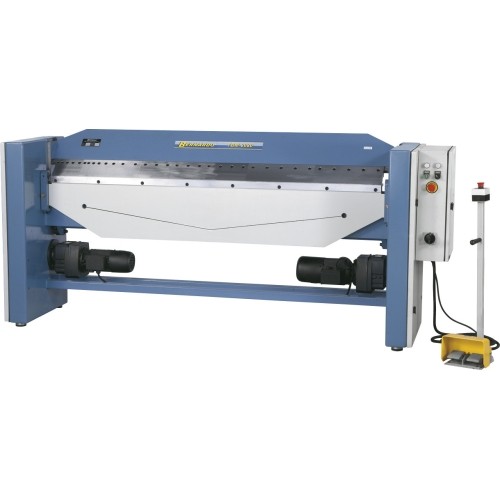

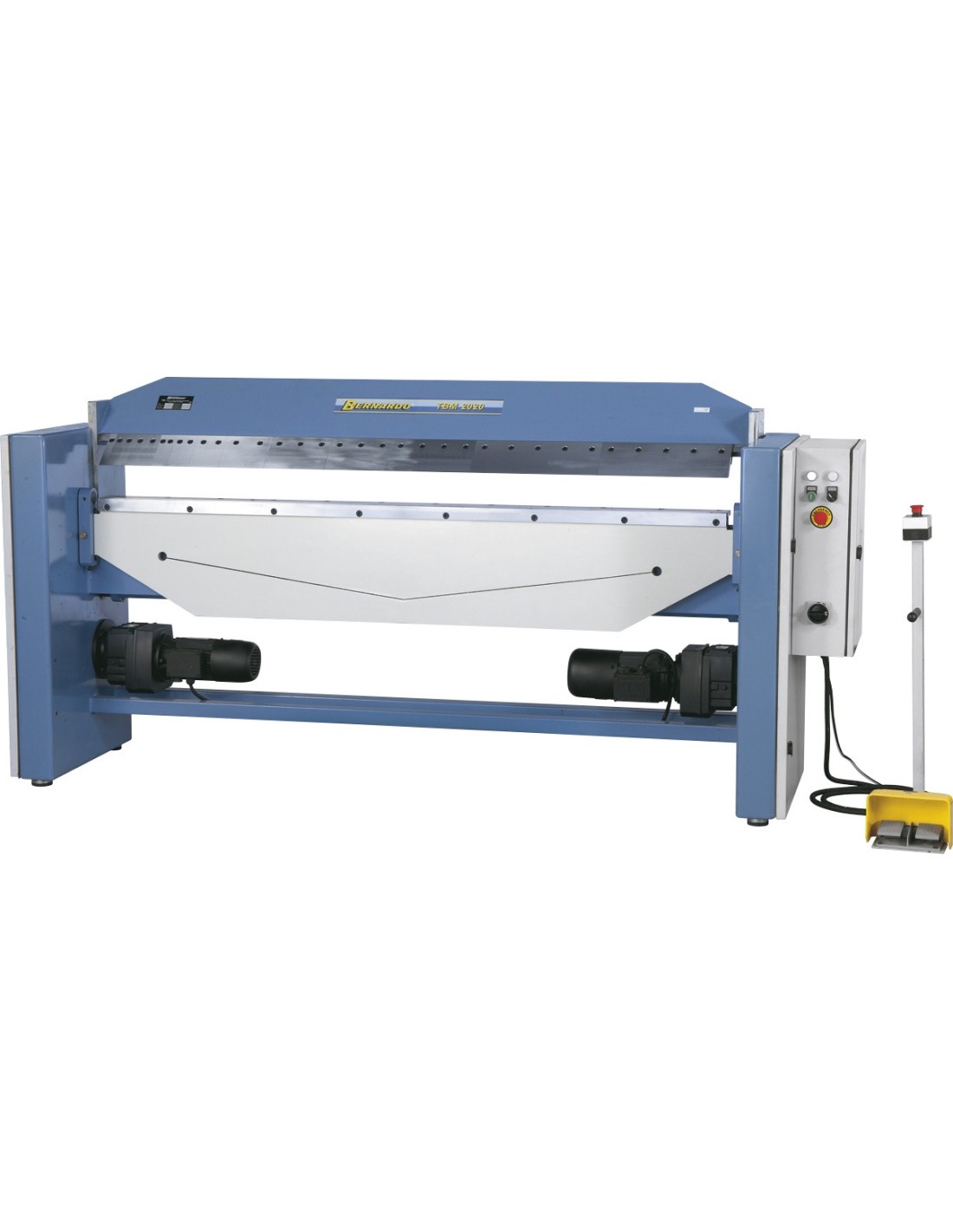

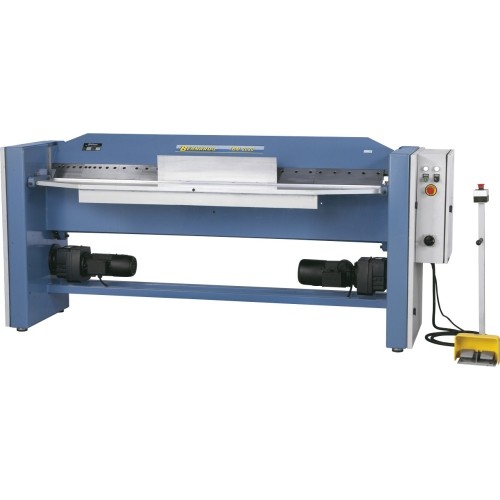

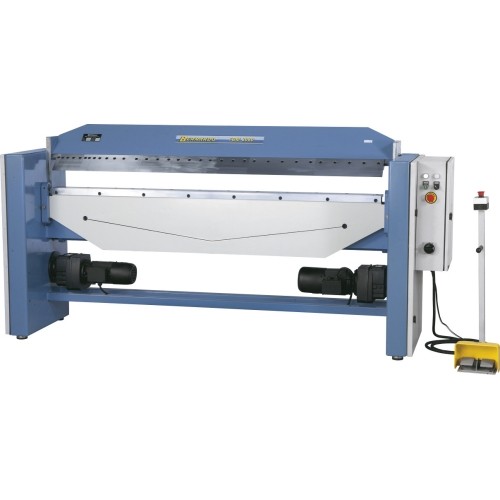

Elektrinės lankstymo staklės Bernardo TBM 3020
1053282
Price
€20,585.00
Tax included
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, march 10 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 1630 kg.
Description
Properties
- Operation by foot pedal, hands remain free for optimum positioning of the sheet metal
- Universally applicable bending machine for professional use

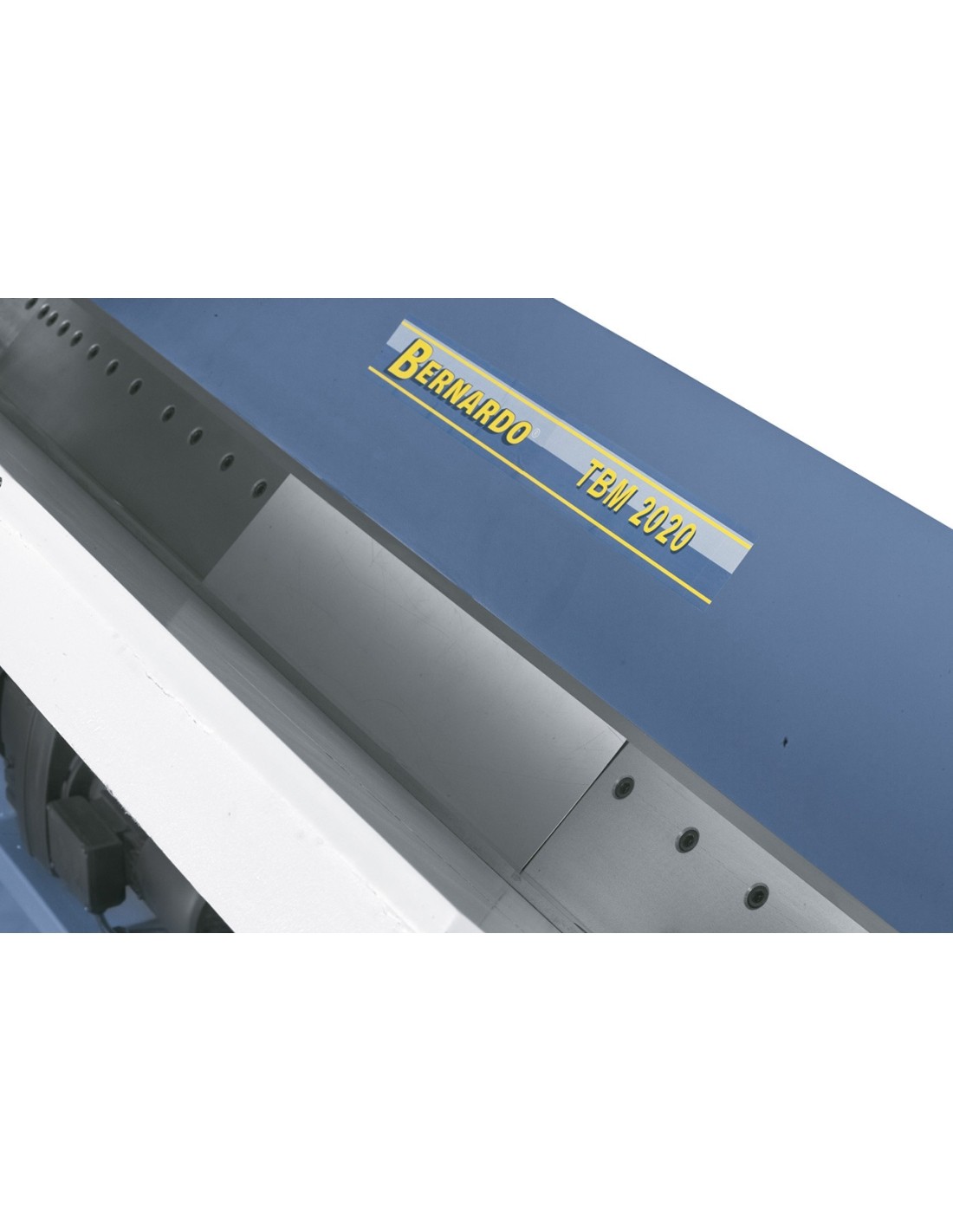

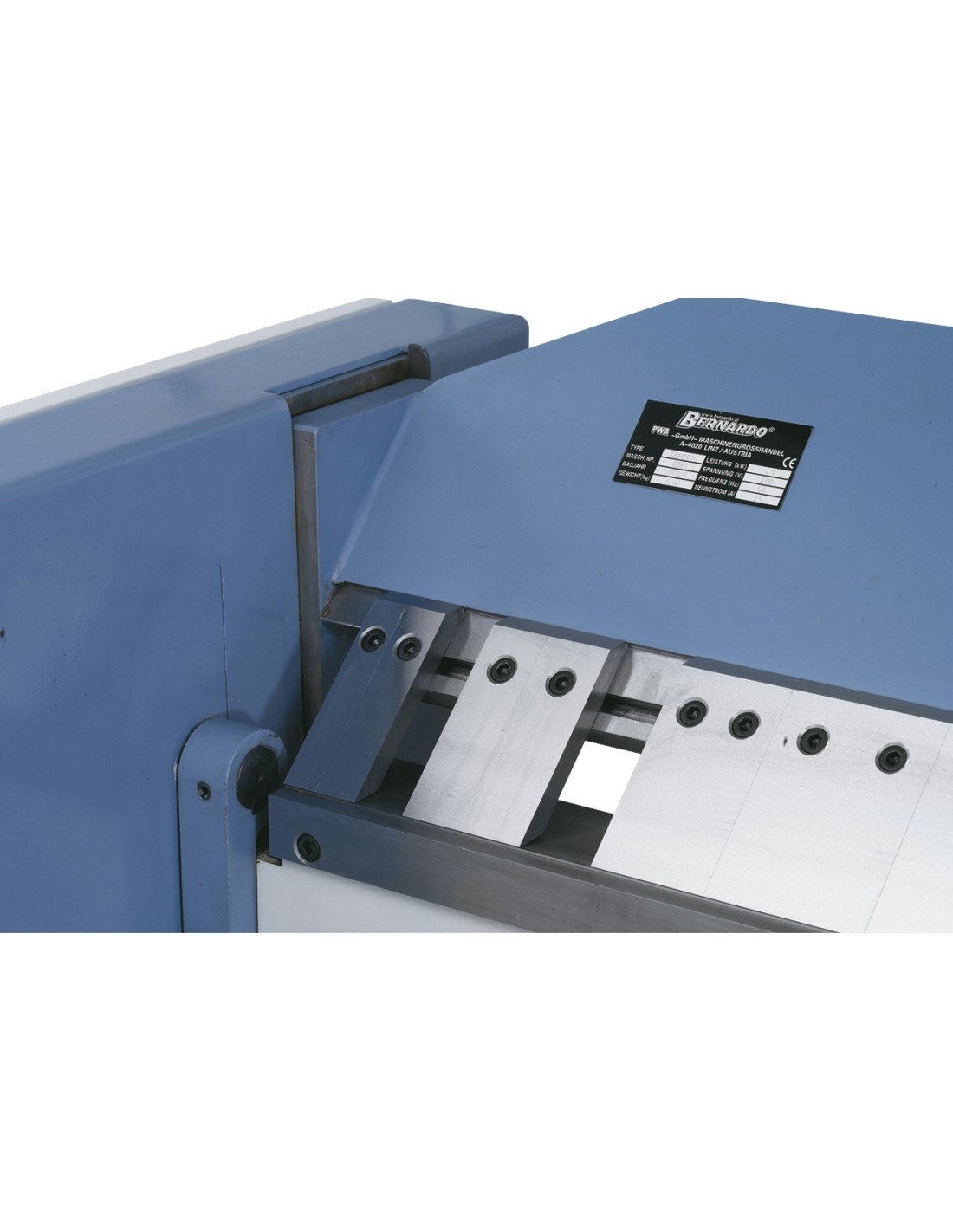

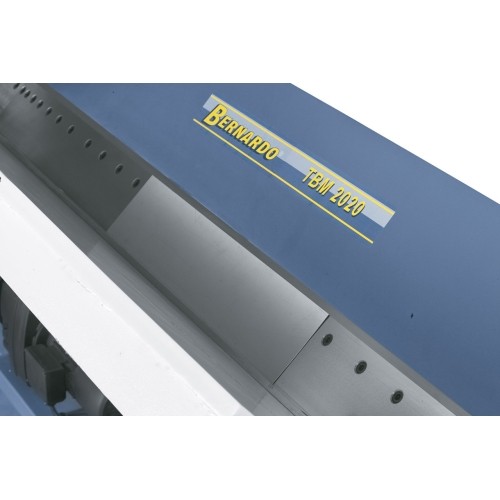

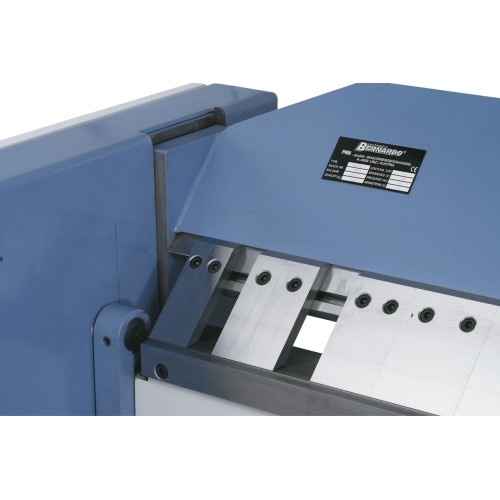

- Segmented upper beam for a large number of bending possibilities
- Infeed of the upper beam and bending process are motorized

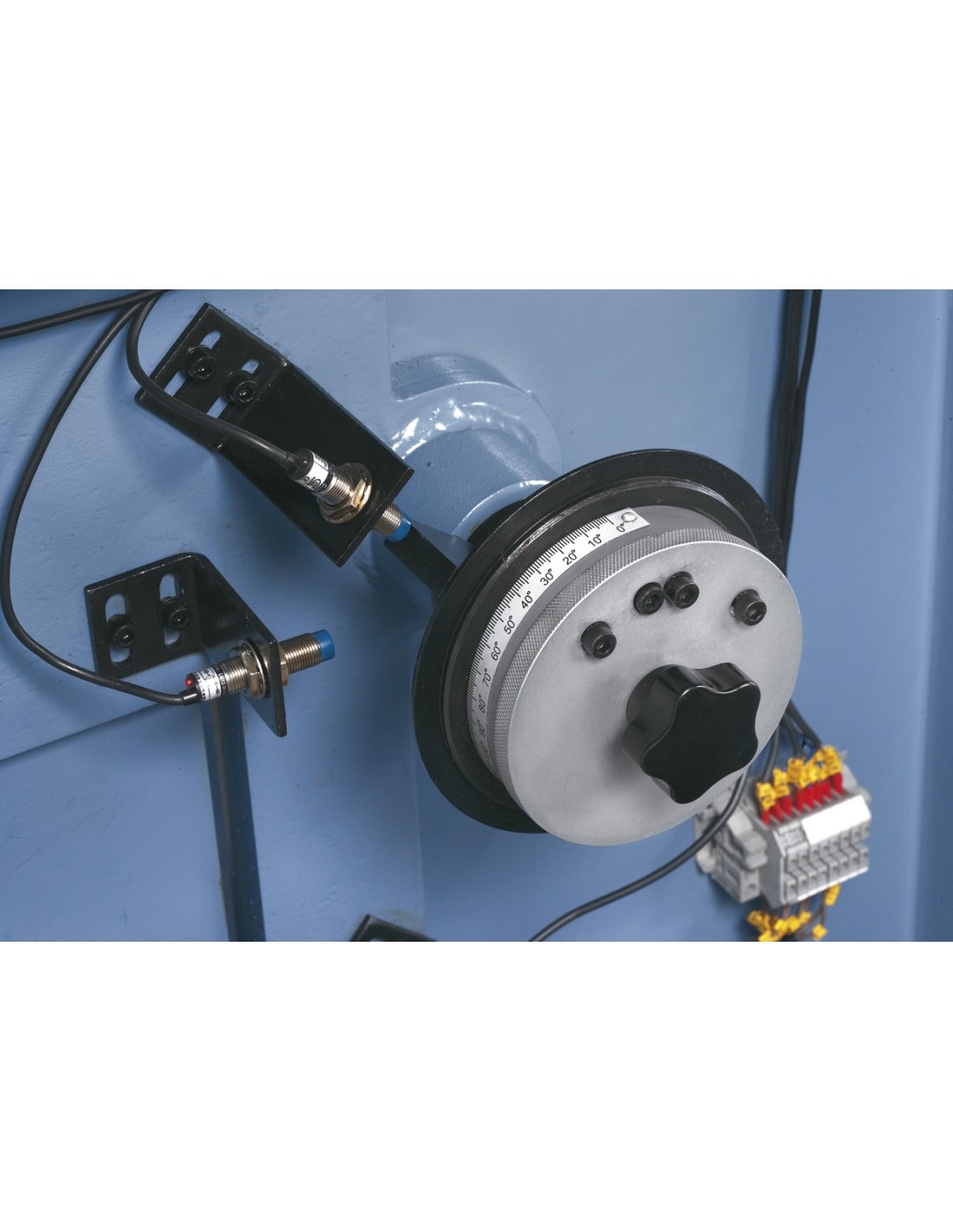

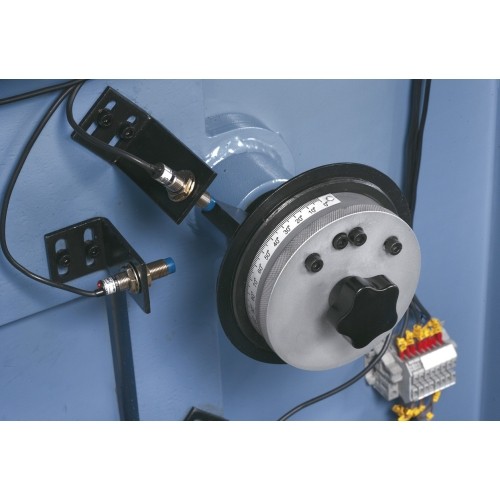

- Scale ring for setting the desired bending angle
- Increased safety thanks to integrated emergency stop switch in the foot pedal
- Robust welded steel construction for high stability
- Large-dimensioned flat guides for a precise movement of the upper beam

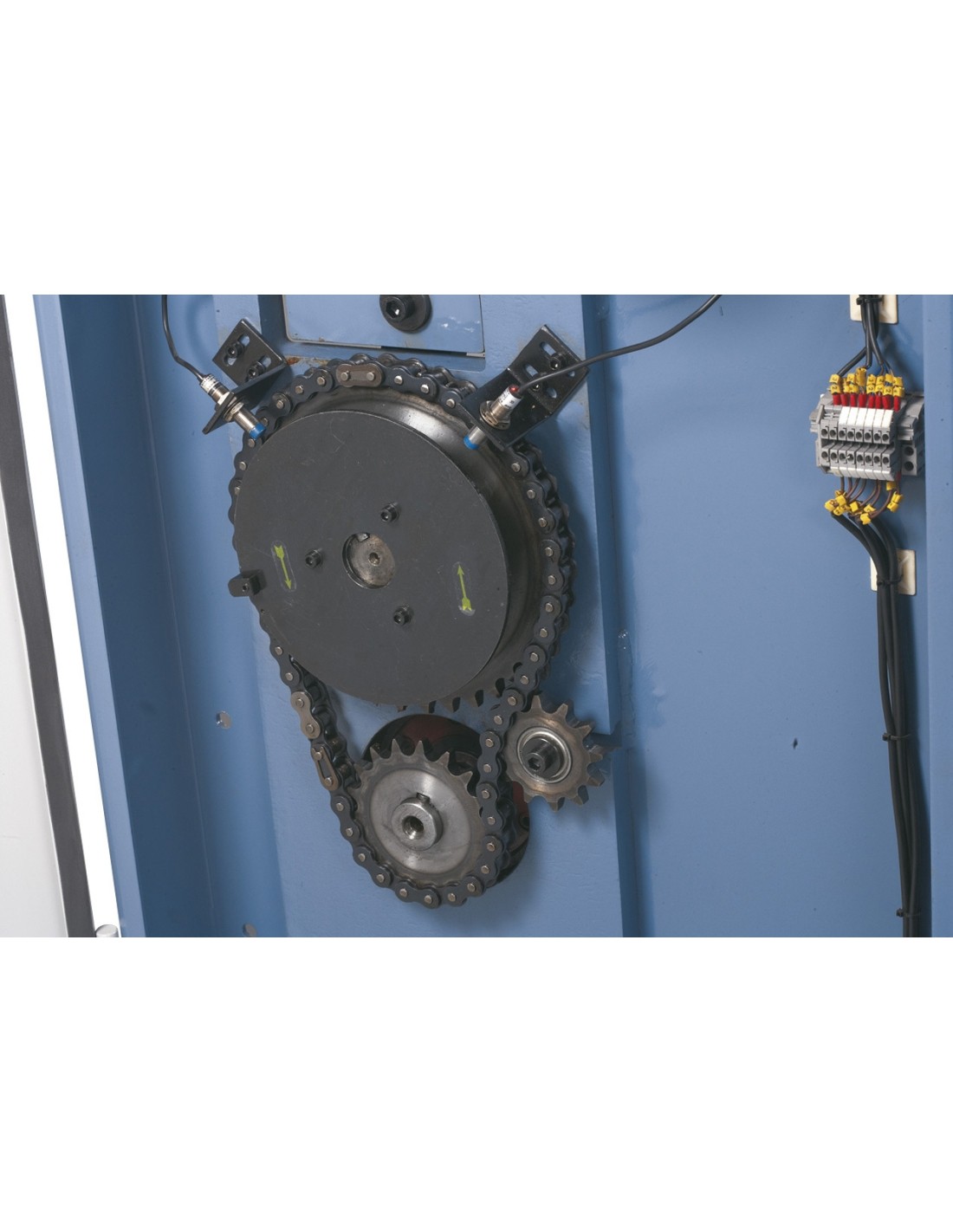

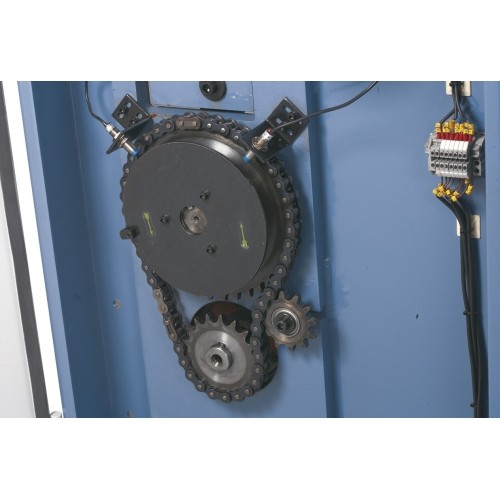

- Optimal power transmission from the motors to the upper or bending beam by a chain drive
Standard accessories
- Segmented upper beam
- Scale for bending angle
- Foot pedal with emergency stop
- Bending segments 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | 150 | 200 | 200 | 200 | 270 | 400 | 400 | 400 | 400mm
