WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Speed
1400 / 2800 rpm
Weight approx.
140 kg
Machine dimension (W x D x H)
570 x 950 x 1340 mm
Motor power output S1 100%
3,0 kW (4,0 HP)
Motor power input S6 40%
4,2 kW (5,7 HP)
Voltage
400 V
Table size
570 x 300 mm
Table height
870 mm

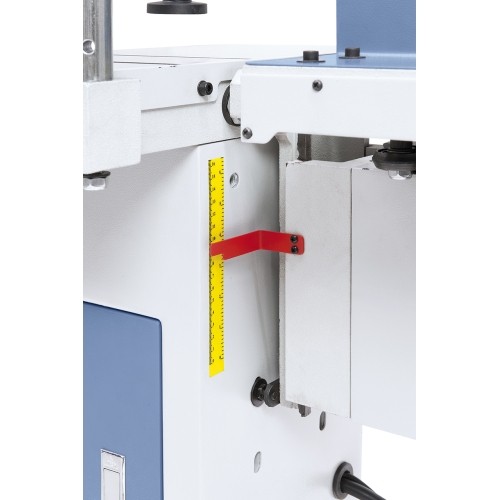

Height adjustment
160 mm
Westcott drill chuck
0 - 20 mm
Max. drill depth
155 mm
Drill width
300 mm
Table enlargement (optional)
2x 600 x 260 mm
Table extension (optional)
300 x 600 mm

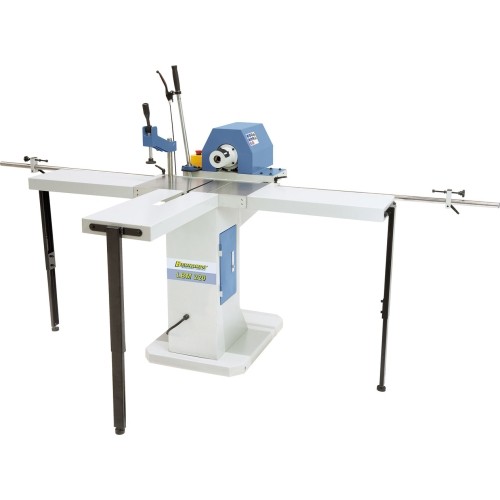

LBM 220

1091865
€2,125.00
Tax included
Monthly payment from 58.15€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 140 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 140 kg.

Description

Properties

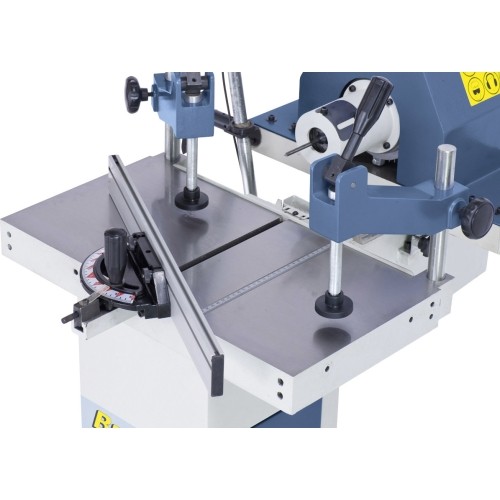

  • Equipped with 2 pcs. eccentric holder and mitre fence

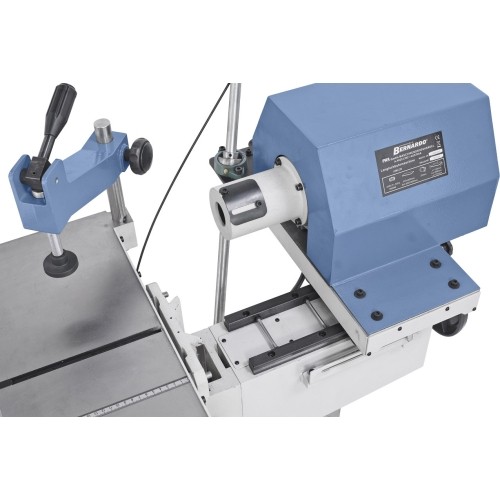

  • Advantage of drill unit travel: combined with the serially table extension, longer, large workpieces such as doors, can be processed effortlessly

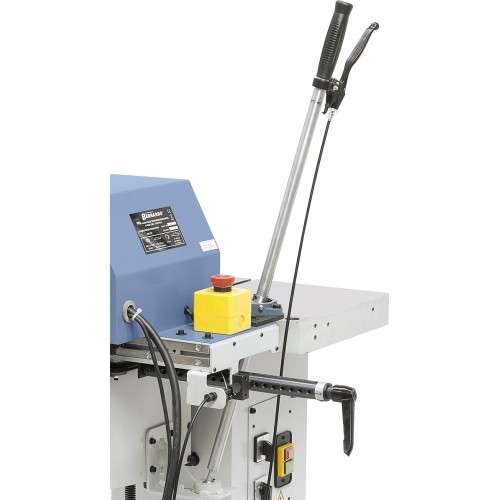

  • One hand lever allows for easy adjustment of cross support
  • Westcott drill chuck 0 - 20 mm with protective cover comes standard

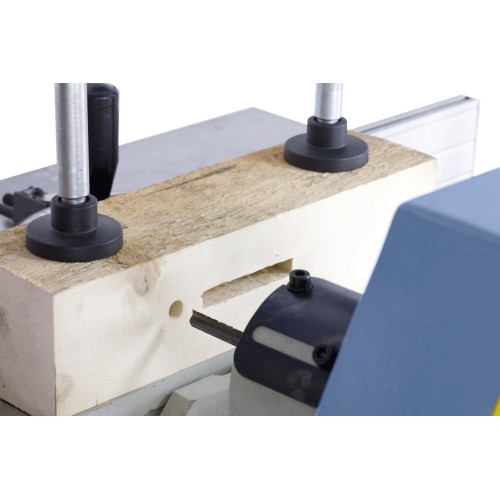

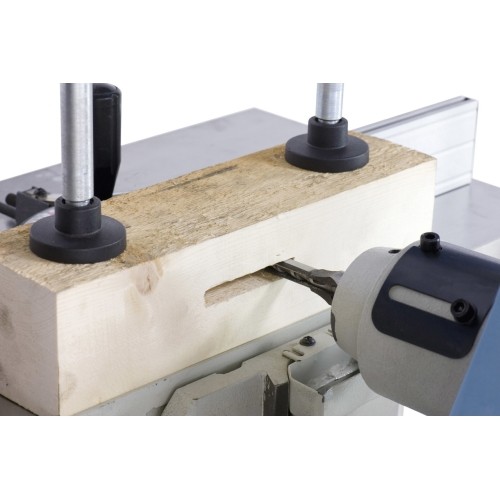

  • Includes mortising chisel collet for accurate mortising of rectangular holes (eg. tenon joints)
  • Handwheel allows for convenient height adjustment of drill unit
  • Rigid steel construction eliminates vibrations
  • Powerful motor ensures optimal performance
  • Large grey cast-iron table features treated surface
  • Equipped with 2 speed settings plus right and left turning device
  • Rotor group with grid spacing 16 / 20 / 22 / 25 mm comes standard, ideal for multiple hole drilling

Standard accessories

  • Table enlargement and extension
  • 4-size rotor group with grid spacing 16 / 20 / 22 / 25 mm
  • Westcott drill chuck 0 - 20 mm
  • 1 pc. mortising chisel 9,50 mm
  • 2 pcs. eccentric holder
  • Mitre fence with guide
  • Left and right turning
  • 4 mortising chisel collets (19, 20, 28, 30 mm shaft)
  • Machine base with tool shelf
