- Speed
- 1400 / 2850 rpm
- Weight approx.
- 240 kg
- Motor power
- 1,5 / 1,9 kW (2,0 / 2,6 HP)
- Machine dimension (W x D x H)
- 1200 x 1050 x 1300 mm
- Voltage
- 400 V
- Table size
- 595 x 315 mm
- Table height
- 830 mm
- Table extension
- 2x 200 x 220 mm
- Height adjustment
- 145 mm
- Max. drill depth
- 220 mm
- Drill width
- 340 mm

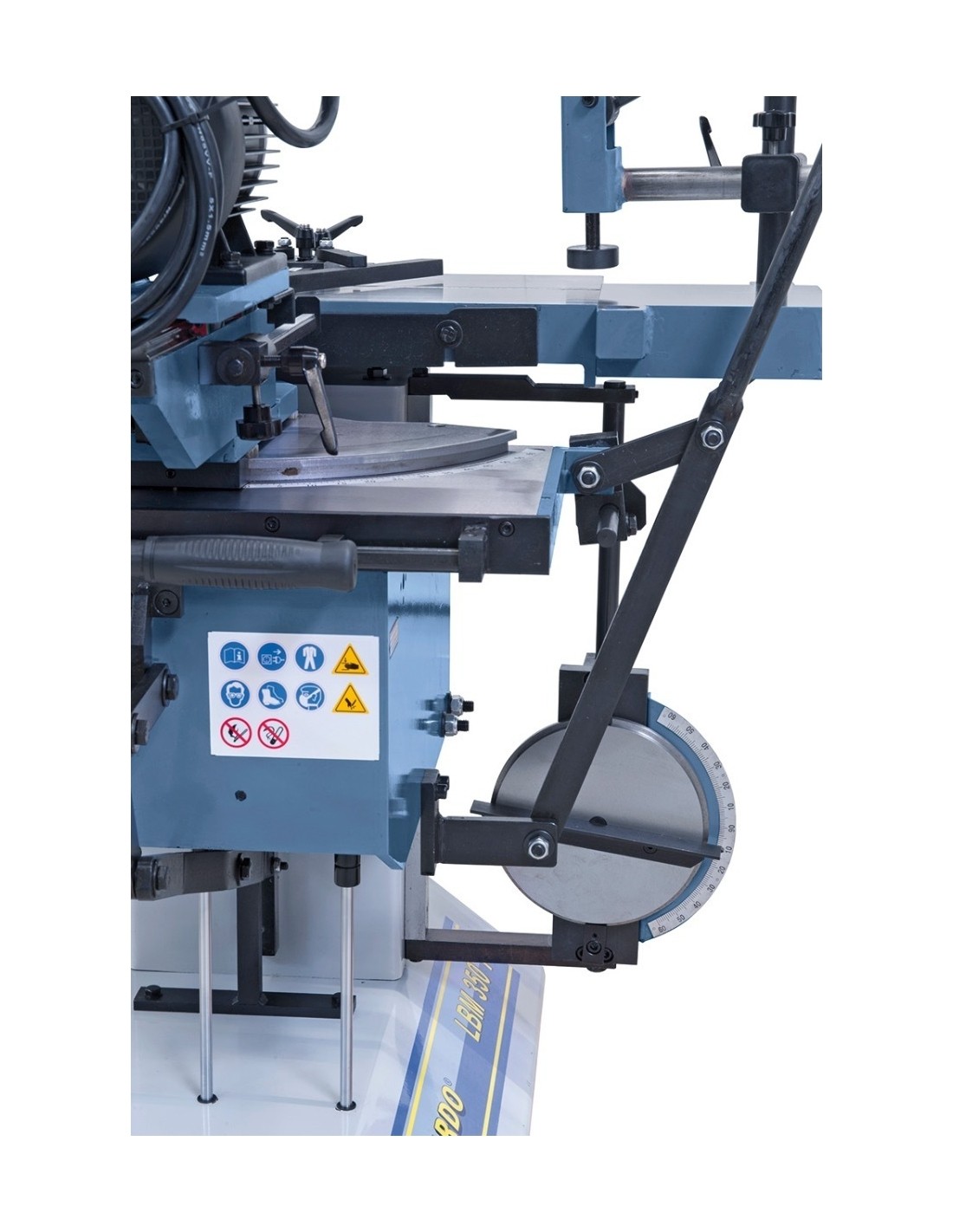

- Drill head tiltable right / left
- -60° to +60°

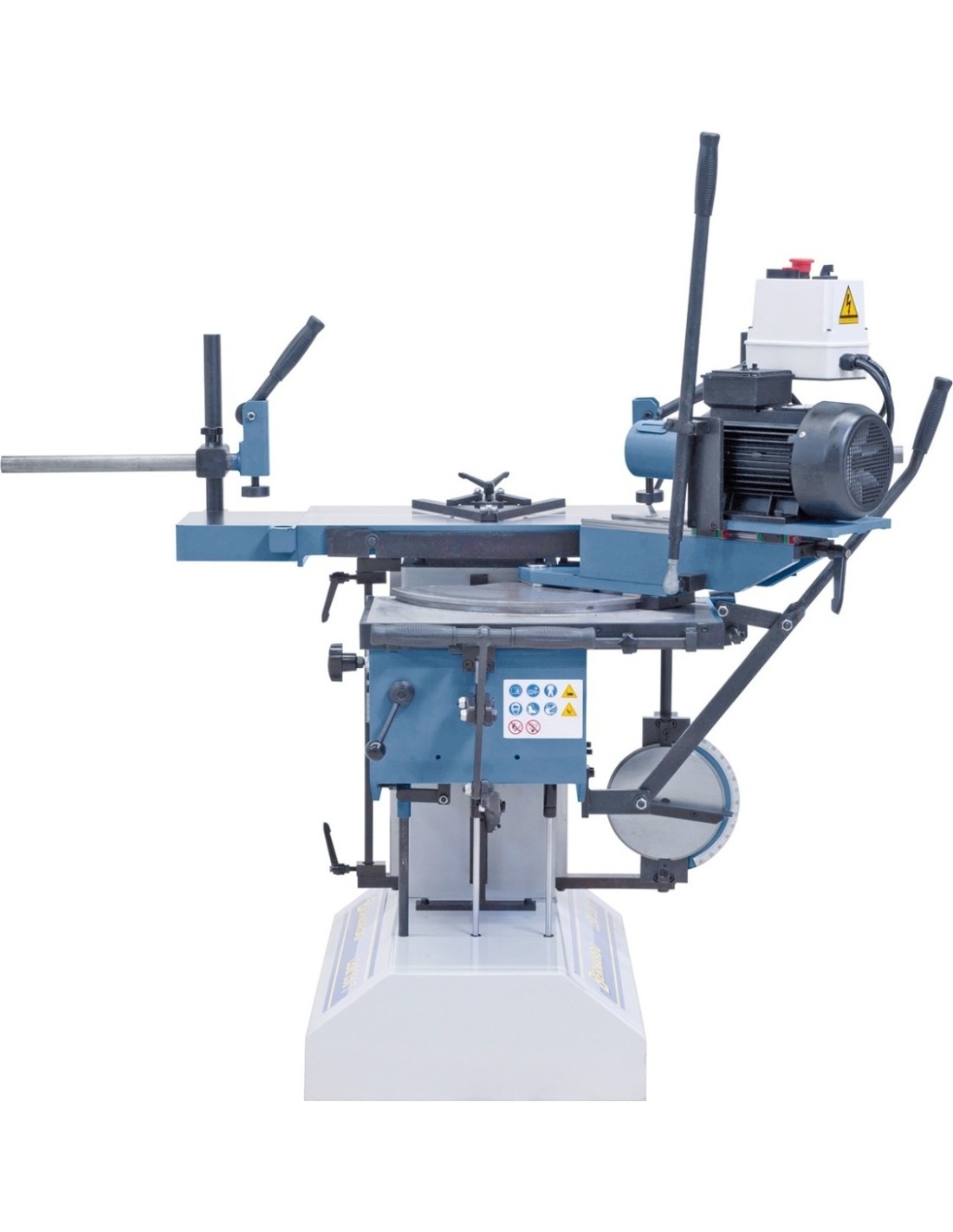

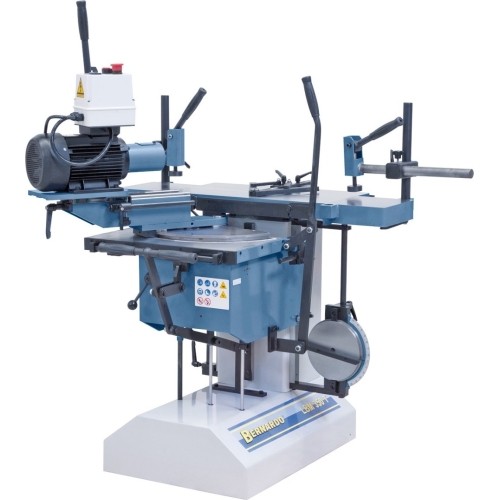

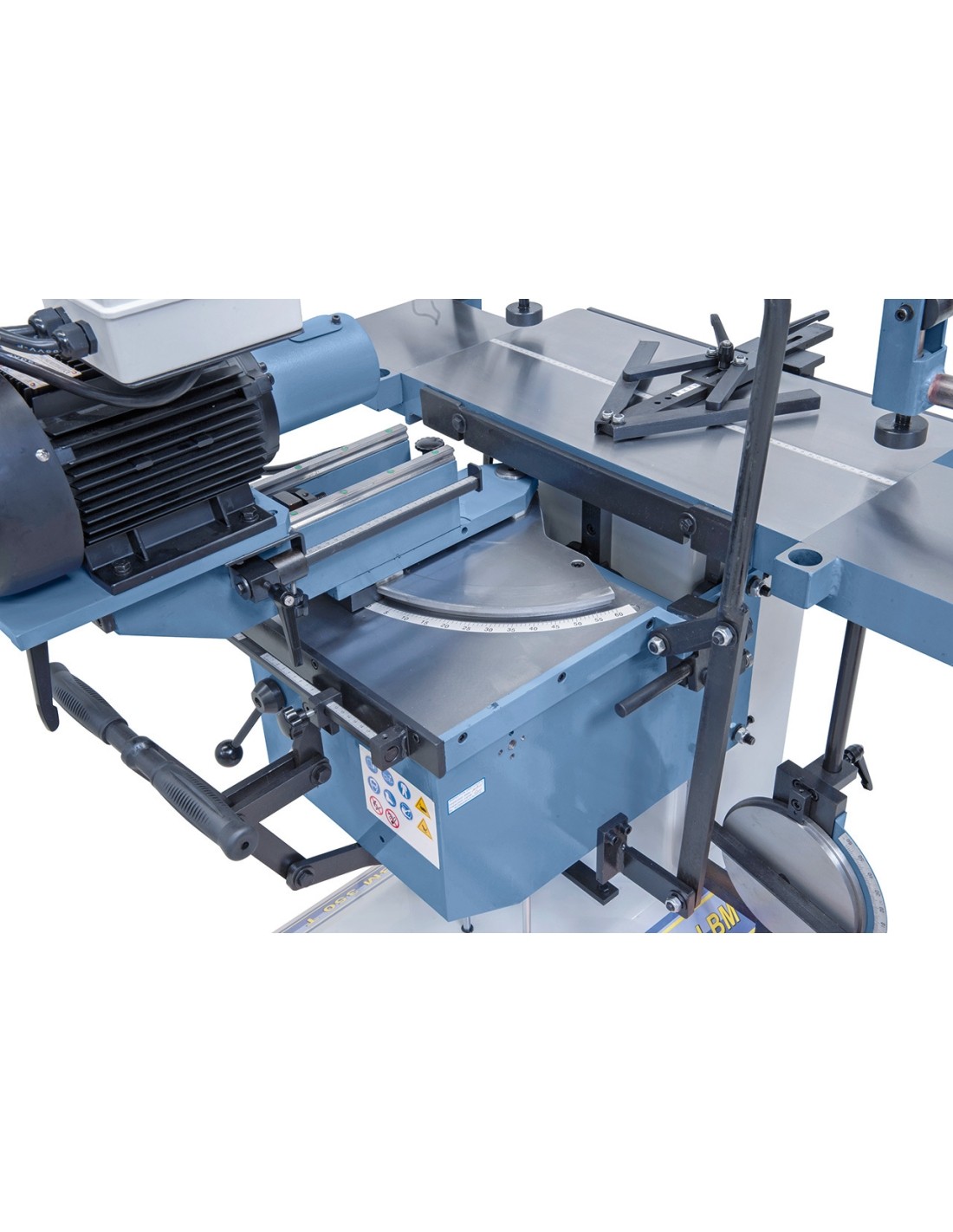

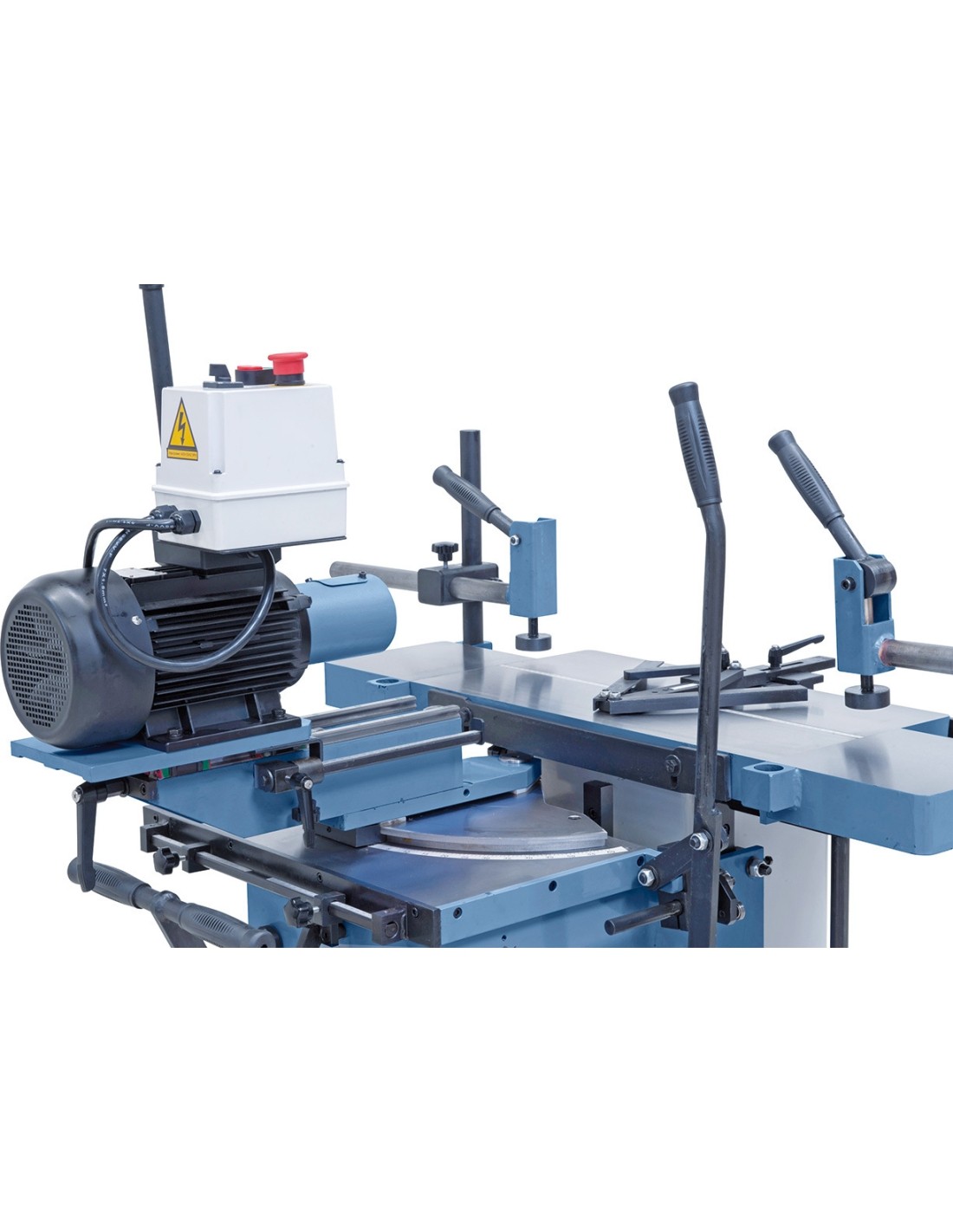

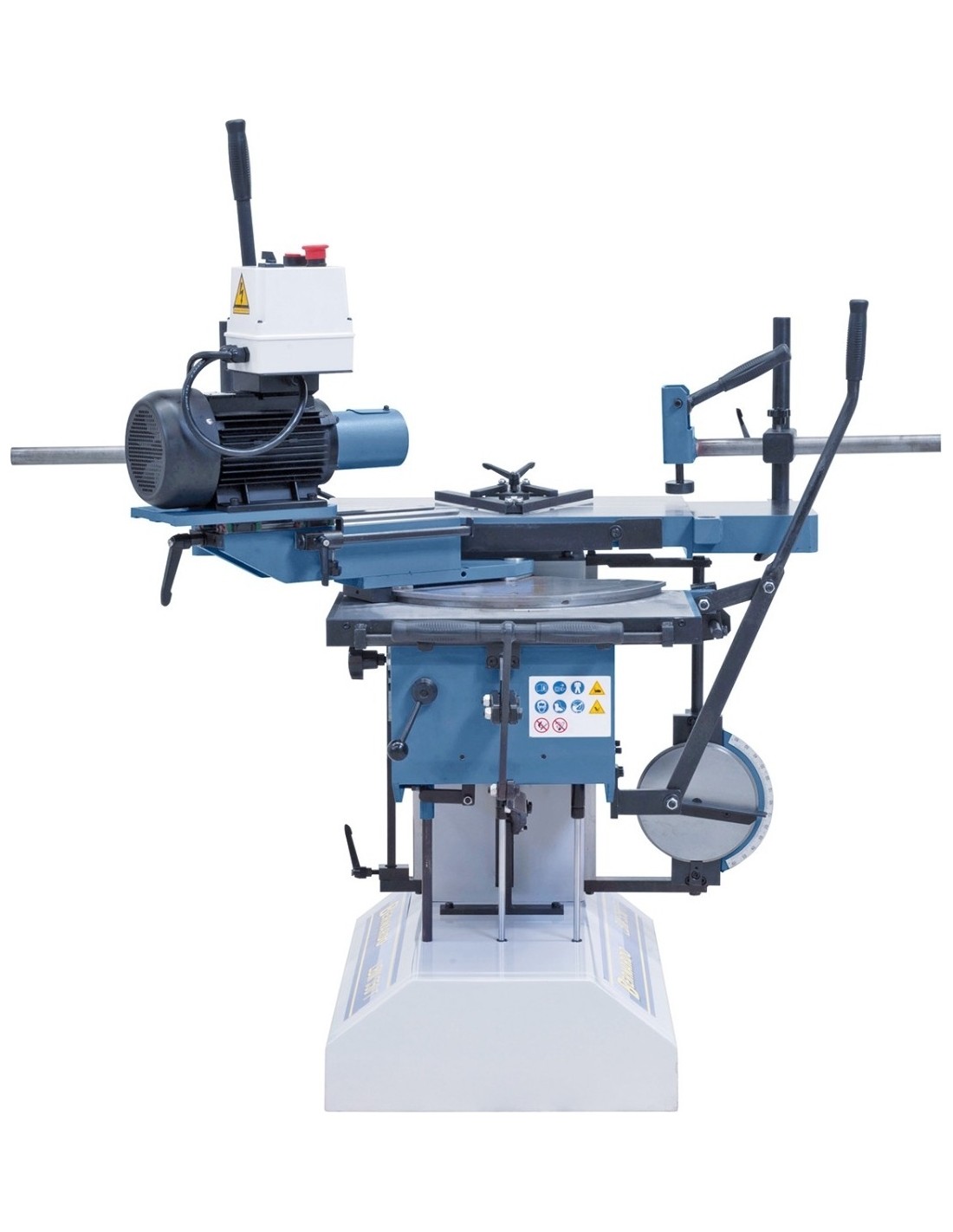

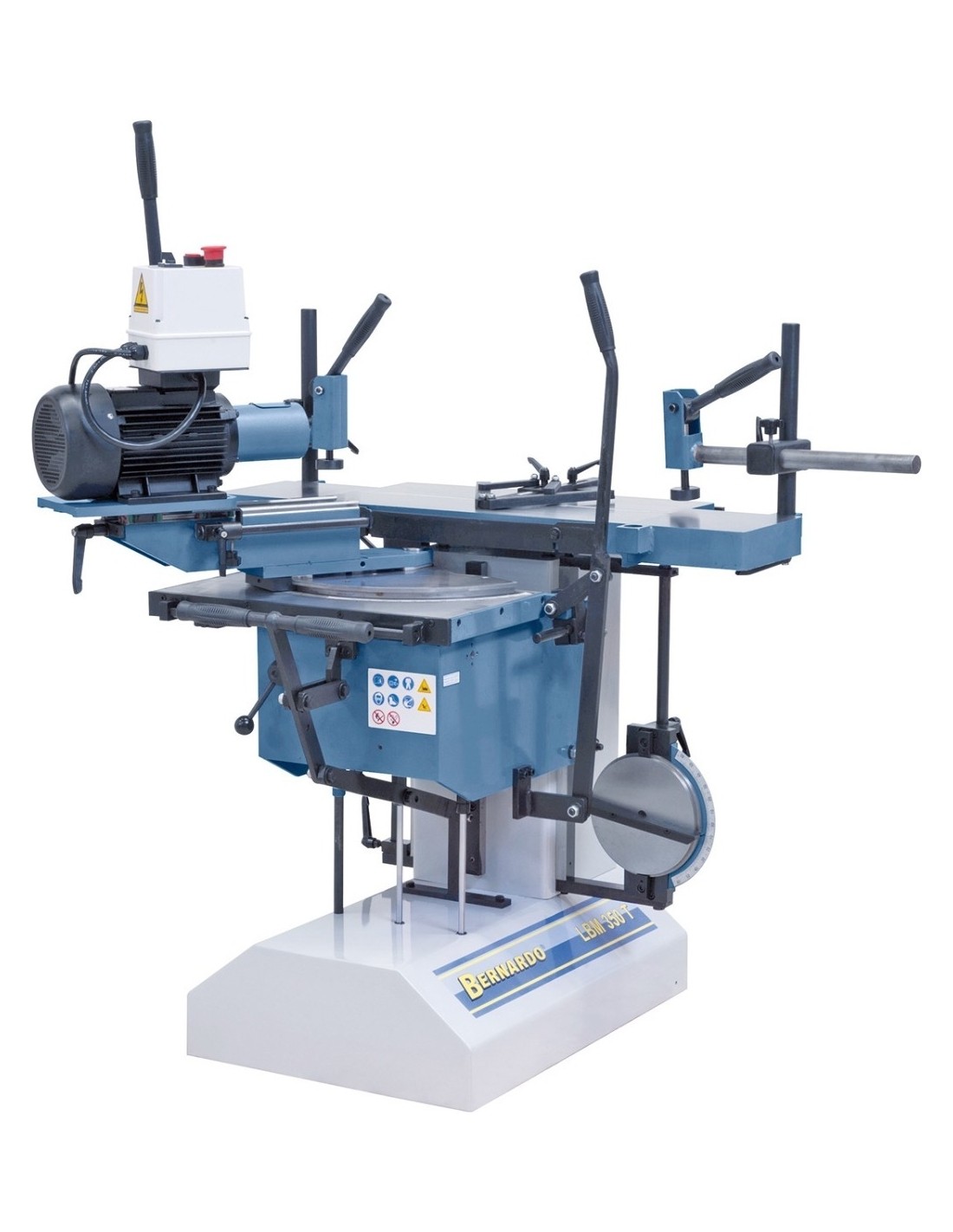

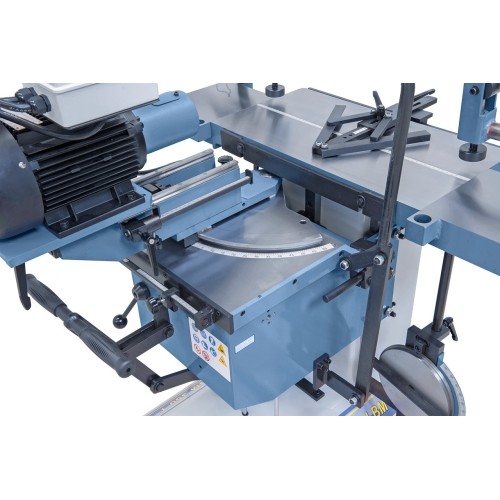

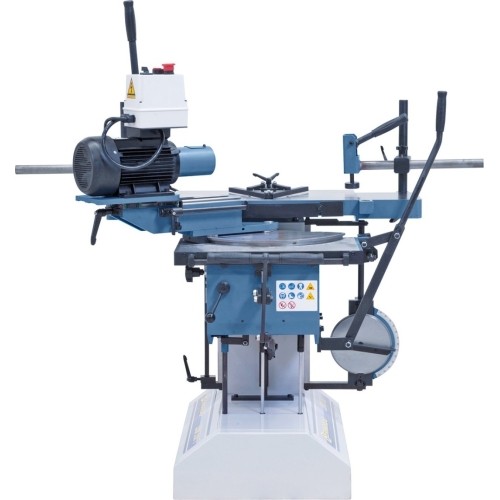

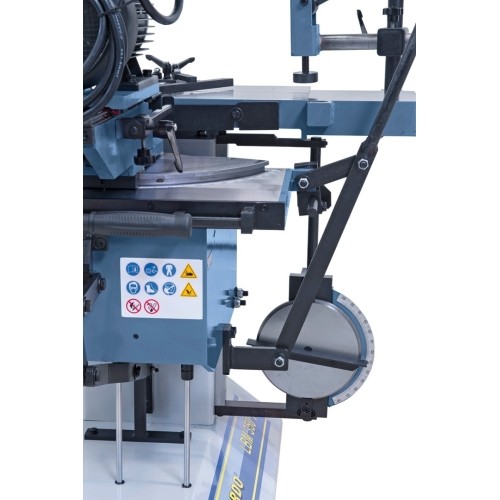

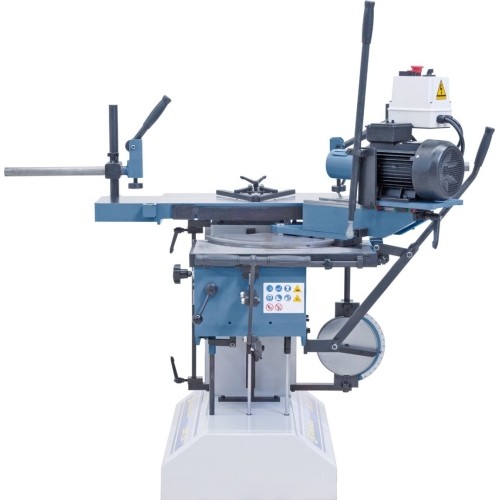

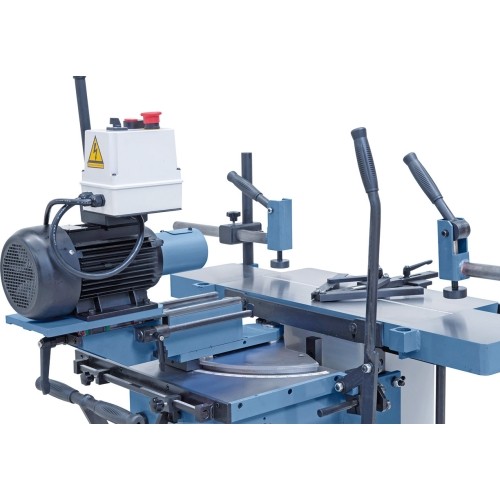

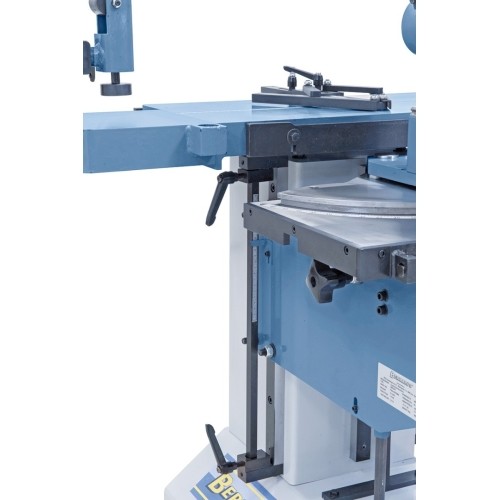

Kaltavimo staklės Bernardo LBM 350 T
1055957
€3,287.00
Tax included
Monthly payment from 84.92€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 240 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak
(€40.99) Weight: 240 kg.
Description
Properties
- Maintenance-free linear guiding allows for feed of drill depth
- Quick lift system allows for efficient, economical processing without time-consuming winding of crank
- Smooth, stepless height setting of drill head features fine adjustment and gas pressure cylinder for counter balance

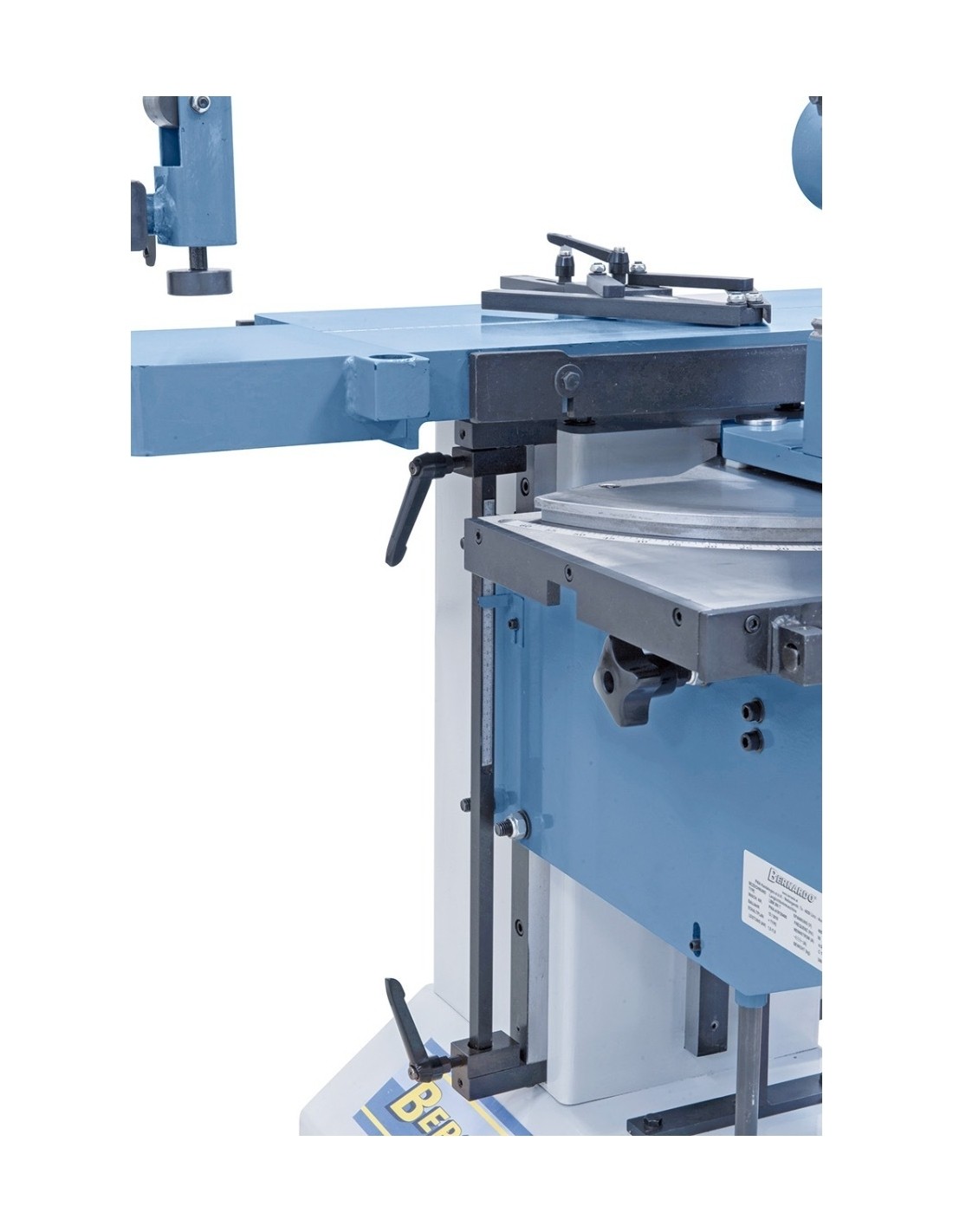

- Cross travel and height adjustment features scales and adjustable fences
- Robust steel construction eliminates vibrations
- Drill depth adjustable via scale and fence
- Height adjustment of drill head can be altered throughout vertical slotting

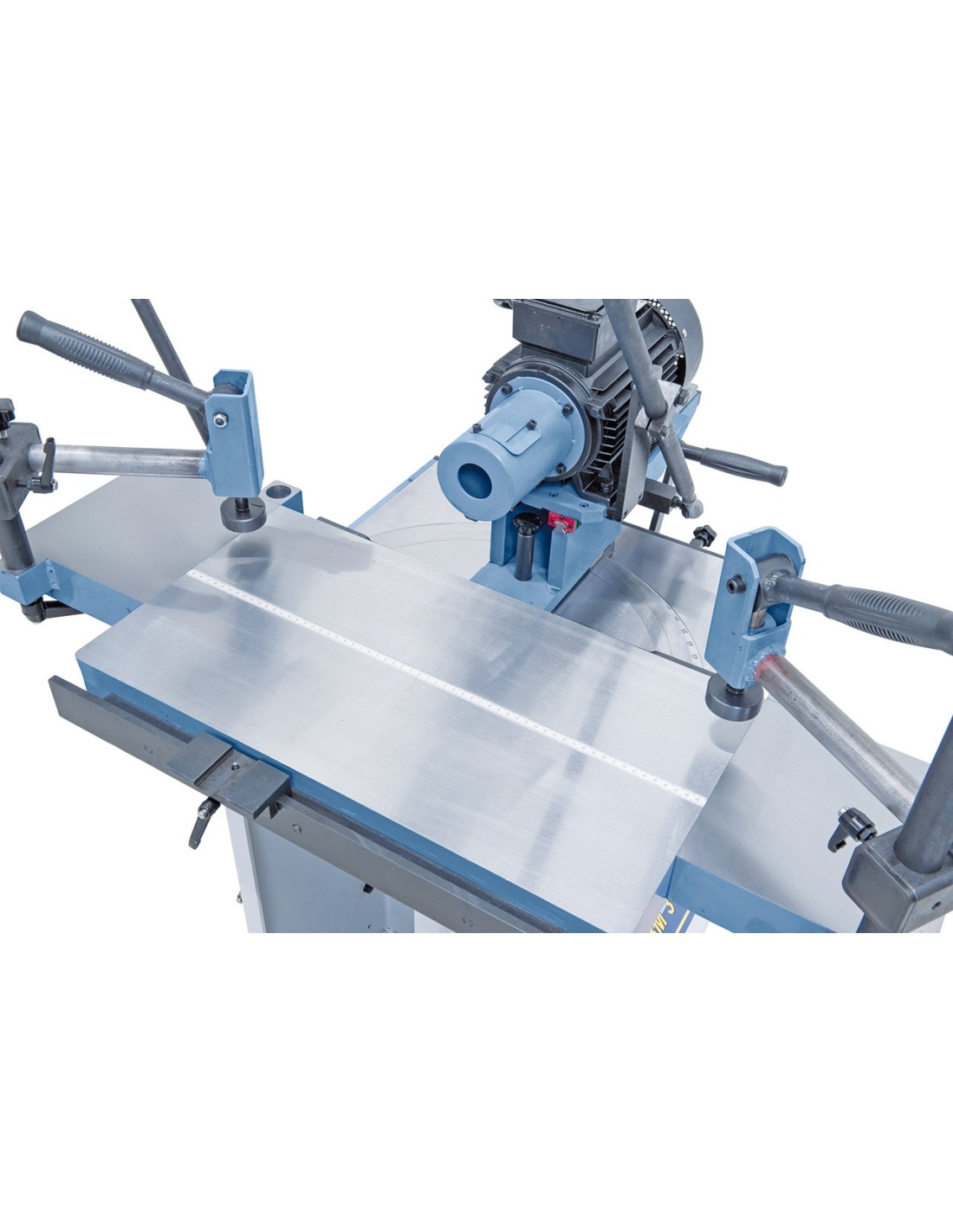

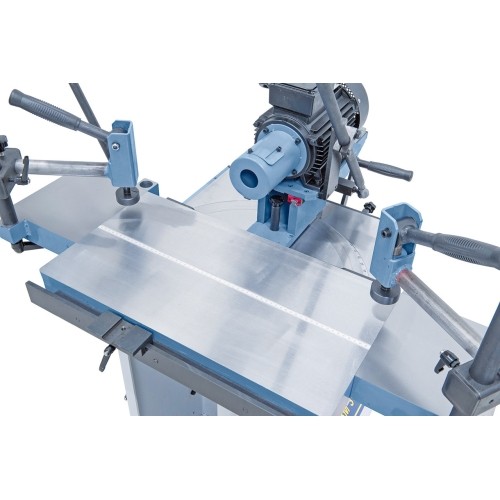

- Large grey cast iron table with polished surface
Standard accessories
- 2 pcs. eccentric holder
- 2 pcs. table extension

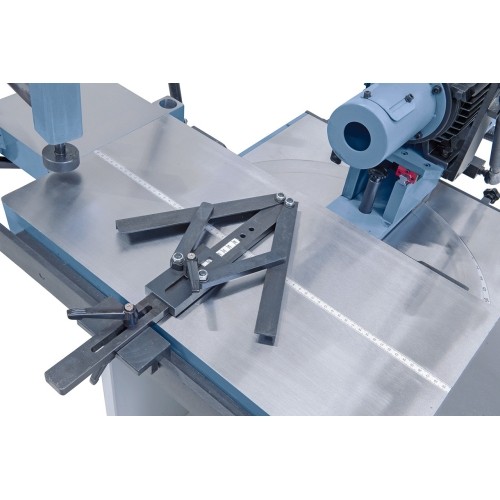

- Adjustable double mitre fence (30° - 90°)

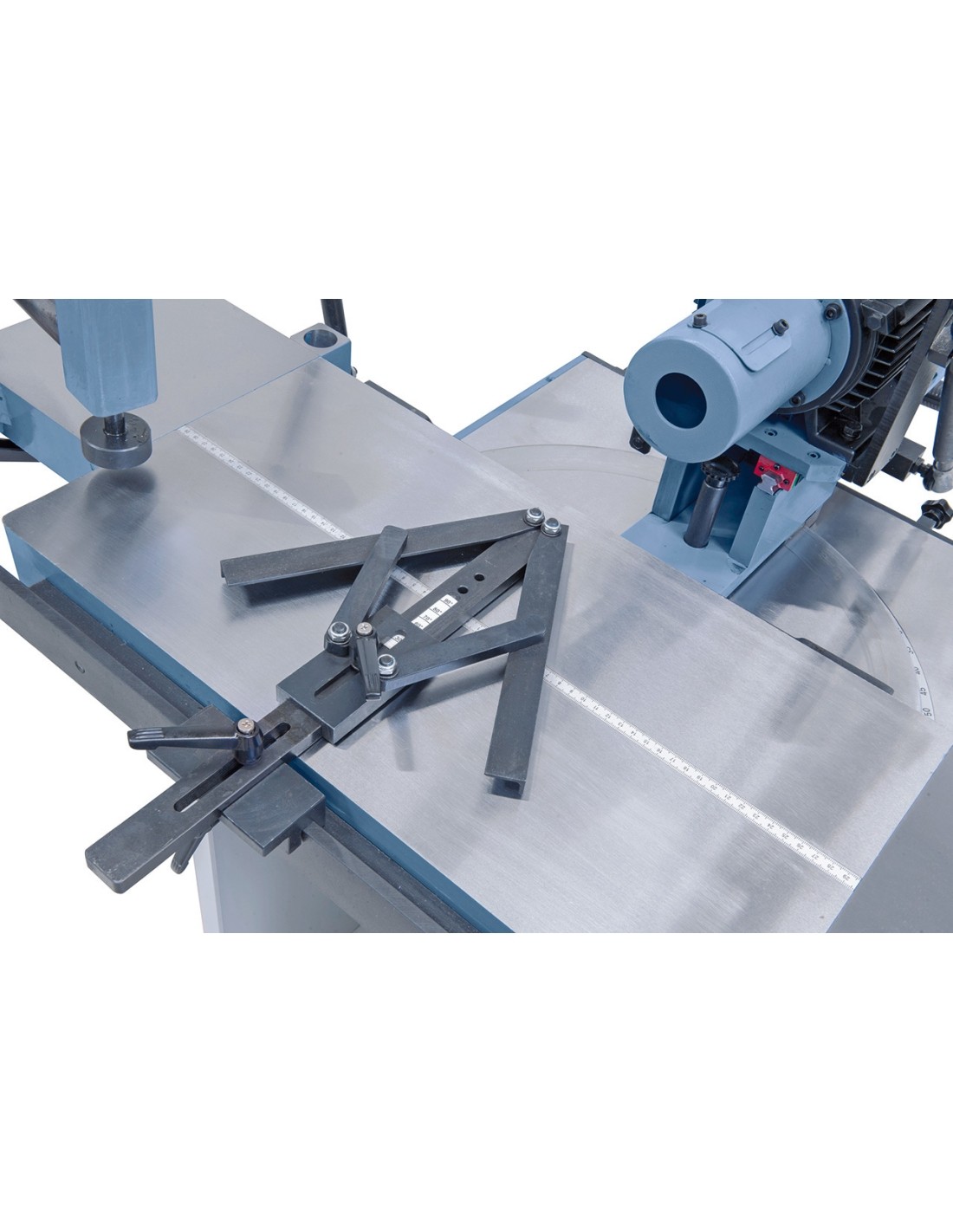

- Template device
