WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Speed
2850 rpm
Weight approx.
102 kg
Machine dimension (W x D x H)
770 x 920 x 1245 mm
Motor power output S1 100%
2,2 kW (3,0 HP)
Motor power input S6 40%
3,0 kW (4,0 HP)
Voltage
230 V
Dust extraction outlet
100 mm
Table size
500 x 200 mm
Table height
760 - 900 mm
Height adjustment
140 mm
Westcott drill chuck
0 - 16 mm
Drill width
300 mm
Max. drill depth 90°
150 mm

Kaltavimo staklės Bernardo LBM 150 P - 230 V

1055956
€1,279.00
Tax included
Monthly payment from 34.84€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 102 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 102 kg.

Description

Properties

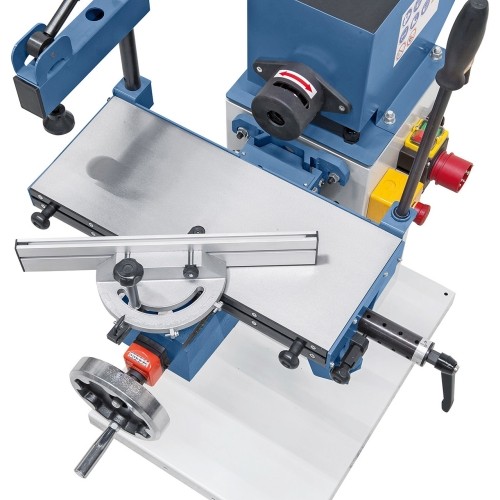

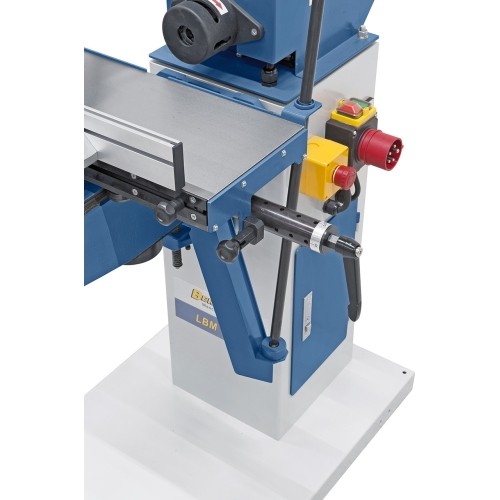

  • Complete with Westcott drill chuck 0 - 16 mm with cover

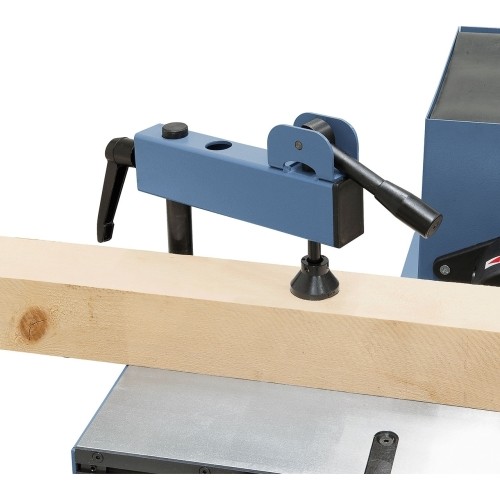

  • Eccentric holder for secure fastening of workpiece comes standard
  • Ergonomically positioned lever allows for one handed operation of work table

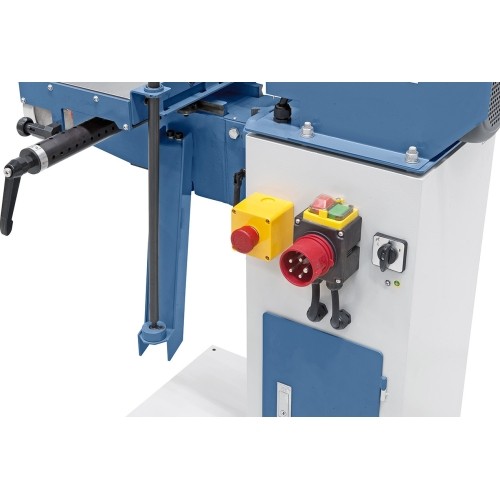

  • Motor protective switch in accordance with IP 54 standards with undervoltage release
  • Precise roller guiding ensure accurate movement of work table
  • Powerful motor guarantees optimal performance
  • Multiple holes are easy to achieve with the rotor group (part of standard equipment)

Standard accessories

  • 4-size rotor group with grid spacing 16 / 20 / 22 / 25 mm
  • Westcott drill chuck 0 - 16 mm
  • 1 pc. eccentric holder

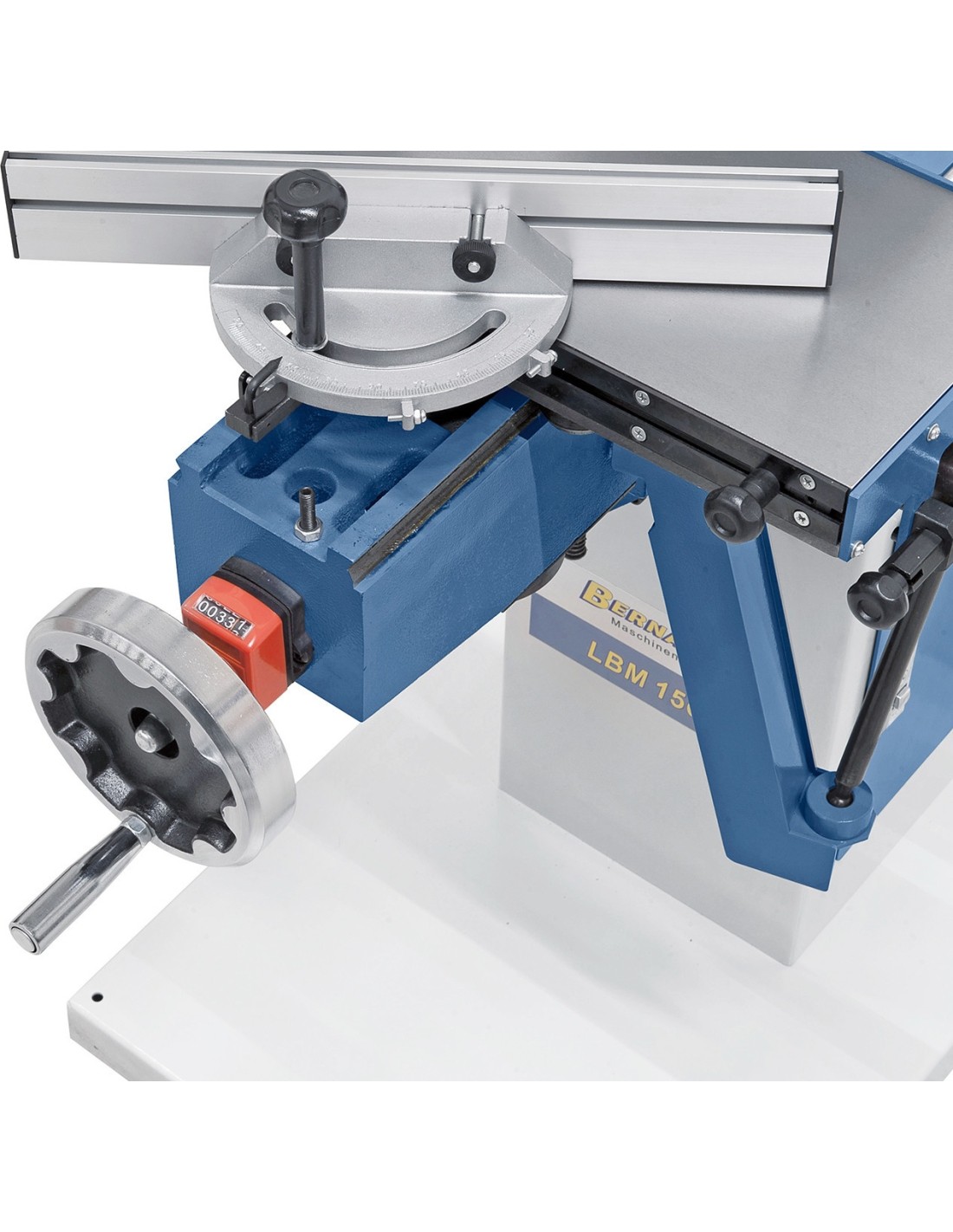

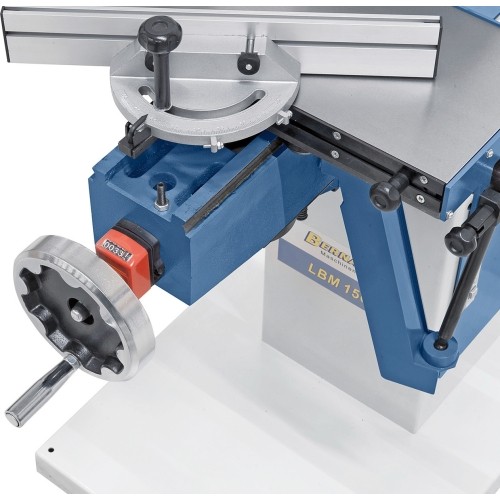

  • Mitre fence with guide
  • Left and right turning
  • Digital readout for table height adjustment
  • Machine base with tool shelf

Technical specifications

Table size

500 x 200 mm

Table height

760 - 900 mm

Max. drill depth 90°

150 mm

Drill width

300 mm

Height adjustment

140 mm

Speed

2850 rpm

Westcott drill chuck

0 - 16 mm

Dust extraction outlet

100 mm

Motor power output S1 100%

2,2 kW (3,0 HP)

Motor power input S6 40%

3,0 kW (4,0 HP)

Voltage

230 V

Machine dimension (W x D x H)

770 x 920 x 1245 mm

Weight approx.

102 kg
