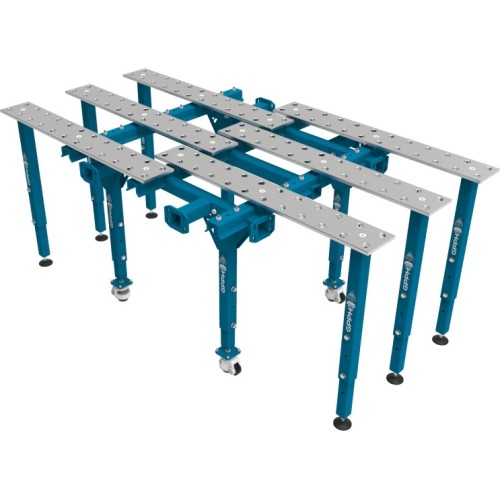

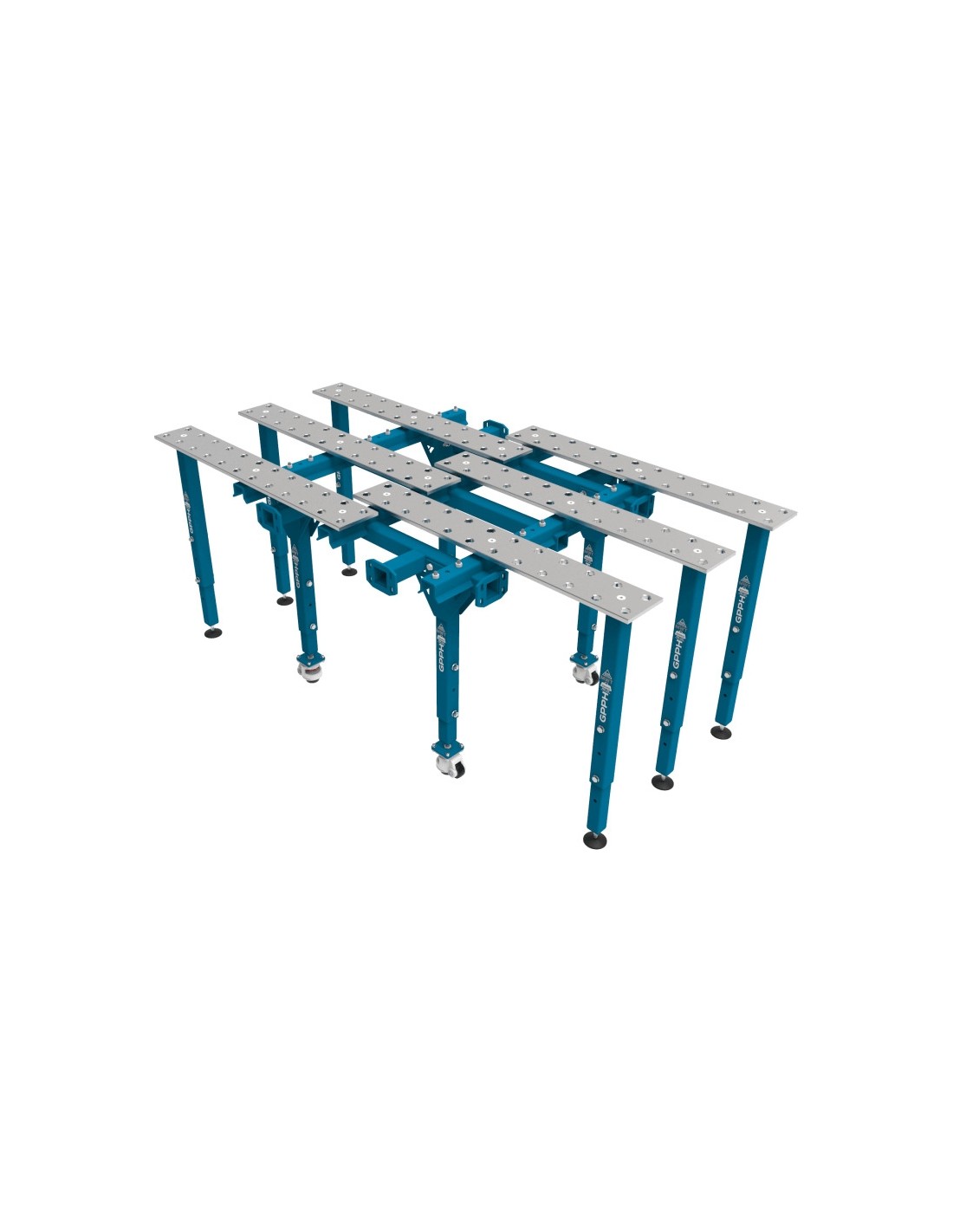

Modular single folding welding table 1770 × 1000 mm - 2170x1200mm

This listing is for a single foldable modular welding table with tabletop plates made of S355J2+N, size 1770×1000.

Single foldable modular tables can be expanded thanks to sliding plates and the use of additional legs. They are available in three size options: 1770×1000, 2170×1200, and 2670×1600.

The tabletop consists of milled, sliding plates 15 mm thick; by adjusting their surface you can achieve an ideally flat work area. The hole system is Ø28 mm in a 100×100 mm grid. The holes are milled and chamfered to make tool mounting easier. The modular tables are compatible with PRO series tooling. In addition, the construction increases the number of clamping positions within the gaps between the tabletop plates, improving work ergonomics.

The modular tables feature wheels with leveling feet in the main legs, with a load capacity of 250 kg per leg. In foldable versions, the additional legs are equipped with adjustable supports. The table height can be adjusted from 850 mm to 1150 mm in 50 mm increments. For a larger working area, multiple tables can be connected. Optional side plates are also available.
