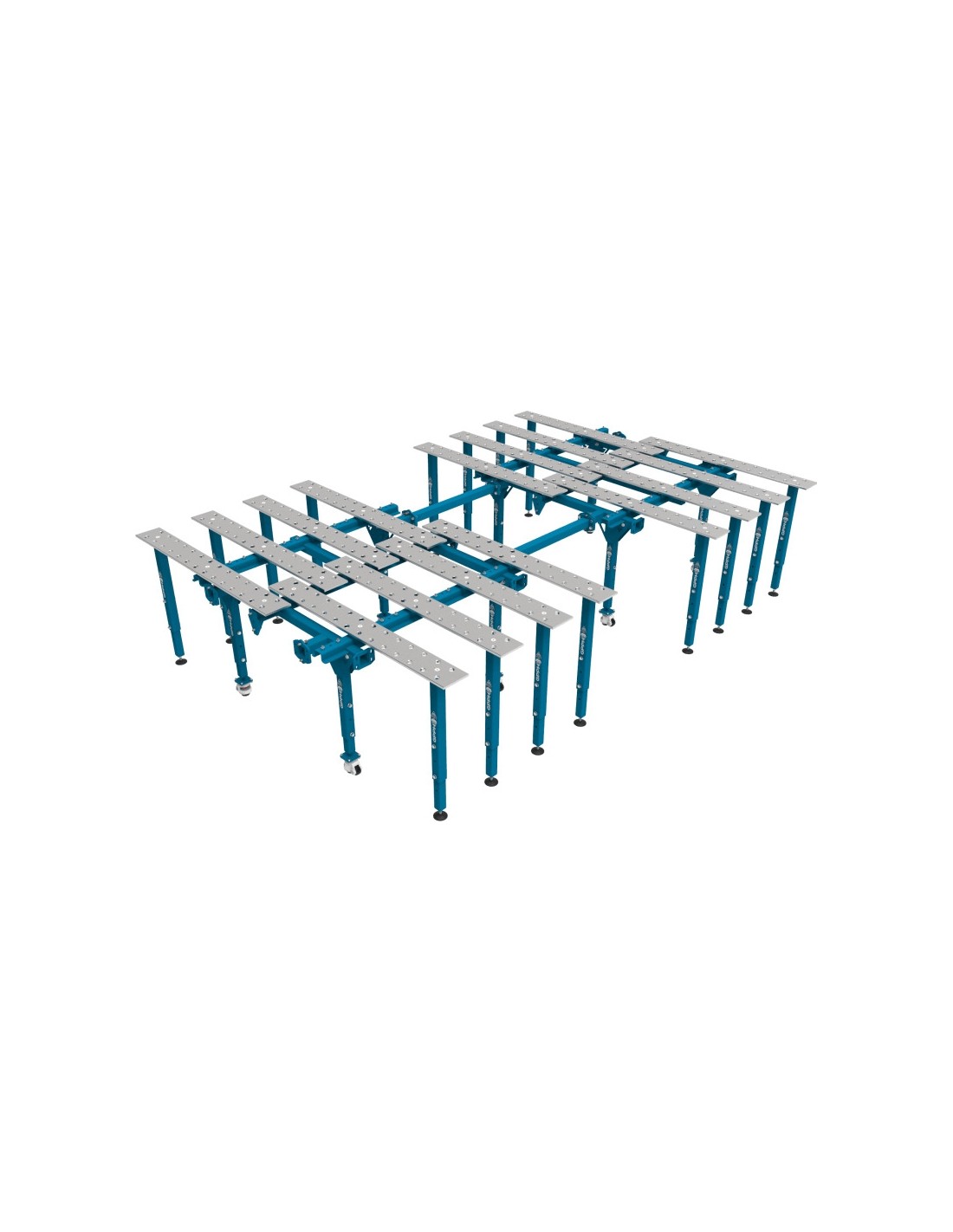

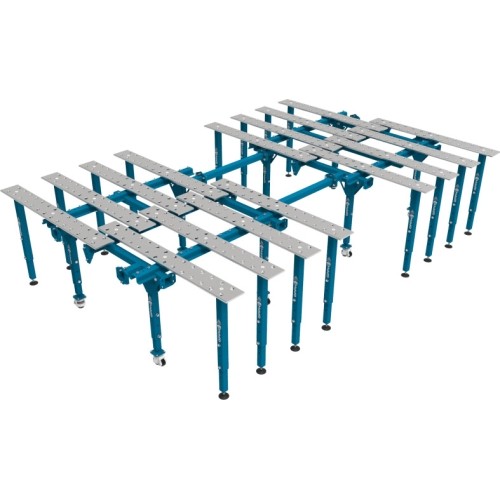

This listing is for a large-surface modular set with tabletop plates made of S355J2+N, size 2630×1770. Large-surface sets consist of two modular tables joined together with connectors—an ideal solution for spatial/3D constructions. Available size options: 2630×1770, 3030×2170, 4000×2670.
The tabletop is built from milled, sliding plates 15 mm thick. By adjusting the plates you can achieve excellent flatness. The surface features a 28 mm hole system in a 100×100 mm grid with milled and chamfered holes for easier tool mounting. The design also increases the number of clamping points in the gaps between the plates, improving ergonomics. The modular tables are compatible with PRO series tools and belong to the MWT (15 mm) series.
The base legs are equipped with wheels with foot stops, and the load capacity is 250 kg per leg. In fold-out versions, additional legs include adjustable supports. Table height can be set from 850 to 1150 mm in 50 mm increments (P=50 mm). For an even larger work surface, multiple tables can be connected together. Optional side plates are available.
