Mobili suvirinimo dūmų valymo sistema AERSERVICE UNI 2.2H (su rankove, D160 X 3M) - Standi

1395489
Price €1,885.00 Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, april 10 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 105 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 105 kg.

Description



*Kaina nurodyta už mobilią suvirinimo dūmų valymo sistema AERSERVICE UNI 2.2 su HEPA filtru ir3m  rankovę (pasirinktinai: standi arba lanksti).

Structure in powder-coated steel sheet metal, complete with wheels and handles.
Digital control panel with alarm log and clogged filter alarm.
Electronic board in a separate chamber protected from the air circuit.
Electric high performance centrifugal extraction fan positioned downstream of the filter section in a special soundproof compartment.
Spark arrestor is standard supplied.
Upon request, 10 kg deodorizing activaded carbon post-filter recommended in all cases of SOV/VOC, stainless steel and galvanized steel.


3 VERSIONS:

  • HEPA filter - metal and acrylic filters for a high filtering efficiency (99,5%)
  • Cartridge filter - polyester cartridge filter for high filtering efficiency (99,5%)
  • Electrostatic filter - long life electrostatic filter cell, for high filtration efficiency (99.5%).

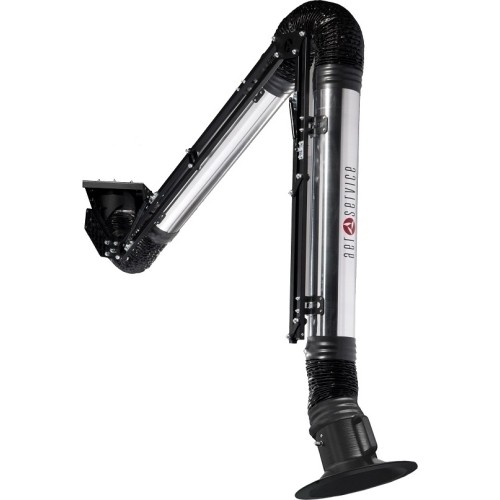

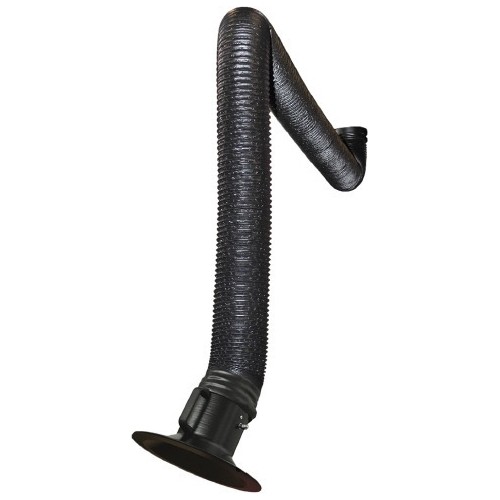

Articulated 3 metres arm Ø160 mm (with rigid or flexible hose), including hood with damper and multi-directional articulation.
Structure constructed in powder-coated steel sheet metal complete with wheels and handles.
Digital control panel
Electric high performance centrifugal extraction fan positioned downstream of the filter section in a special soundproof compartment.
Filter section consisting of a series of metal and rigid bag filters for final class: EU12 - filtration efficiency, according to standard EN779.



Technical details

Motor Power 1.1kW
Power Supply (V/Phase/Hz)          240/1/50
Filter Efficiency 99.5%
Noise <70 dBa



          MODEL             EXTRACTION FAN FLOW RATE       EXTRACTION AT HOOD

FILTRATION EFFICIENCY

MAIN FILTER      FILTERING SURFACE       MOTOR POWER        NOISE       TOTAL WEIGHT
  m3/h m3/h Rule / % type m2 kW - V/f/Hz dB (A) kg
   UNI 2.2 H        2250 1480 E12 / 99.5 Hepa 14.5 1.1 - 230/3/50 ≤ 70 105
   UNI 2.2 C  2250 1480 E12 / 99.5 Cartridge   1.1 - 230/3/50 ≤ 70 105
   UNI 2.2 E 2250 1480 E12 / 99.5 Electrostatic   1.1 - 230/3/50 ≤ 70 125



   Typical environment

       Where medium concentrations of welding fumes and particulate are produced, and where a fume extraction system is required to move operating locations

   Packaging

     Weight: 105kg
     Height: 1200mm
     Width: 600mm
     Depth: 800mm
