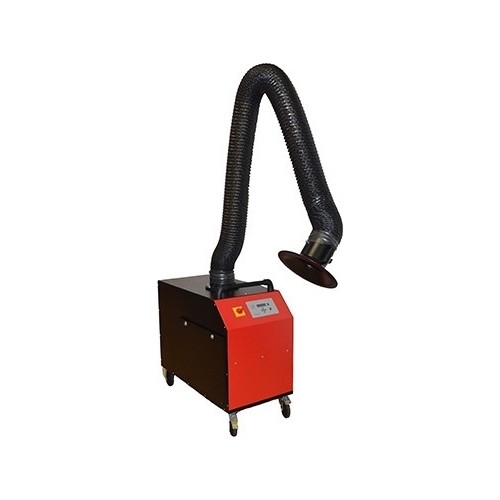

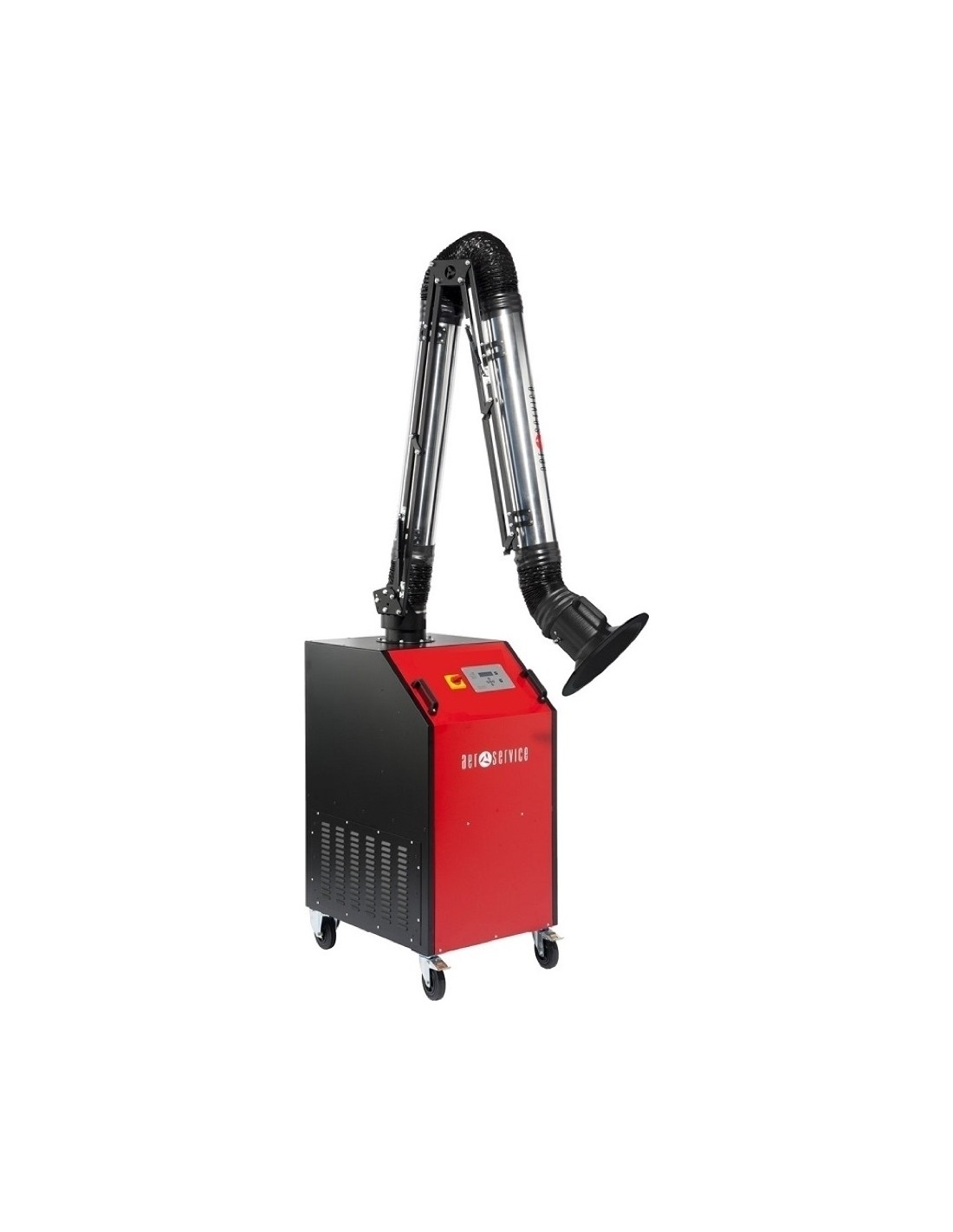

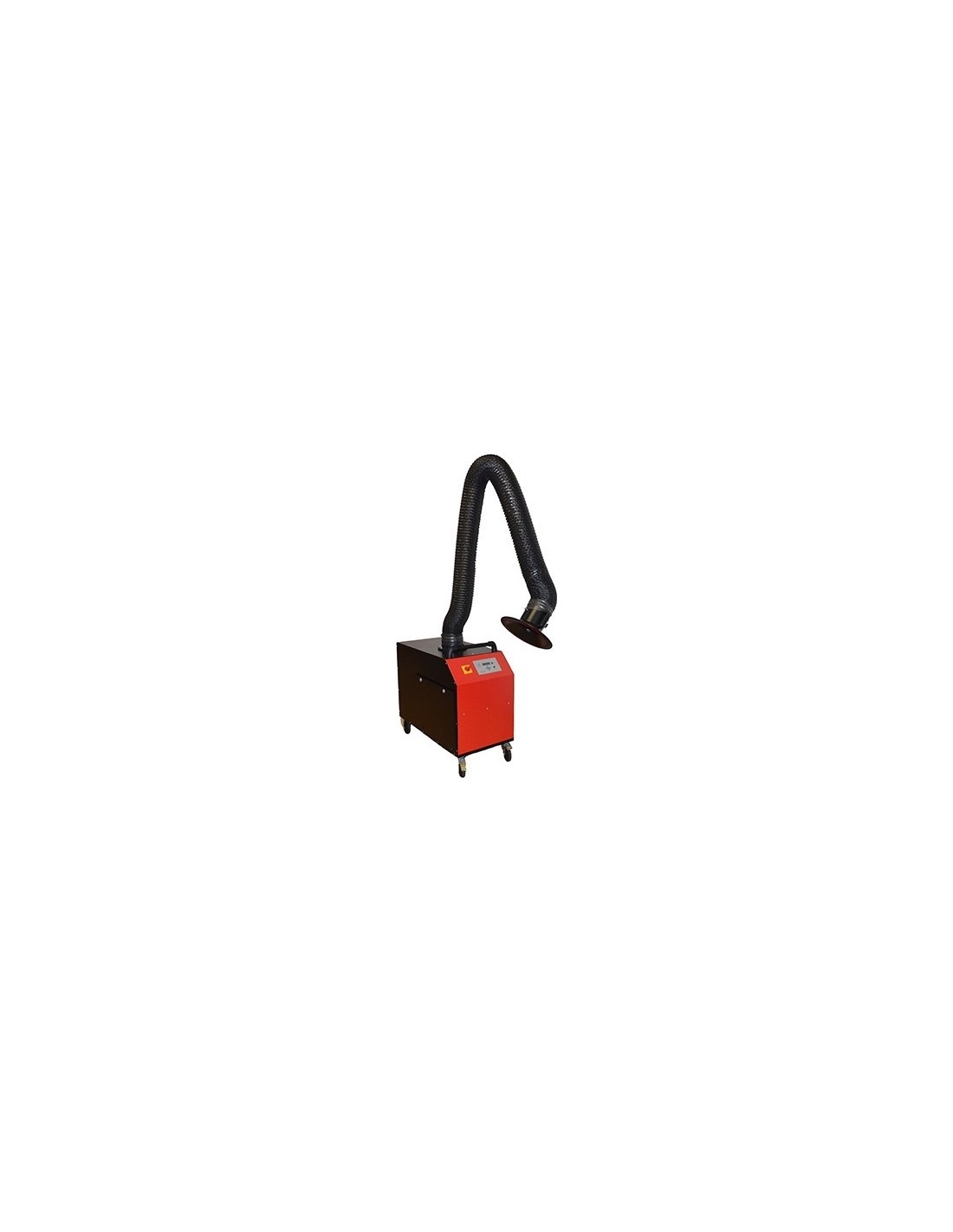

Mobile Welding Fume Cleaning System AERSERVICE UNI 2.2H (with sleeve, D160 X 3M) - Flexible

Name: Mobile Welding Fume Cleaning System AERSERVICE UNI 2.2H (with sleeve, D160 X 3M) - Flexible
Brand: AER Service
SKU: 1395492

Reference 1395492

Ask for the price and delivery time by phone

Description

*Kaina nurodyta už mobilią suvirinimo dūmų valymo sistema AERSERVICE UNI 2.2 su HEPA filtru ir3m rankovę (pasirinktinai: standi arba lanksti).

Structure in powder-coated steel sheet metal, complete with wheels and handles.
Digital control panel with alarm log and clogged filter alarm.
Electronic board in a separate chamber protected from the air circuit.
Electric high performance centrifugal extraction fan positioned downstream of the filter section in a special soundproof compartment.
Spark arrestor is standard supplied.
Upon request, 10 kg deodorizing activaded carbon post-filter recommended in all cases of SOV/VOC, stainless steel and galvanized steel.

3 VERSIONS:

HEPA filter - metal and acrylic filters for a high filtering efficiency (99,5%)
Cartridge filter - polyester cartridge filter for high filtering efficiency (99,5%)
Electrostatic filter - long life electrostatic filter cell, for high filtration efficiency (99.5%).

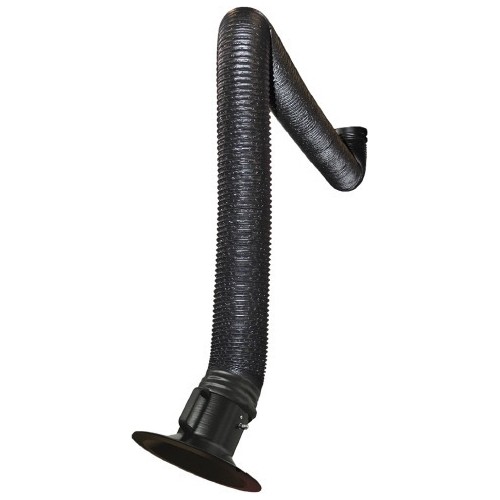

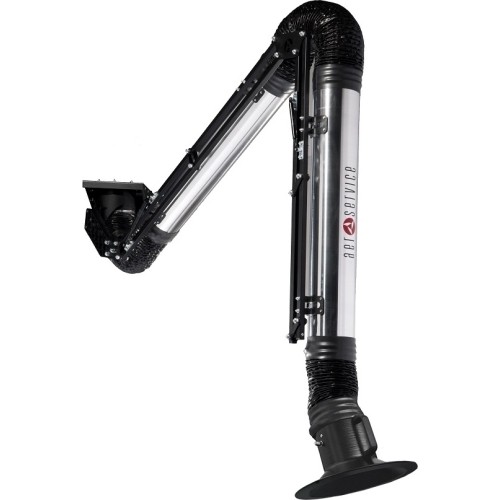

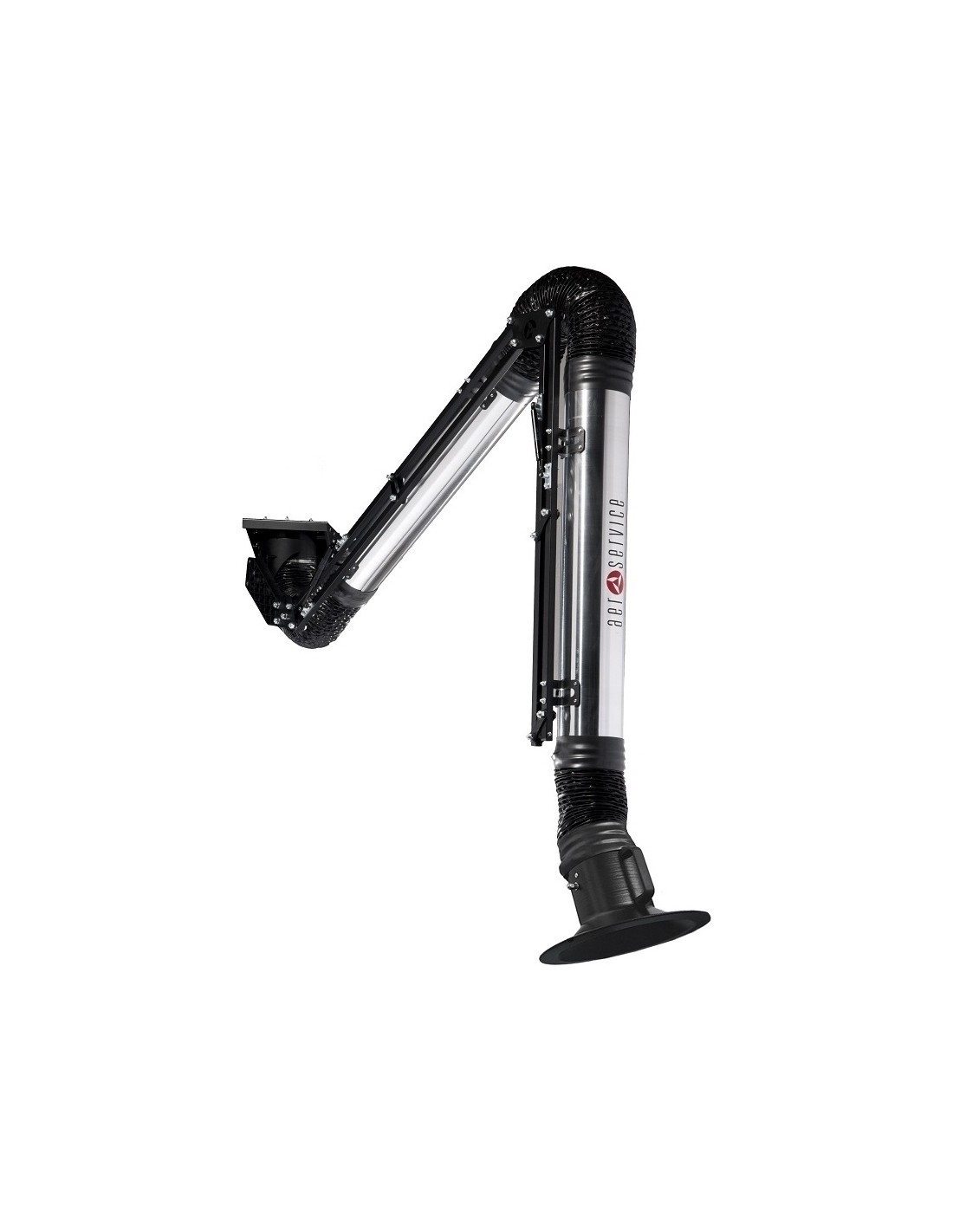

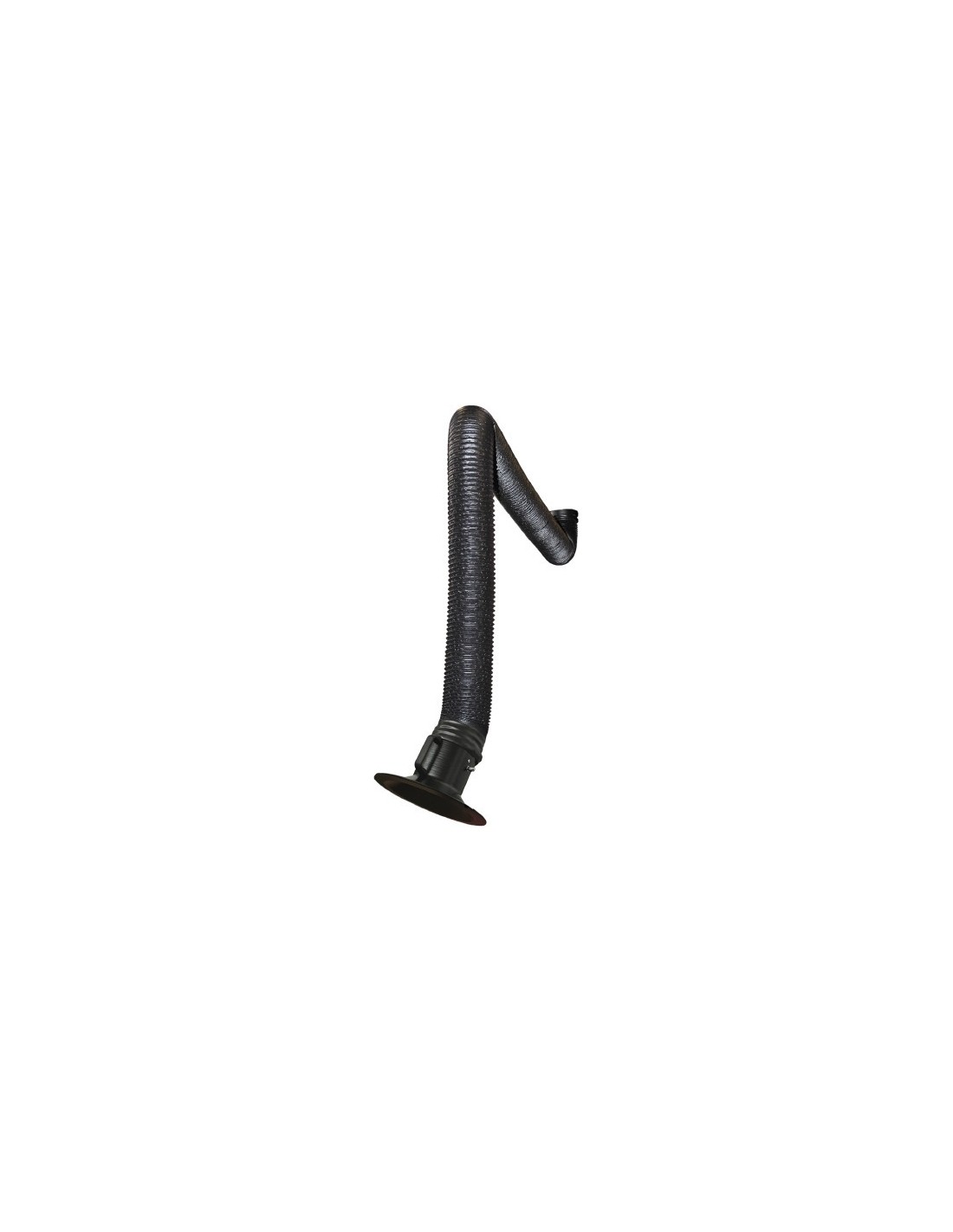

Articulated 3 metres arm Ø160 mm (with rigid or flexible hose), including hood with damper and multi-directional articulation.
Structure constructed in powder-coated steel sheet metal complete with wheels and handles.
Digital control panel
Electric high performance centrifugal extraction fan positioned downstream of the filter section in a special soundproof compartment.
Filter section consisting of a series of metal and rigid bag filters for final class: EU12 - filtration efficiency, according to standard EN779.

Technical details

Motor Power	1.1kW
Power Supply (V/Phase/Hz)	240/1/50
Filter Efficiency	99.5%
Noise	<70 dBa

MODEL	EXTRACTION FAN FLOW RATE	EXTRACTION AT HOOD	FILTRATION EFFICIENCY	MAIN FILTER	FILTERING SURFACE	MOTOR POWER	NOISE	TOTAL WEIGHT
	m3/h	m3/h	Rule / %	type	m2	kW - V/f/Hz	dB (A)	kg
UNI 2.2 H	2250	1480	E12 / 99.5	Hepa	14.5	1.1 - 230/3/50	≤ 70	105
UNI 2.2 C	2250	1480	E12 / 99.5	Cartridge		1.1 - 230/3/50	≤ 70	105
UNI 2.2 E	2250	1480	E12 / 99.5	Electrostatic		1.1 - 230/3/50	≤ 70	125
