4 nepriklausomų griebtuvų laikiklis Bernardo K72-160/D4
4 nepriklausomų griebtuvų laikiklis Bernardo K72-160/D4
4 nepriklausomų griebtuvų laikiklis Bernardo K72-160/D4
4 nepriklausomų griebtuvų laikiklis Bernardo K72-160/D4

WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
15,7 kg
D3
56 mm
Taper
4
D2
82,6 mm
H1
65 mm
Max. speed
1600 rpm
Chuck size
160/D4
D - diameter
160 mm
D1 (max.)
63,51 mm

4 nepriklausomų griebtuvų laikiklis Bernardo K72-160/D4

1055299
€486.00
Tax included
Monthly payment from 16.23€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, january 6 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Prekę pristatysime Jums per: 5-11 d.d. Venipak (€6.12)

Description

Properties

Execution:

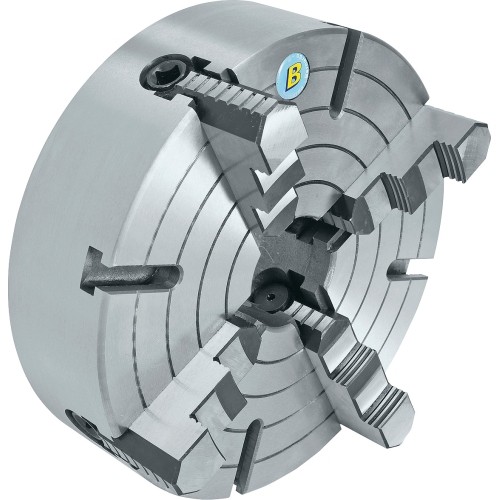

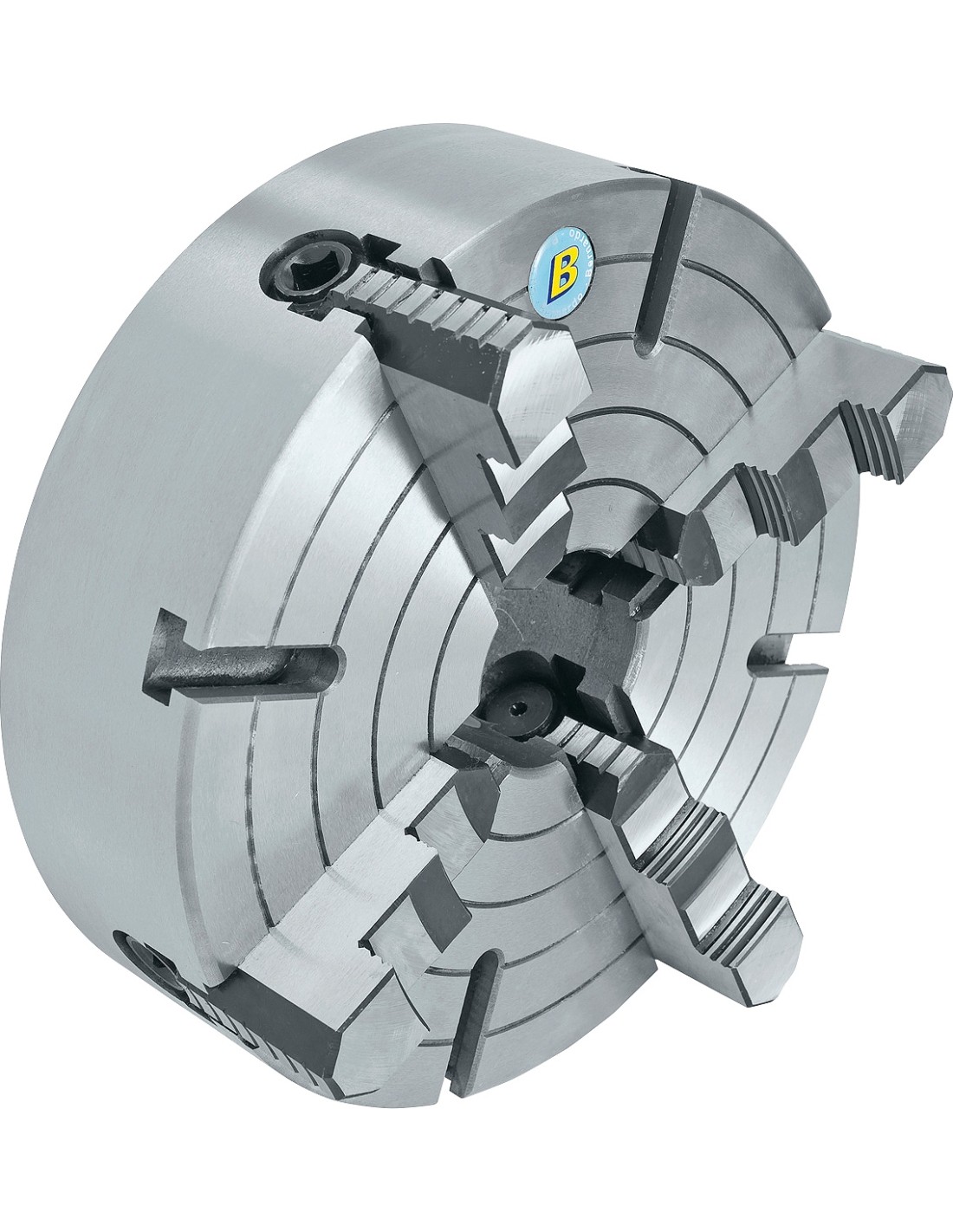

  • 4-jaw independent chuck made out of cast iron
  • With Camlock- direct mount according to DIN 55029
  • Four separate adjustable jaws
  • Including milled T-slots from a diameter of 300 mm
  • Inclusive one set hard outside solid jaws



Application:

  • Useable for clamping of asymmetric and rectangular shaped workpieces on turning lathes

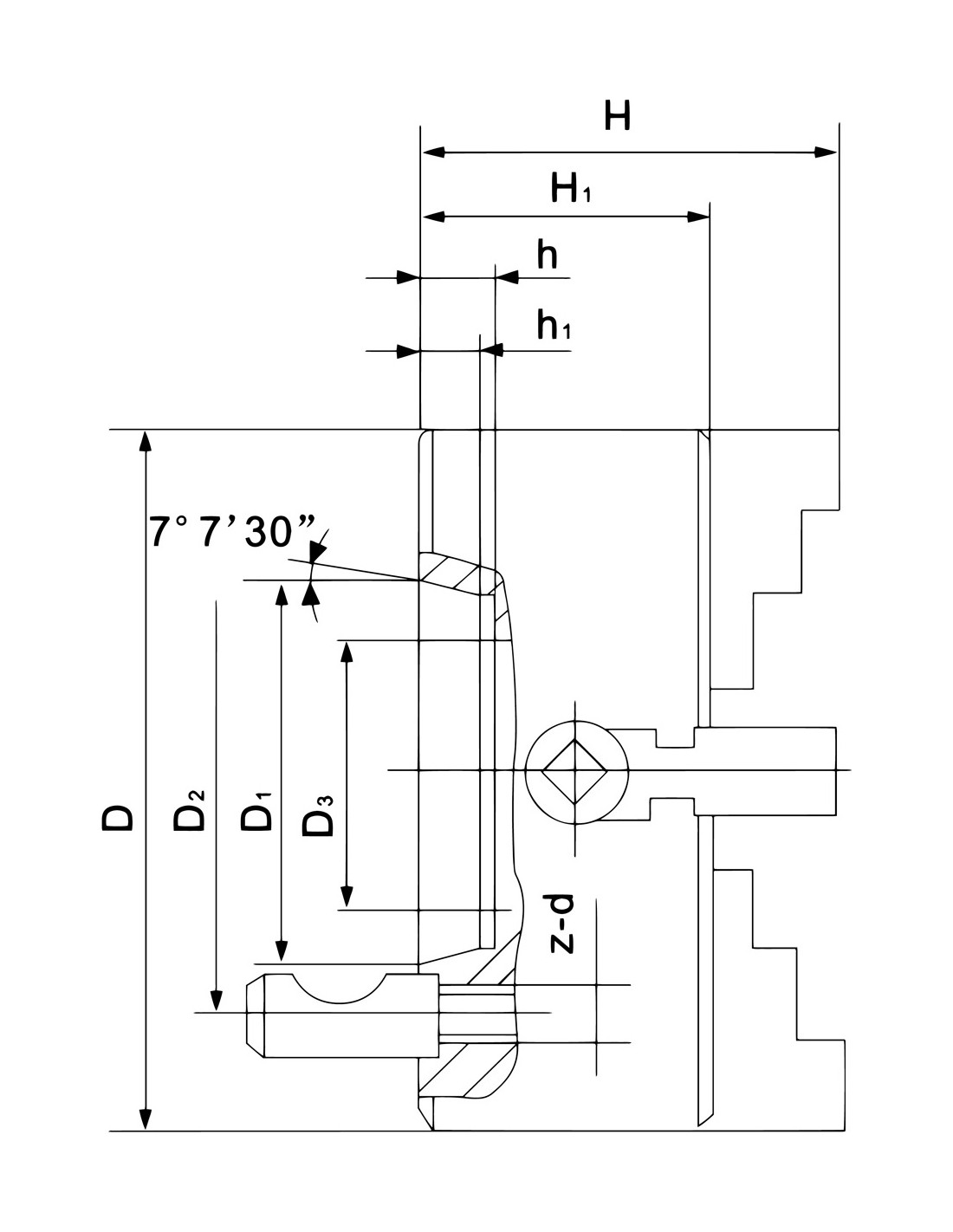

Technical specifications

Chuck size

160/D4

D - diameter

160 mm

Taper

4

D1 (max.)

63,51 mm

D2

82,6 mm

D3

56 mm

H1

65 mm

Max. speed

1600 rpm

Weight approx.

15,7 kg
