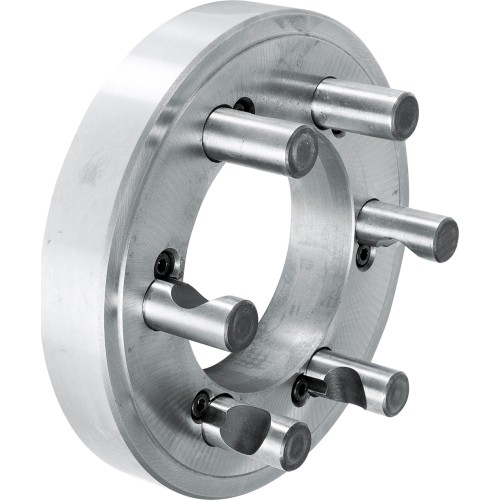

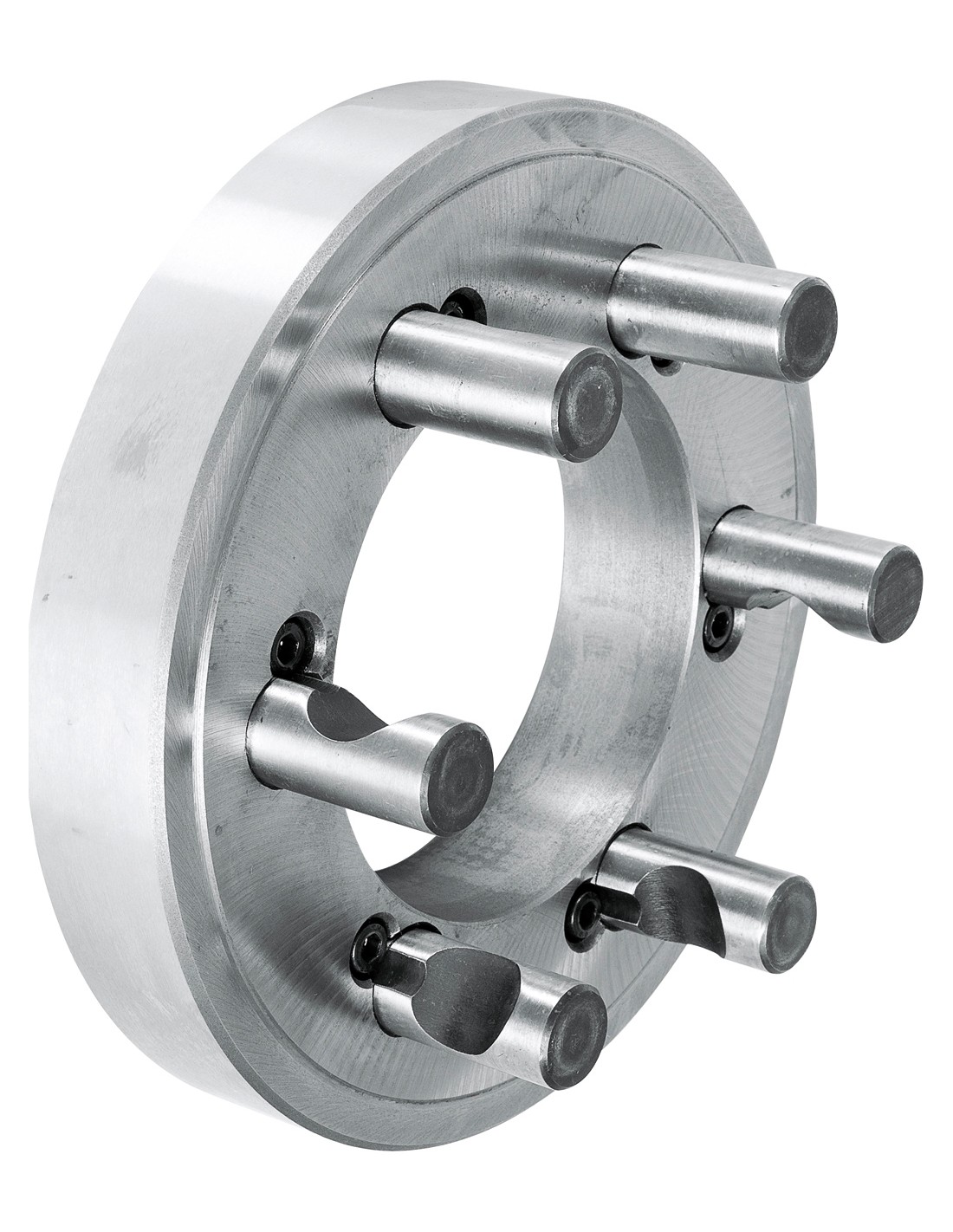

Flanšas Bernardo FL-200/D6
Flanšas Bernardo FL-200/D6
Flanšas Bernardo FL-200/D6
Flanšas Bernardo FL-200/D6

WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

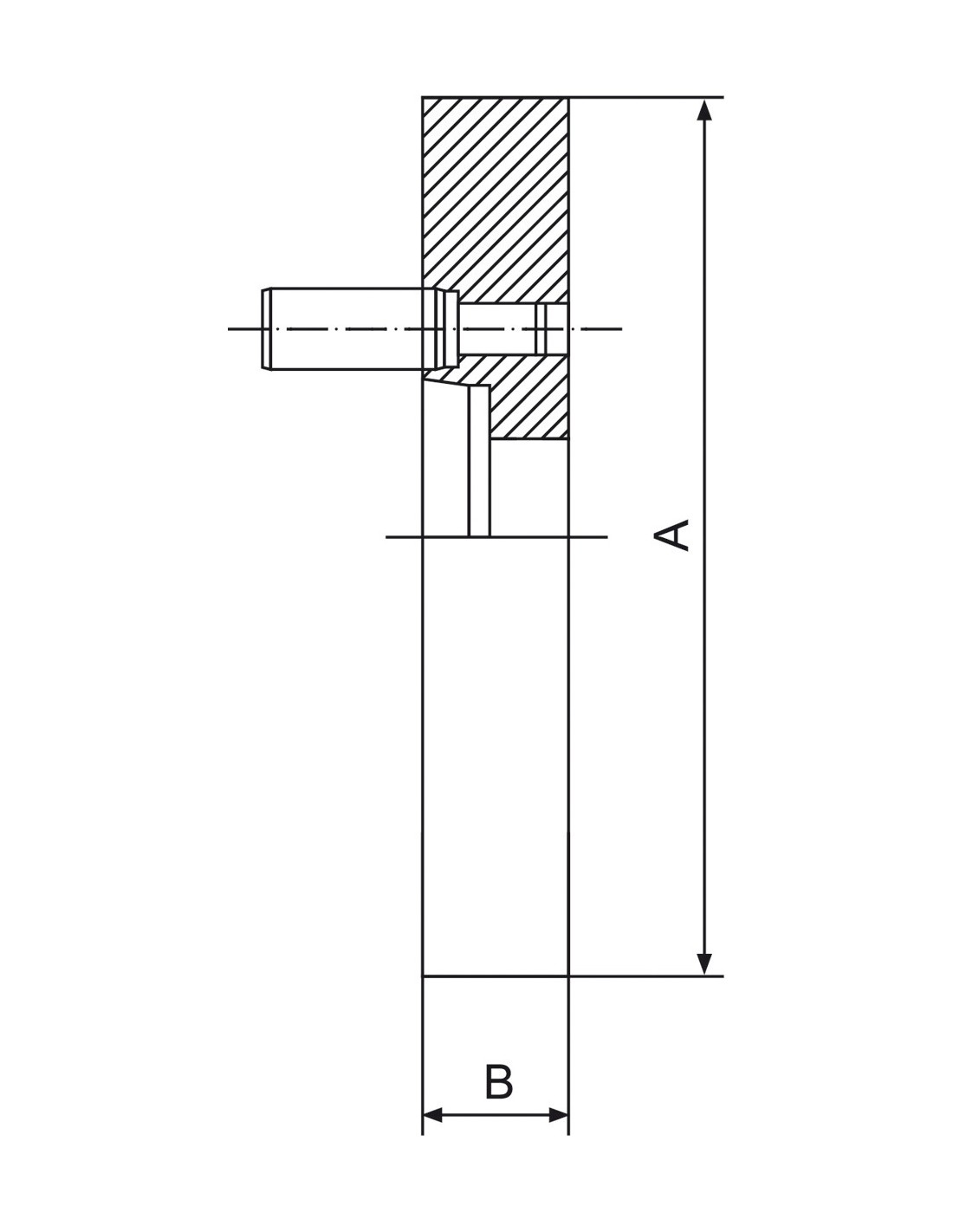

Diameter
200 mm
A
203 mm
B
39 mm
Taper
6
Flange size
200/D6
Passage
103 mm

Flanšas Bernardo FL-200/D6

1055115
€204.00
Tax included
Monthly payment from 10.92€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
NEMOKAMAI Prekę pristatysime Jums per: 5-10 d.d. Venipak (€0.00)

Description

Properties

Execution:

  • Flange out of cast iron
  • With Camlock-direct mount according to DIN 55029
  • Fully machined on machine side
  • Rough on chuck side



Application:

  • For mounting of celf-centering chucks and independent chucks with centre mount
