Suitable for cylinder liner 60-160 mm

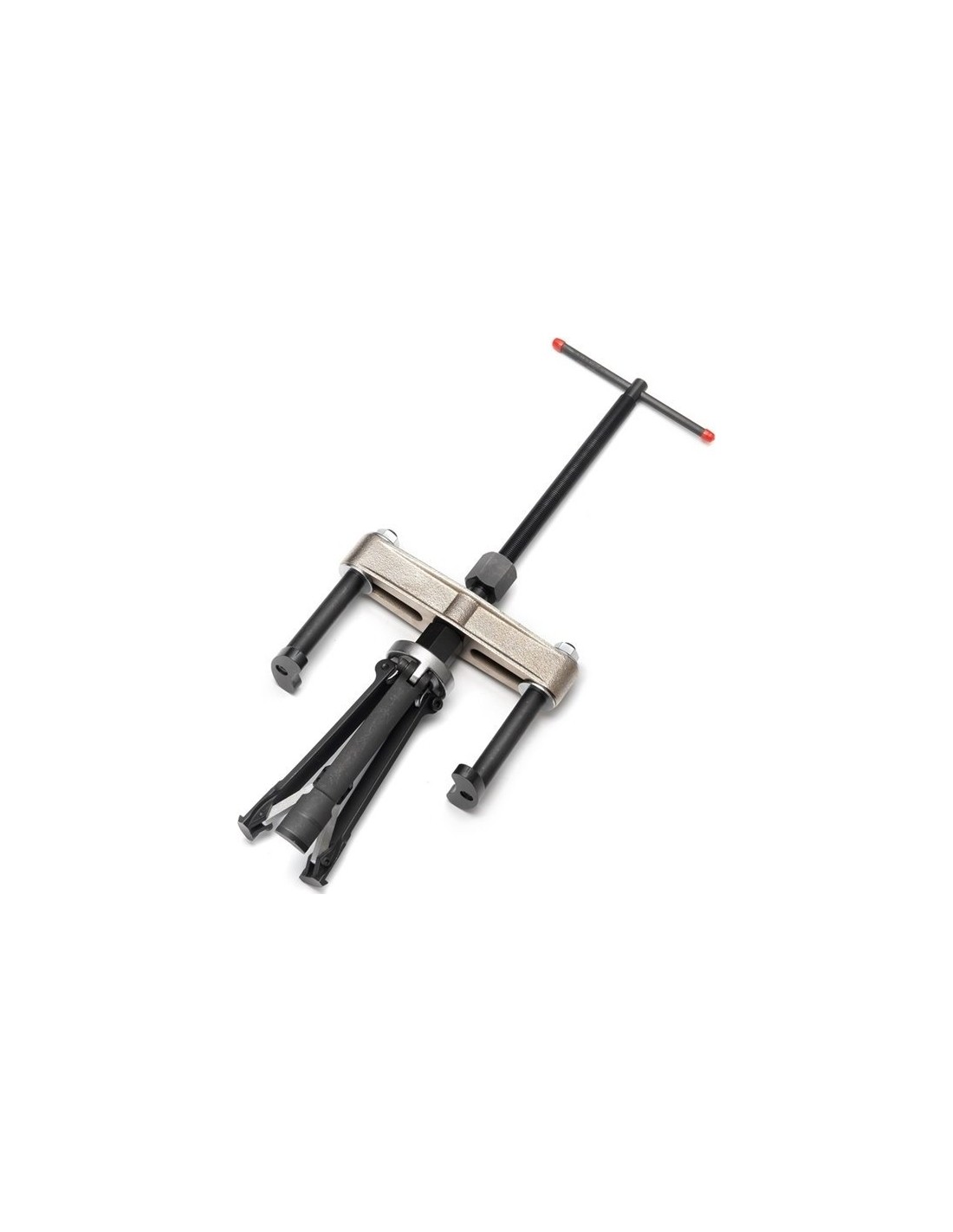

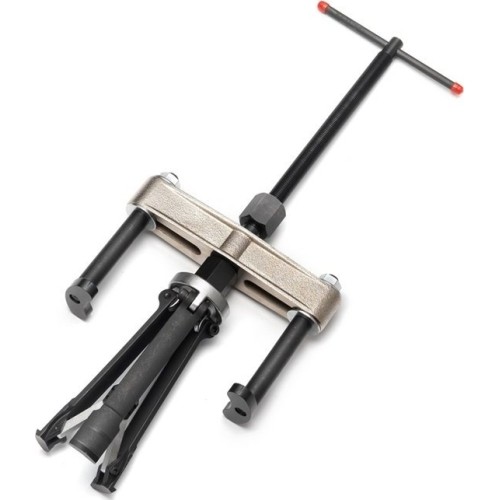

Cylinder liner puller complete with support brace.
Wet heavy-vehicle (e.g. Mercedes Benz, MAN) cylinder liners, automobile and
stationary-engine liners, and other parts may be extracted using this puller
Operation: The spindle of the counter-support brace is screwed into the clamping
nut of the puller, and the puller inserted into the liner. The counter-support brace is
placed on to the cylinder block. Due to the newly-developed spreading system, when
the spindle is turned, all three jaws spread quickly and without difficulty, until they are
firmly seated beneath the edge of the liner. Then the nut of the counter-support brace
is tightened.
