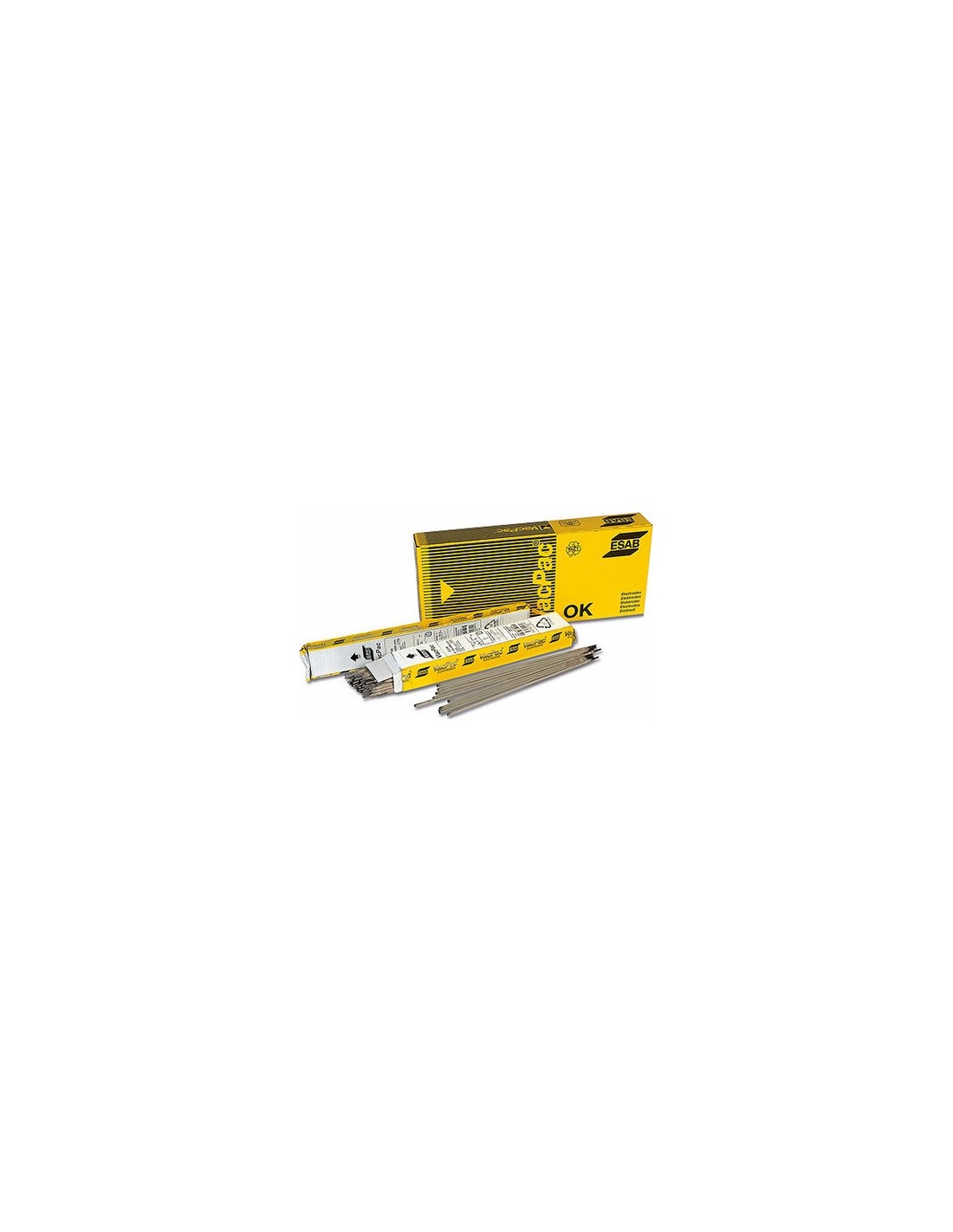

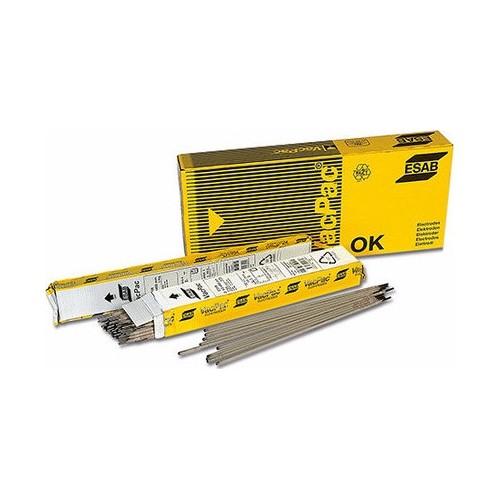

Electrode ESAB OK 92.58 NiCrMo-3 - 2.5mm x 300mm / 0.6kg

WARRANTY

Classifications: EN ISO 14172 : E Ni 6625 (NiCr22Mo9Nb)
Approvals: VdTÜV : 12414
Alloy Type: Ni-based CrMoNb
Welding Current: DC+
Ferrite Content: FN 0
Coating Type: Basic
Packaging: 2.5mm x 300mm / 0.6kg
Diameter (Ø): 2.5mm

Brand

Electrodai ESAB OK 92.58 NiCrMo-3 - 2.5mm x 300mm / 0.6kg

Name: Electrodai ESAB OK 92.58 NiCrMo-3 - 2.5mm x 300mm / 0.6kg
Brand: ESAB
SKU: 1264384
Price: 82 EUR
Availability: InStock

Reference 1264384

Price €82.00 VAT incl.

‹

2.5mm x 300mm / 0.6kg

4.0mm x 350mm / 1.3kg

›

Fast Delivery

Stock Quantity:

Kaunas Shop
(5+ pcs)

Central warehouse
not available

In Supplier store
(5+ pcs)

Delivery terms:

FREE pick up tomorrow, in the store, Raudondvario pl. 141, Kaunas (€0.00)

FREE We will deliver the product to you via: 1-2 w.d. Venipak (€0.00)

FREE We will deliver the product to you via: 1-2 w.d. Venipak pickup (paštomatas) (€0.00)

Description

Ni-based CrMoNb electrode for welding of Ni-alloys of the same or similar type as e.g. Inconel 625, for welding of 5% and 9% Ni steel. The electrode is very suitable for welding of 254 SMO, i.e. UNS S31254 steel.

Specifications

Approvals are based on factory location. Please contact ESAB for more information.

Typical Tensile Properties
Condition	Yield Strength	Tensile Strength	Elongation
ISO
As Welded	520 MPa	820 MPa	38 %

Typical Charpy V-Notch Properties
Condition	Testing Temperature	Impact Value
ISO
As Welded	-196 °C	65 J
As Welded	20 °C	70 J

Typical Weld Metal Analysis %
C	Mn	Si	Ni	Cr	Mo	Nb	Fe
0.03	0.2	0.4	62.8	21.7	9.3	3.3	2.0

Deposition Data
Diameter	Current	Voltage	Efficiency (%)	Fusion time per electrode at 90% I max	Deposition Rate
2.5 x 300.0 mm	55-75 A	23 V	55 %	40 sec	0.9 kg/h
3.2 x 350.0 mm	65-100 A	25 V	56 %	52 sec	1.4 kg/h
4.0 x 350.0 mm	80-140 A	27 V	58 %	57 sec	1.9 kg/h
5.0 x 350.0 mm	120-170 A	24 V	58 %	72 sec	2.1 kg/h
