WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
107 kg
Motor power
1,1 kW
Machine dimension (W x D x H)
700 x 230 x 520 mm
Voltage
400 V
Hydraulic pipe S235JR
54 x 4 mm
Aluminium pipe
54 x 5 mm
Steel pipe
54 x 2 mm
Staindless steel pipe AISI 304/316
42 x 3 mm
Copper or brass pipe
54 x 4 mm
Gas pipe for pipelines
1 1/2“
Max. bending angle
180°
Max. bending radius
150 mm

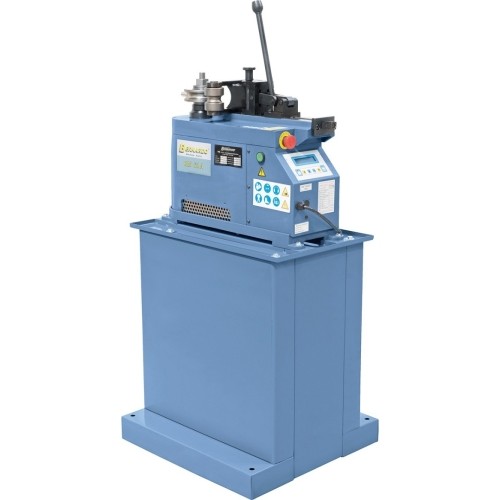

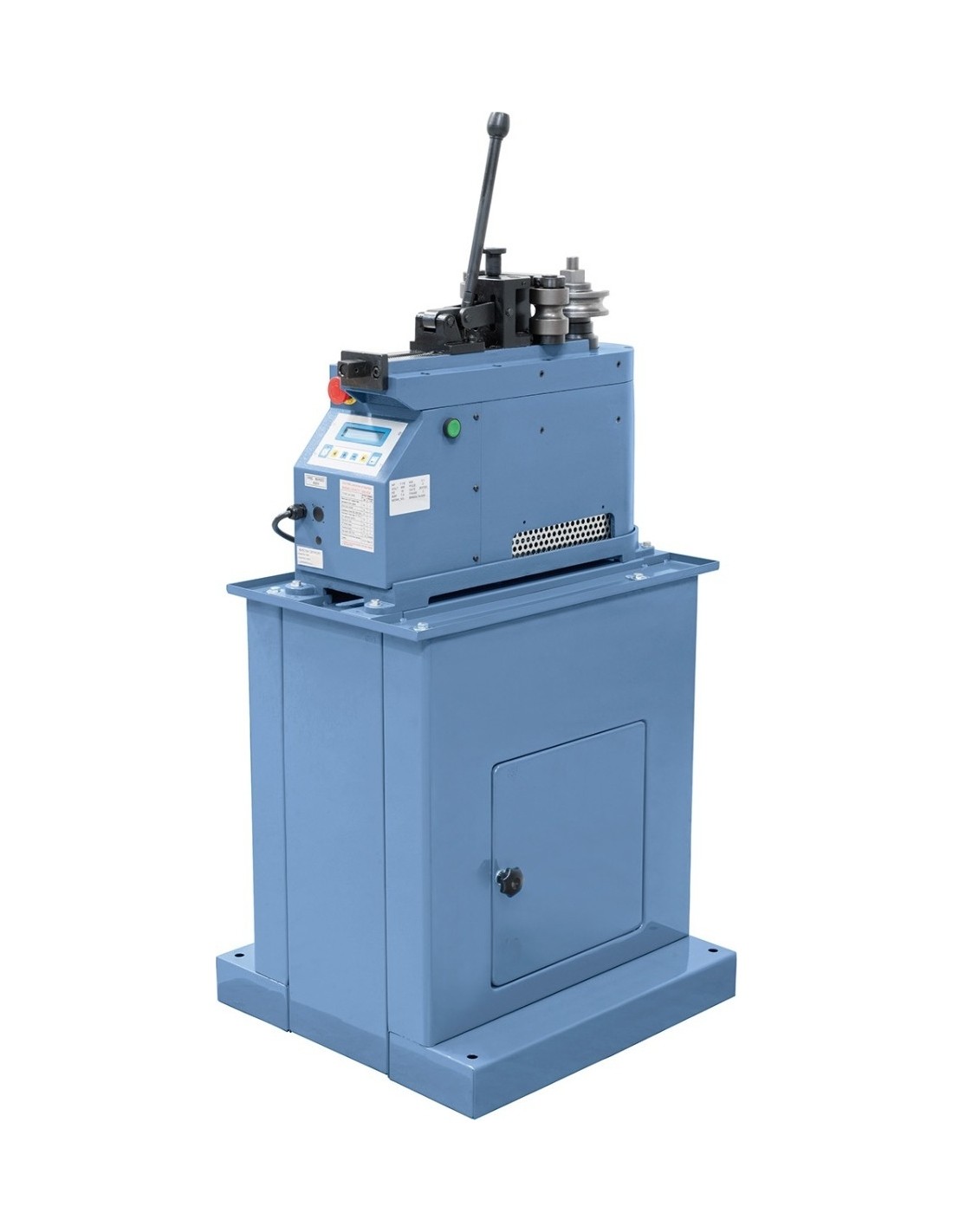

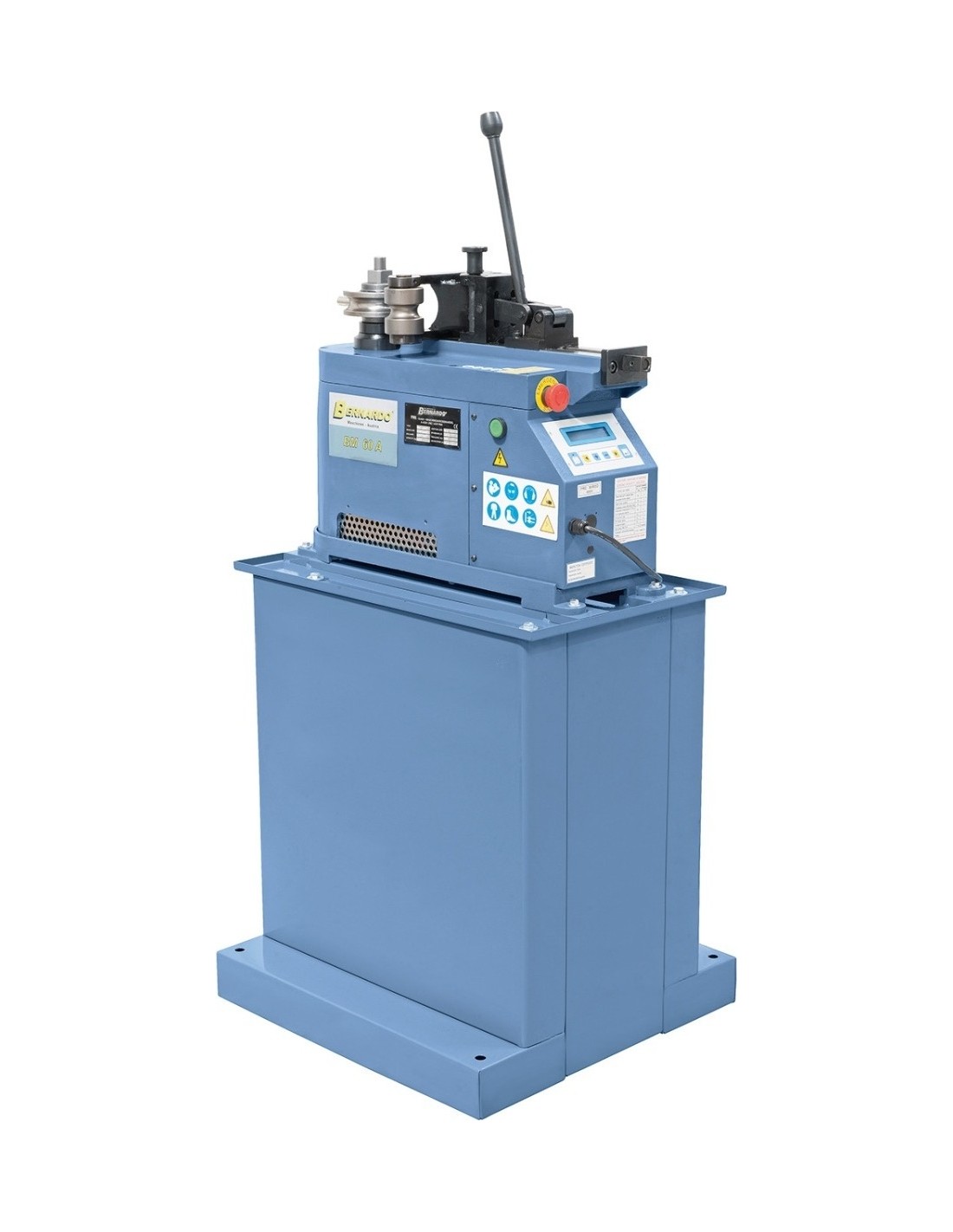

BM 60 A

1310331
Price €5,550.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up friday, august 29 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 107 kg.
We will deliver the product to you via: 5-10 w.d. Venipak (€40.99)
Weight: 107 kg.

Description

Properties

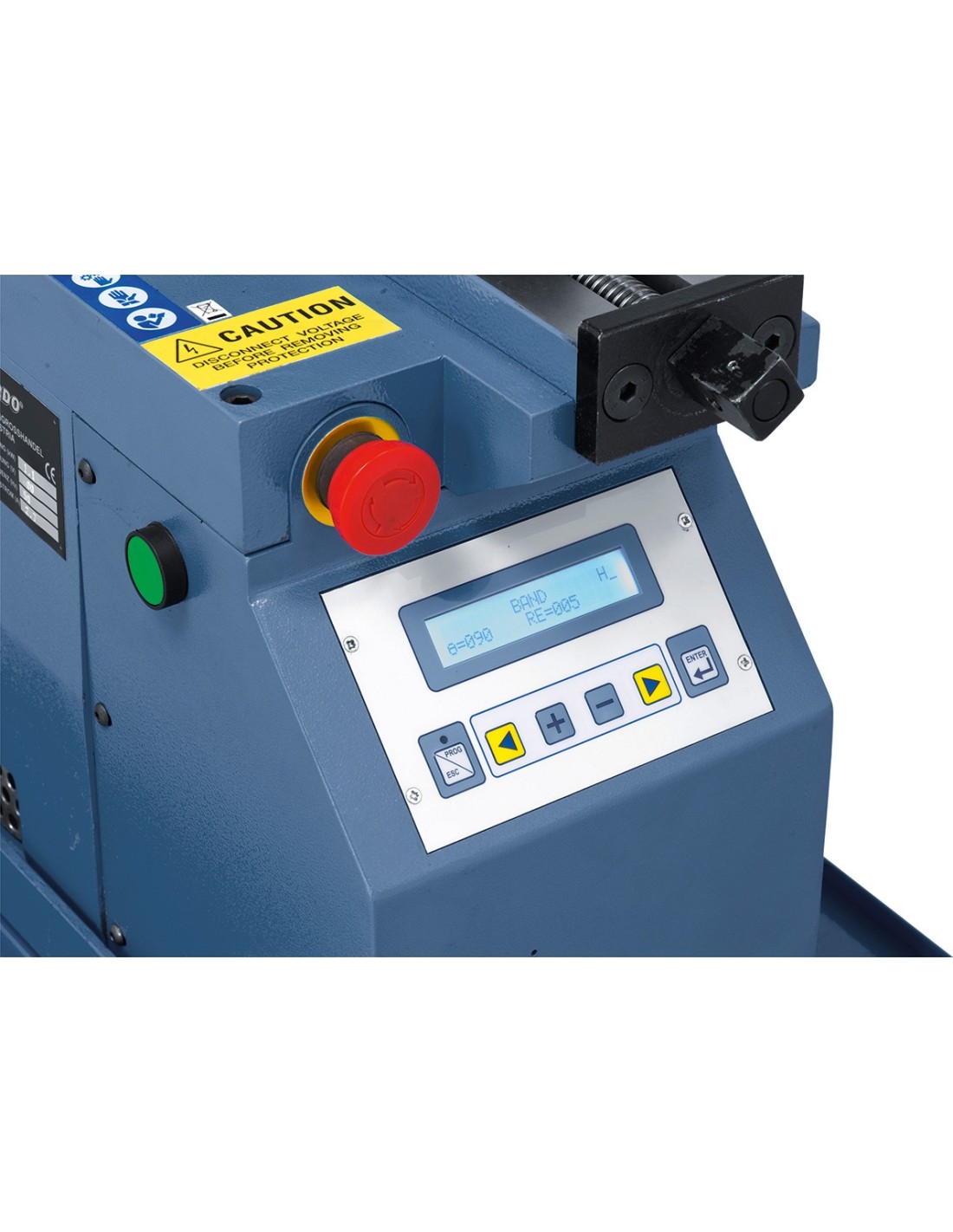

  • Including NC-control for bending angle adjustment, memory for up to 50 programs
  • Standard with quick adjustment of the counter roller holder or the optional bending shoe
  • For cold bending of pipes out of steel, stainless steel, aluminium, copper, brass etc.

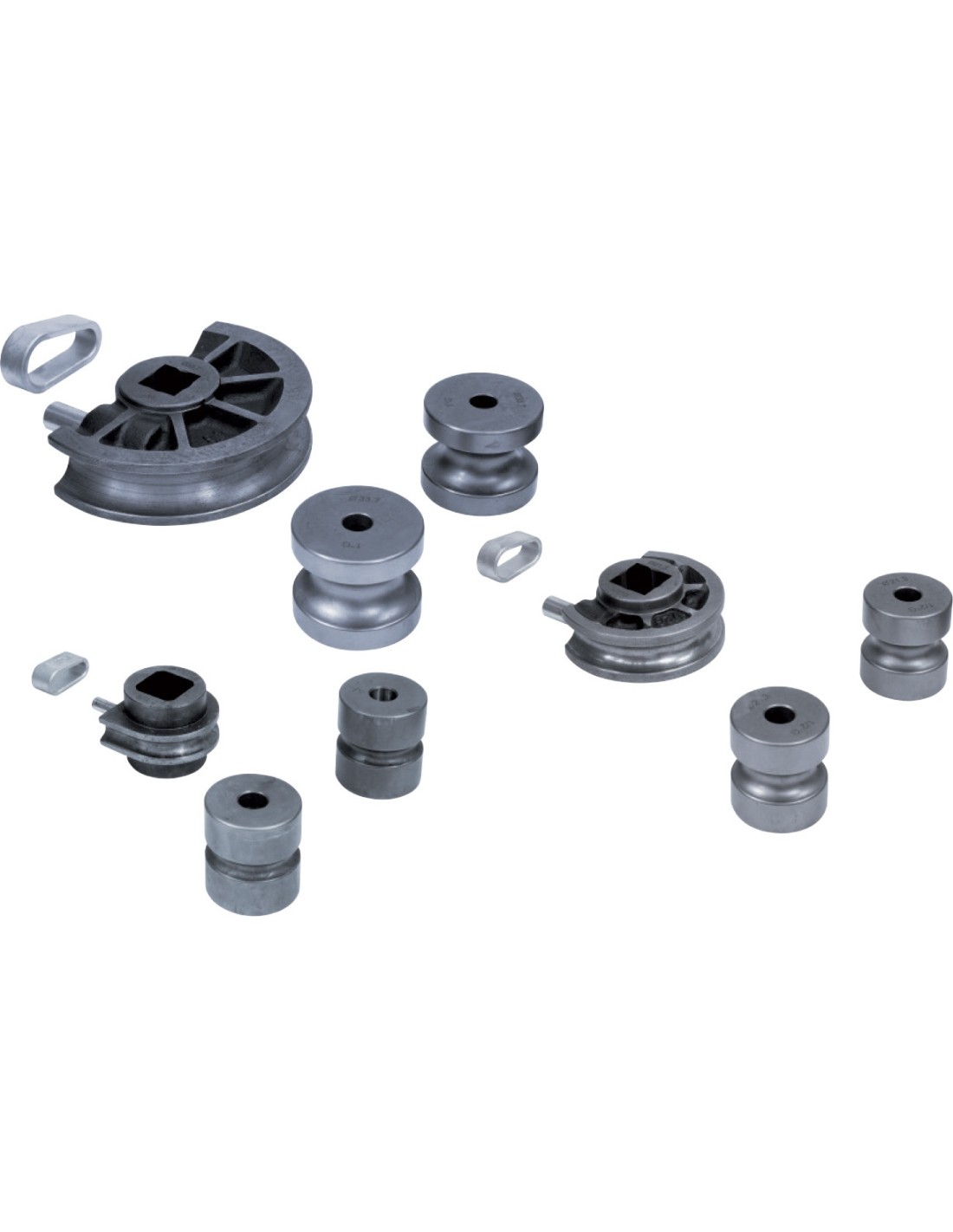

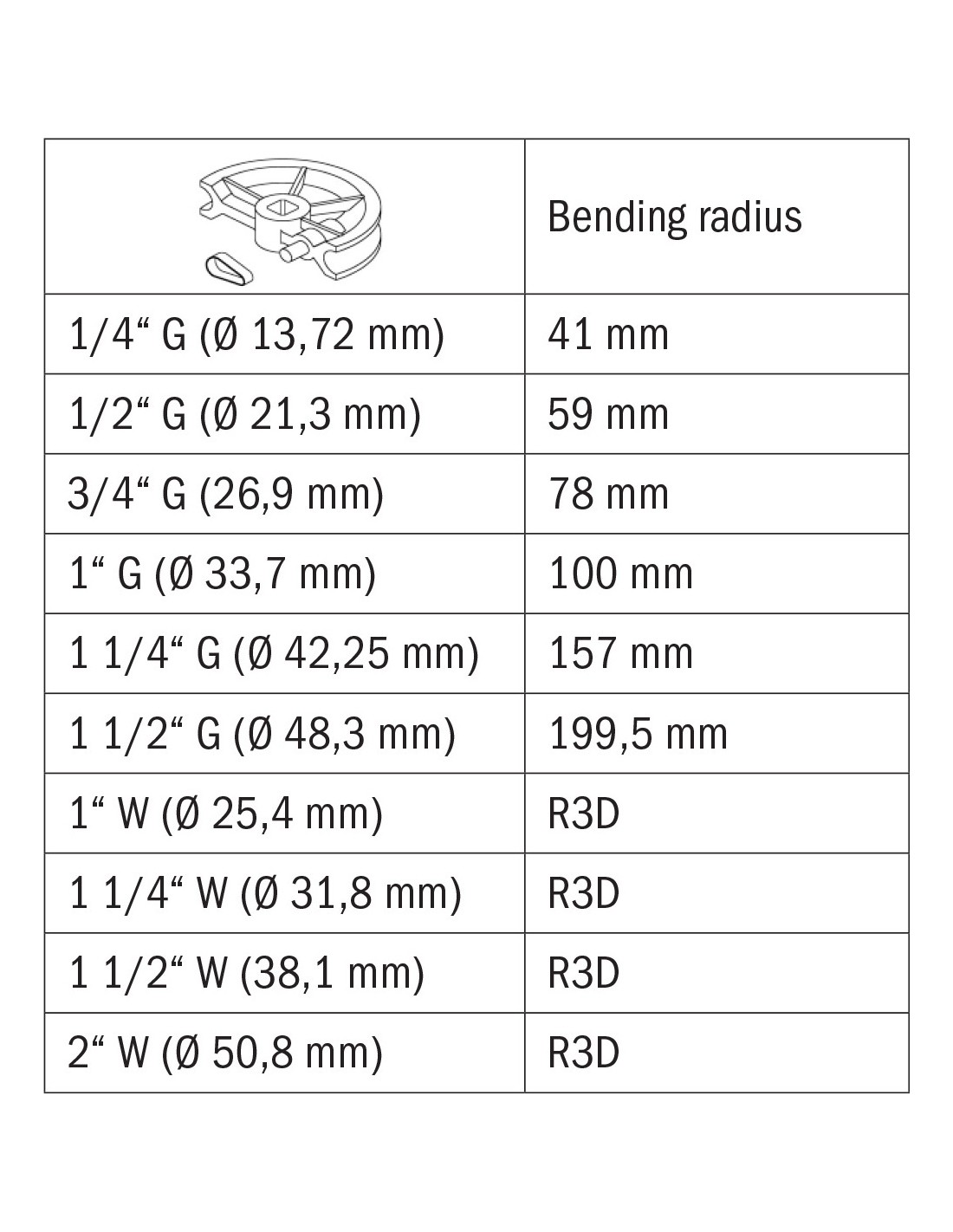

  • Bending formers for various pipe diameter optional availble
  • For optimum bending results at wall thicknesses of up to 2.5 mm, a bending shoe is available as an option
  • Optimized geometry of the bending formers, thus very short, straight pipe end
  • After the end of the program automatic reset to the starting position

Standard accessories

  • NC-control
  • Support for counter rolls
  • Quick adjustment
  • Two-hand safety operation
