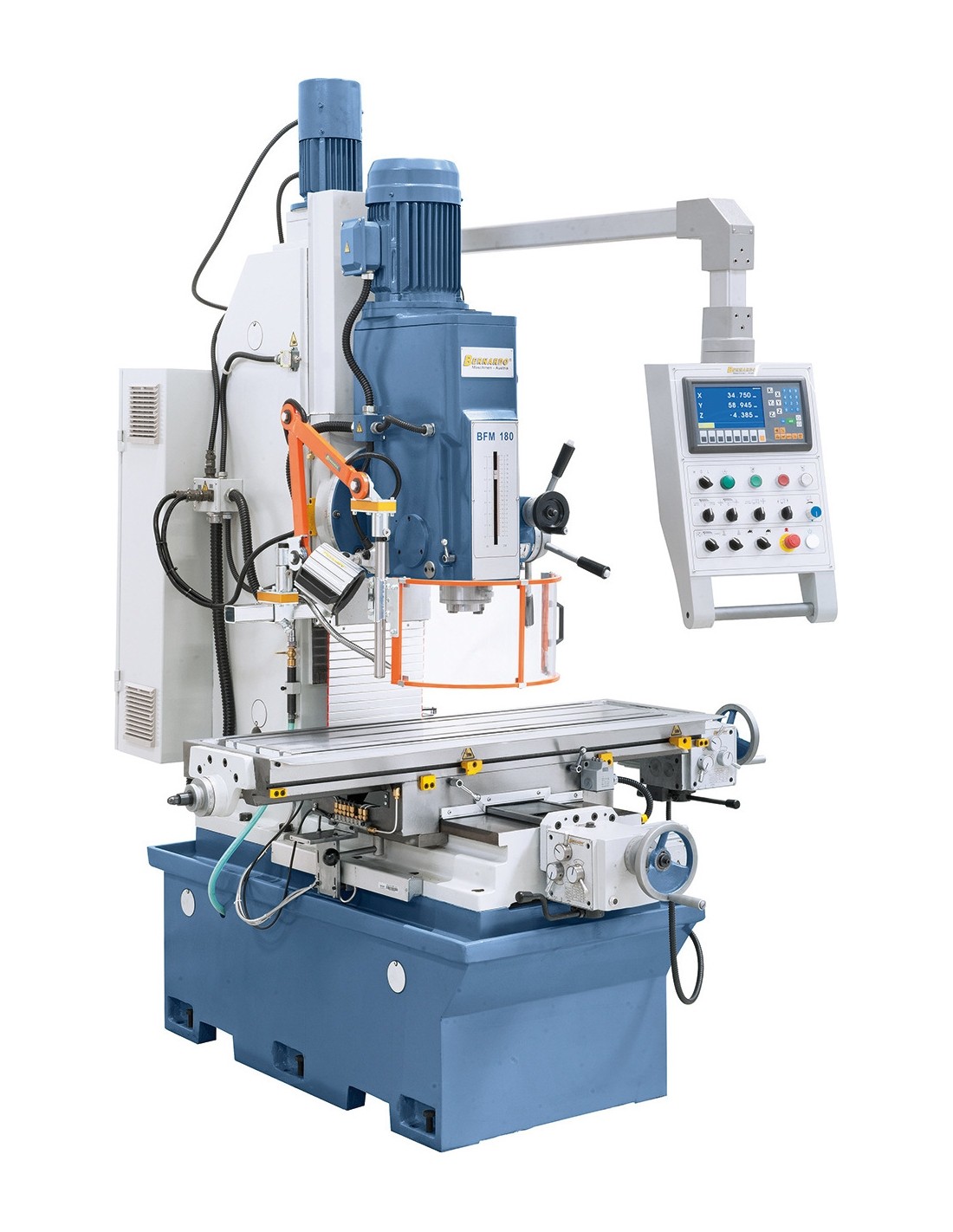

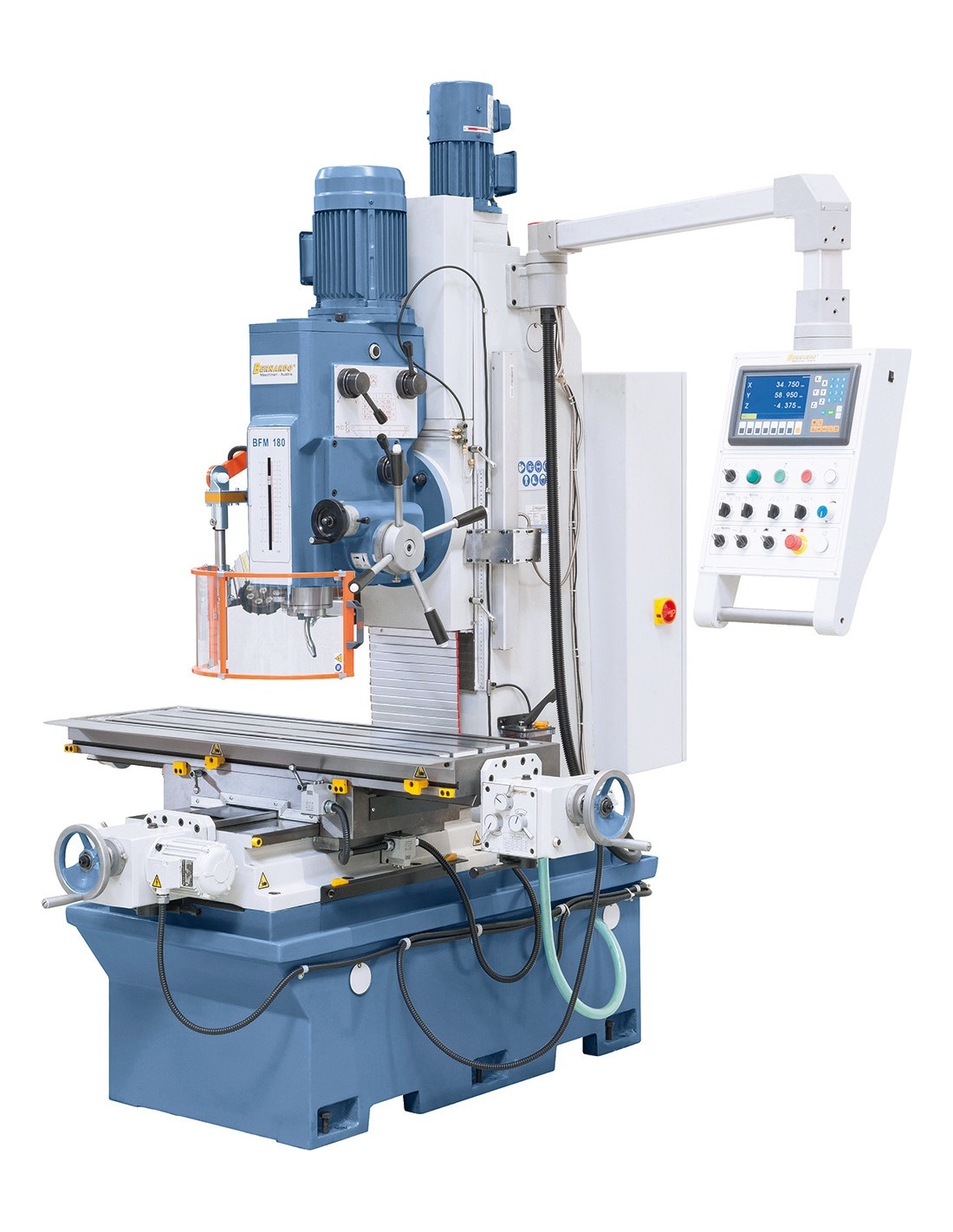

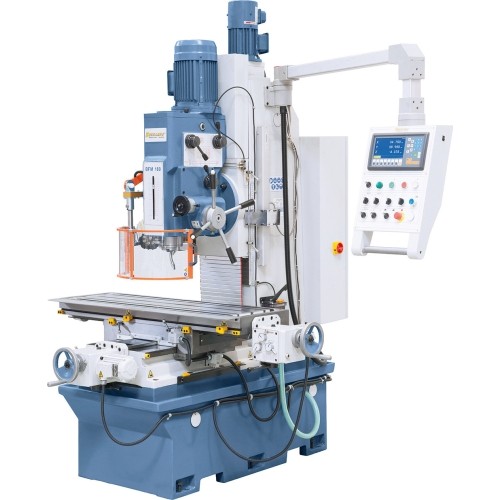

Vertikalios frezavimo staklės Bernardo BFM 180

WARRANTY

Spindle taper: ISO 40
Weight approx.: 1400 kg
Motor power: 1,5 / 2,4 kW
Distance spindle to column: 370 mm
Spindle stroke: 180 mm
T-slot size: 14 mm
Table size: 1220 x 360 mm
Machine dimensions (W x D x H): 1770 x 1800 x 2320 mm
Distance spindle to table: 110 - 610 mm
Spindle feed: 0,1 / 0,15 / 0,3 mm/rev.
Travel longitudinal (x): 600 mm
Travel cross (y): 360 mm
Travel vertical (z): 500 mm
Spindle speed vertical: (16) 94 - 2256 rpm

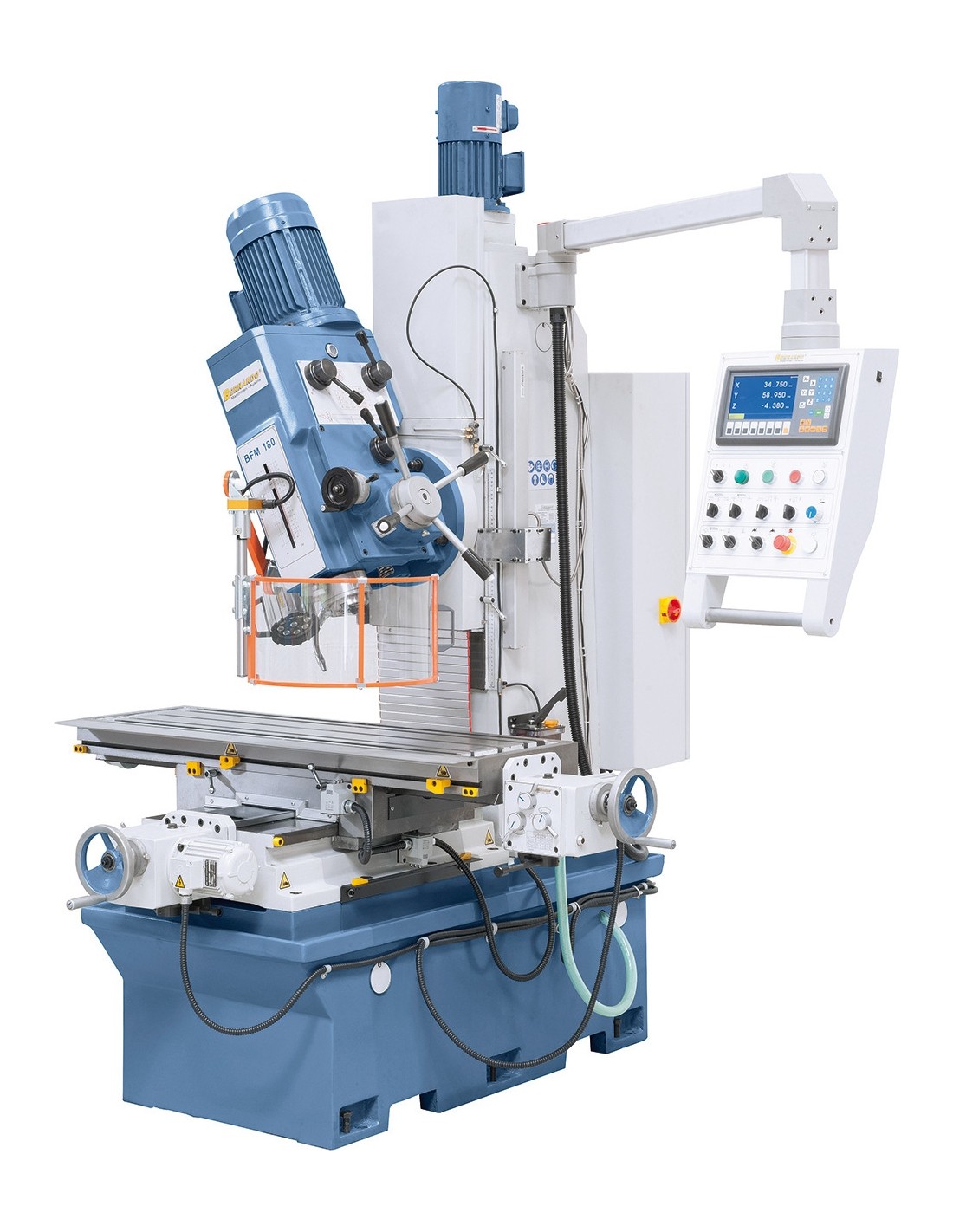

Spindle head tilting range: -45° to +45°
Feeding range longitudinal / cross: (8) 24 - 720 mm/min

Brand

Vertikalios frezavimo staklės Bernardo BFM 180

Name: Vertikalios frezavimo staklės Bernardo BFM 180
Brand: Bernardo
SKU: 1052694
Price: 22704 EUR
Availability: PreOrder

Reference 1052694

€22,704.00

Tax included

Stock Quantity:

In S01 store
not available

In S02 store
not available

In Supplier store
(5+ pcs)

Delivery terms:

NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1400 kg.

Description

Properties

Frequency inverter allows stepless height adjustment of the mill head

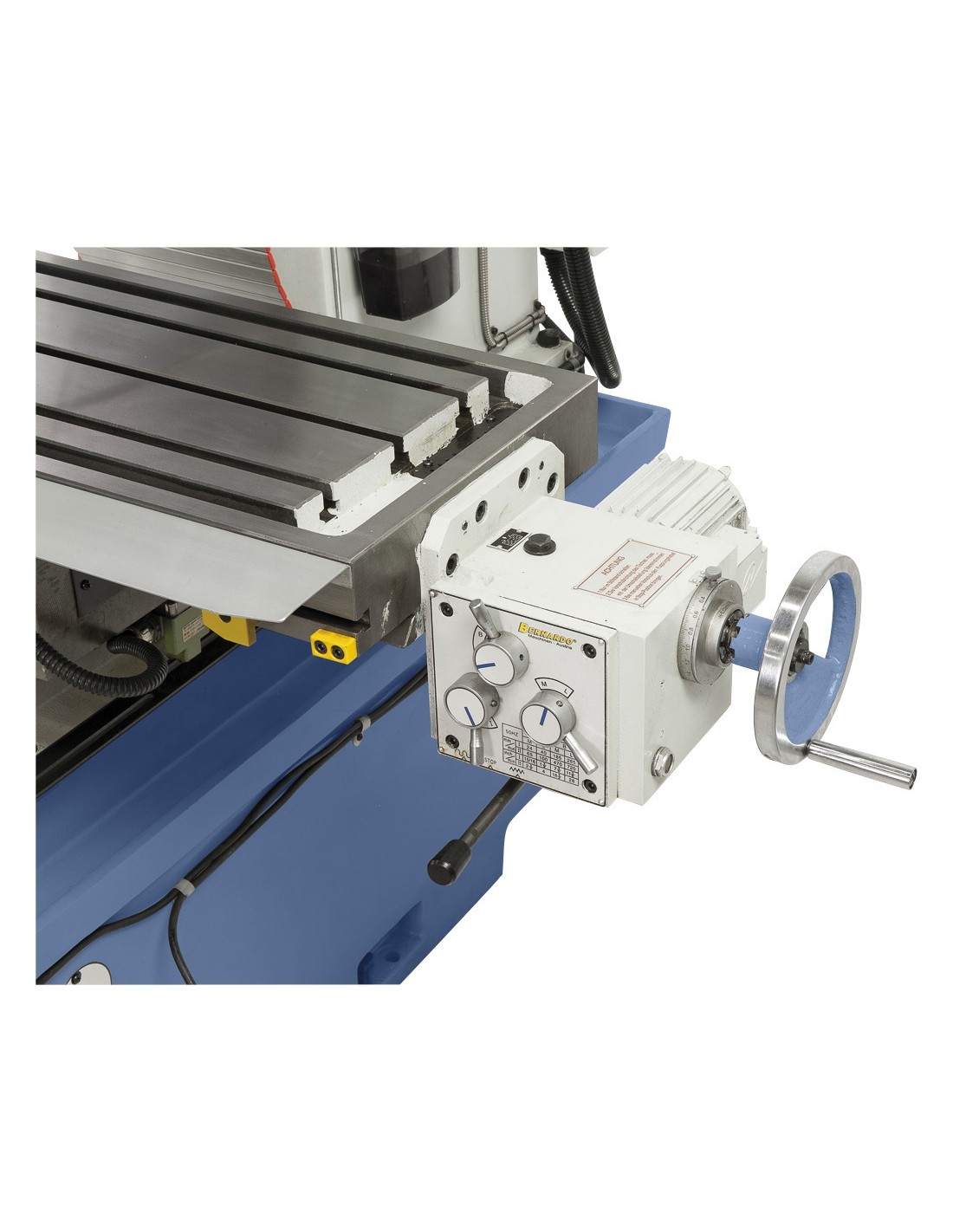

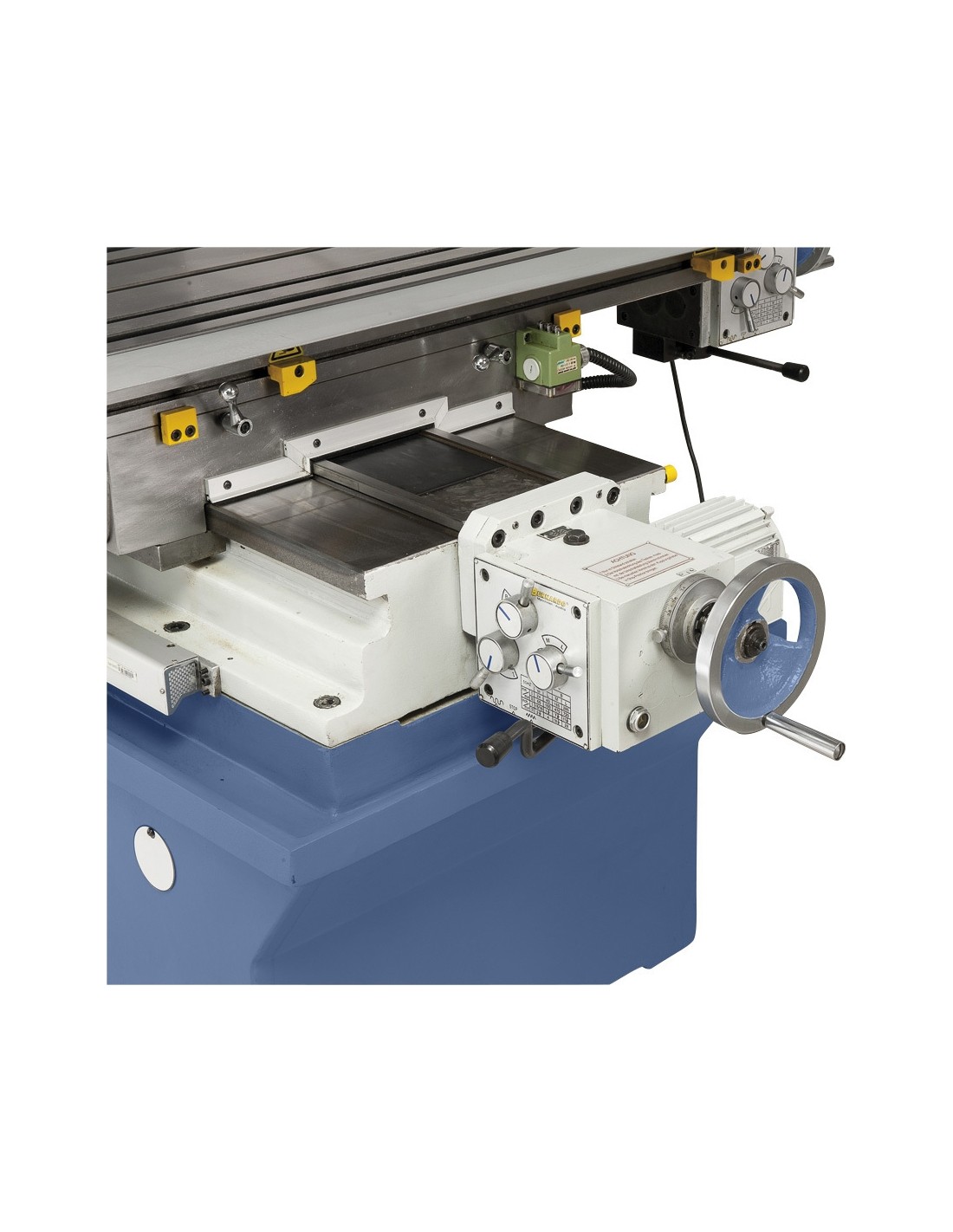

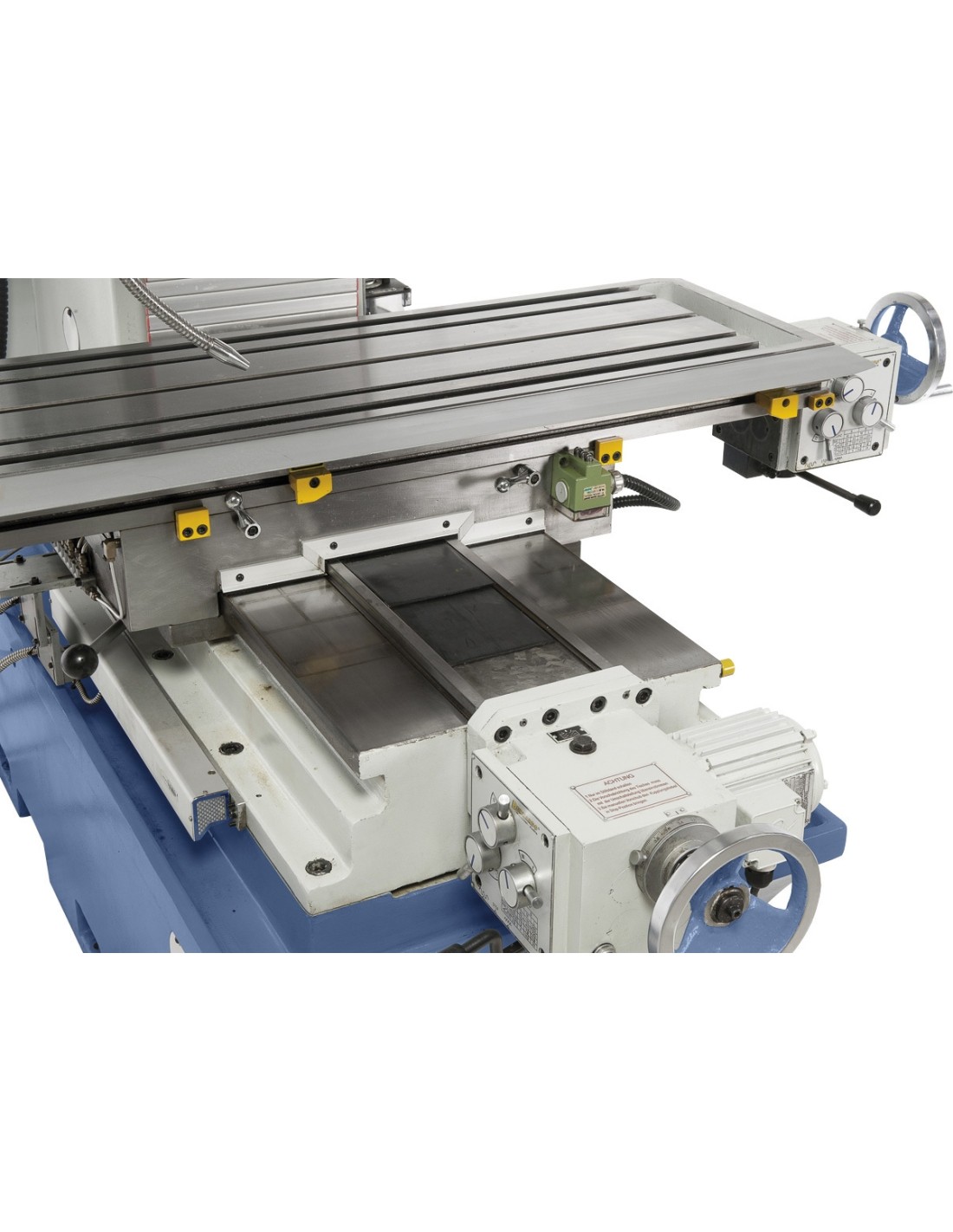

Automatic table feed with rapid feed allows quick table adjustment in x- and y-axis

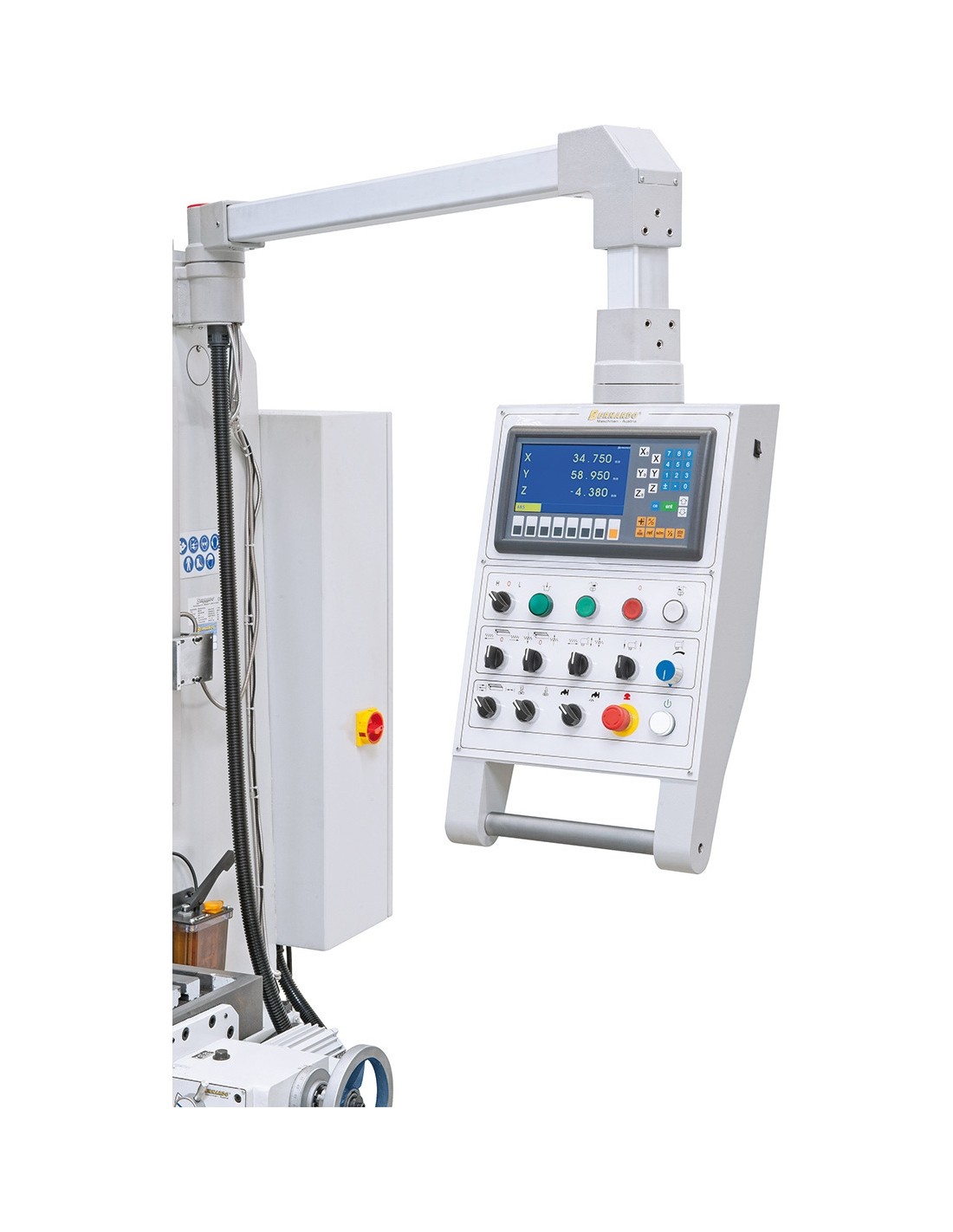

Complete with digital readout in all three axis to increase productivity
Automatic spindle feed (0.1 / 0.15 and 0.3 mm / rev.) comes standard
Use clutch to change from manual to fine feed
Wide speed range 94 - 2256 rpm
Large number of standard accessories
Robust, heavy machine design guarantees accurate results
Spindle feed via handwheel when milling
Spindle feed via star handle when drilling

Standard accessories

3-axis digital readout ES-12 H with LCD display
Drill chuck with arbor
Adapter ISO 40 / MT4, ISO 40 / MT3, ISO 40 / MT2
Taper shell end mill holder ISO 40 / 32 mm
Coolant device
Central lubrication
LED machine light
Adjustable protective device
Lifting motor for mill head
