- Tabletop dimensions [mm]
- 1500 x 1000
- Hole system, diameter [mm]
- 16
- Grid [mm]
- 100x100
- Tabletop thickness [mm]
- 12
- Legs
- Standard (without casters)

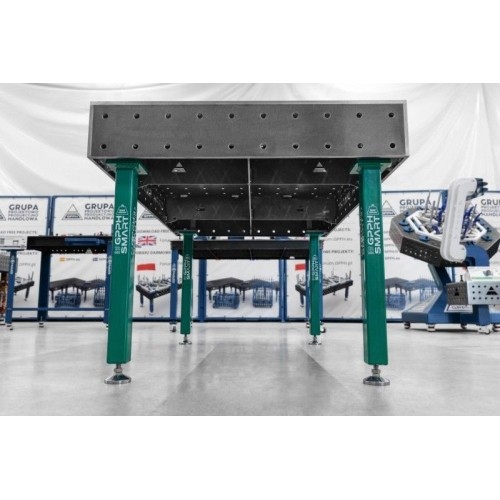

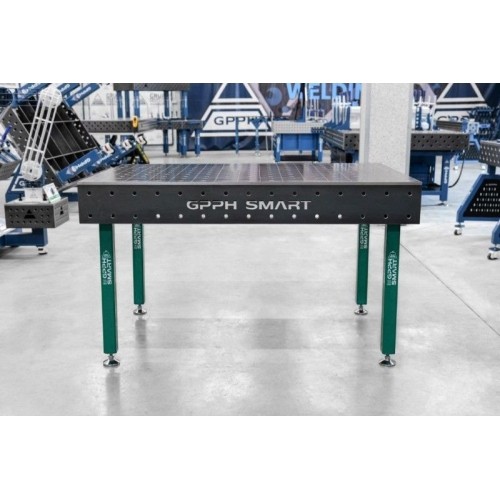

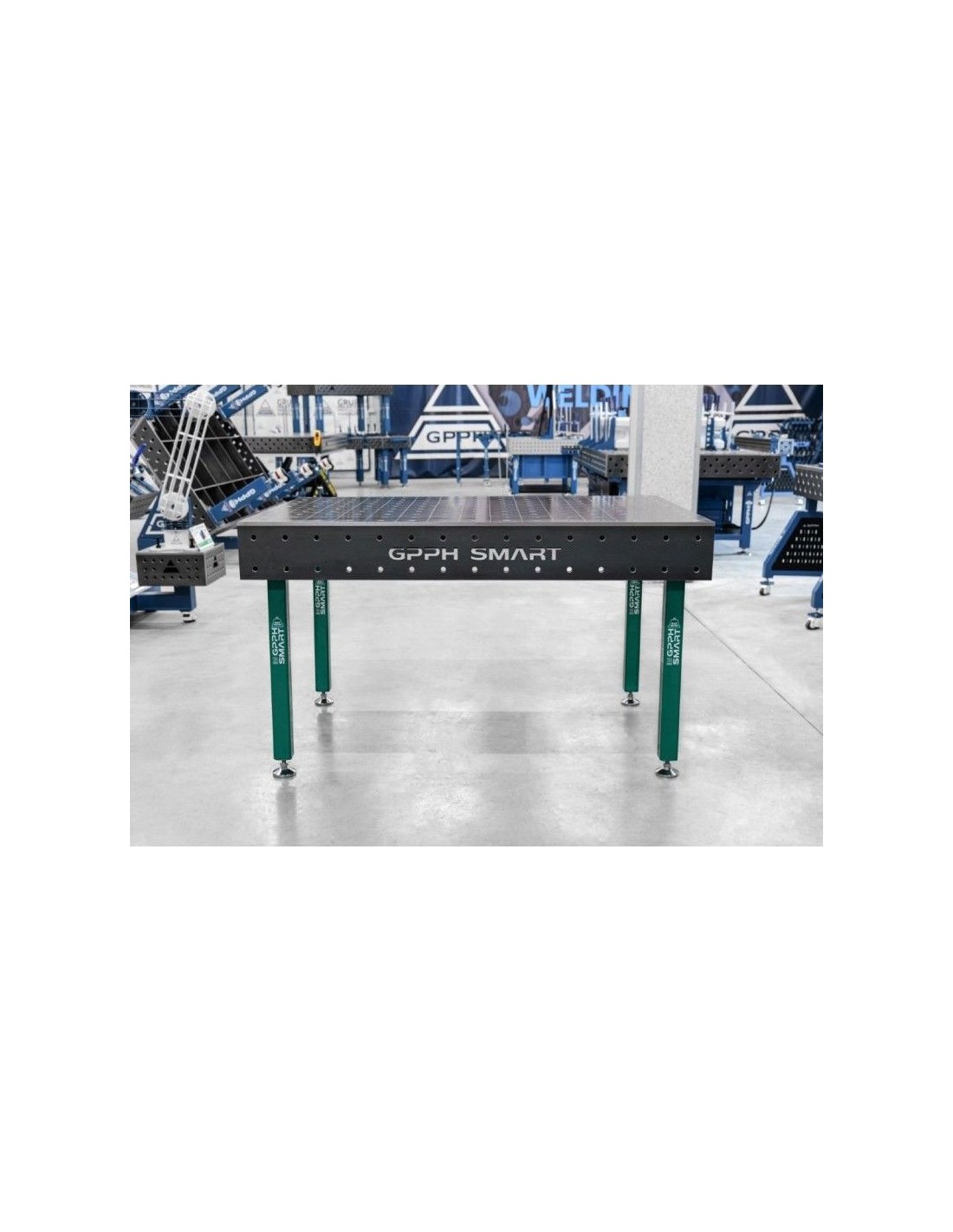

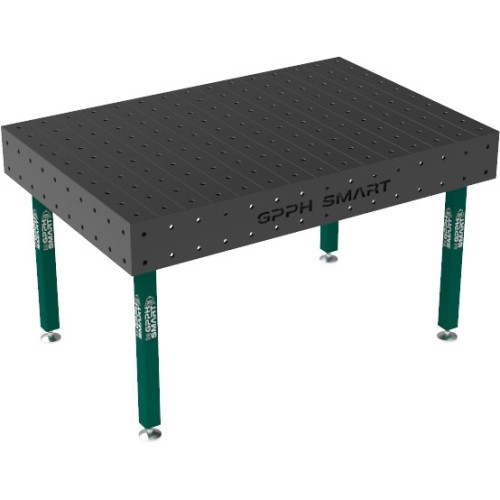

Welding table SMART 12 1500 × 1000 mm
1453285
Price
€1,008.00
VAT incl.
Stock Quantity:
Kaunas Shop
(1 pcs)
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up tomorrow, in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 271 kg.
We will deliver the product to you via: 1-2 w.d. Venipak
(€40.99) Weight: 271 kg.
Description
The GPPH SMART line of welding tables is designed for users who need robust, functional solutions without the advanced features of professional welding tables. GPPH SMART offers an ideal balance of performance and affordability, tailored to hobbyists and smaller workshops.
 |
 |

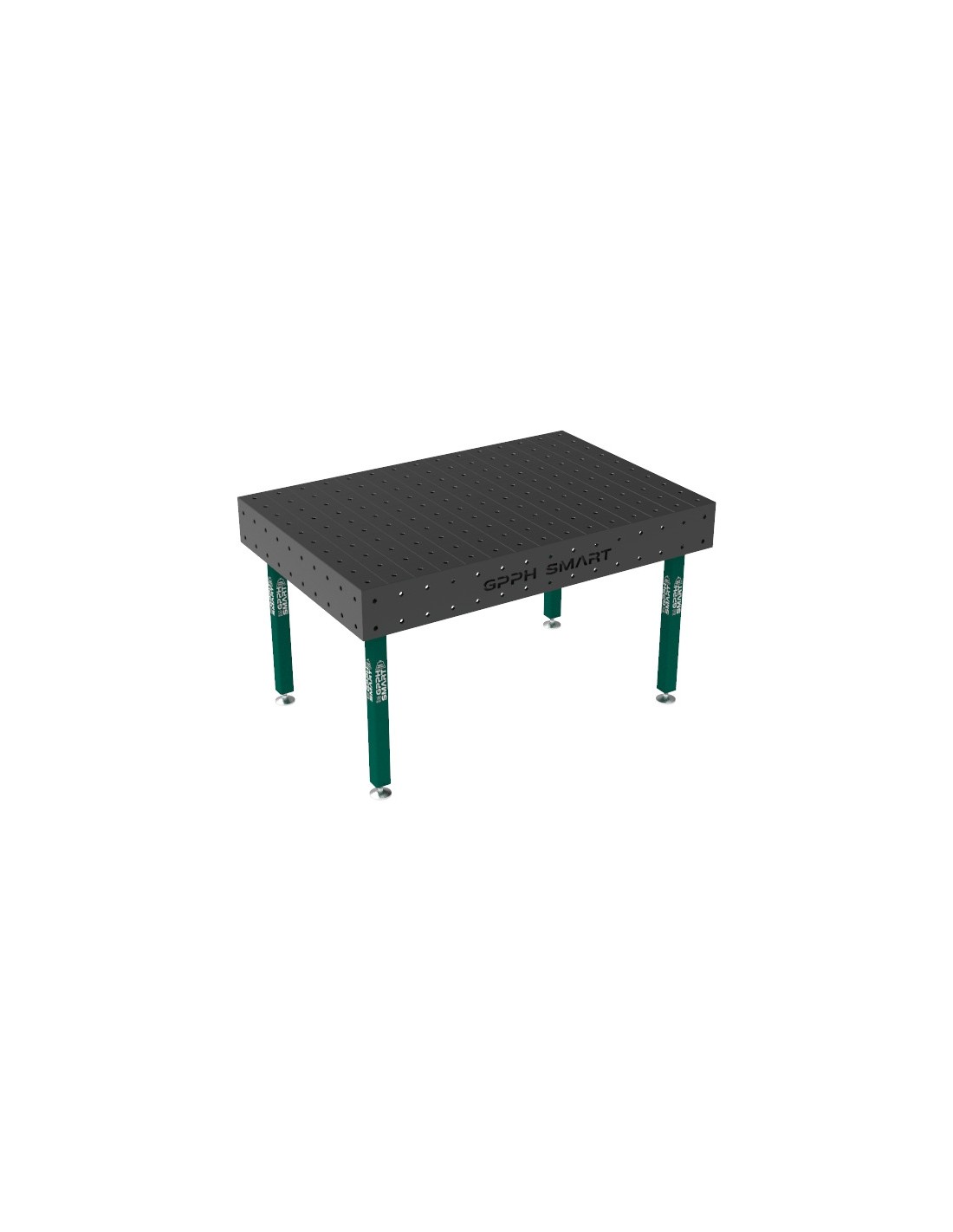

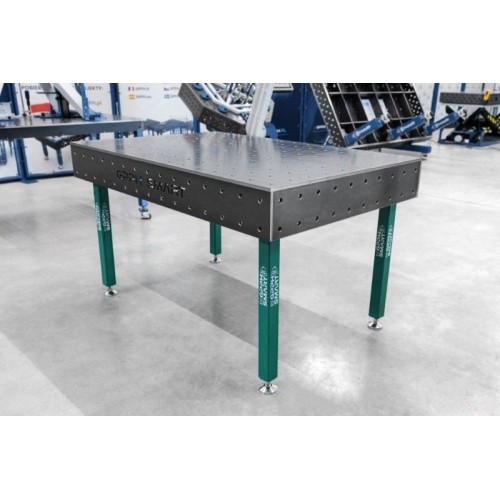

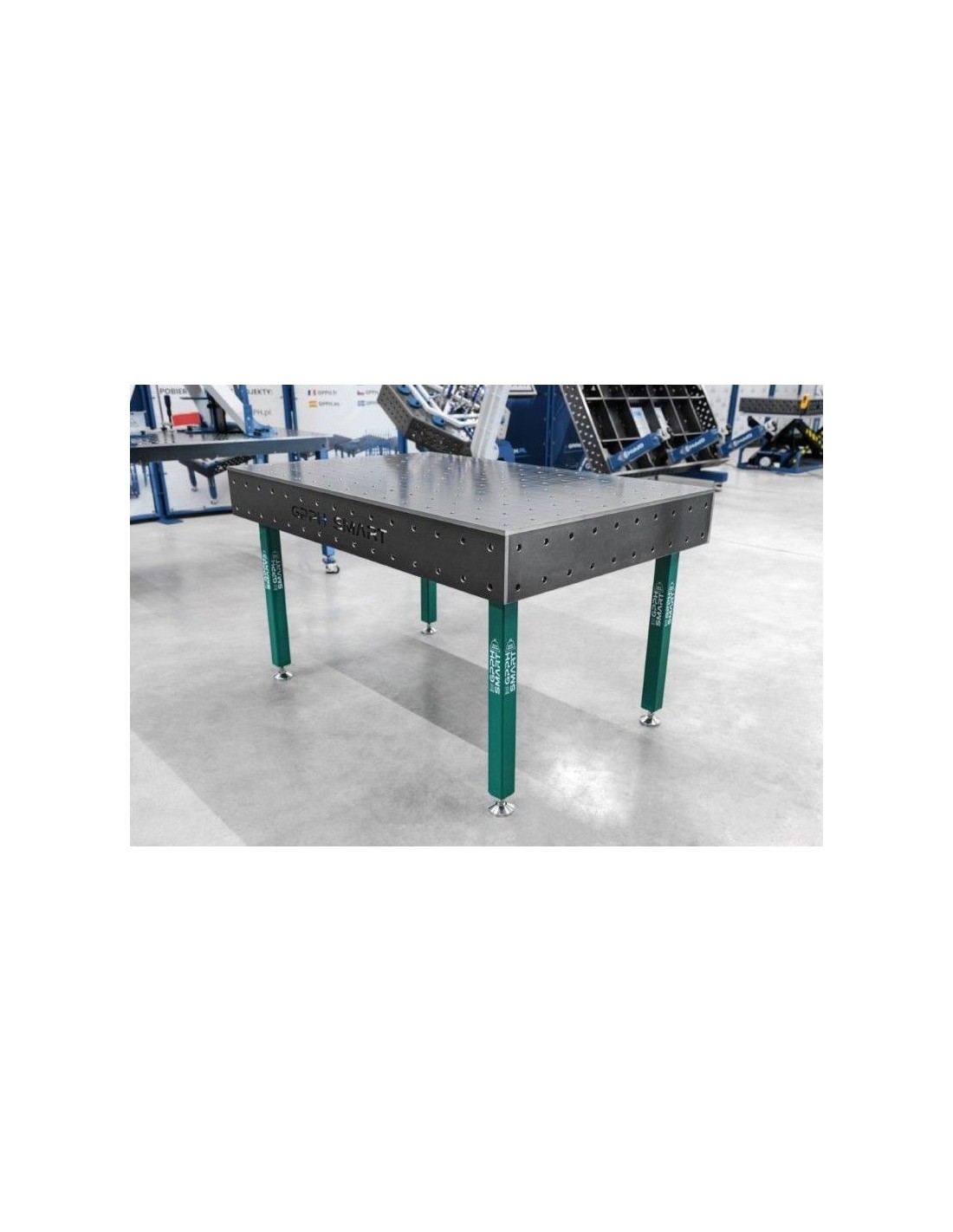

The GPPH SMART 12 welding table 1500x1000 mm features Ø28 and Ø16 hole systems with a 100x100 mm grid. This is the most versatile system.
 |
 |
Current selected configuration: GPPH SMART 12 welding table 1500x1000 mm in the Ø16 hole system, 100x100 mm grid, with standard legs (without casters).
The tabletop has milled and shaped holes. Thanks to the precise match between holes and tools, accessories can be assembled and disassembled easily during work. This also reduces wear, as installation and removal require little force. This design is one of the best solutions available on the welding table market. Manufacturing tolerance for the welding table holes is +0.05 mm.

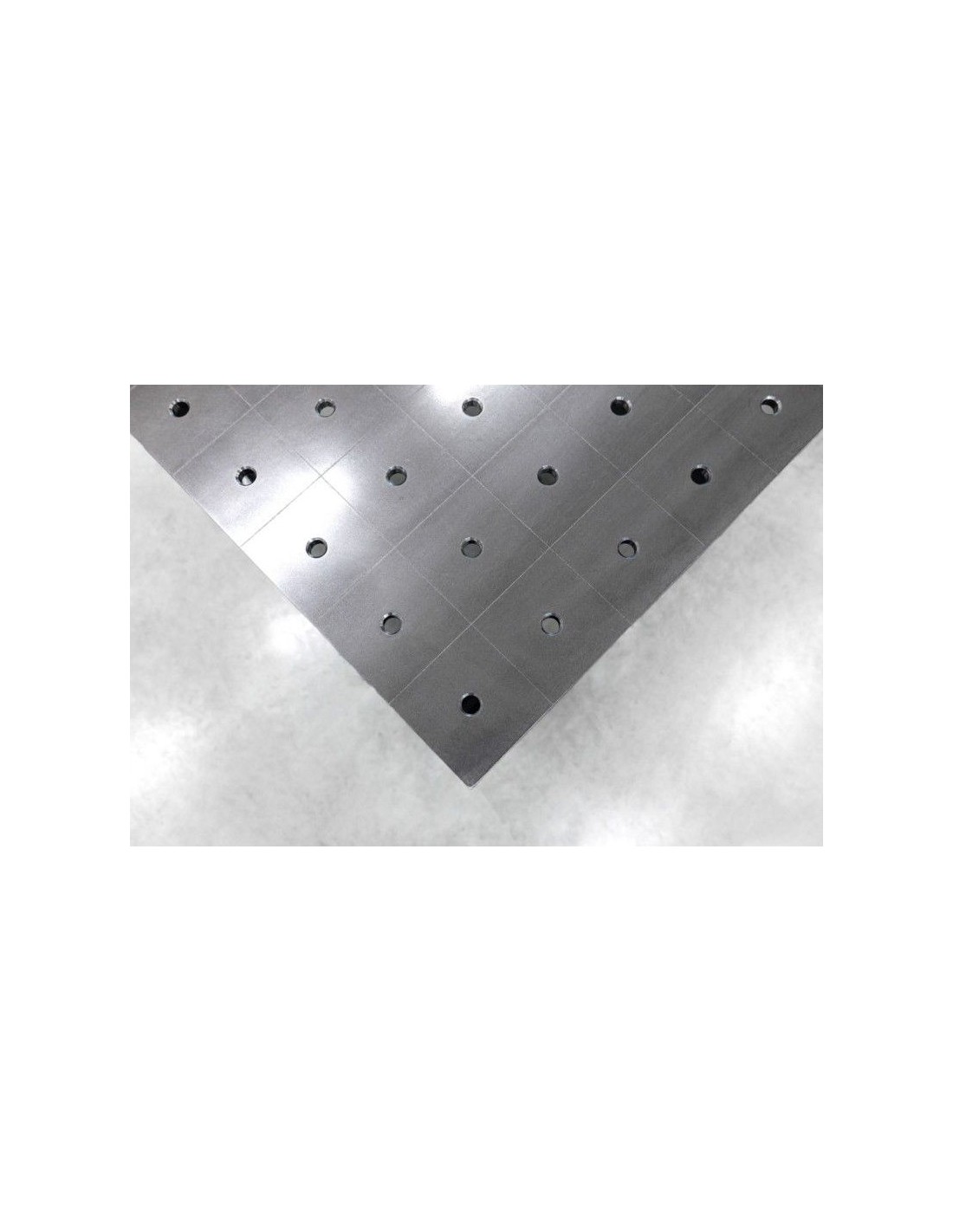

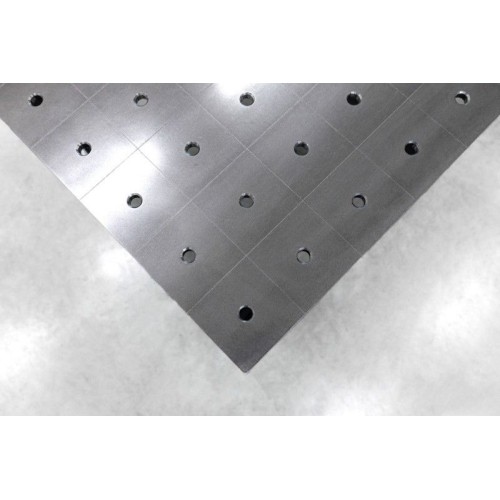

The engraved tabletop features vertical and horizontal lines arranged in a 100x100 mm grid. This provides reference points when positioning structures and installing tools. Using measuring tools, you can fine-tune the setup to achieve the required dimensions.
GPPH SMART 12 table load capacity: 1200 kg (with 15 mm thickness: 1800 kg).
Differences from traditional GPPH welding tables
Unlike our traditional professional tables designed to meet the demands of advanced applications, GPPH SMART focuses on core functions and ease of use. GPPH professional tables offer higher durability and extended configuration options required in intensive industrial environments. In addition, traditional GPPH professional welding tables have denser top edges and different leg mounts. They also differ in leg profile design and in the holes on the table side plates—traditional tables have 3 rows of holes, while GPPH SMART line tables have 2 rows.
Moreover, the leg color range of economical GPPH SMART welding tables differs from the standard GPPH color scheme.
The SMART line is a response to market needs for more affordable solutions.
RANGE COMPARISON
 |
|
TECHNICAL PARAMETER COMPARISON
| Traditional GPPH PLUS series welding tables | Economical GPPH SMART 12MM series welding tables |
|---|---|
| Flatness tolerance: ±0.3 mm over the entire top* | Flatness tolerance: ±0.5 mm over the entire top* |

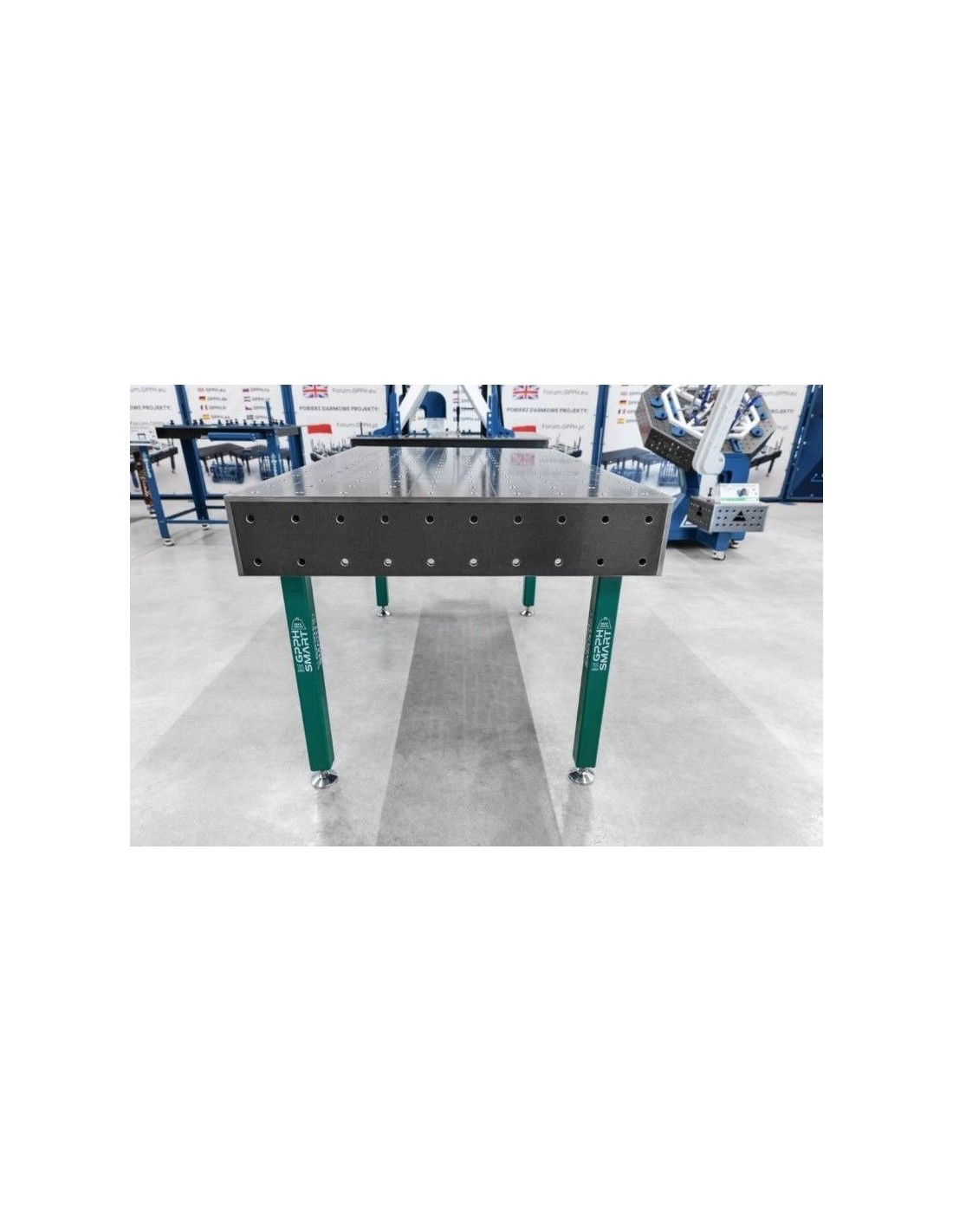

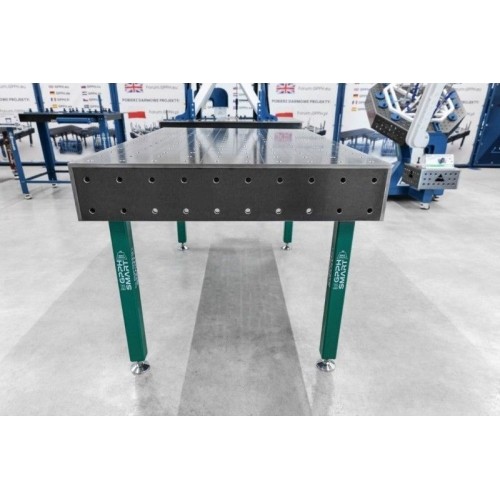

| 3 rows of side wall openings | 2 rows of side wall openings |
| Hole tolerance: ±0.05 mm | |
| Milled and shaped holes | |
| Shaped holes on the underside | |
| Milled tabletop edge | |

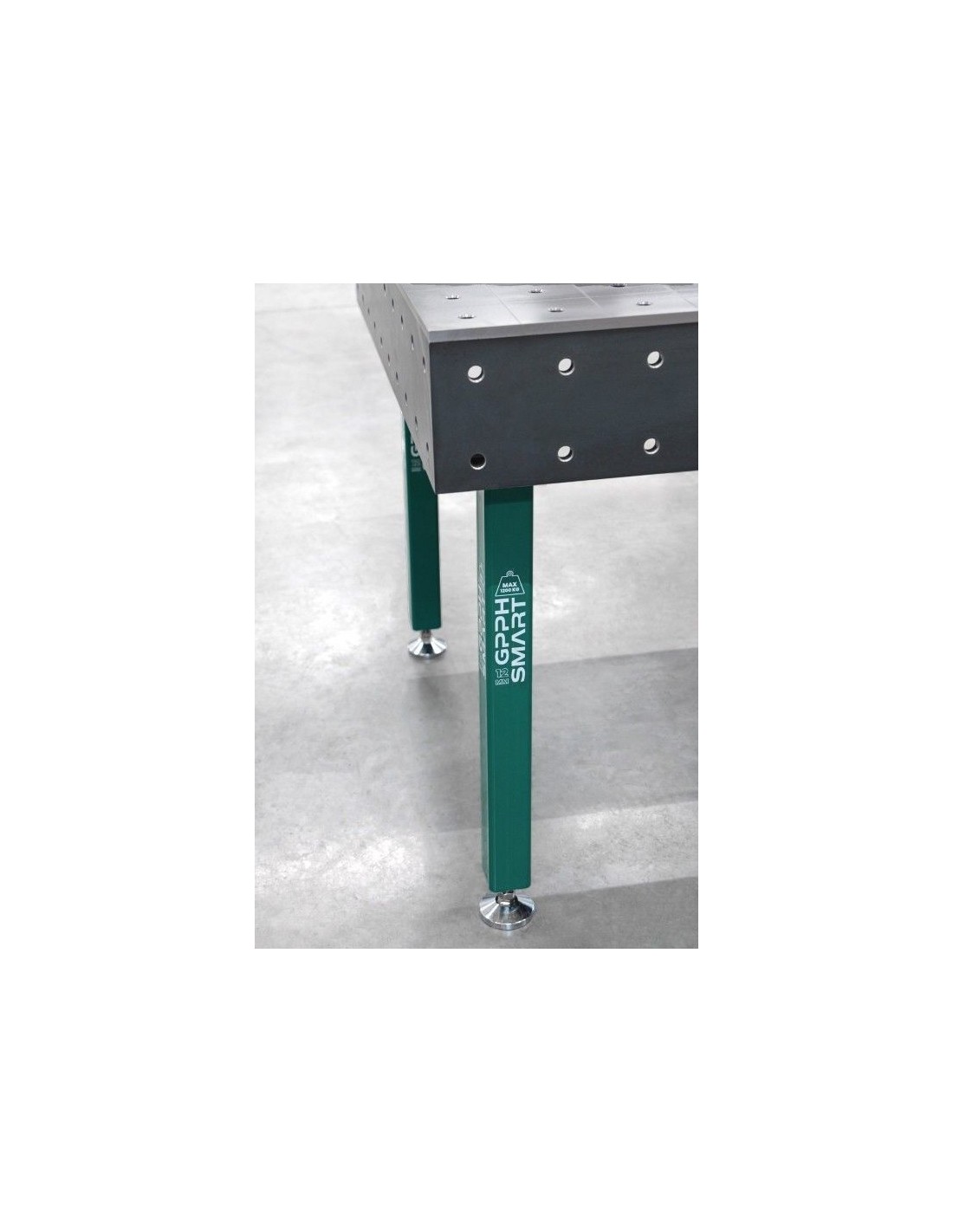

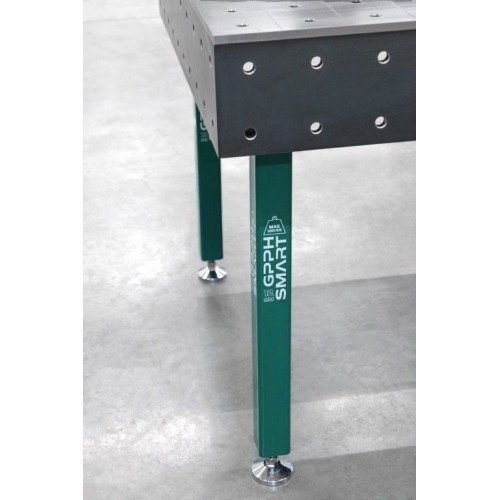

| Leg profile: 80x80x4 mm | Leg profile: 60x60x4 mm |
| Load capacity: 500 kg/leg maximum load capacity of a 4‑leg table: 2000 kg |
Load capacity: max. 1200 kg |
| Number of size variants: 10 | Number of size variants: 5 |
| Side wall deformation deviation: ±0.3° | Side wall deformation deviation: ±0.35° |
| Available hole grids: 100x100 mm, 50x50 mm, diagonal | Available hole grids: 100x100 mm |
* If the table is properly leveled

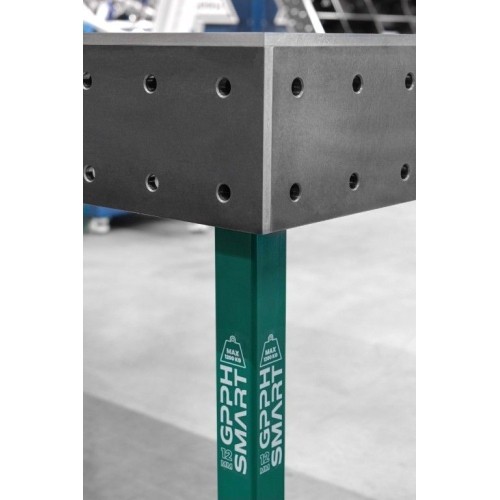

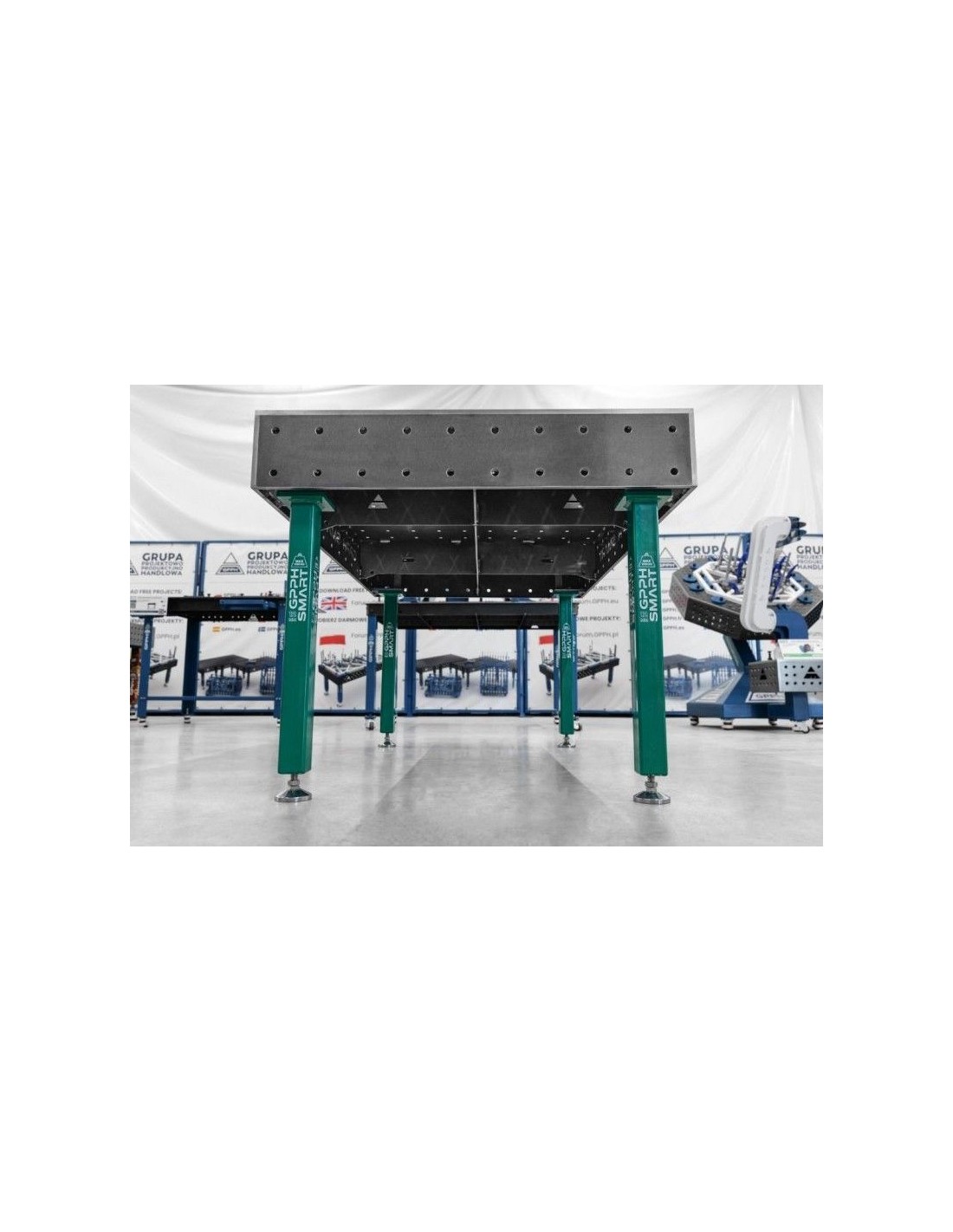

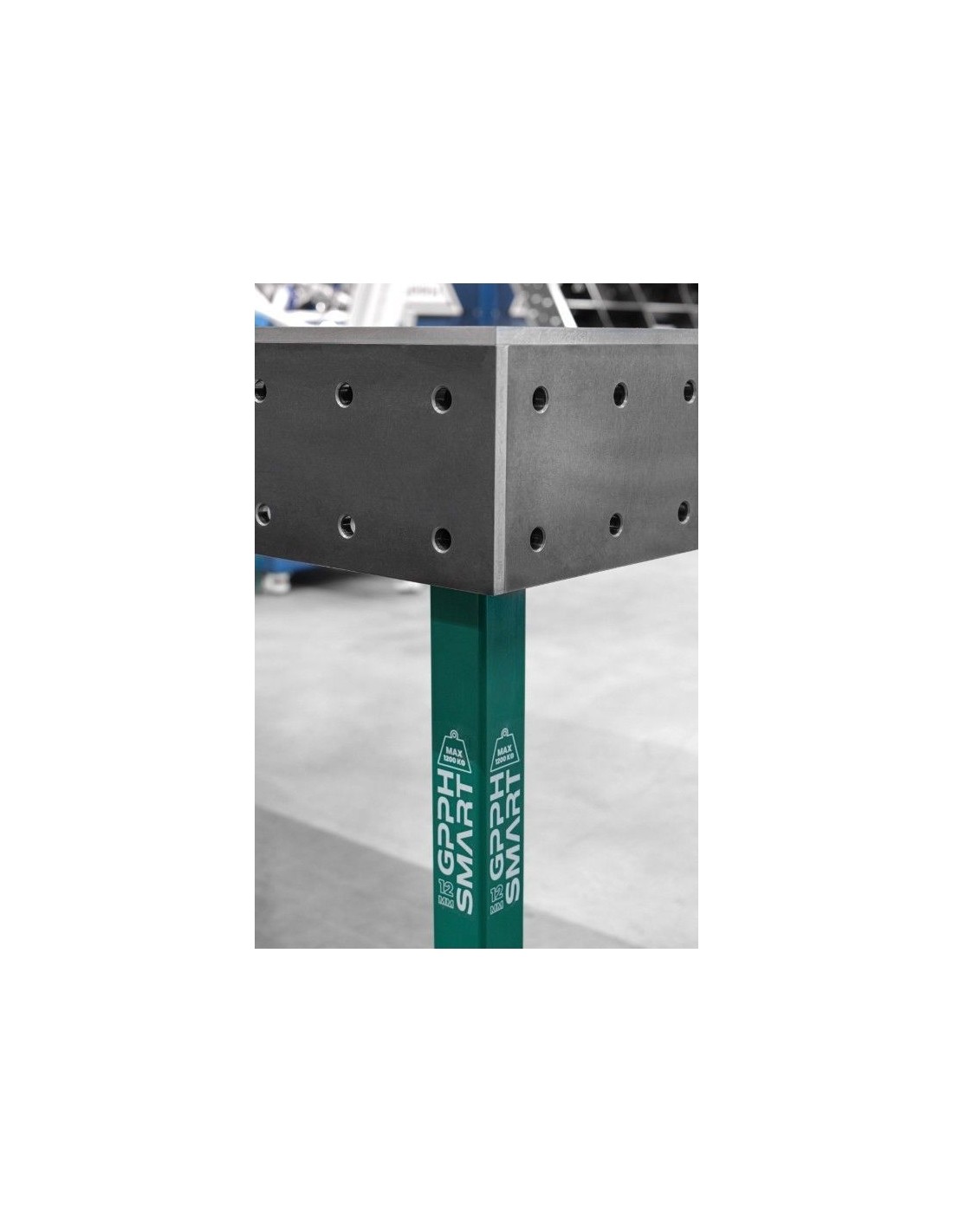

LEG MOUNTING COMPARISON
 |
 |
SIDE WALL BACKGROUND COMPARISON
 |
 |
About GPPH
GPPH prekės ženklas įkurtas dar 2015 m. Lenkijoje. GPPH prekių asortimentas apima: aukštos kokybės suvirinimo stalus (tradicinius ir modulinius), prispaudėjus, kampainius, spaustuvus bei kitus priedus reikalingus sklandžiam ir efektyviam suvirinimo procesui.
Stalai bei įrankiai gaminami nuo-iki Lenkijos gamykloje. GPPH asortimentas yra puikus aukštos kokybės bei prieinamos kainos santykio pasirinkimas.
GPPH gaminami stalai iš kruopščiai parinkto plieno (S355J2 + N). Taip pat staluose yra skylių Ø28 sistema 100 x 100 mm su kuria yra suderinti visi GPPH priedai.
