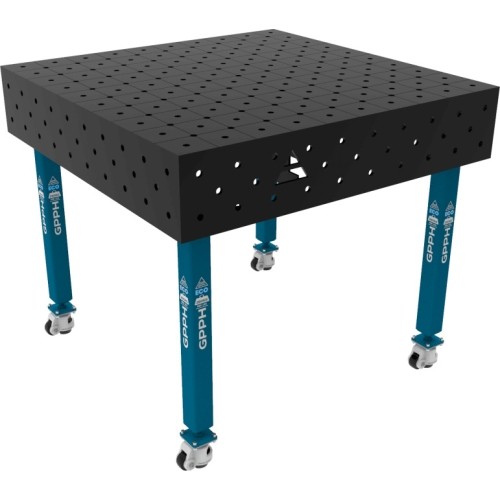

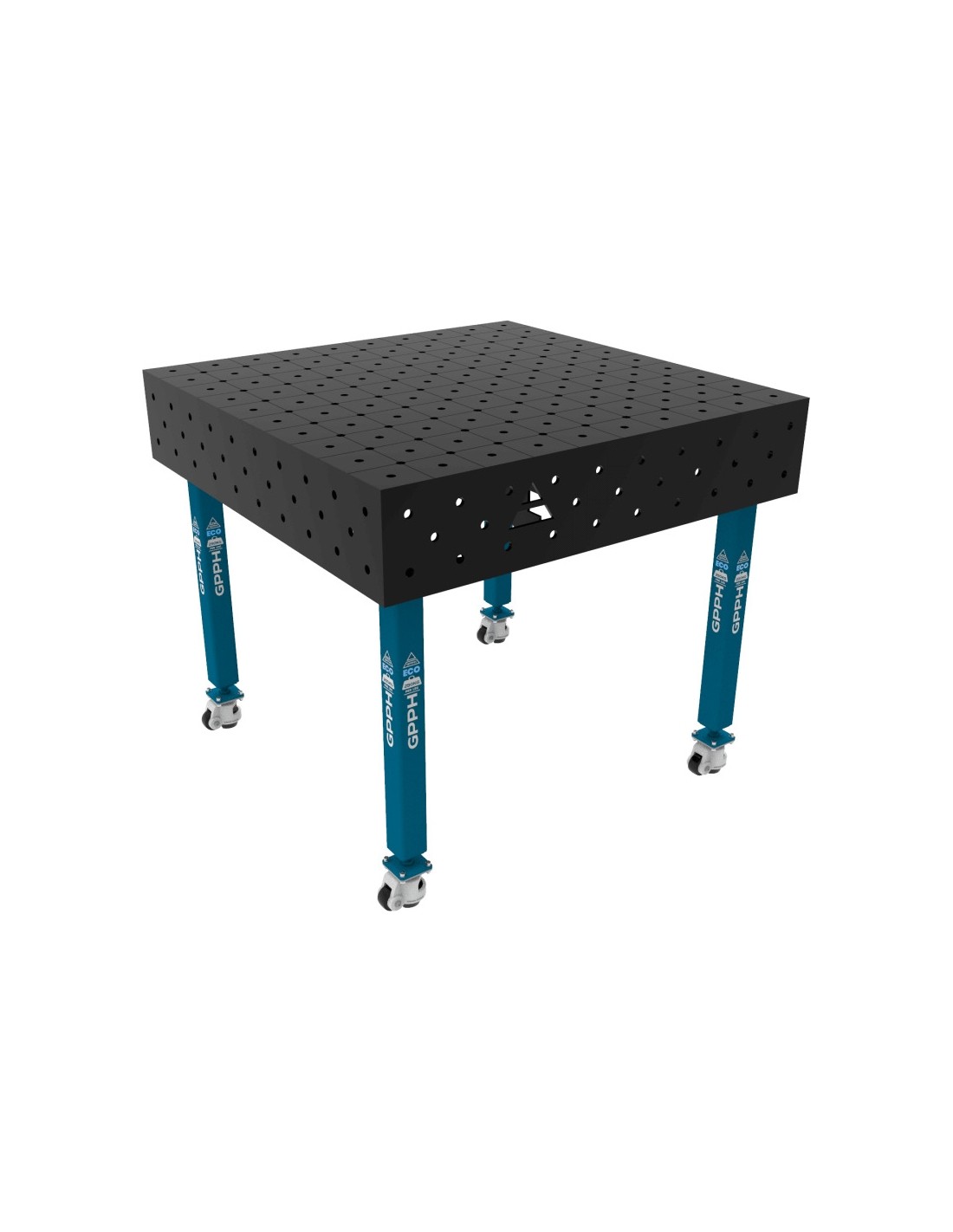

Welding table ECO 8 mm - 1000x1000mm

You can use Welding Tables wherever precision in welding is essential. They are suitable for both manual and robotic welding. Your assemblies will finally be made accurately, without unnecessary rework!

The table ensures ergonomic, fast work while maintaining precision and repeatability of fabricated structures.

A welding table must be flat! ECO tabletops, 8 mm thick, feature dense ribbing for an ideally flat working surface. The 1000×600 mm table has 1 longitudinal rib and 2 transverse ribs. The table’s massive, rigid substructure guarantees top stability during use and protects against deformation. Table flatness tolerance across the entire surface is ≤0.3 mm* and the hole tolerance is ±0.1 mm.

You decide!

The tabletop’s engraved scale consists of vertical and horizontal lines in a 100×100 mm grid. It serves as a reference when positioning assemblies and mounting tools. With measuring instruments, you can set your structure to the required dimension.

The ECO table legs, made from 60×60 mm profile, have a load capacity of 500 kg per leg. For the 3000×1480 mm table, which has 8 legs, you get a maximum capacity of 4,000 kg.

You can choose legs with a fixed foot or with casters—pick what suits you best!

For work on ECO series Welding Tables, use PLUS milled tools mounted with an adjustable 19–22 mounting pin. They let you build precise flat 2D and spatial 3D assemblies—in much less time.

* provided the table is properly leveled
