Battery voltage 12 V

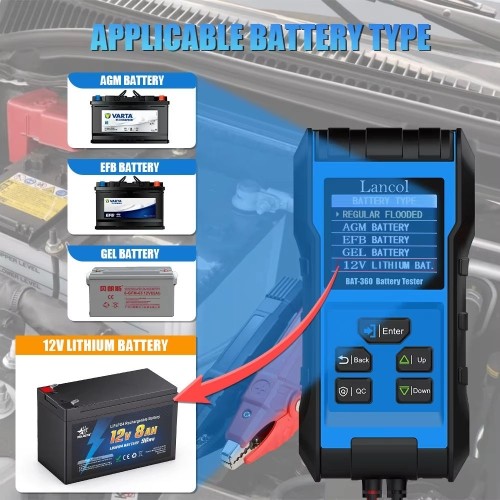

Supported batteries lead-acid AGM / GEL / SPIRAL / SLI and 12 V lithium batteries
CCA test range 30 - 3000 A
Voltage measurement range 7 - 30 V DC

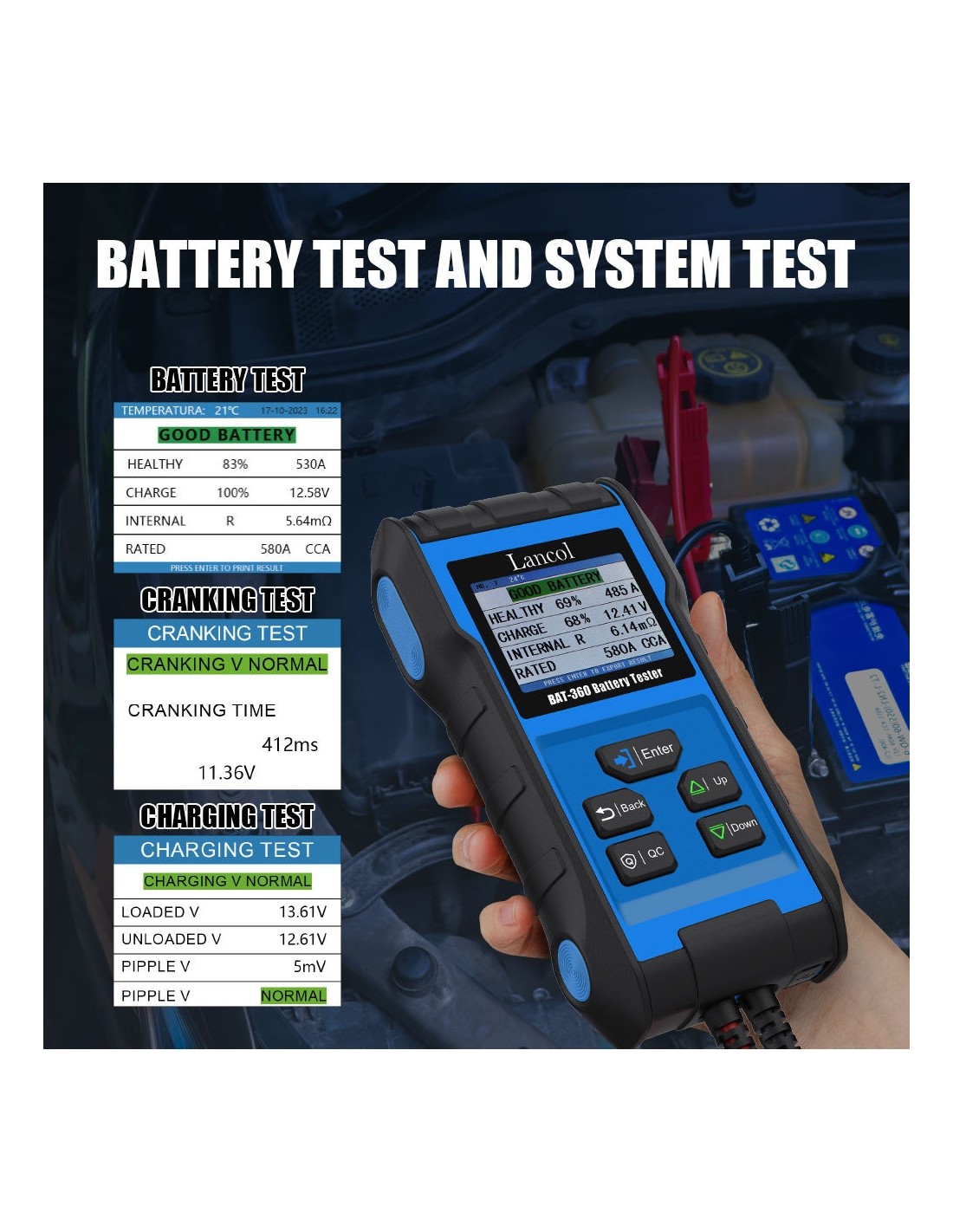

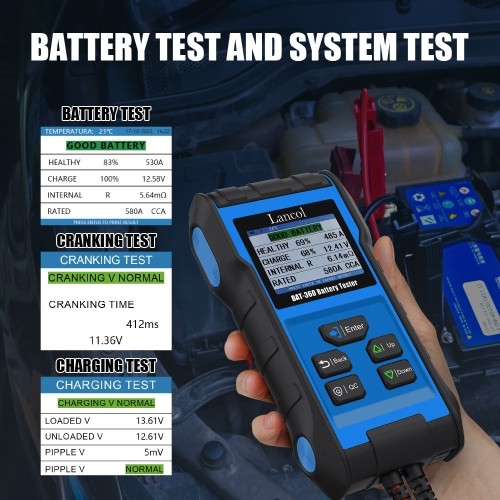

Starting system test 12 / 24 V
Charging system test 12 / 24 V
High-voltage protection
QC fast test
Test result storage by QR code
Test data review up to 99 records

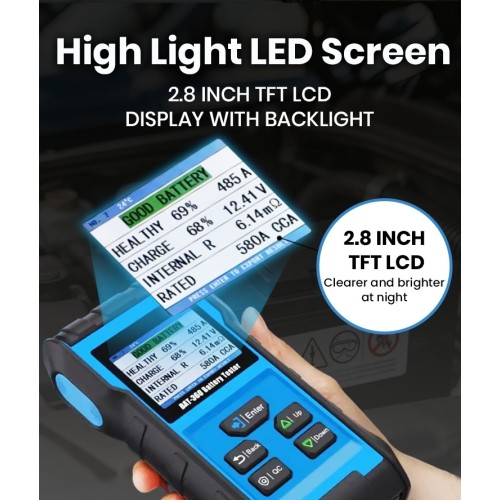

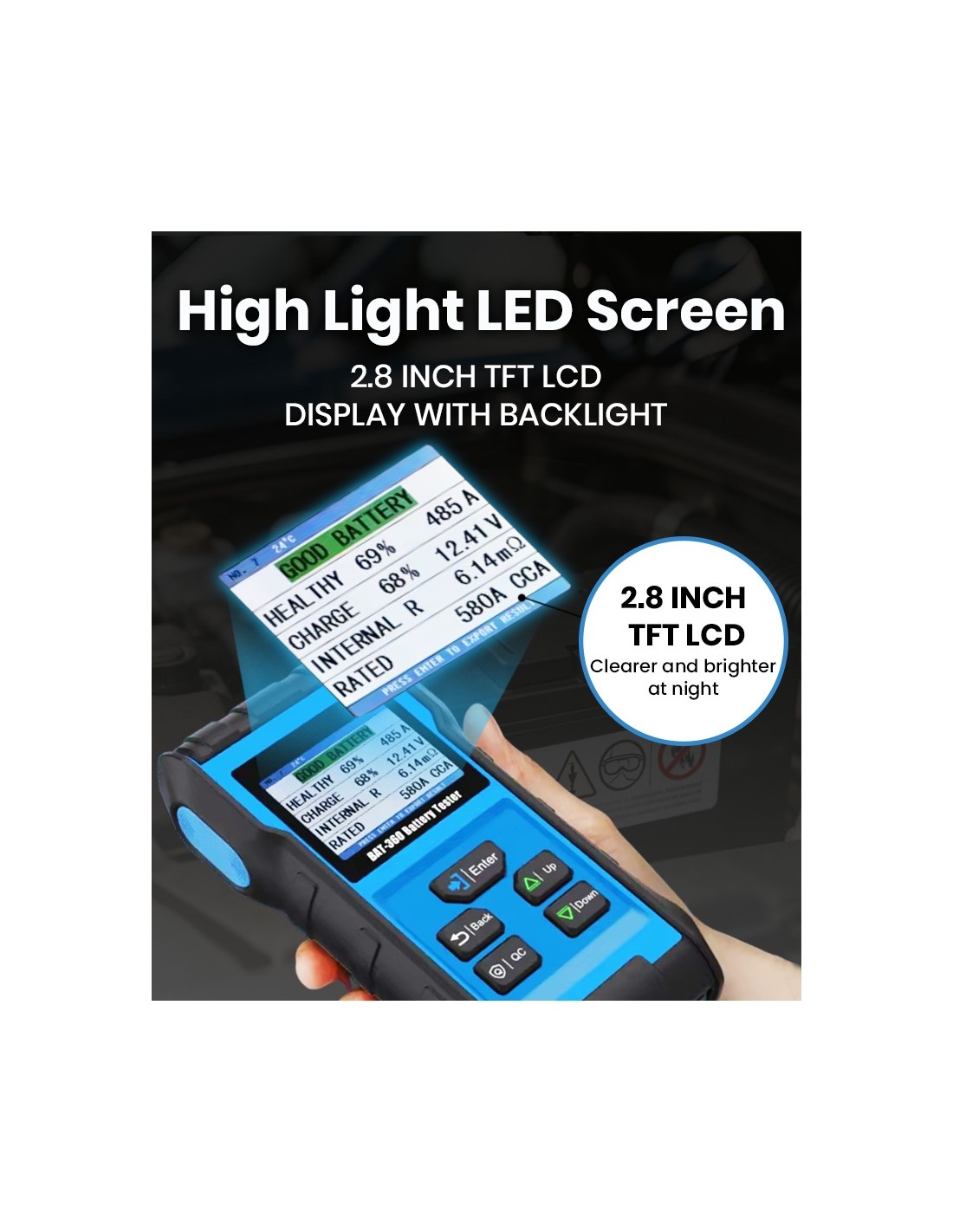

Display 2.8" TFT color LCD with backlight
Housing material ABS plastic
Operating temperature -18 °C to +50 °C
Important: 24 V refers to starting and charging system testing. The BAT-360 battery test itself is intended for 12 V batteries
