- Width
- 1300 mm
- Weight approx.
- 70 kg
- Depth
- 320 mm
- Height
- 1600 mm
- Sheet thickness max. *
- 0,75 mm
- Throat
- 500 mm
- Air requirement
- 200 l/min
- Internal height approx.
- 395 mm
- Aluminium
- 1,0 mm
- Stroke frequency
- 1800 - 4600 / min
- Max. air pressure
- 6,2 to 8,2 bar
- Rolling wheel (Ø x width)
- 114 x 38 mm
Kombinuotos skardos formavimo staklės Bernardo KGR 500
1053595
€842.00
Tax included
Monthly payment from 22.82€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 70 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak
(€40.99) Weight: 70 kg.
Description
Properties

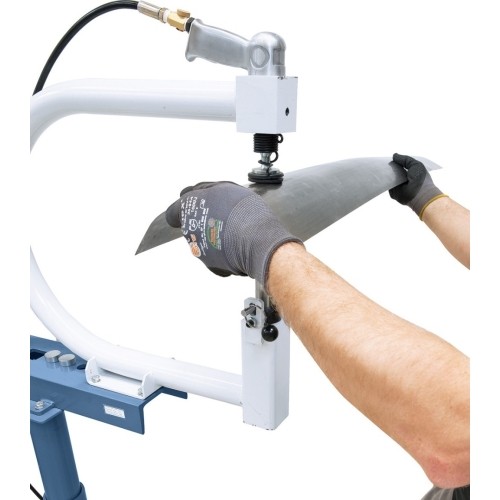

- Including 3 pcs. punching dies for driving and planing sheets of steel, aluminum, brass, copper, ....

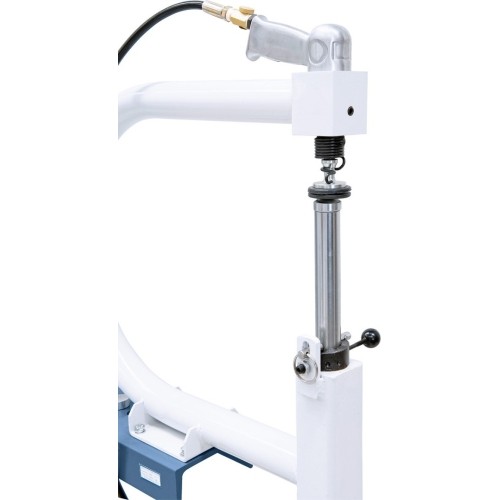

- Removable polishing hammer for extended application
- Essential in the classic car restoration, car and body shop, ....
- Ideal for the production of mudguards, doors, hoods, etc.

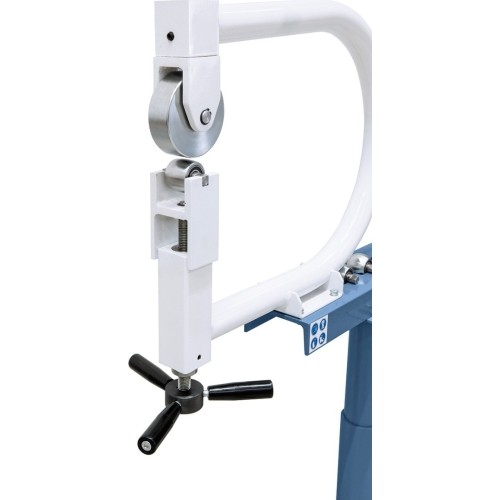

- By handwheel adjustable pressing pressure, thereby a wide variety of radii can be produced

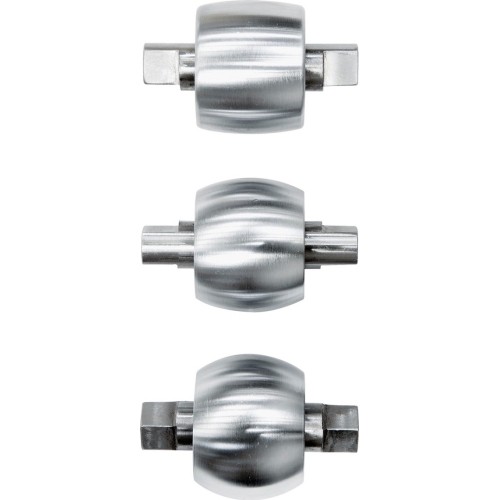

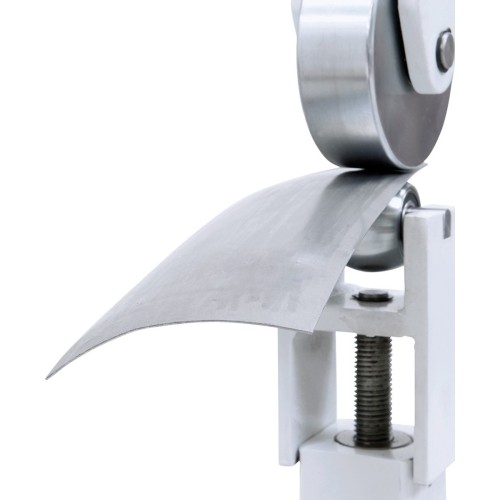

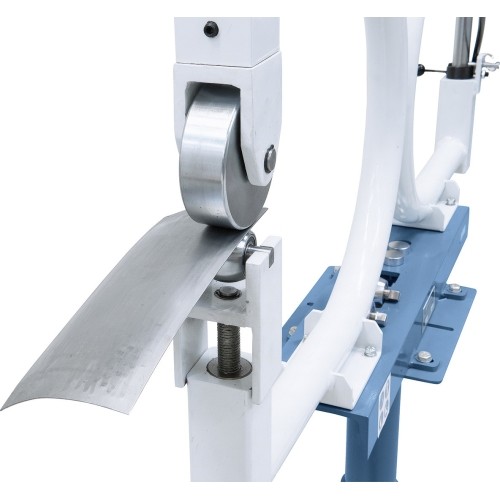

- Standard with 3 pcs. anvil wheels for the production of various radii
- Quick release mechanism on the lower anvil wheel for easy removal of the finished workpiece
- Including practical holder for the anvil wheels and punching dies directly on the machine body
Standard accessories

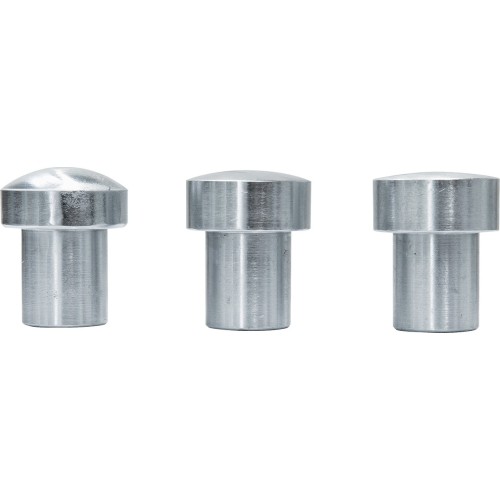

- 3 pcs. punching die radius 1“ / 2“ / 3“
- Polishing hammer
- Foot pedal
- 3 pcs. anvil wheels
- 1 pc. rolling wheel
