CS 315 H
CS 315 H
CS 315 H
CS 315 H
CS 315 H
  • Online only
CS 315 H
CS 315 H
CS 315 H
CS 315 H
CS 315 H

Weight approx.
235 kg
Working height
920 mm
Motor power output S1 100%
0,75 / 1,5 kW
Motor power input S6 40%
1,0 / 2,1 kW
Sawblade dimensions
315 x 40 mm
Speeds
19 / 38 rpm
Max. opening
150 mm
Machine dimensions (L x D x H)
530 x 1000 x 1740 mm
Phase
Trifazis (400V)

CS 315 H

1092169
Price €3,875.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up monday, july 20 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 235 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 235 kg.

Description

Properties

  • Gear head swivels 90º to both sides for slotting

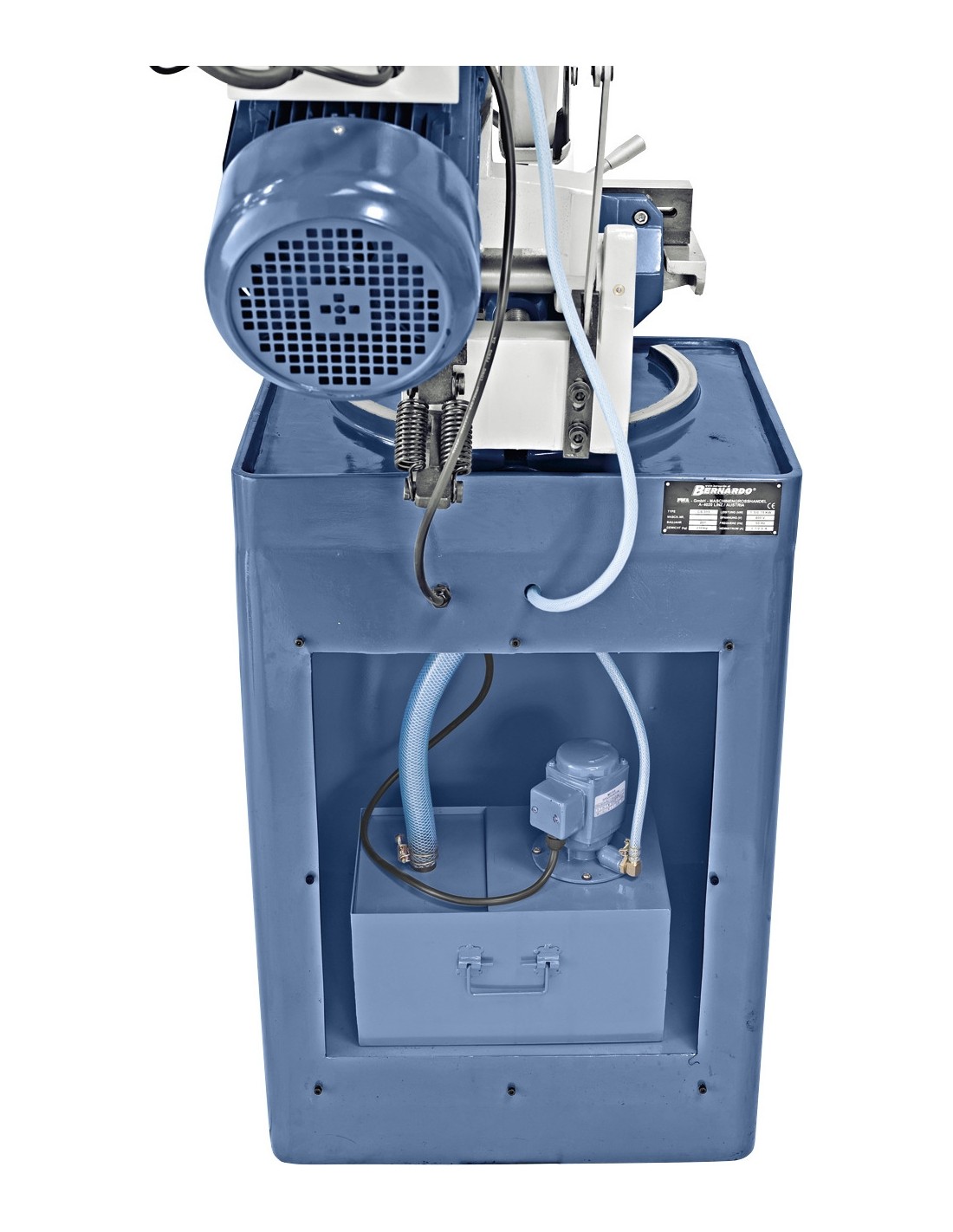

  • Removeable coolant tank integrated in solid machine base
  • Gear unit features hardened, polished worm shaft and bronze worm wheel
  • Protective cover opens automatically when cutting
  • Precise, self-centering double-clamping vice positioned on four guidings
  • Ergonomically shaped handle with push button for high work comfort
  • Low saw blade speed (19/38 r/min) is ideal for cutting solid materials
  • Reduction gear unit, quietly running in oil bath

Standard accessories

  • Coolant device with filter
  • Self-centering vice
  • Stand
