WARRANTY
- 30 days return policy
- 24 month product warranty
- Free consultation
- 30 days return policy
- 24 month product warranty
- Free consultation
- Speed
- 1400 rpm
- Weight approx.
- 190 kg
- Motor power
- 1,1 kW (1,5 HP)
- Machine dimension (W x D x H)
- 650 (1255)* x 550 x 1820 mm
- Voltage
- 400 V
- Table size
- 500 x 150 mm
- Chisel size max.
- 25,4 mm
- Drill stroke
- 180 mm
- Max. workpiece height
- 1150 mm
- Max. mortising depth
- 76 mm
- Max. workpiece width
- 210 mm
- Table tiltable left / right
- 45° / 45°
- Drill head sidewise movable
- 235 mm
- Drill head forward / backward movable
- 100 mm

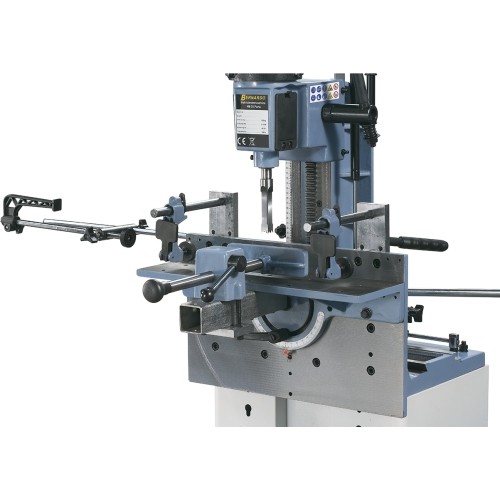

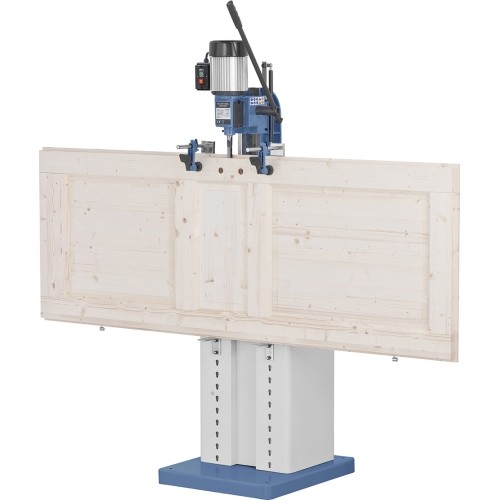

HM 30 Porta
1091863
€2,244.00
Tax included
Monthly payment from 61.45€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 190 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak
(€40.99) Weight: 190 kg.
Description
Properties
- Powerful drive motor, also suitable for continuous operation

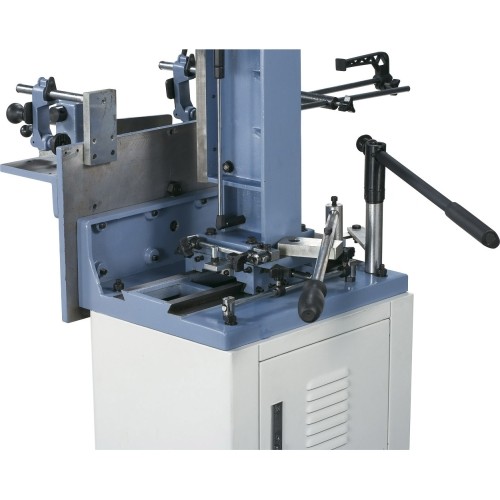

- Adjustable eccentric clamp secure workpiece to table

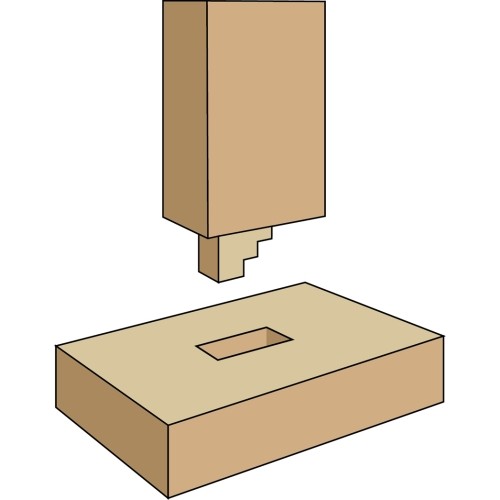

- Ideal for mortising of rectangular shaped holes for tenon joints and more
- Optimal device for slotting and mortising of hard and soft timbers
- Adjustable drill depth stop for high repeat accuracy when mortising
- Includes gas pressure cylinder to support mortising
Standard accessories

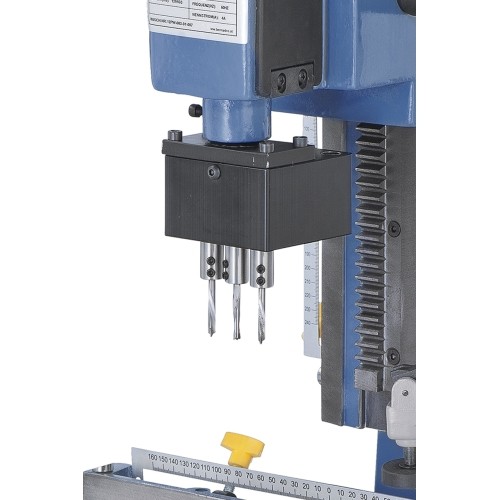

- Drill chuck 16 mm
- 2 pcs. eccentric holder
- Longitudinal fence
- Drill depth stop with scale
- Quick clamping vice
- Mortising chisel 15,87 mm
- Gas pressure balancing cylinder
- Tiltable working table
- Closed machine base with tool shelf
