- Speed
- 2850 rpm
- Weight approx.
- 100 kg
- Motor power
- 0,75 kW (1,0 HP)
- Machine dimension (W x D x H)
- 430 x 610 x 1100 mm
- Travel (x / y)
- 175 / 150 mm
- Voltage
- 230 V
- Table size
- 400 x 150 mm
- Chisel size max.
- 25,4 mm
- Drill stroke
- 230 mm
- Max. workpiece height
- 200 mm
- Max. mortising depth
- 76 mm
- Max. workpiece width
- 145 mm

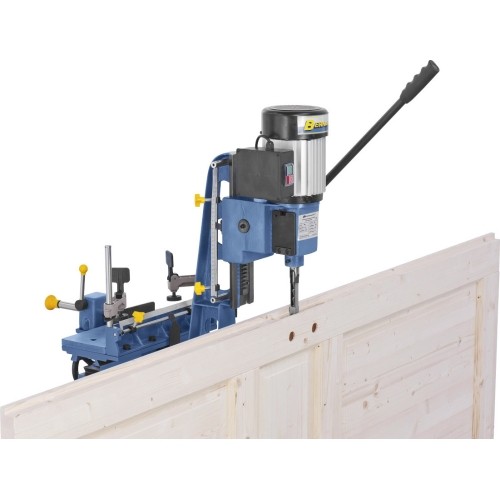

HM 25
1091862
€1,032.00
Tax included
Monthly payment from 28.03€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 100 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak
(€40.99) Weight: 100 kg.
Description
Properties

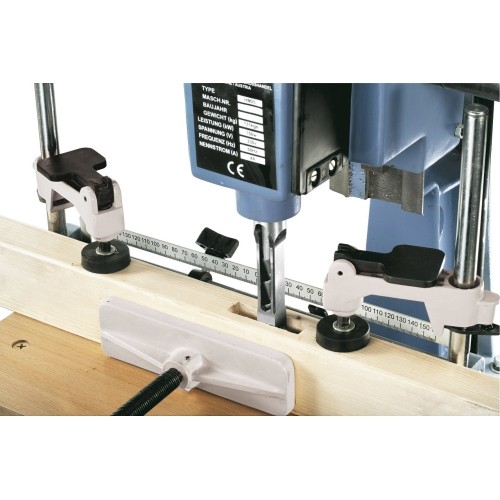

- Complete with handwheels for changing the coordinate table
- Drill chuck accessible from both sides for convenient change of mortising chisels
- Adjustable dovetail guiding in all axis
- Spindle head swivels 180°, essential for mortising works on doors
- Includes gas pressure cylinder to support mortising
- Ideal for slotting and mortising of soft and hard timbers
- Grey cast-iron machine frame eliminates vibrations and promotes accuracy
Standard accessories
- Drill chuck 16 mm
- 2 pcs. eccentric holder

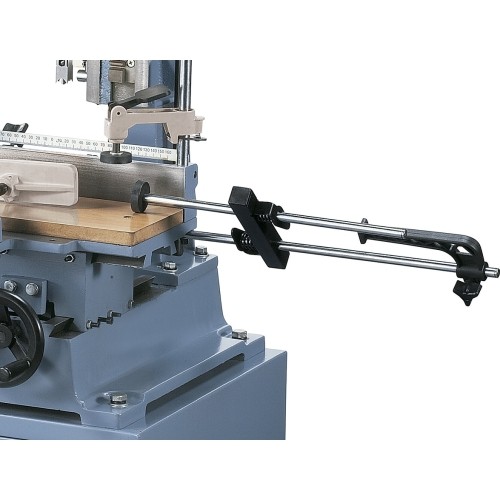

- Longitudinal fence
- Drill depth stop with scale
- Quick clamping vice
- Gas pressure balancing cylinder
- Movable coordinate table
