- Speed
- 1400 rpm
- Weight approx.
- 110 kg
- Motor power
- 0,75 kW (1,0 HP)
- Machine dimension (W x D x H)
- 570 x 650 x 1115 mm
- Travel (x / y)
- 280 / 135 mm
- Voltage
- 230 V
- Table size
- 540 x 190 mm
- Chisel size max.
- 25,4 mm
- Drill stroke
- 230 mm
- Max. workpiece height
- 270 mm
- Max. mortising depth
- 76 mm
- Max. workpiece width
- 185 mm
- Tilting range work table forward / backward
- 22,5° / 22,5°

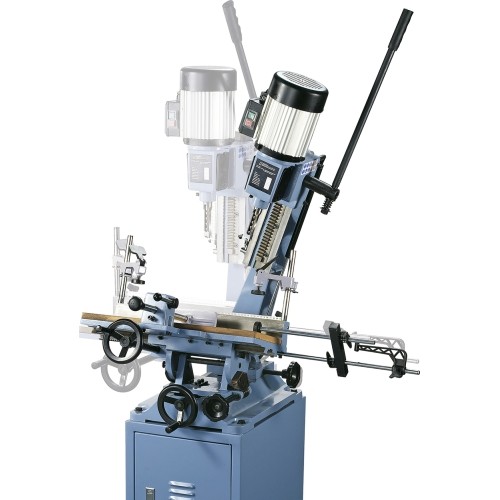

- Tilting range spindle head
- 22,5° / 22,5°
HM 25 Top
1091864
€1,284.00
Tax included
Monthly payment from 35.02€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 110 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak
(€40.99) Weight: 110 kg.
Description
Properties
- For mortising of rectangular shaped holes for tenon joints etc.
- Adjustable drill depth stop ensures repeat accuracy when mortising
- Eccentric clamp can be adjusted quickly to secure workpiece to table
- Includes gas pressure cylinder to support mortising
- Ideal for slotting and mortising of hard and soft timbers
Standard accessories
- Drill chuck 16 mm
- 2 pcs. eccentric holder

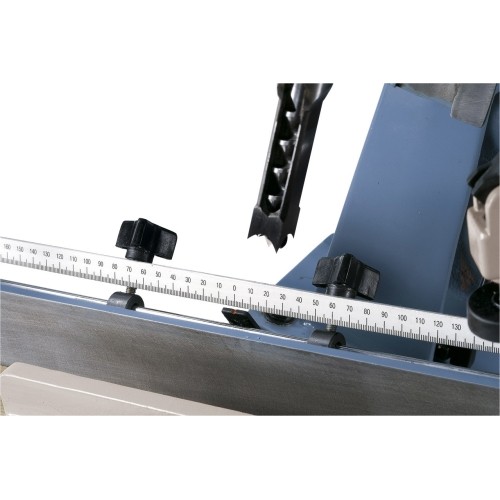

- Longitudinal fence
- Drill depth stop with scale
- Quick clamping vice
- Mortising chisel 15,87 mm
- Gas pressure balancing cylinder

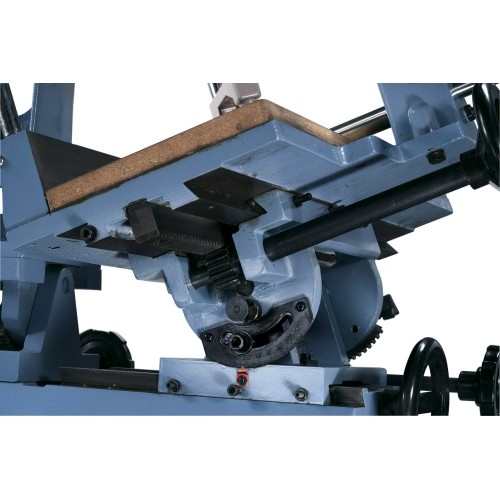

- Tiltable coordinate table
