Weight approx.
1250 kg
Motor power
4,0 kW
Machine dimension (W x D x H)
750 x 1150 x 2520 mm
Drilling capacity in steel
50 mm
Distance spindle to column
335 mm
Spindle stroke
250 mm
Thread cutting max.
M42
Morse taper
MT 5
Feed range
(9) 0,056 - 1,8 mm/rev.
Torque
350 Nm
Distance spindle to table max.
720 mm

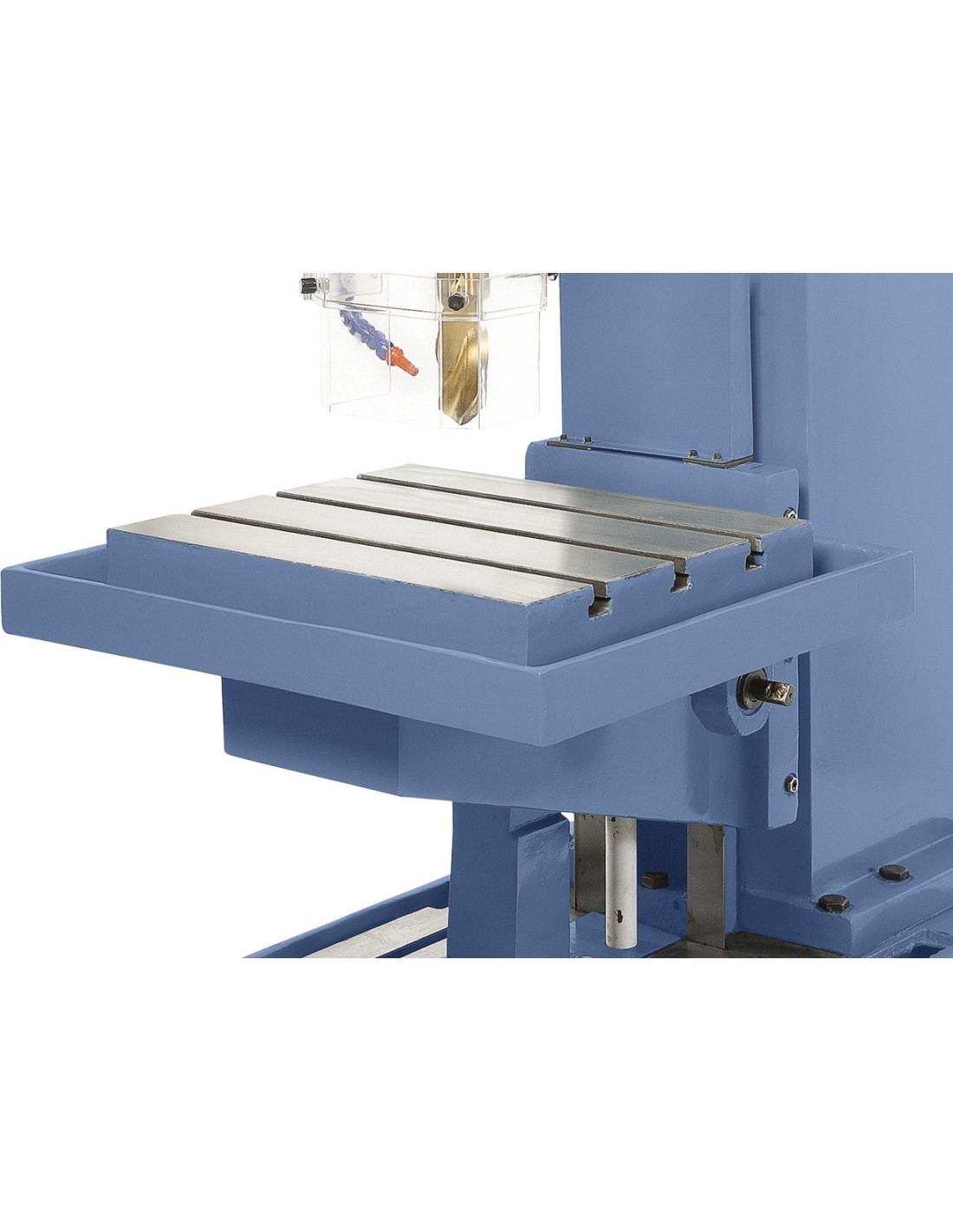

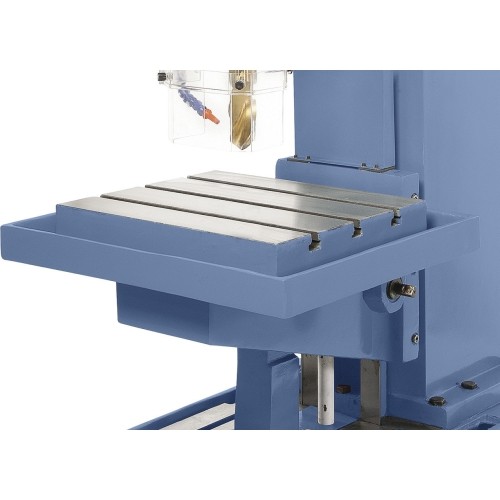

Table size / T-slot size
560 x 480 mm / 18 mm
Travel of drill head
195 mm
Spindle speed / steps
45 - 850 rpm, 9 steps
Feeding force
16000 N
Table lift
315 mm

KBM 50

1092021
Price €17,754.00 Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite tuesday, april 8 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1250 kg.

Description

Properties

  • Solid construction of column and base designed for excessive use
  • Powerful drive motor features high torque and large feed force
  • Solid grey cast iron construction maximizes table load capacity

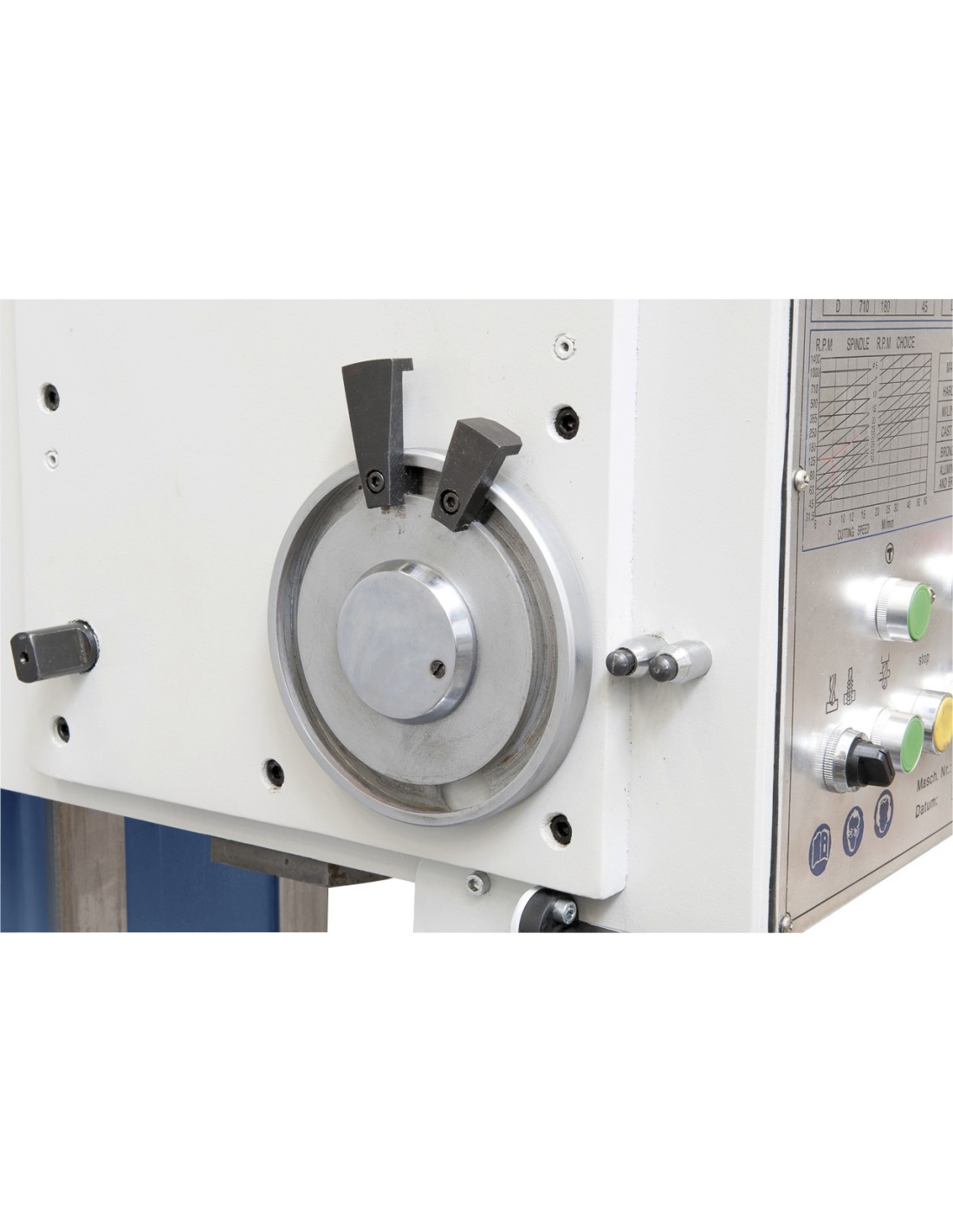

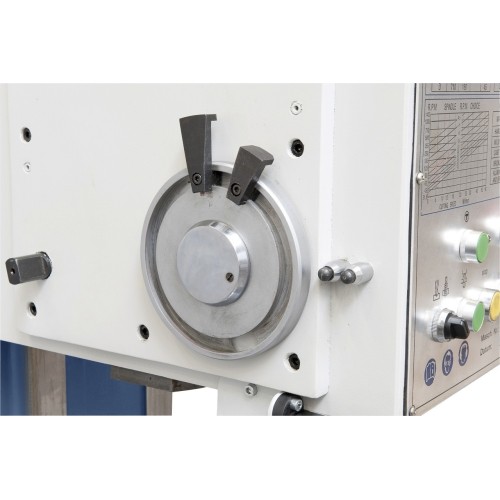

  • Tapping device comes with automatic change of rotation at adjusted drill depth

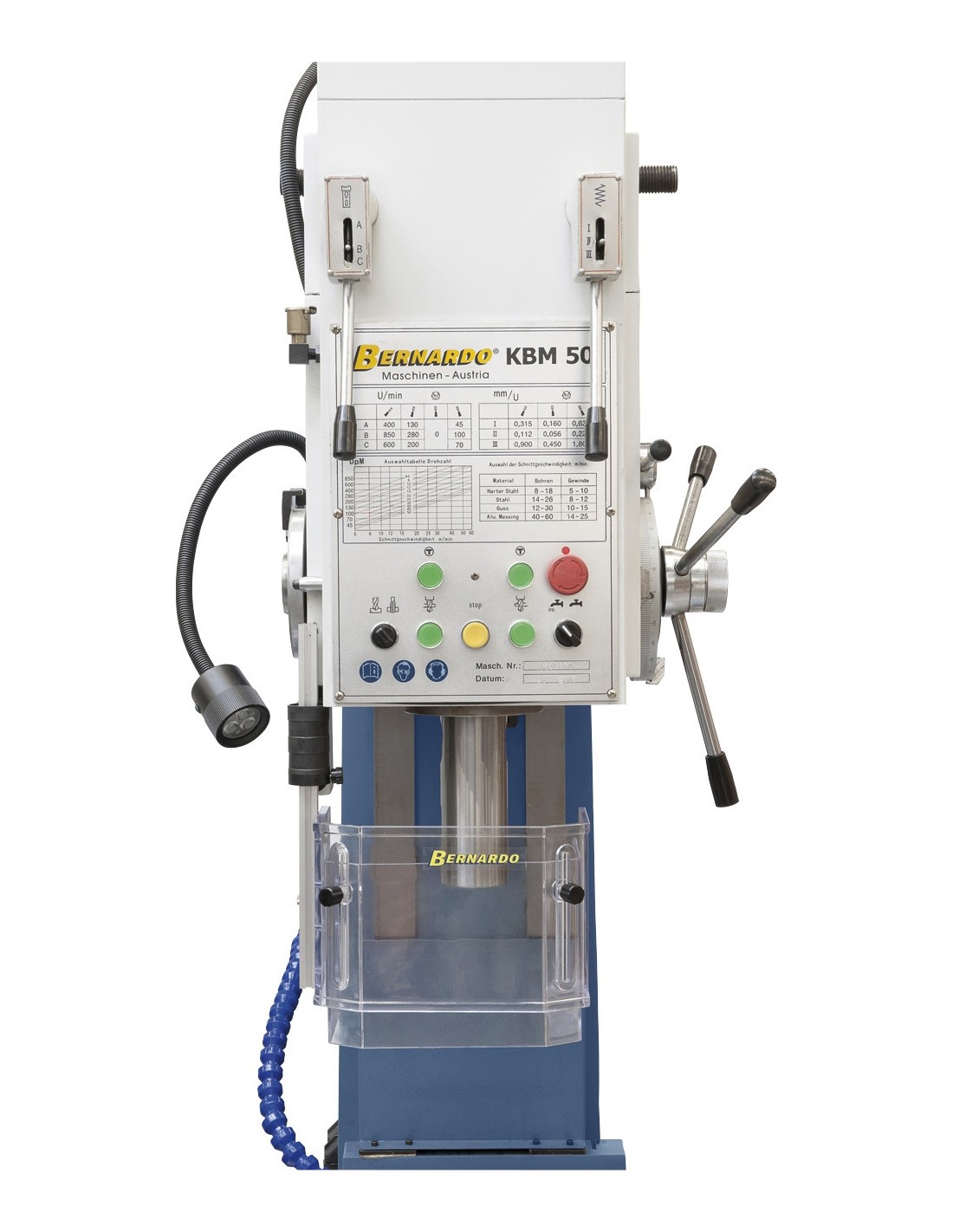

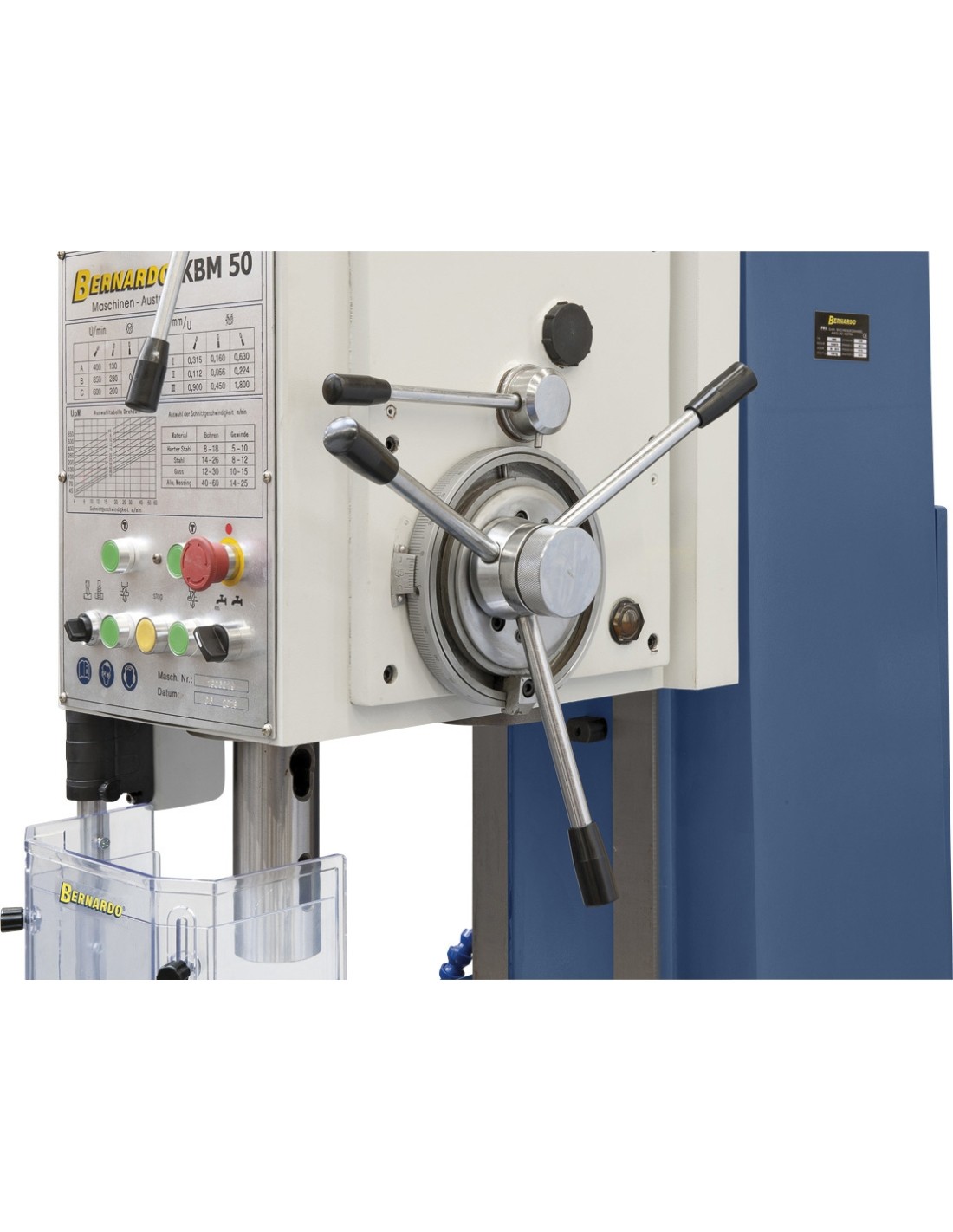

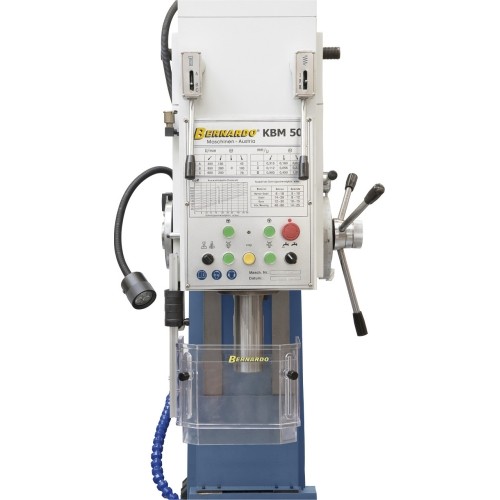

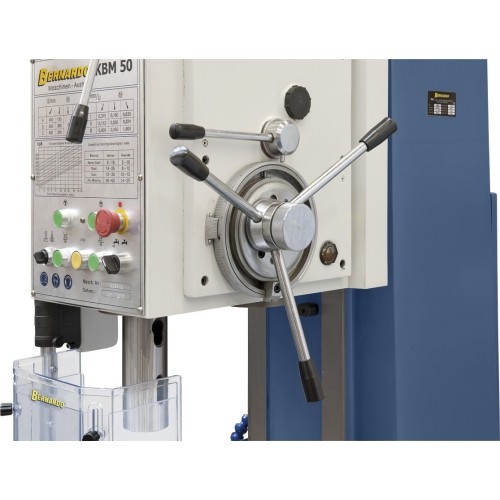

  • Convenient control lever allows for quick and easy feed and speed adjustment
  • Polished gear wheel, in oil bath, ensure smooth operartion
  • Automatic spindle feed, tapping device and work lamp included in standard equipment
  • Wide, heavy-duty dovetail guidings feature adjustable gibs

Standard accessories

  • Coolant device
  • Thread cutting device
  • Left and right turning
  • LED working light
  • Morse taper drill sleeve
  • Tools
  • Height adjustable protective cover
