Weight approx.
140 kg
Machine dimension (W x D x H)
250 x 630 x 800 mm
Distance spindle to column
275 mm
Workpiece height max.
450 mm
Arbor dimensions
53 x 58 x 640 mm

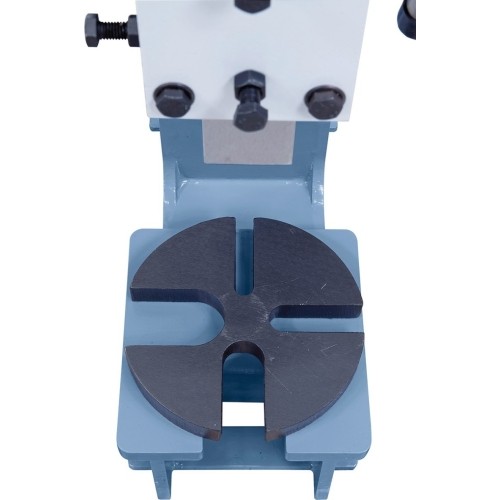

Turntable Ø
252 mm
Turntable openings
1 x 20 mm / 1 x 30 mm / 1 x 42 mm / 1 x 65 mm
Hand force (F1)
60 kg / 588 N
Lever handle (H)
780 mm
Force effect (F2)
1720 kg / 16867 N

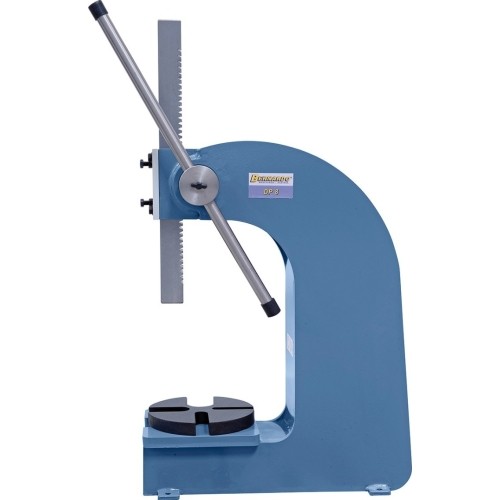

DP 8

1092673
€1,064.00
Tax included
Monthly payment from 28.9€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 140 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 140 kg.

Description

Properties

  • For straightening, pressing, bending, mounting of gears, washers etc.
  • The basic body of the model DP 5 is made of high quality gray cast iron
  • For pressing in and out of bearings, bushes, ...
  • Including mounting holes, ideal for mounting on a workbench
  • Suitable for bushing, straightening, bending, broaching, ...
  • Variable adjustable lever handle, depending on the required effort
  • Ideal for repair shops and the general workshop area
