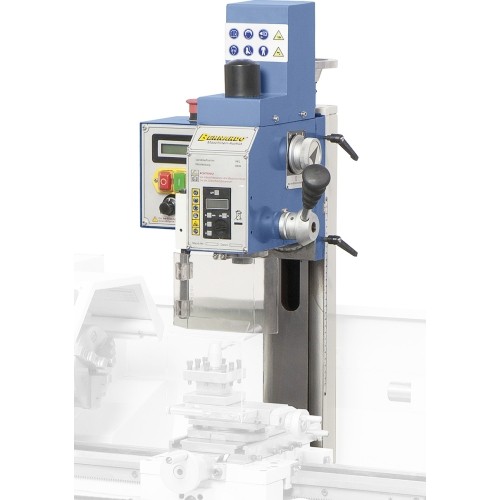

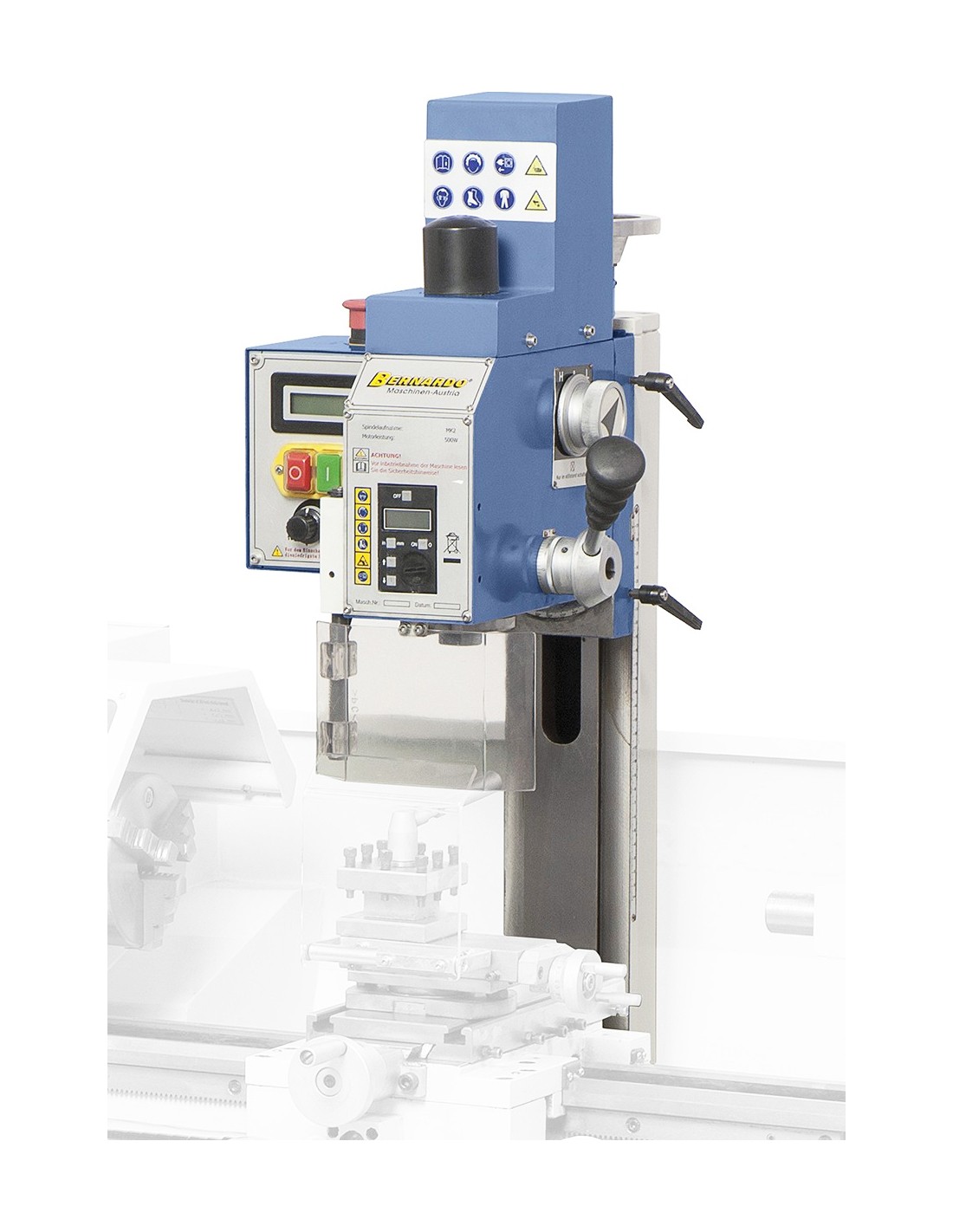

Frezavimo prietaisas Bernardo FA 16

WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Spindle taper
MT 2
Drilling capacity in steel
16 mm
Face mill capacity max.
50 mm
End mill capacity max.
16 mm
Distance spindle to column
150 mm
Spindle speed, stepless
50 - 2250 rpm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
195 mm
Motor power output S1 100%
0,50 kW / 230 V
Motor power input S6 40%
0,75 kW / 230 V

Frezavimo prietaisas Bernardo FA 16

1053980
€1,159.00
Tax included
Monthly payment from 31.53€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
NEMOKAMAI Prekę pristatysime Jums per: 5-10 d.d. Venipak (€0.00)

Description

Properties

For retrofitting on following machines:

  • Profi 550 WQ
  • Profi 550 WQV
  • Profi 550 Top
  • Profi 550 LZ
  • Profi 750 LZ

Technical specifications

Drilling capacity in steel

16 mm

Face mill capacity max.

50 mm

End mill capacity max.

16 mm

Distance spindle to column

150 mm

Spindle speed, stepless

50 - 2250 rpm

Spindle taper

MT 2

Mill head tiltable

-90° to +90°

Height adjustment of mill head

195 mm

Motor power output S1 100%

0,50 kW / 230 V

Motor power input S6 40%

0,75 kW / 230 V



About Bernardo
