- Diameter
- 315 mm
- Weight approx.
- 51 kg
- B
- 96,2 mm
- E
- 103 m
- Taper
- 8
- Max. speed
- 2800 rpm
- Chuck size
- 315/D8
- D (max.)
- 139,734 mm
- F1
- 171,4 mm
- Camlock stud
- 6

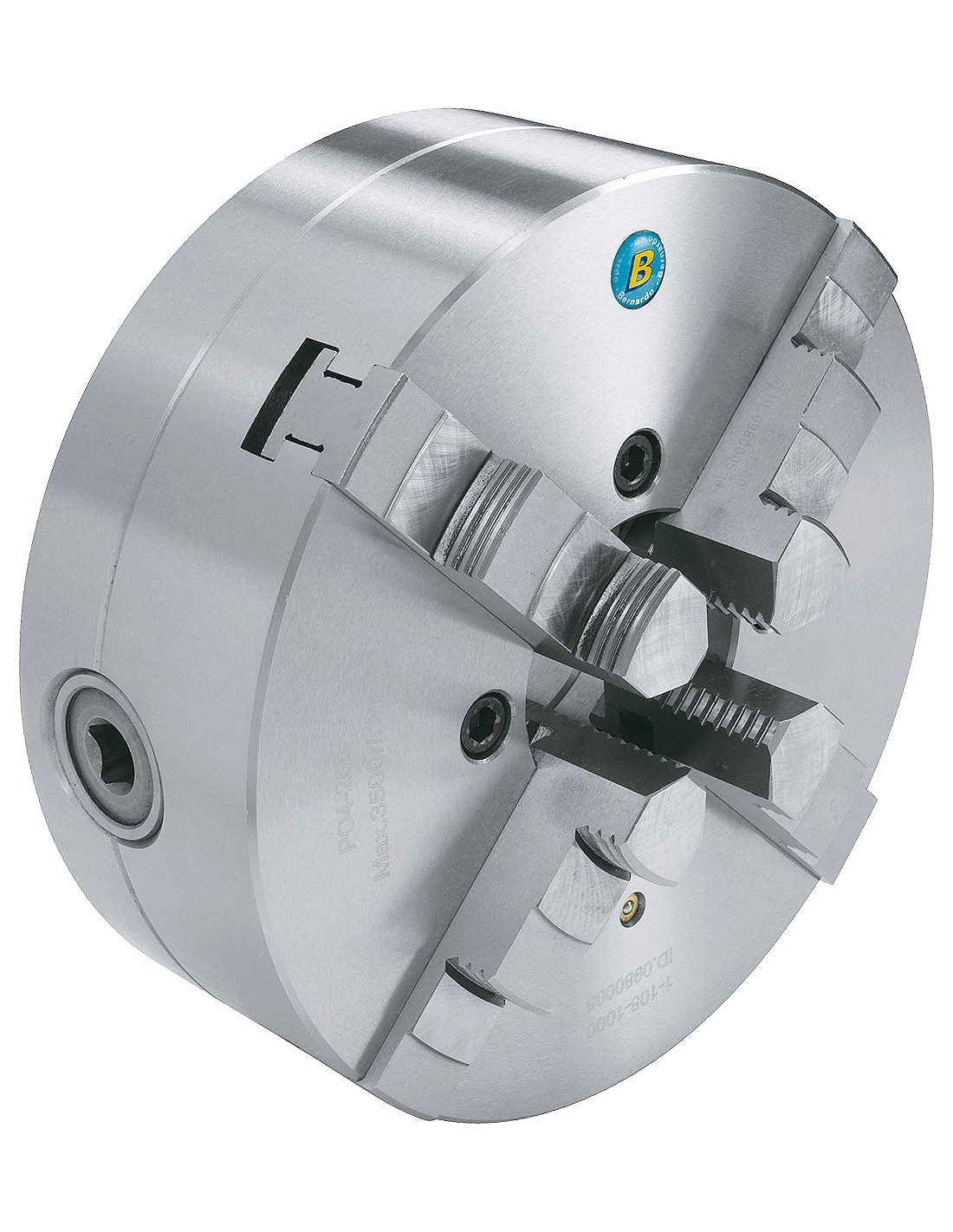

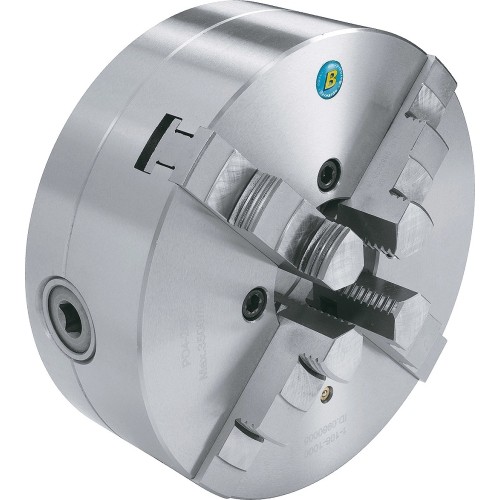

Tikslusis 4 griebtuvų laikiklis Bernardo PO4-315/D8
1055142
€2,204.00
Tax included
Monthly payment from 60.31€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 51 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak
(€40.99) Weight: 51 kg.
Description
Properties
Execution:
- Precision 4-jaw chuck
- With Camlock direct mount according to DIN 55029
- Steel-design for higher speeds and longer life span
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Useable for conventional turning lathes
- For clamping of rectangular and round workpieces
- For using at machines with higher concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-PS4
- 1 set hard outside solid jaws OJ-PS4

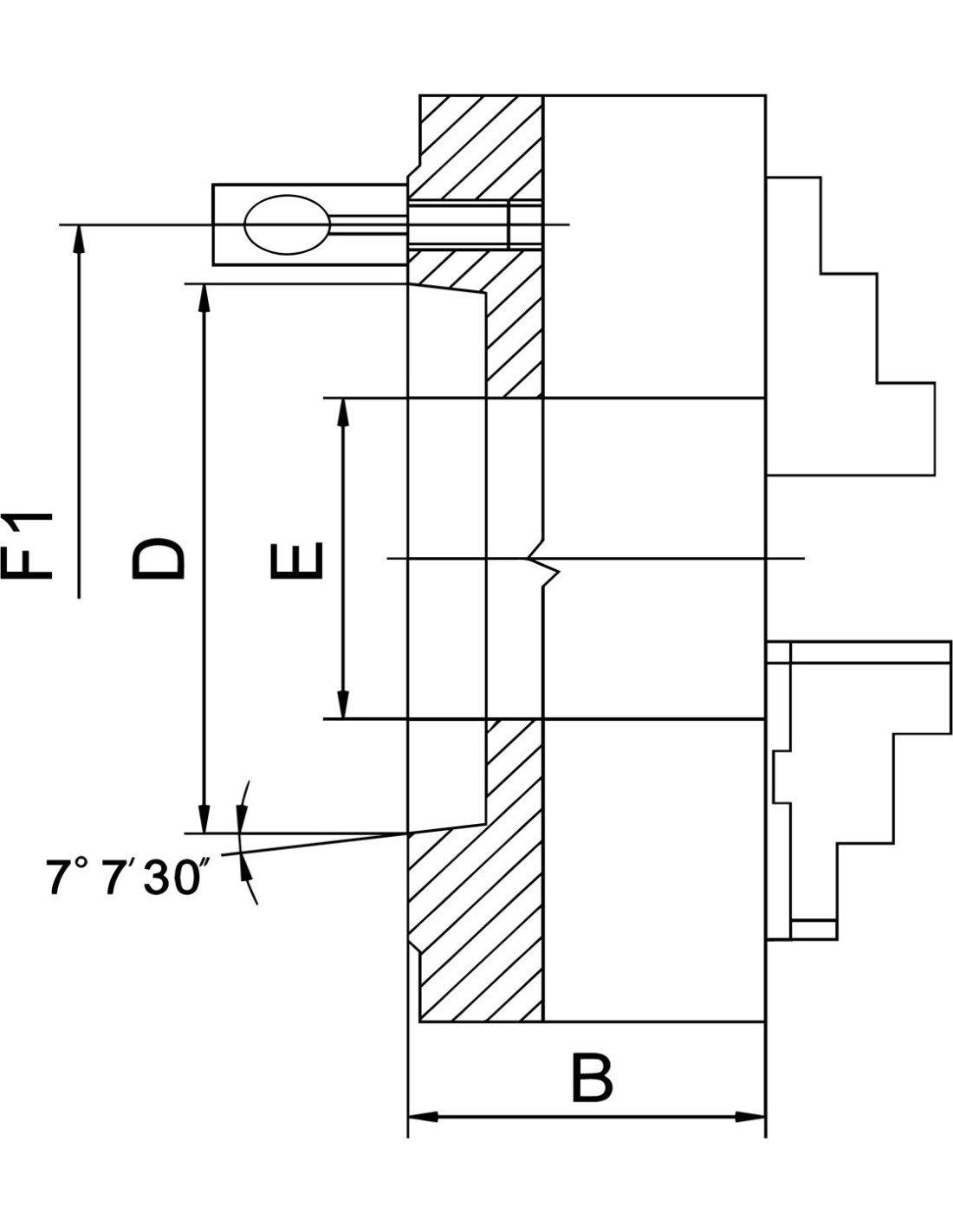

Technical specifications
|
Chuck size |
315/D8 |
|
Diameter |
315 mm |
|
Taper |
8 |
|
B |
96,2 mm |
|
D (max.) |
139,734 mm |
|
E |
103 m |
|
F1 |
171,4 mm |
|
Camlock stud |
6 |
|
Max. speed |
2800 rpm |
|
Weight approx. |
51 kg |
