Standard 3-jaw chuck DK11-500
Standard 3-jaw chuck DK11-500
Standard 3-jaw chuck DK11-500
Standard 3-jaw chuck DK11-500

WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

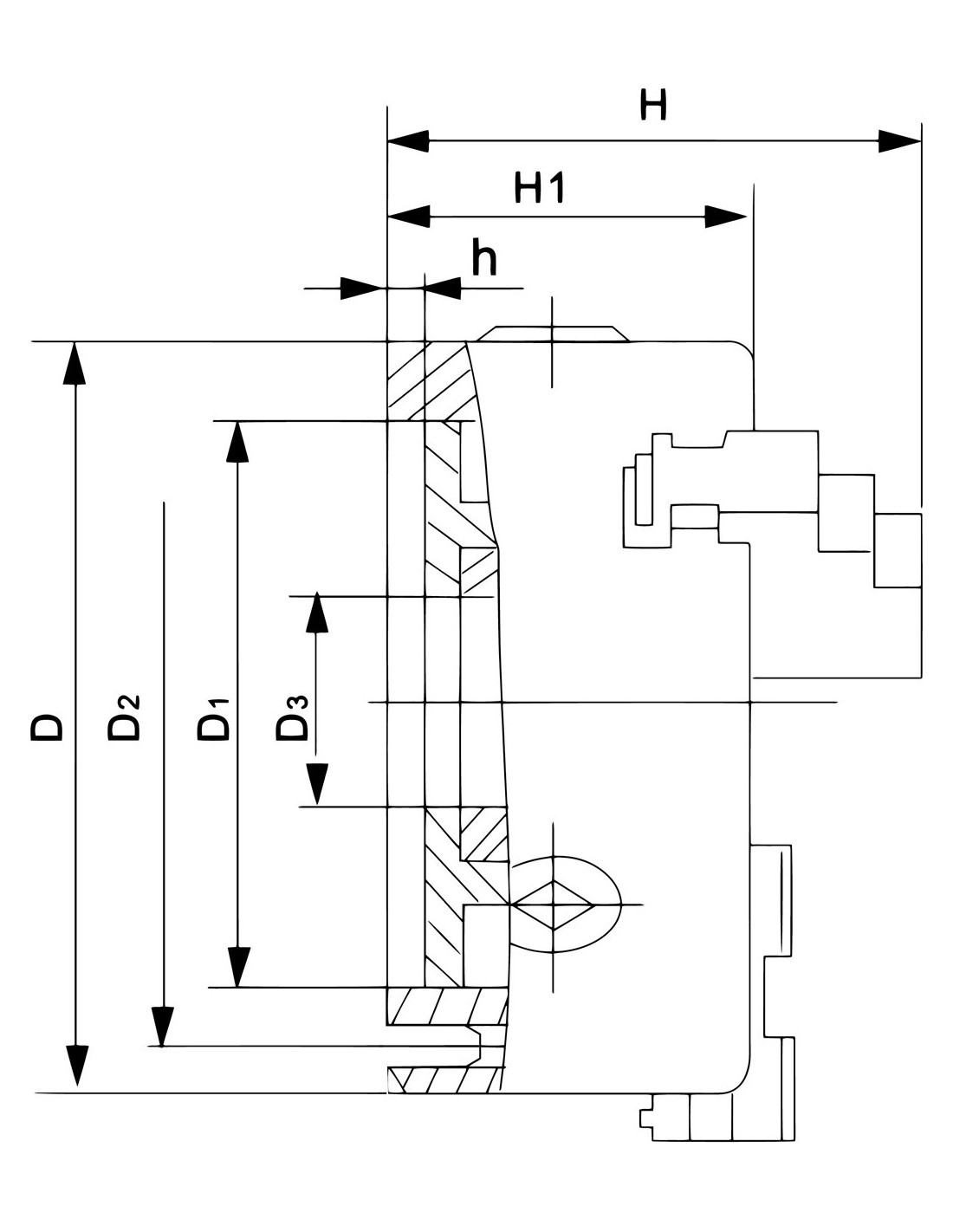

Weight approx.
128 kg
D1
420 mm
H
6 mm
205 mm
D3
210 mm
D - chuck size
500
D2
458 mm
H1
115 mm
Mounting bolts
6 x M16
Max. speed
800 rpm

Standard 3-jaw chuck DK11-500

1289836
Price €2,568.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, september 1 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 128 kg.
We will deliver the product to you via: 6-12 w.d. Venipak (€40.99)
Weight: 128 kg.

Description

Properties

Execution:

  • Standard 3-jaw chuck with high-quality cast iron body
  • With centre mount according to DIN 6350
  • Inclusive each 1 set hard inside and hard outside solid jaws



Application:

  • Useable for turning lathes and drilling devices



Standard accessories:

  • 1 set hard inside solid jaws DIJ-DK11
  • 1 set hard outside solid jaws DOJ-DK11
